Food Safe PET Barrel 600BPH 3 Gallon Filling Machine

Minimum Order Quantity : 1 set Price : USD $18,000-$20,000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF600

Detail Information

Bottle Size: 3~5 Gallon PET Bottle Capacity: 600BPH
Packaging Type: Barrel Key Selling Points: Easy To Operate
Dimension(L*W*H): 5000*2300*1800mm Usage: Barrel Water Filling
Voltage: 380V±5%, 3phase Conveyor Mode: Conveyor Belt
High Light:

600BPH gallon water filling equipment


600BPH 3 Gallon Filling Machine


600BPH Barrel Water Filling Machine

Product Description

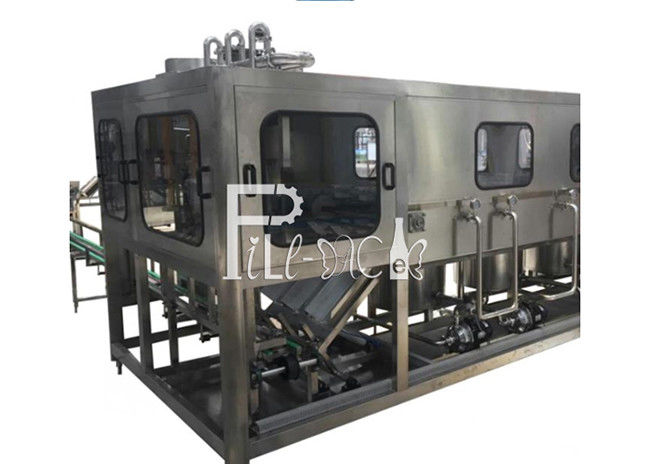

Description of 600BPH gallon water filling equipment for PET 3 to 5 Gallon Barrel


Our 600BPH gallon water filling equipment is ancillary equipment for filling drinking / mineral water. It can effectively wipe off the mineralization precipitate, and all-round washing the outer, inner and bottom of the barrel, which increase the washing result and reduce secondary pollution of manual work as well as the labor intensity of operating worker.


No Item Trait
1 circle water back to out-side brush machine Circle water back to out-side brush machine, It can save water
2 Hot lye rinsing It can control the temperature automatically, and has steam collecting equipment
3 Hot lye store tank It can keep the energy
4 Rotary spray head It can keep the spray well

Fast circle equipment

(hot lye rinsing)

It can let the hot lye water back to the tank through sealed pipe after the rinsing, and it can reduce thermal dissipating and save cost
6 Fast circle equipment (Medicine rinsing) Medicine circle water is back to the tank through the special pipe, it can reduce medicine water volatilization, and make the medicine water long use.
7 Water rinsing Special valve equipment can control the spray level
8 Bucket stuff callback equipment Special stuff callback slot, it can callback the bucket stuff and take off the bucket stuff, it can let the machine move smoothly
9 Bucket mouth cleaning equipment Our company research special bucket mouth rinsing equipment, it can solve the bucket mouth clean problem
10 Double control system Keep the traditional button control type while adding computer control
11 Pump frequency version control system It can save energy through frequency version control, It can protect the motor, meanwhile, it can reach good quality and reduce the filling water consume
12 High effect spray According to the medicine water trait, we take rotary spray, ball spray,
13 Water tank clean Absolute water tank, it has moving cover, worker can clean and sterilizing the tank, so that the water tank would not pollute the water


The parameters and specifications of gallon water filling equipment:

Containers and Specifications
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Filling volume
Filling Type
Conveyor Mode
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Conveyor belt
Adjustable Specifications
Bottle Type

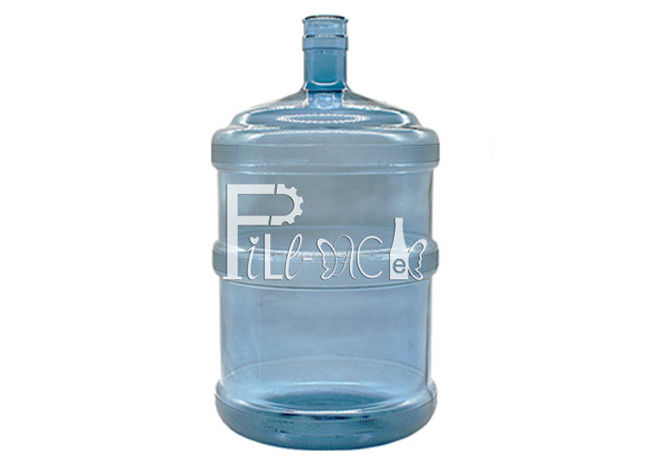

Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%



Except the model 600BPH gallon water filling equipment, we aslo have other capacities.

Model QGF-100 QGF-200 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200
Filling heads 1 2 2 3 4 6 12
Volume 3&5 Gallon
Barrel size Φ270*490mm
Capacity(b/h) 60-100 100-240 250-300 400-450 600-800 800-900 1000-1200
Air pressure(MPa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Air consumption(m³/min) 0.37 0.37 0.6 0.8 1 1.5 1.8
Motor power(kw) 1.38 1.75 3.8 3.8 7.5 9.75 13.5
Rated power(kw) 1.38 1.75 3.8 3.8 7.5 9.75 13.5


4 roads of rinsing part:

Food Safe PET Barrel 600BPH 3 Gallon Filling Machine 0

12 months warranty
During the warranty period, all replacement parts are free, exceeding the warranty period, and the replacement parts are supplied at cost price.
Reply in a timely manner
We will solve the basic problems by phone, email, whatsapp, WeChat and video as soon as possible.Usually within 24 hours.
Engineers available to service machinery overseas
Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines. Operating manuals will be sent with machine or by email.
Remote training
If you have a problem, we can solve via vide
