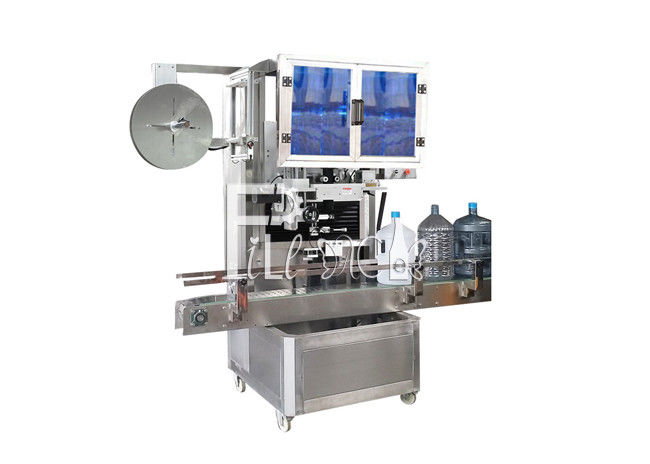

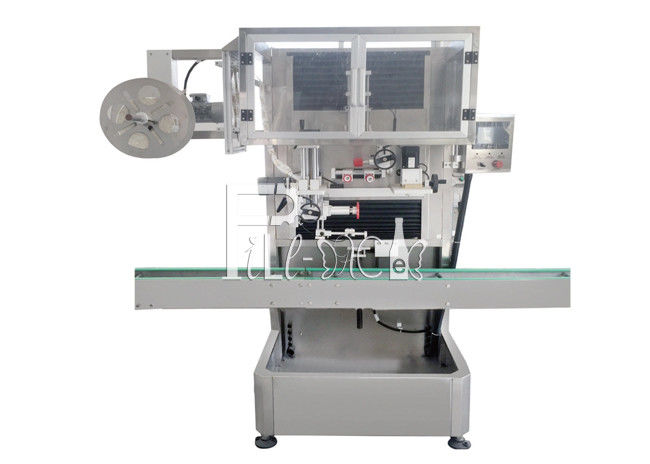

1000*800*2000mm Stainless Steel PET Bottle Labeller

Minimum Order Quantity : 1 set/pcs Price : USD$5,800.00
Packaging Details : Wooden case pacakge Delivery Time : 20-25 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5-10 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: TB-50

Detail Information

Product Name: Heat Shrink Wrapping Machine Machine Type: Fully Automatic
Advantage: Easy Operation Voltage: 380V/220V
Packaging Material: Plastic After-sales Service: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas
Size: 1000*800*2000mm Condition: New
High Light:

PET Bottle Labeller

,

Stainless Steel Bottle Labeller

,

SUS304 PET bottle labeling machine

Product Description



PET Label Roll Gallon Shrink Labeler / Plant With Stainless Steel Material



General:

Whole Gallon Shrink Labeler frame is made out of stainless steel SUS304.

The frame is simple, beautiful, waterproof and not rust. Gallon Shrink Labeler is easy for cleaning.

The special cutting system: adopting the whist and convolute technology.

The label cutting is flat, no burr.

The label location set assures the sleeving veracity.

Adopting model group design, module controlled; Achieve veracity and fast sleeving.

With the good quality touching operation screen, achieving operation by finger, easy and shortcut.

Gallon Shrink Labeler is a high automatic packing machine. Just one person handles, easy operation.

Easy to change packing material, the change over of the mould can be easily done by hand without any tools.

Within the flat width limitation, can be used to package objects in different shape, no matter round or square, can be applied on glass or plastic bottles.

Higher safely and stability for operation and saving time of manpower.



Paramater:

Voltage :1, Host machine;AC220V, 50/60HZ, 1.5-2KW, single-phase

              2, Shrinking machine :AC380V, 50/60HZ ,9KW(electrical heat ) / three phase

Diameter of label :∮28mm-∮125mm

Length of label : 30mm-250mm

Thickness of label: 0.035mm-013mm

Material of label:PVC, PET, OPS

Size: 1000*800*2000mm



Set Up

Electrical apparatus-Version B Servo motor Panasonic MBDDT2210003
PLC Mitsubishi FX1S-30MR
Photoelectricity SUNX Japan CX442
Photoelectricity SUNX Japan FX301
Contactor Schneider French LCD0610
Transducer Sanki-Taiwan S800-2S0.4G
Touch screen Esayview-Taiwan TK6070IH2
Auxiliary relay Schneider French HH54P-DC24V



Detailed Images

1000*800*2000mm Stainless Steel PET Bottle Labeller 0
