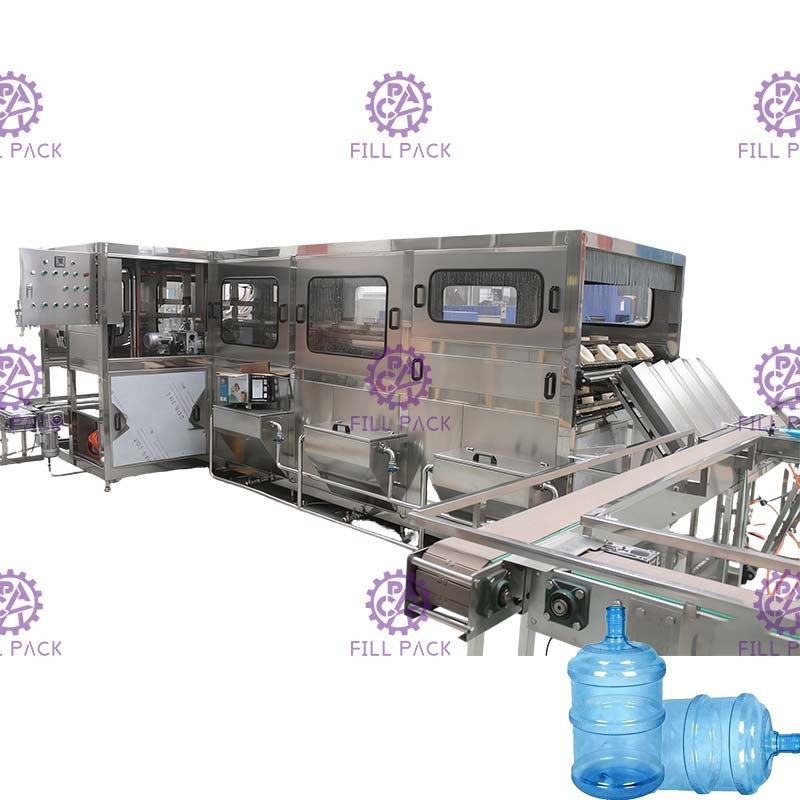

5000*2300*1800mm Monoblock Gallon Filling Equipment

Minimum Order Quantity : 1 set Price : USD $18,000-$20,000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF600

Detail Information

Bottle Type: 3/5 Gallon Bottle Capacity: 600BPH
Packaging Type: Gallon Barrel Driven Type: Electric
Dimension(L*W*H): 5000*2300*1800mm Type: Filling Machine
Conveyor Mode: Conveyor Belt Size Of Barrel: ф276×490mm
High Light:

Monoblock Gallon filling equipment

,

SUS304 Gallon Filling Equipment

,

600BPH Barrel Water Filling Machine

Product Description

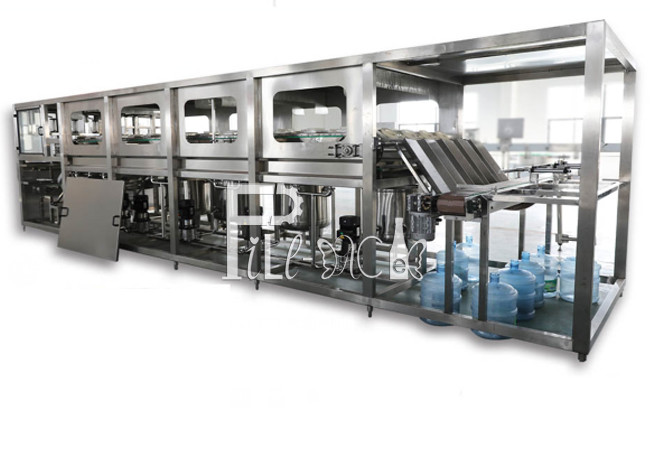

Description of Monoblock Gallon bucket filling equipment / machine with 600BPH



The Gallon bucket filling equipment is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.

1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows Automatic 5 gallon bottle washing machine



Advantages of Gallon bucket filling equipment:

The machine integrates rinser, filler and capper together.
The machine is of stainless steel, resisting corrosion and easy to clean.
The main electrical components and gas circuit elements are all of international brand.
Water pump is Nanfang, Hangzhou (Grundfos is available)
Nozzle is of America’s Spraying System Company’s technology.



The parameters and specifications of Gallon bucket filling equipment:

Containers and Specifications
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Material
Shape
Filling volume
Filling Type
Conveyor Mode
PC / PET
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Conveyor belt
Adjustable Specifications
of Bottle Type

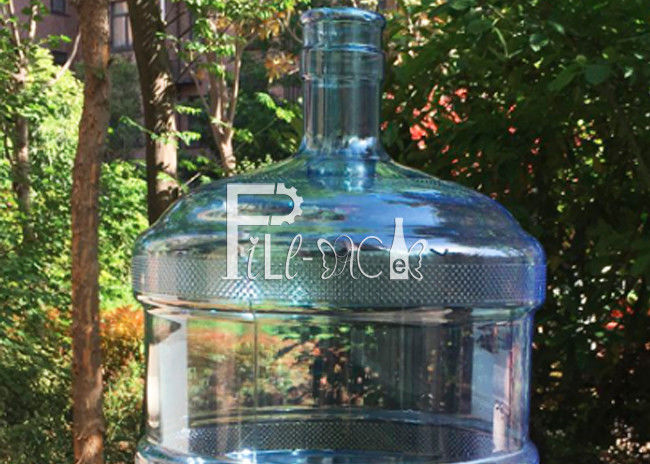

Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%



SUS304 water tank:

5000*2300*1800mm Monoblock Gallon Filling Equipment 0

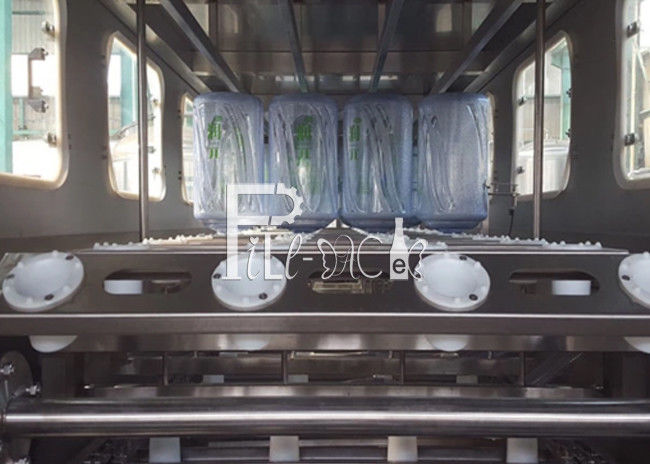

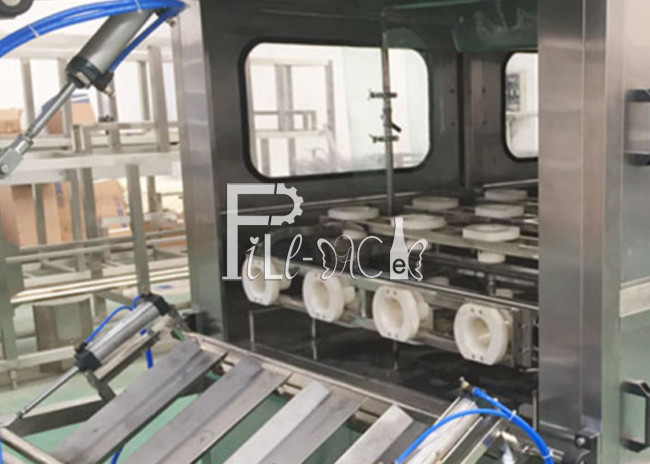

4 roads of rinsing part:

5000*2300*1800mm Monoblock Gallon Filling Equipment 1
