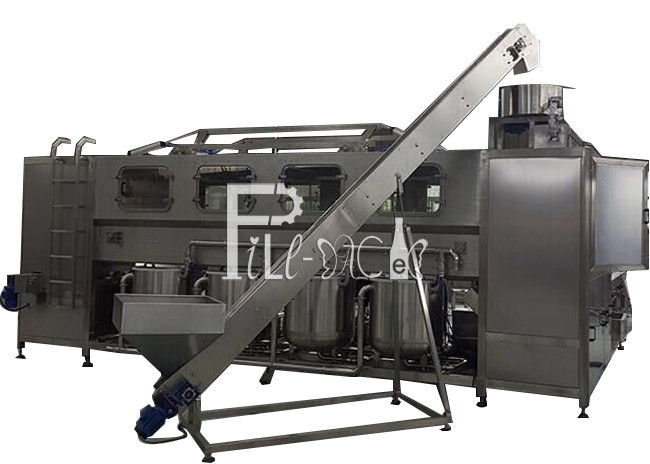

600 Bottle Per Hour L Type 20 Liter Jar Filling Machine

Minimum Order Quantity : 1 set Price : USD $18,000-$20,000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF600

Detail Information

Bottle Size: 3~5 Gallon PET Bottle Capacity: 600BPH
Voltage: 380V 50Hz, 220V/380V/415V Customized Key Selling Points: Energy Saving
Dimension(L*W*H): 5000*2300*1800mm Model: Washer Filler Capper
Conveyor Mode: Conveyor Belt Size Of Barrel: ф276×490mm
High Light:

Monoblock Jar Water Filling Machine

,

600BPH auto water filling machine

Product Description

Description of L type Bucket Water Gallon Filling equipment with speed 600BPH



Washing-filling-capping 3-in-1 Monoblock
1. 4-rows 12-washing stops. Everything stop is about 23 seconds

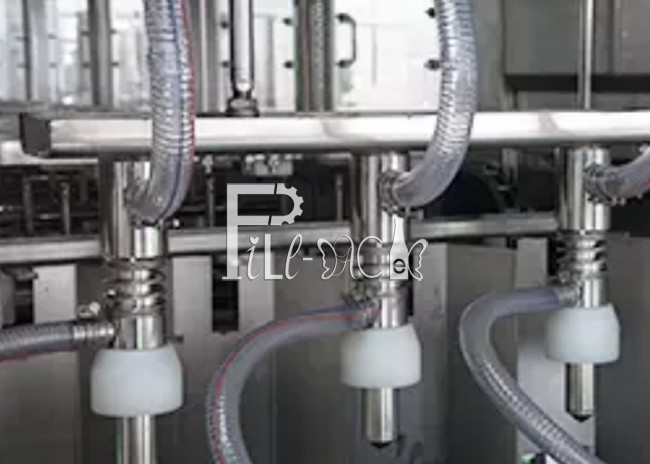

2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows



Function of Water Gallon Filling equipment: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate



The parameters and specifications of Water Gallon Filling equipment:

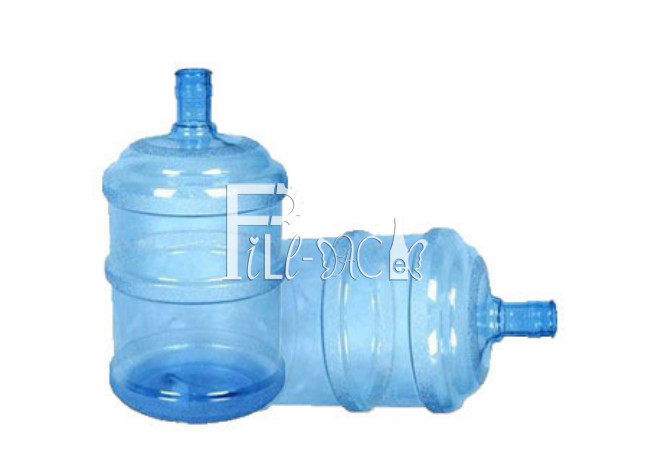

Containers and Specifications
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Material
Shape
Filling volume
Filling Type
Conveyor Mode
PC / PET
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Conveyor belt
Adjustable Specifications
of
Bottle Type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%





Except the model 600BPH Water Gallon Filling equipment, we aslo have other capacities.

Model QGF-100 QGF-200 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200
Filling heads 1 2 2 3 4 6 12
Volume 3&5 Gallon
Barrel size Φ270*490mm
Capacity(b/h) 60-100 100-240 250-300 400-450 600-800 800-900 1000-1200
Air pressure(MPa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Air consumption(m³/min) 0.37 0.37 0.6 0.8 1 1.5 1.8
Motor power(kw) 1.38 1.75 3.8 3.8 7.5 9.75 13.5
Rated power(kw) 1.38 1.75 3.8 3.8 7.5 9.75 13.5

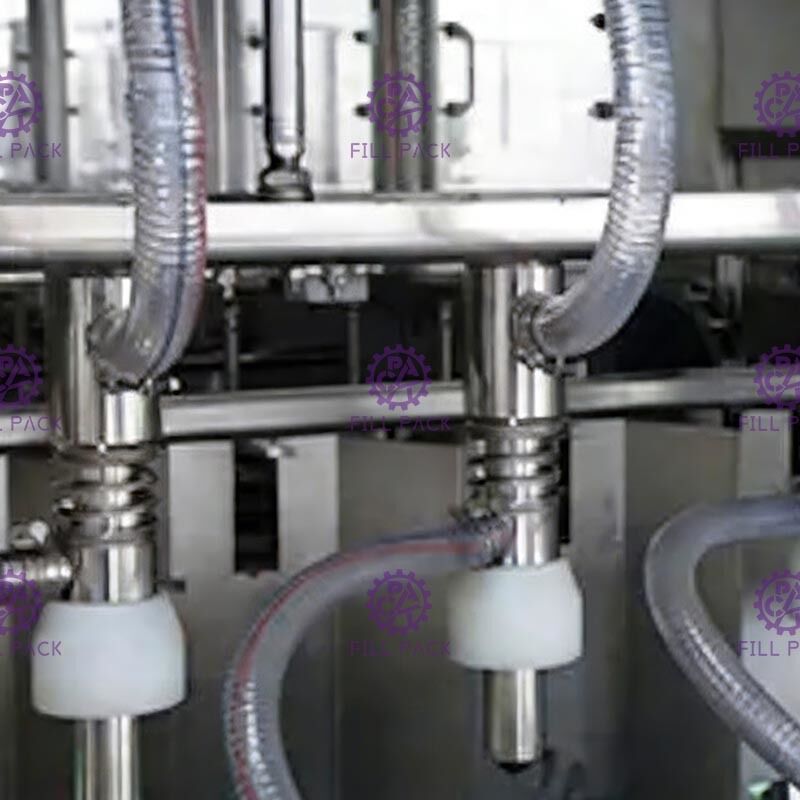

4 filling heads:

600 Bottle Per Hour L Type 20 Liter Jar Filling Machine 0

FAQ
Q1: Are you a trading company or a manufacturer?

A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
