20 Litre Single Row 120 BPH Gallon Filling Line
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 | Price : | USD $2800/set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 15-20days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 15sets / month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | QCF-120 |
|
Detail Information |
|||
| Capacity: | 100-120 Bph | Power: | 2KW |
|---|---|---|---|
| Volume: | 3-5gallon | Processing Types: | Auto |
| Control: | PID Control | Material: | SUS304 |
| Name: | 5 Gallon Filling Machine | ||
| High Light: | QGF-120 5 Gallon Filling Machine,120 BPH Gallon Filling Machine |
||
Product Description

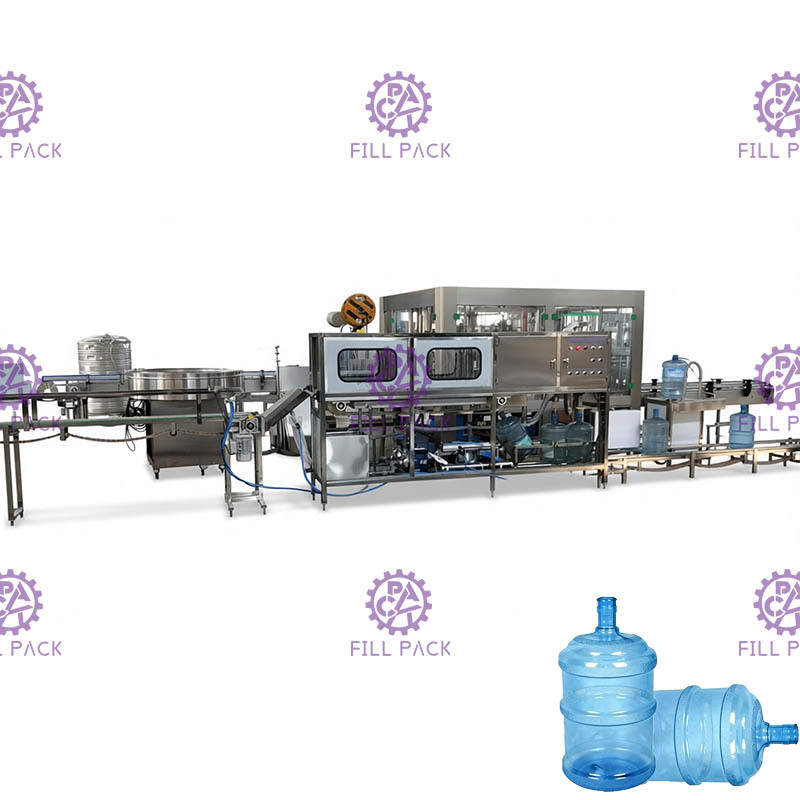

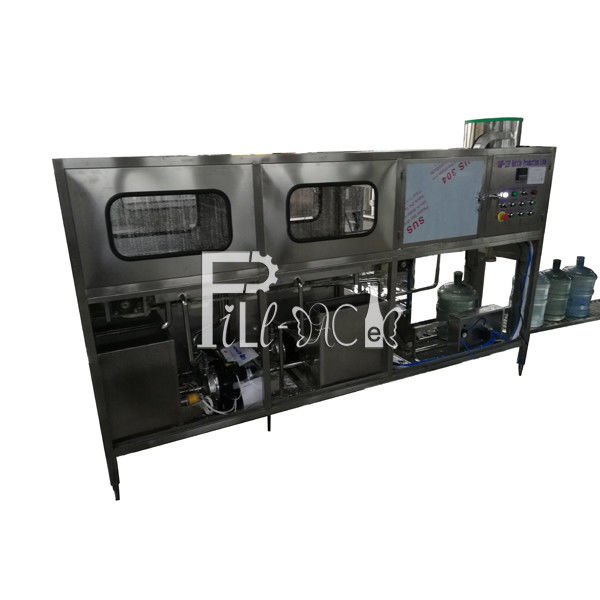

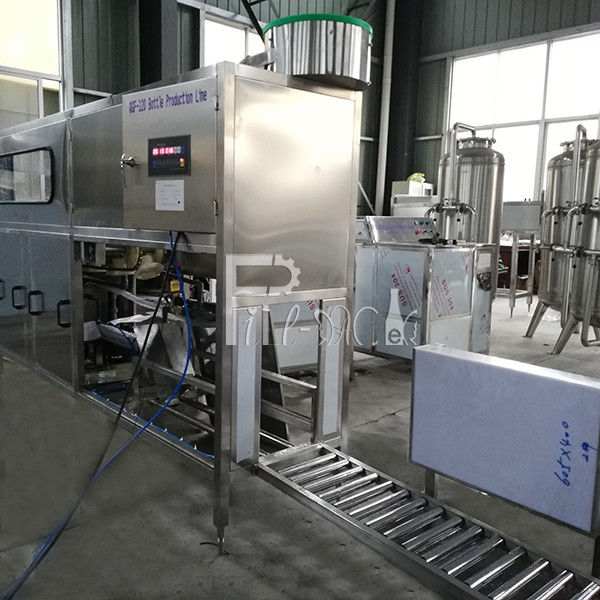

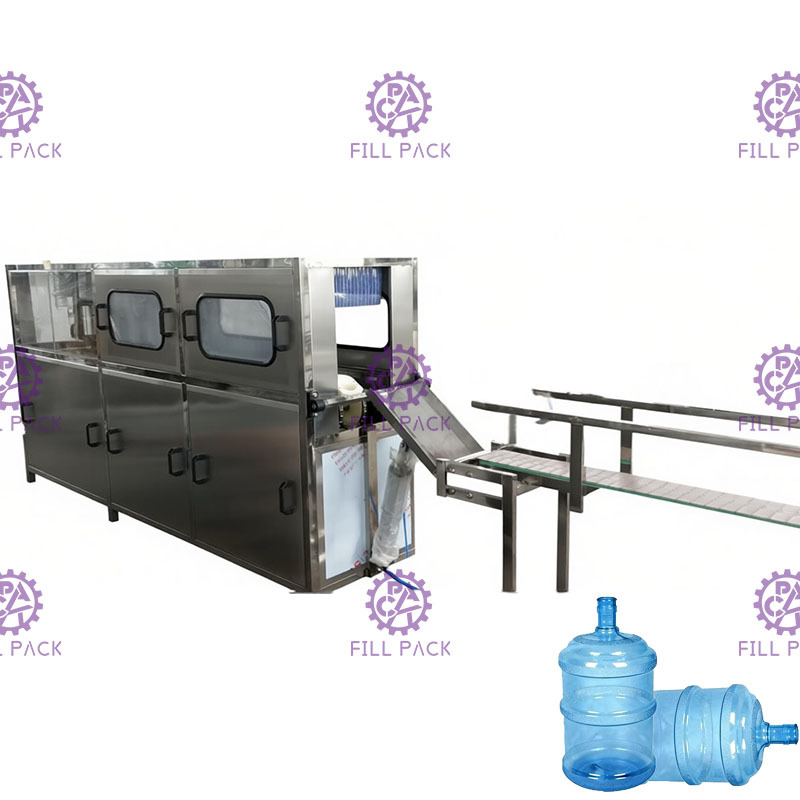

QGF-120 auto hot washing function 5 Gallon filling machine with 4 step rinsing station
Principle:
This 5 Gallon filling machine is integrated with jar washing-filling-capping functions together;
Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;
Washing will be devided into 4 parts, 1st process is by hot soap solution washing, 2nd step disinfectant fluid rinsing, 3rd process is by recycling water cleaning, the last stage is pure drinking water rinsing;
After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force;
Then the jars will be pushed by pushing cylinder to under filling head, then filling start;
Filling volume can be controlled by filling time set up.
The filled jars will be pushed to under capping head by empty jars afterwards.
Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail.
When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.

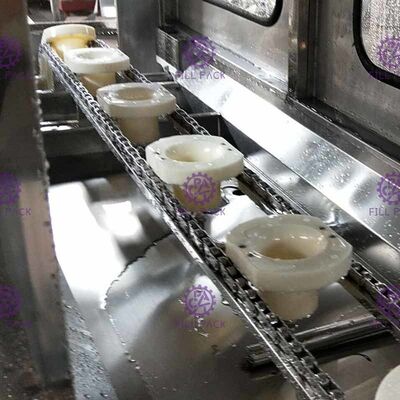

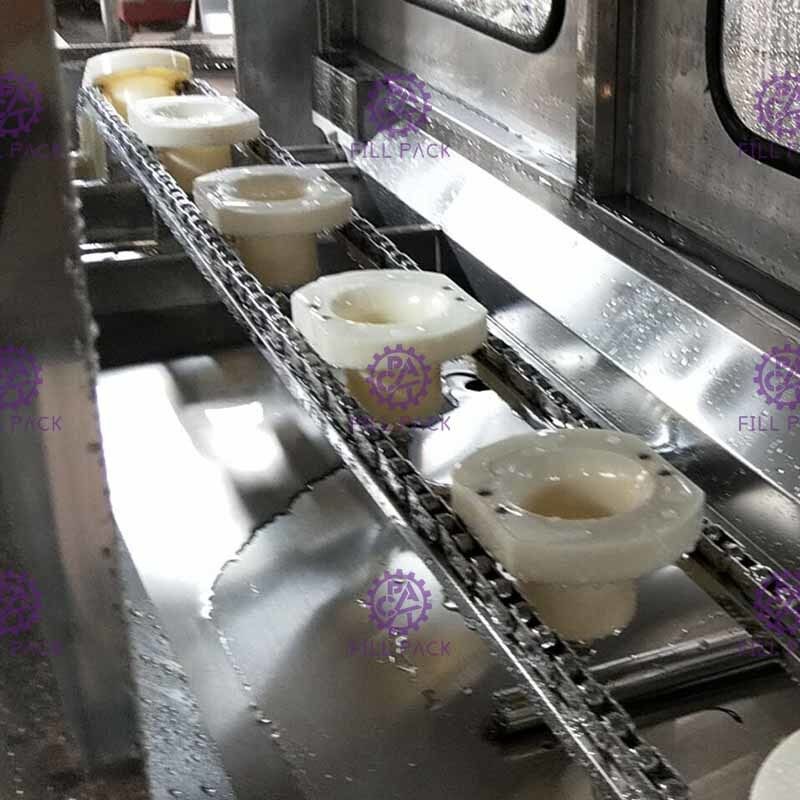

Rinsing details:
Capping pressing part:

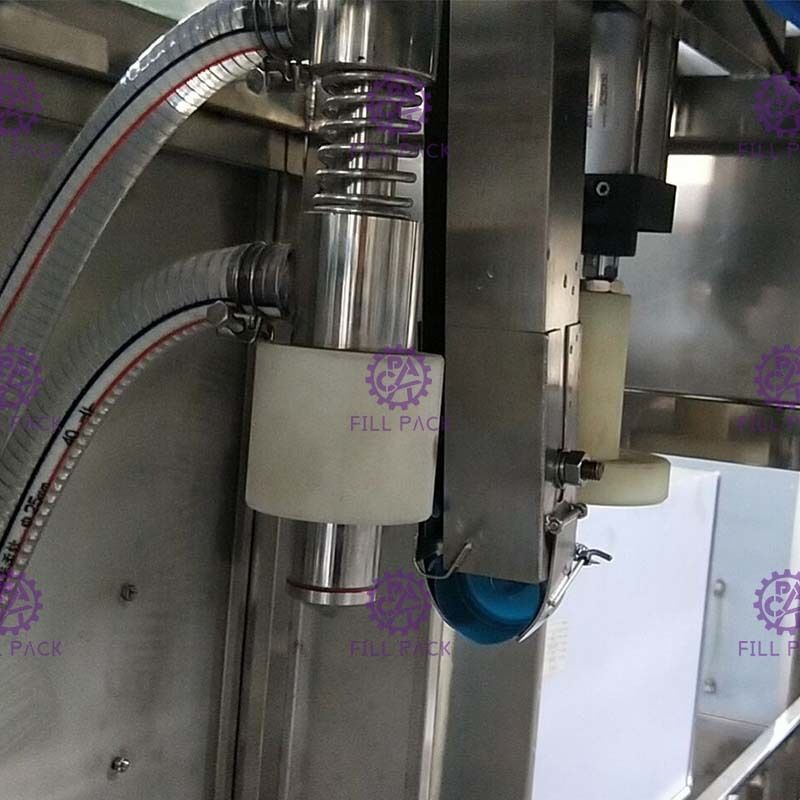

Tube deatils:
Characters:

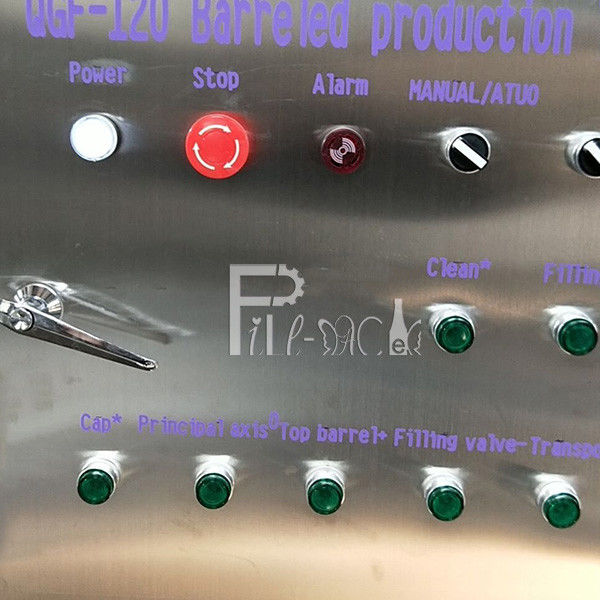

1, The whole 5 Gallon filling machine is controlled by Mitsubishi PLC system, all cylinder travel is calculated in advance for driven distance;
2, The 5 Gallon filling machine can work under automatic model, manual model is for machine checking;
Parameters:

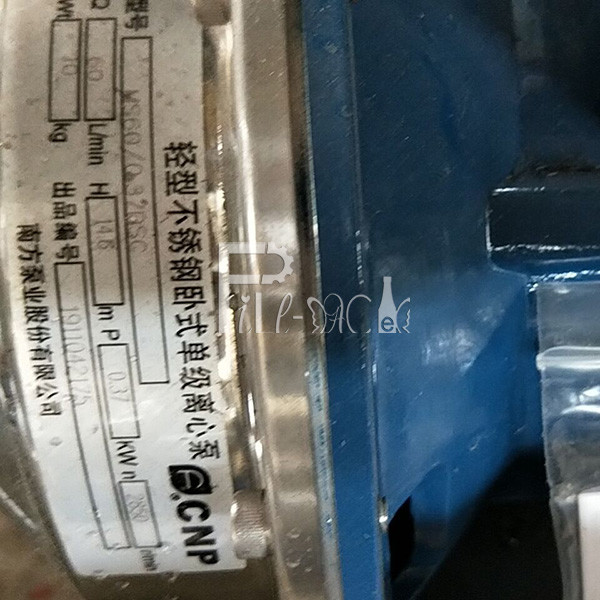

Rinsing pump 1: 0.37KW
Rinsing pump 2: 0.37KW
Filling pump: 0.55KW
Cap sorting motor: 0.09KW
Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)+ 2000mm conveyor
Weight: 400kg
Recommended Spare parts list:
| NO. | Items | Qty. | Price(USD) |
| 1 | Sealing ring for filling valves | 1suit | For free |
| 2 | Bucket holder | 2pcs | 6.8 |
| 3 | Cap pressing mould | 1pcs | 5 |
| 4 | Air switch | 1pcs | 17 |
| 5 | Contactor | 1pcs | 14 |
| 6 | Solenoid valve | 1pcs | 27 |
Packing & Delivery
1. the 5 Gallon filling machine is packed by wooden case.
2. The delivery date of gallon bottle water filling machine is within 30 days after payment.
1. installation&commissioning
After the equipment arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed
2. Training
We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.
3. Quality assurance
The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.
