Concave Convex Shape 3 In 1 20 Liter Jar Filling Machine
Contact Person : Alice Gu
Phone Number : 86-15862615333
WhatsAPP : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | USD $18,000-$20,000/set |
|---|---|---|---|
| Packaging Details : | wooden case | Delivery Time : | 15-20 working days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5 sets/month |
| Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
|---|---|---|---|
| Certification: | CE, ISO9001 | Model Number: | QGF600 |
|
Detail Information |
|||
| Bottle Size: | 3~5 Gallon | Capacity: | 600BPH |
|---|---|---|---|
| Voltage: | 380V 50Hz, 220V/380V/415V Customized | Keywords: | 600bph 5 Gallon Water Filling Machine |
| Dimension(L*W*H): | 5000*2300*1800mm | Packaging Material: | Plastic, Wood |
| Size Of Barrel: | ф276×490mm | ||
| Highlight: | 4 Road 20 Liter Jar Filling Machine,QGF-600 Barrel Filling Line |
||
Product Description

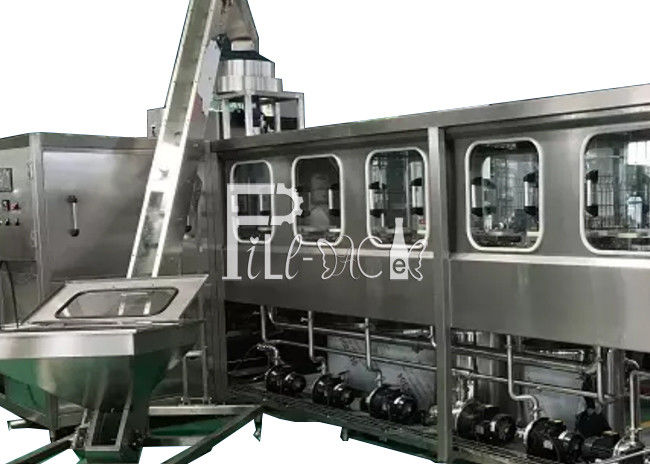

Description of 600BPH jar Water gallon bottling machine / system with 4 road / row
In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
This machine can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
Application of Water gallon bottling machine:
1. QGF series barreled production line consists of washing, filling and capping.
2. It is suitable for filling of all kinds of round and square barrels.
3. The production line adopts electric-program control.
4. It has safe devices, such as interlock, signal, automatic check and so on.
The parameters and specifications of Water gallon bottling machine:
|
Containers and Specifications
|
||||
|
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line |
Mineral Water /
Pure Water |
|||
|
Material
|
Shape
|
Filling volume
|
Filling Type
|
Conveyor Mode
|
|
PC / PET
|
Round or Square |
3 - 5 Gallon
|
Gravity filling
Normal temperature |
Conveyor belt
|
|
Adjustable Specifications
of Bottle Type |
Size of Barrel : ф276×490mm
|
|||
|
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added. |
||||
Except the model 600BPH Water gallon bottling machine, we aslo have other capacities.
| Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 |
| Volume | 3&5 Gallon | ||||||
| Barrel size | Φ270*490mm | ||||||
| Capacity(b/h) | 60-100 | 100-240 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
| Air pressure(MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Air consumption(m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |

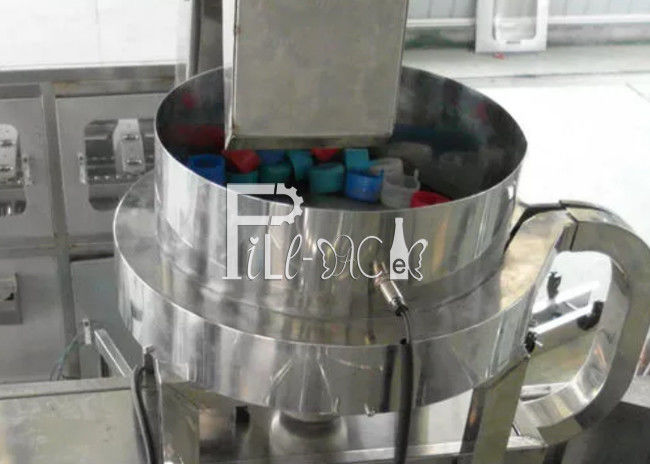

Cap feeding device:

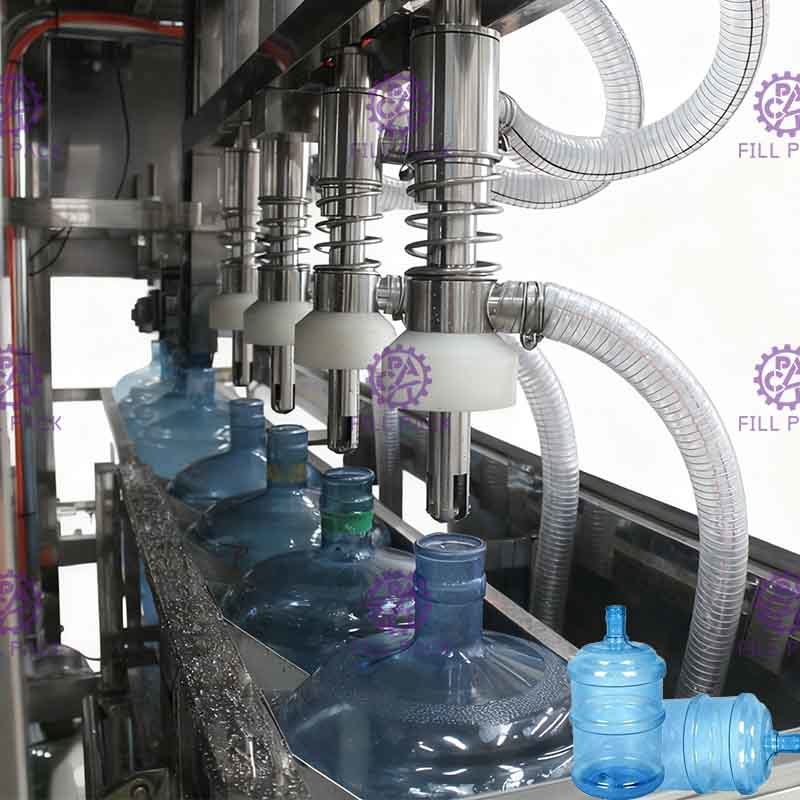

4 filling heads:
We carry a strict quality management system in accordance with ISO9001 requirements. We have established a complete processing line including design and manufacture and sale and after sale service. Our products are well sold around the world.
Please be free to contact us for more information and we are ready for making business relations with you in the near future.
FAQ:
Q:How can l get some samples?
A:We have no sample.we will send you more pictures and video about this machine,and welcome to visit our factory to see the machine running in the factory.
Q:How about the quality of your products.
A:Our company guarantees that the products provided are brand new, unused, with the latest design and suitable materials, and comply with the quality, specification and performance of the contract in all respects.
Q:What's the delivery time?
A:7-45 days after the T/T deposit or L/C.(The premise is to receive customer’s samples and deposit).
Q:What about Product’s material and configuration use?
A:304 stainless steel, the machine frame material is iron. According to customer requirements, 316 stainless steel is available , complete machine stainless steel, and customers demand specified configuration.
