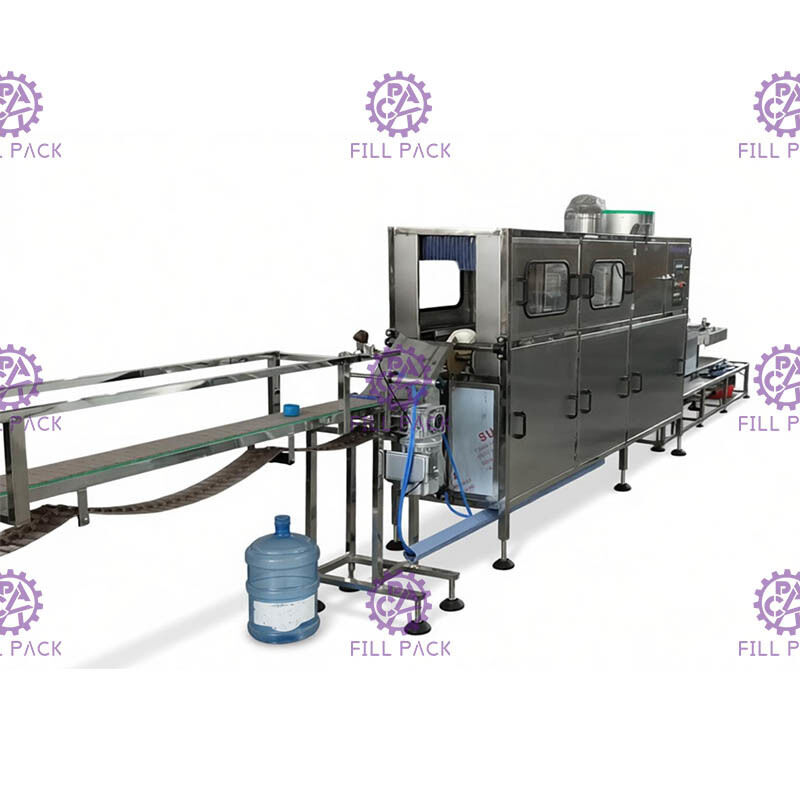

1.75KW 100 Bottles Per Hour 3 Gallon Filling Machine

Product Description

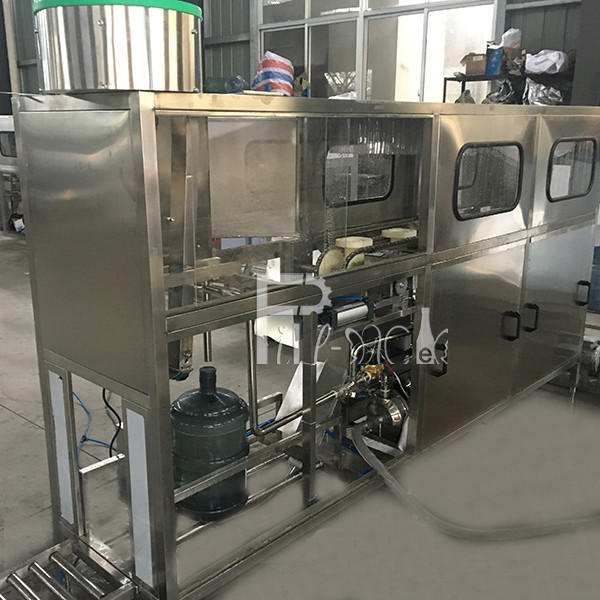

100 bottles per hour capacity gallon water filling machine with full stainless steel 304 tubes

Principle:

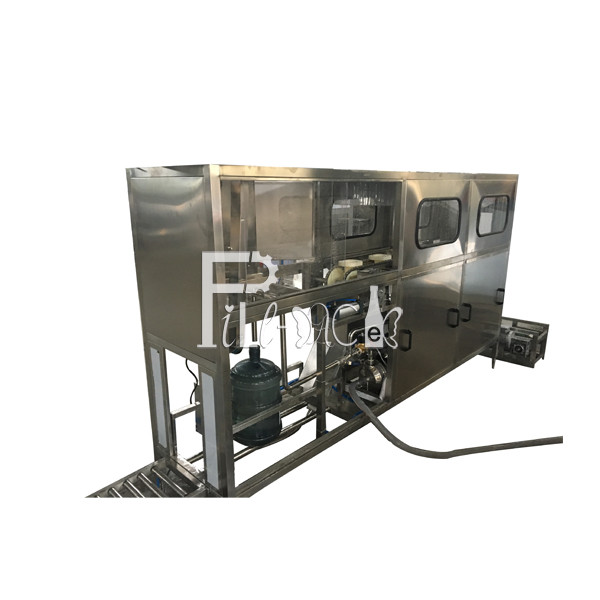

This gallon water filling machine is integrated with jar washing-filling-capping functions together;

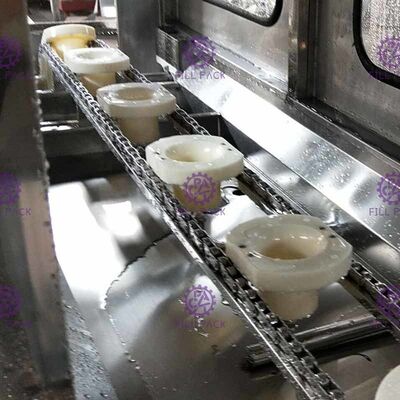

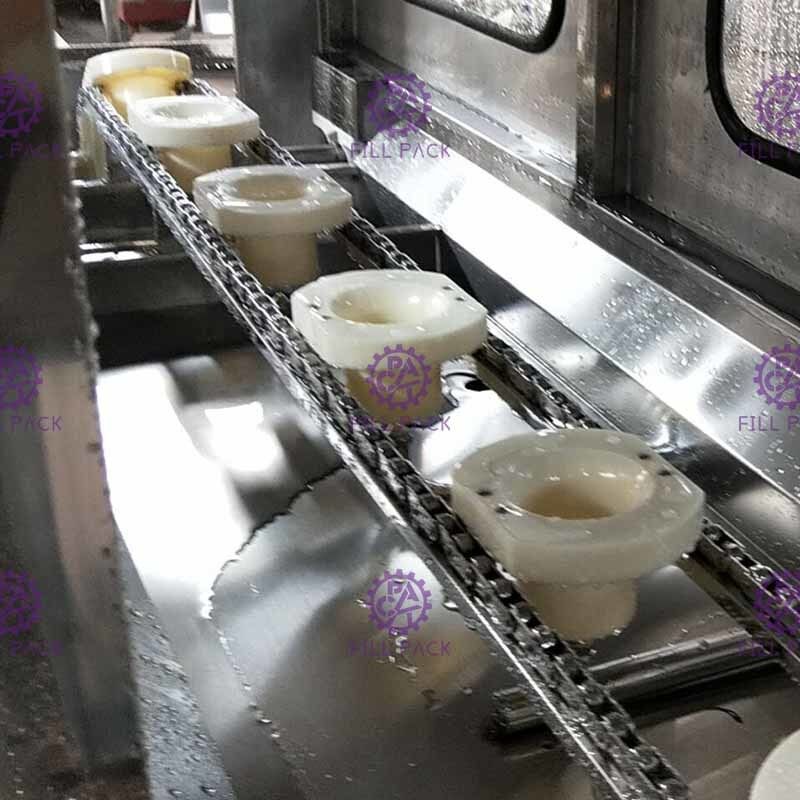

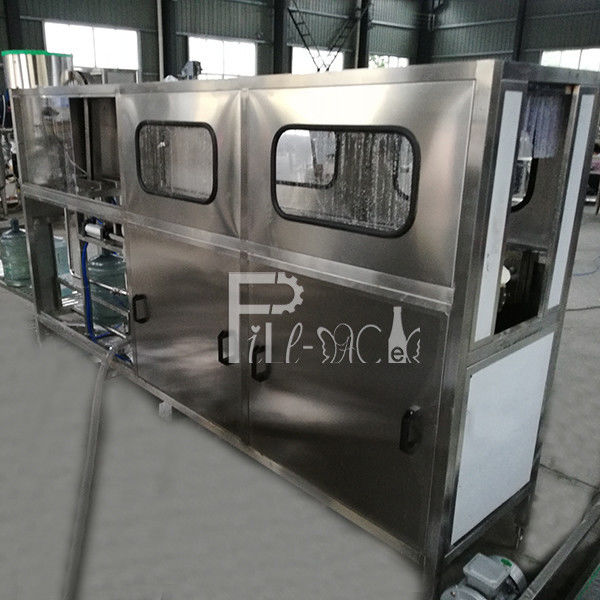

Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;

Washing will be devided into 4 parts, 1st process is by hot soap solution washing, 2nd step disinfectant fluid rinsing, 3rd process is by recycling water cleaning, the last stage is pure drinking water rinsing;

After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force;

Then the jars will be pushed by pushing cylinder to under filling head, then filling start;

Filling volume can be controlled by filling time set up.

The filled jars will be pushed to under capping head by empty jars afterwards.

Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail.

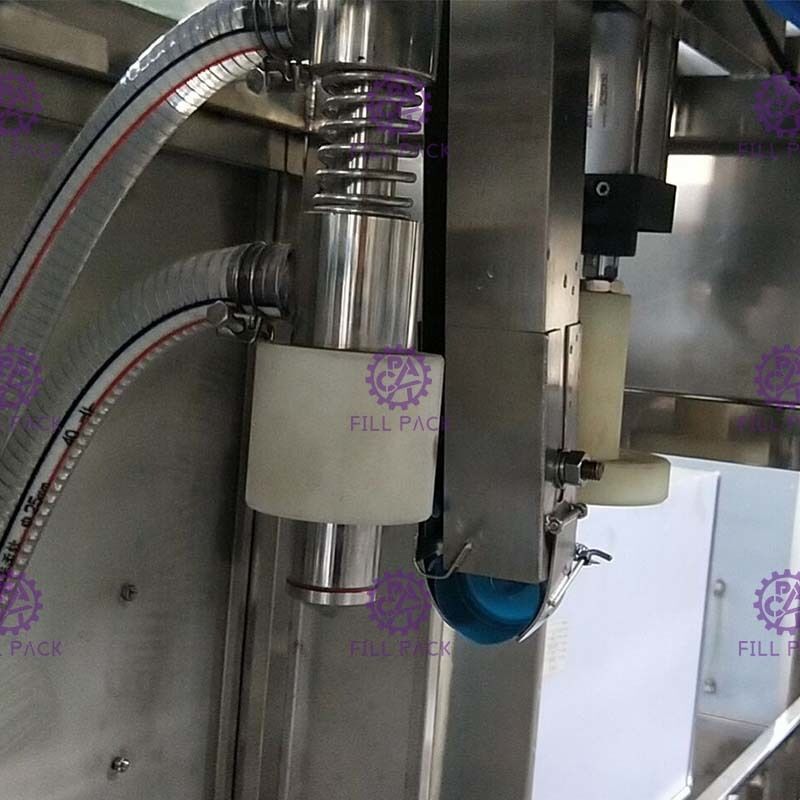

When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.

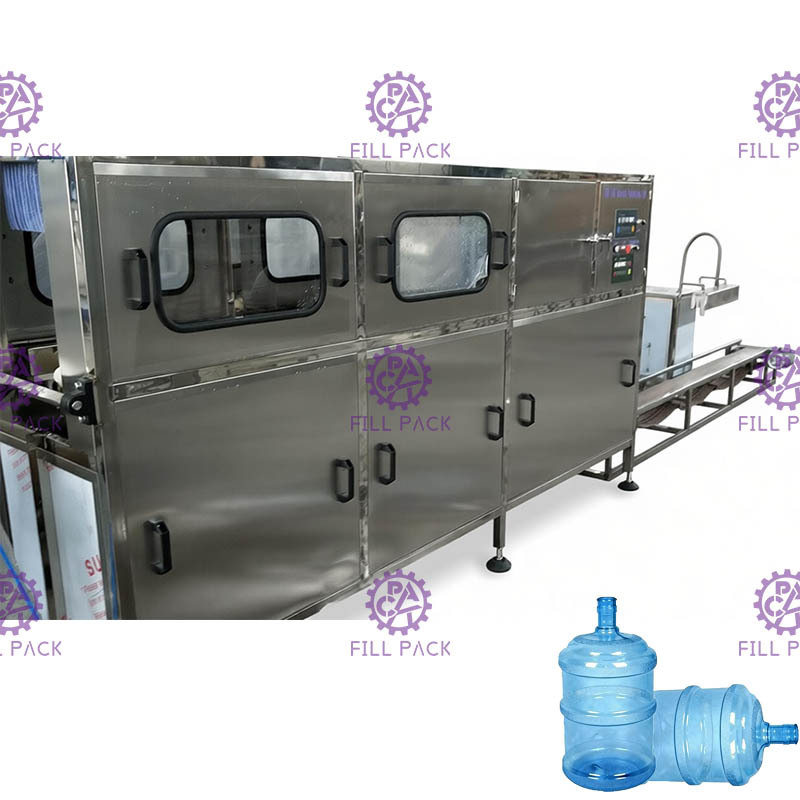

Characters:

1, The whole gallon water filling machine is controlled by Mitsubishi PLC system, all cylinder travel is calculated in advance for driven distance;

2, The gallon water filling machine can work under automatic model, manual model is for machine checking;

Parameters:

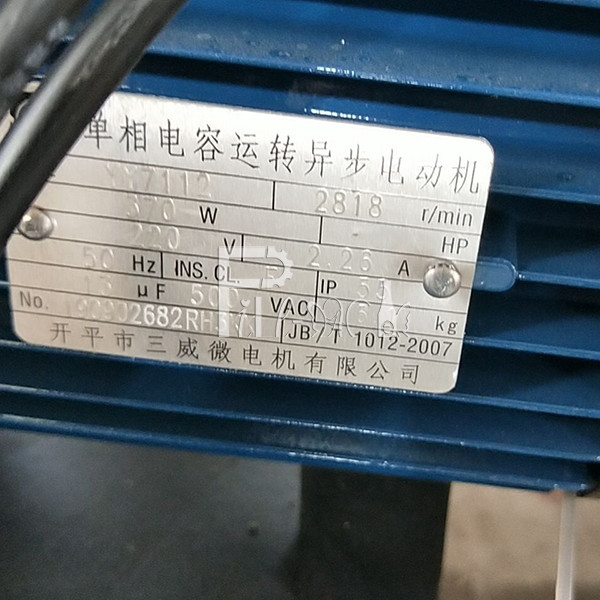

Rinsing pump 1: 0.37KW

Rinsing pump 2: 0.37KW

Filling pump: 0.55KW

Cap sorting motor: 0.09KW

Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)+ 2000mm conveyor

Weight: 400kg

Water tanks:

Electrical box:
