20 Litre Single Row 120 BPH Gallon Filling Line
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
Minimum Order Quantity : | 1 set | Price : | USD $4250/set |
---|---|---|---|
Packaging Details : | wooden case | Delivery Time : | 15-20 working days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 20 sets/month |
Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
---|---|---|---|
Certification: | CE, ISO9001 | Model Number: | QGF-120 |
Detail Information |
|||
Bottle Volume: | 18.9-20Litre | Capacity: | 120 Bottles Per Hour |
---|---|---|---|
Control: | PID | Material: | SUS 304 |
Dimension(L*W*H): | 3400*780*1950mm | Automatic Or Semi Auto: | Automatic |
Name: | 120 BPH Gallon Filling Line | Condition: | New |
High Light: | Sterile 120 BPH Gallon Filling Line,120 BPH 3 gallon bottle filler |
Product Description
Sterile water washing barrel water bottling line with decapper and brushing and neck sleeve shrink
Equipment list:
1.1 |
Semi-auto de-capper and washer |
BS-1 | 600*600*2000 | 1set |
1.2 |
Monoblock rinser-filler-capper with full SUS304 |
QCF-120 | 3400*780*1950 | 1set |
1.3 | Roller conveyor | / | 2M | 1set |
1.4 | Checking Light | CL-1 | 1000*100*450 | 1pc |
1.5 |
Label shrink tunnel |
/ | 600*600*1000 | 1set |
1.6 |
Solid Ink Roll Coding Machine |
FP-380F |
440*345*300 |
1set |

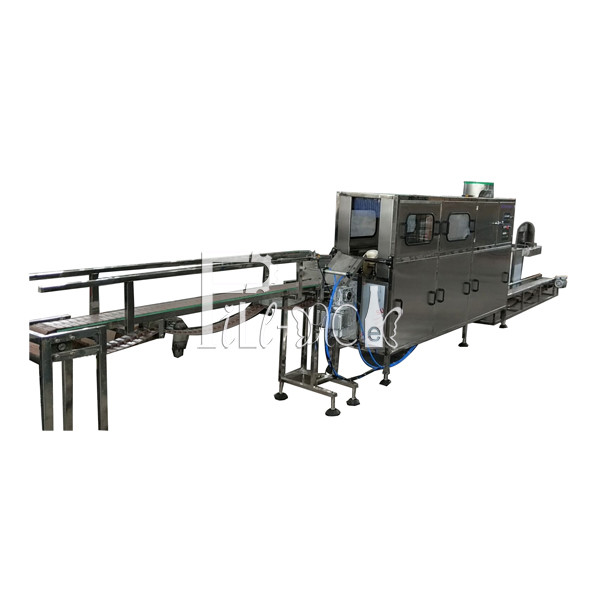

The Barrel water bottling line includes Semi-auto de-capper and washer, Monoblock rinser-filler-capper,Roller conveyor, Label shrink tunnel, Checking Light,Solid Ink Roll Coding Machine

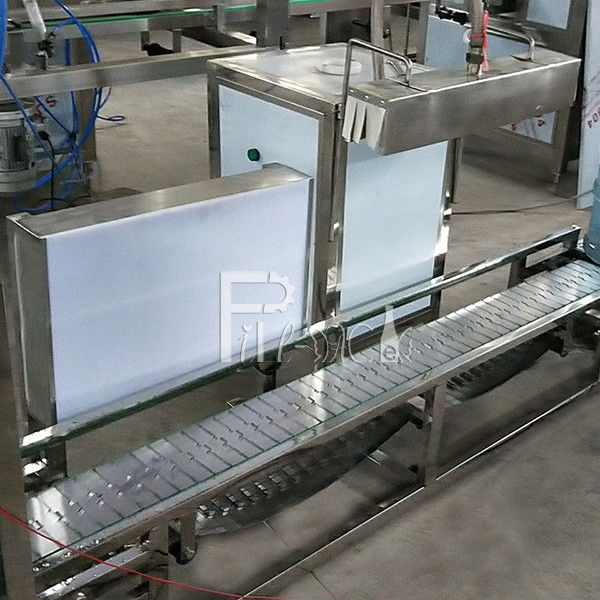

1, Semi-auto de-capper and washer
Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position.
After the jar putting in, the window need to be closed.
Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish.
Heating function could be switched on/ off as client’s needing.
Parameters:
Power: 1.12KW without heating, 2.12KW with heating
Plate thickness: 1MM
Machine cube size: 25*25MM
Cube thickness: 1.5CM
Recommended Spare parts list:
NO. |
Items |
Qty. |
Price(USD) |
1 |
inner brush |
1pcs |
For free |
2 |
outer brush |
3pcs |
22 |
3 |
bucket neck brush |
3pcs |
|
4 |
bucket bottom brush |
1pcs |
|
5 |
spare buttons for control |
1suit |
7 |
6 |
Air switch |
1pcs |
17 |
7 |
Contactor |
1pcs |
14 |
8 |
Foot pedal |
1pcs |
12 |

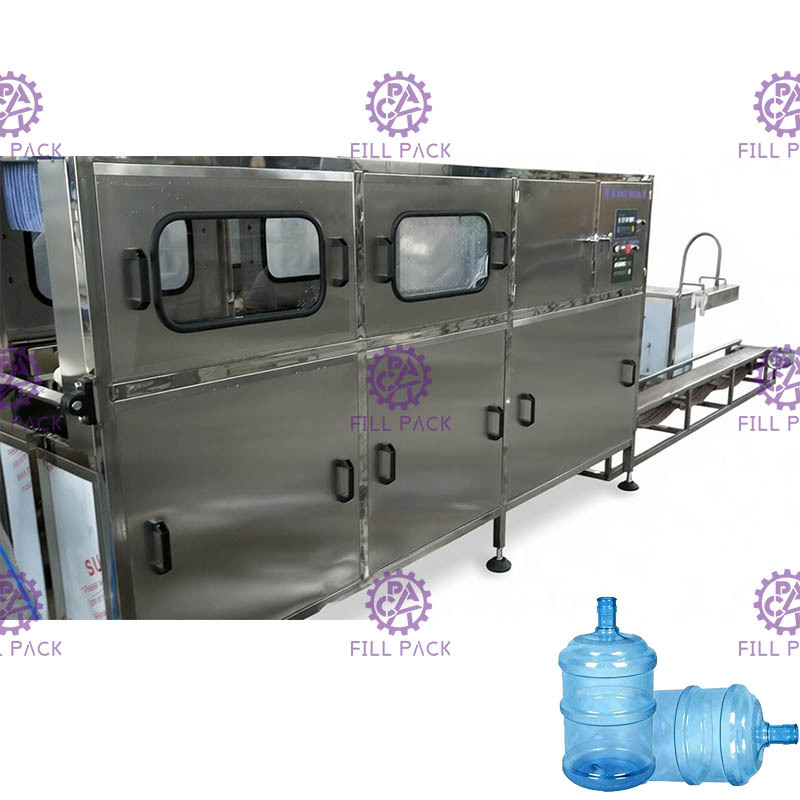

2, Monoblock rinser-filler-capper with full SUS304
Principle:
This Barrel water bottling line is integrated with jar washing-filling-capping functions together;

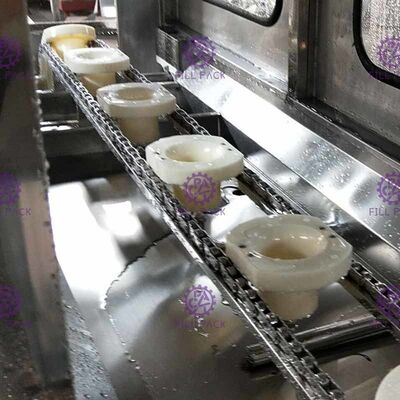

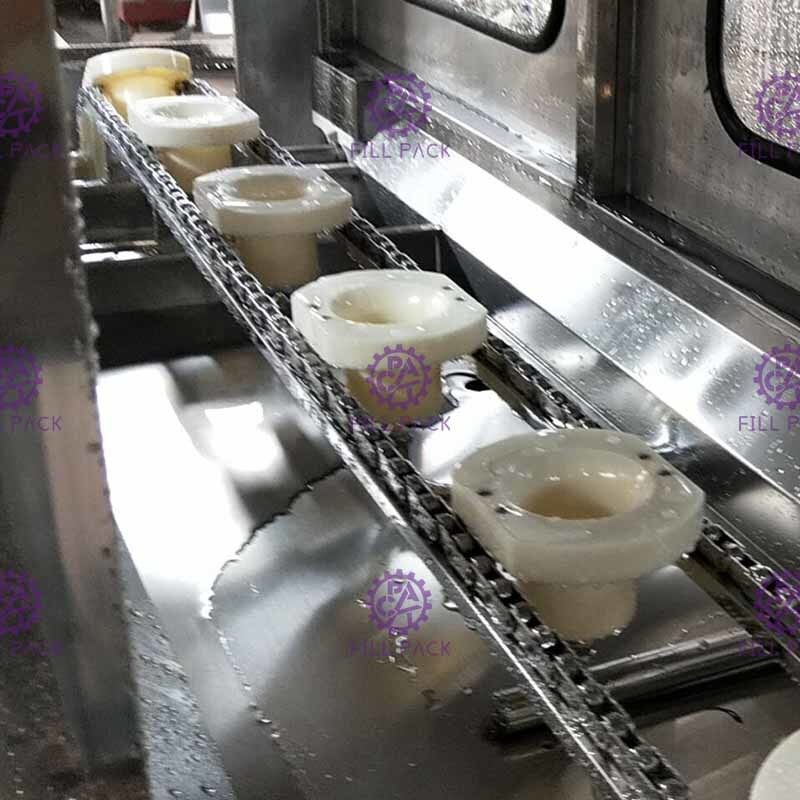

Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;
Washing will be devided into 3 parts, 1st process is by disinfectant fluid, 2nd process is by recycle water washing, 3rd process is by pure water;
After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force;
Then the jars will be pushed by pushing cylinder to under filling head, then filling start;
Filling volume can be controlled by filling time set up.
The filled jars will be pushed to under capping head by empty jars afterwards.

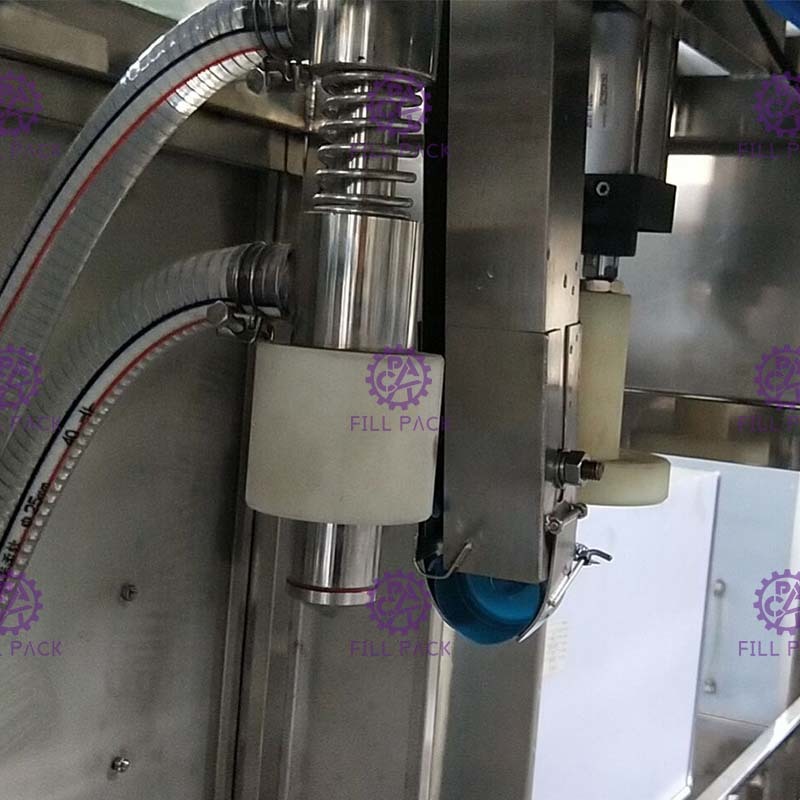

Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.
Characters:
1, The Barrel water bottling line is controlled by PLC system, all cylinder travel is calculated in advance for driven distance;
2, The Barrel water bottling line can work under automatic model, manual model is for machine checking;
3, The auto loading device is controlled by the PLC system;
Parameters:
Rinsing pump 1: 0.37KW
Rinsing pump 2: 0.37KW
Filling pump: 0.55KW
Cap sorting motor: 0.09KW
Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)
+ 2000mm conveyor
Weight: 400kg

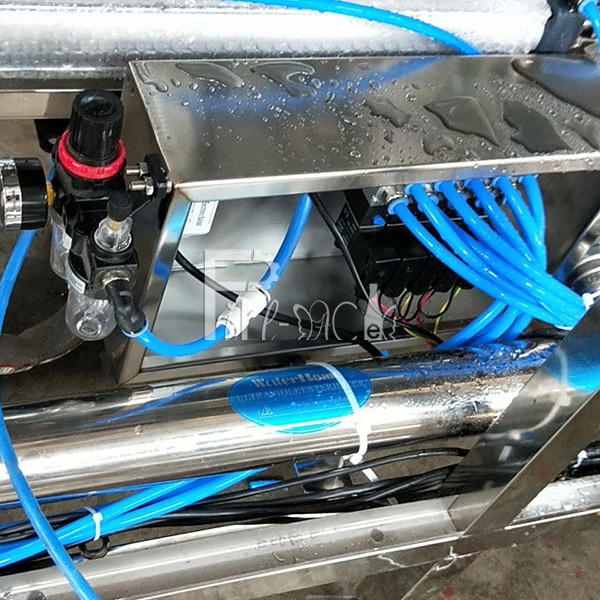

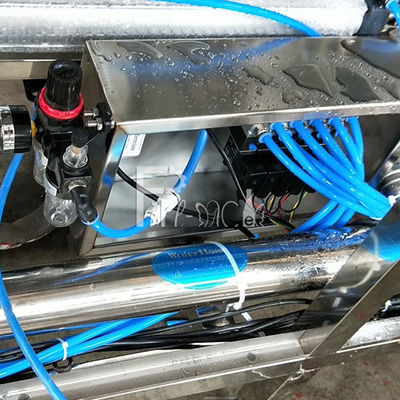

Control details:
Parameters:
Rinsing pump 1: 0.37KW
Rinsing pump 2: 0.37KW
Filling pump: 0.55KW
Cap sorting motor: 0.09KW
Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)+ 2000mm conveyor
Weight: 400kg
SUS304 belt conveyor for output details:
Recommended Spare parts list:

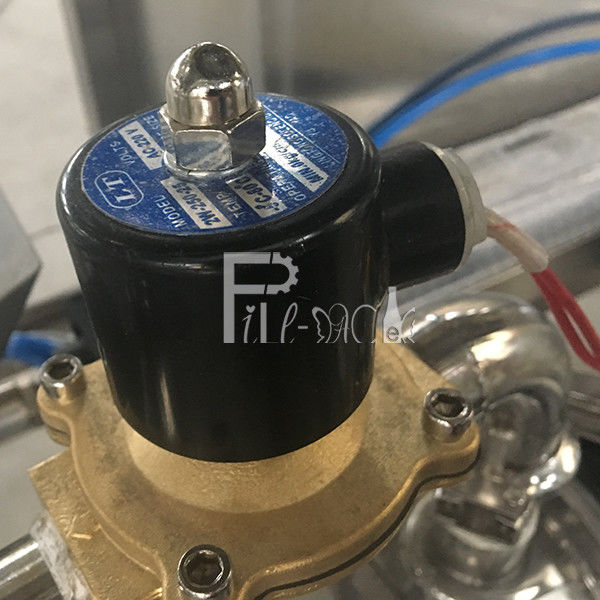

NO. | Items | Qty. | Price(USD) |
1 | Sealing ring for filling valves | 1suit | For free |
2 | Bucket holder | 2pcs | 6.8 |
3 | Cap pressing mould | 1pcs | 5 |
4 | Air switch | 1pcs | 17 |
5 | Contactor | 1pcs | 14 |
6 | Solenoid valve | 1pcs | 27 |
3, Roller conveyor 4, Checking light 5, Label shrink tunnel
1.6, Solid Ink Roll Coding Machine
Description:
The use of photoelectric integration technology, advanced solid ink wheel, has the excellent performance of instant printing and instant dry, which is not easy to erase. The machine is advanced in design, precise in manufacturing, stable in operation, longitudinally controlled in position by electronic control, arbitrarily adjustable, photoelectrically controlled printing actions and counts, and the number of printable sheets can be set.
Applicable to the surface indentation or color printing production date, product batch number, expiration date, inspection qualification, etc. of paper boxes, labels, tags, certifications, etc., with automatic sorting, automatic counting, random positioning, preset printing times, Indentation is clear, color is optional, printing speed is fast, instantaneous printing instant dry, loss and other advantages.
Plant layout drwaing for reference:
