Stainless Steel 304 120 BPH 5 Gallon Filling Machine

Minimum Order Quantity : 1 set Price : USD $4250/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-120

Detail Information

Bottle Size: 3~5 Gallon Bottle Capacity: 120BPH
Control: PLC Material: Stainless Steel 304
Dimension(L*W*H): 3400*780*1950 Automatic Grade: Automatic
Condition: New
High Light:

120 BPH 5 gallon water bottling machine

,

SUS304 120 BPH Gallon Filling Line

Product Description

120 BPH gallon water production plant with date printer leve filling head



Equipment list:

1.1

Semi-auto de-capper and washer

BS-1 600*600*2000 1set
1.2

Monoblock rinser-filler-capper with full SUS304

QCF-120 3400*780*1950 1set
1.3 Roller conveyor / 2M 1set
1.4 Checking Light CL-1 1000*100*450 1pc
1.5

Label shrink tunnel

/ 600*600*1000 1set
1.6

Solid Ink Roll Coding Machine

FP-380F

440*345*300

1set


The Gallon water production plant includes Semi-auto de-capper and washer, Monoblock rinser-filler-capper,Roller conveyor, Label shrink tunnel, Checking Light,Solid Ink Roll Coding Machine

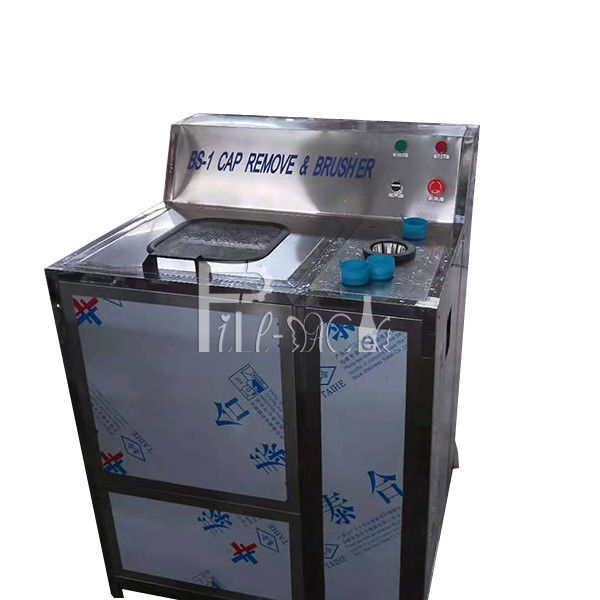

1, Semi-auto de-capper and washer

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position.

After the jar putting in, the window need to be closed.

Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish.

Heating function could be switched on/ off as client’s needing.



Parameters:

Power: 1.12KW without heating, 2.12KW with heating

Plate thickness: 1MM

Machine cube size: 25*25MM

Cube thickness: 1.5CM

Stainless Steel 304 120 BPH 5 Gallon Filling Machine 0



Recommended Spare parts list:



NO.

Items

Qty.

Price(USD)

1

inner brush

1pcs

For free

2

outer brush

3pcs

22

3

bucket neck brush

3pcs

4

bucket bottom brush

1pcs

5

spare buttons for control

1suit

7

6

Air switch

1pcs

17

7

Contactor

1pcs

14

8

Foot pedal

1pcs

12



2, Monoblock rinser-filler-capper with full SUS304

Principle:

This Gallon water production plant is integrated with jar washing-filling-capping functions together;

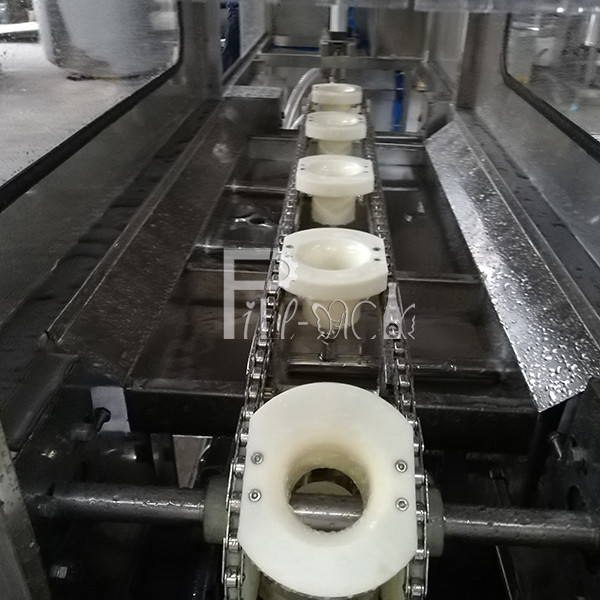

Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;

Washing will be devided into 3 parts, 1st process is by disinfectant fluid, 2nd process is by recycle water washing, 3rd process is by pure water;

After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force;

Then the jars will be pushed by pushing cylinder to under filling head, then filling start;

Filling volume can be controlled by filling time set up.

The filled jars will be pushed to under capping head by empty jars afterwards.

Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.



Characters:

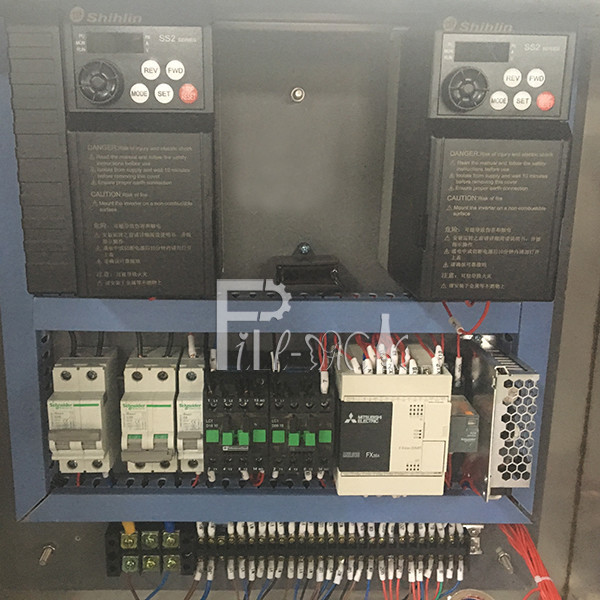

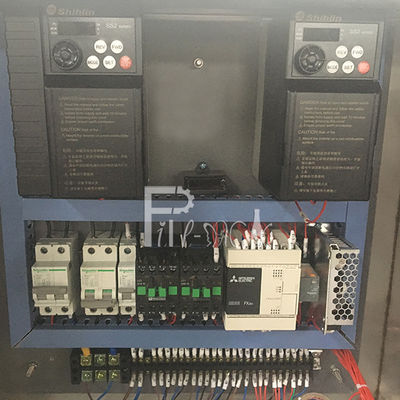

1, The Gallon water production plant is controlled by PLC system, all cylinder travel is calculated in advance for driven distance;

2, The Gallon water production plant can work under automatic model, manual model is for machine checking;

3, The auto loading device is controlled by the PLC system;



Parameters:

Rinsing pump 1: 0.37KW

Rinsing pump 2: 0.37KW

Filling pump: 0.55KW

Cap sorting motor: 0.09KW

Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)

+ 2000mm conveyor

Weight: 400kg



Lelel filling valve with high precision deatils for ref:

Stainless Steel 304 120 BPH 5 Gallon Filling Machine 1



Recommended Spare parts list:

NO. Items Qty. Price(USD)
1 Sealing ring for filling valves 1suit For free
2 Bucket holder 2pcs 6.8
3 Cap pressing mould 1pcs 5
4 Air switch 1pcs 17
5 Contactor 1pcs 14
6 Solenoid valve 1pcs 27




3, Roller conveyor  4, Checking light  5, Label shrink tunnel

Stainless Steel 304 120 BPH 5 Gallon Filling Machine 2



1.6, Solid Ink Roll Coding Machine

Description:

The use of photoelectric integration technology, advanced solid ink wheel, has the excellent performance of instant printing and instant dry, which is not easy to erase. The machine is advanced in design, precise in manufacturing, stable in operation, longitudinally controlled in position by electronic control, arbitrarily adjustable, photoelectrically controlled printing actions and counts, and the number of printable sheets can be set.

Applicable to the surface indentation or color printing production date, product batch number, expiration date, inspection qualification, etc. of paper boxes, labels, tags, certifications, etc., with automatic sorting, automatic counting, random positioning, preset printing times, Indentation is clear, color is optional, printing speed is fast, instantaneous printing instant dry, loss and other advantages.
