Rotary 1800*1550*1750mm 900BPH 5 Gallon Bottle Washer

Minimum Order Quantity : 1 Price : USD $4100/set
Packaging Details : Wooden Case Package Delivery Time : 15-20 days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: RXT-3

Detail Information

Name: Bottle Outside Brushing Machine Weight: 800kg
Dimension(L*W*H): 1800*1550*1750mm Voltage:: 220V/380V
Capacity: 450-900BPH Power: 2.97KW
Bottle’s Specification: Φ270×490×Φ56mm Condition: New
High Light:

900BPH 5 Gallon Bottle Washe


900BPH 5 Gallon Bottle Washing Equipment


Φ270×490×Φ56 Gallon Bottle Rinser

Product Description

Description of Rotary high speed bucket washing machine for 5 gallon bottling line


The bottle goes into the outside cleaning machine by the action of conveyor and bottle closed to the main rotate brusher .the direction of main brushing rotate is opposite with the bottle and bottle bottom brusher rotate direction. The bottle finish revolution one circle, self rotate running. Washing pump offer the water or cleaning liquid to every brusher. And the liquid can be recycled because of the bottom water tank. The bottle in the outside brushing machine rotates 270°. Then goes into the spray room. After spraying, the bottle carried out by conveyor .the spraying room water can from the same washing pump, and the water also can be recycled to use.

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. With the omni-directional cleaning including the bottom, inner and outer of the barrel, the machinery improves the cleaning efficiency remarkable and reduces the possible pollution caused from manual washing and decreases the worker’s pressure.


The bucket washing machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.


Main Technical parameter of bucket washing machine:

Items Specification
Production capacity 900 BPH
Bottle’s specification (mm) Φ270×490×Φ56

pump 0.37+motors 0.75*2+transfer motor 1.1=2.97KW

Input Voltage AC 380V±5%/220/110 50/60Hz
Rated current 15A
Net weight 800kg
Outer size


Recycle water tank size

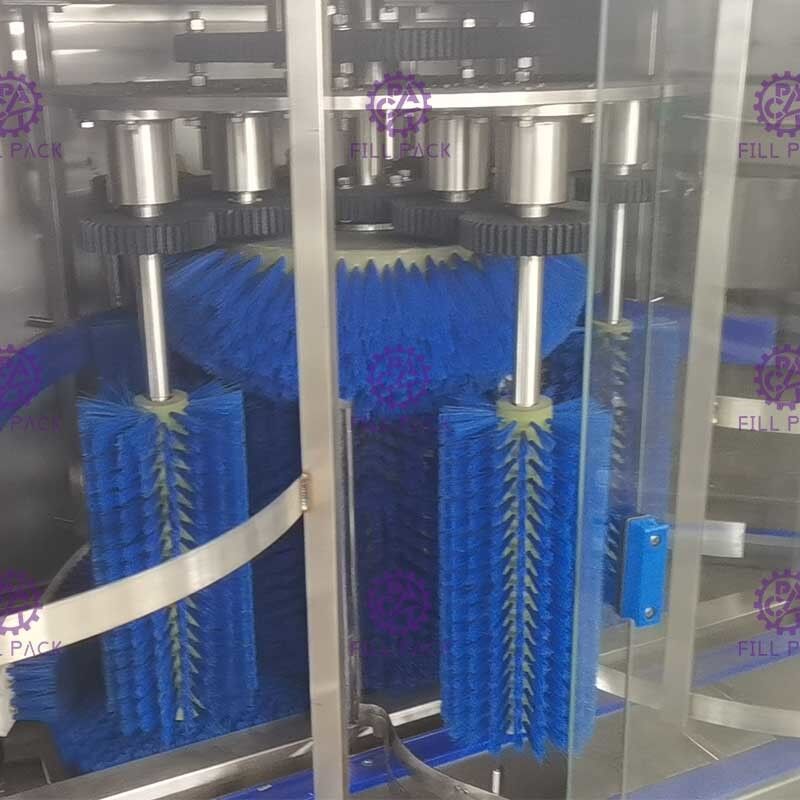

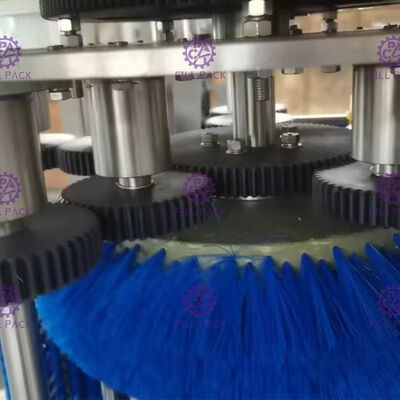

The details of bucket washing machine:

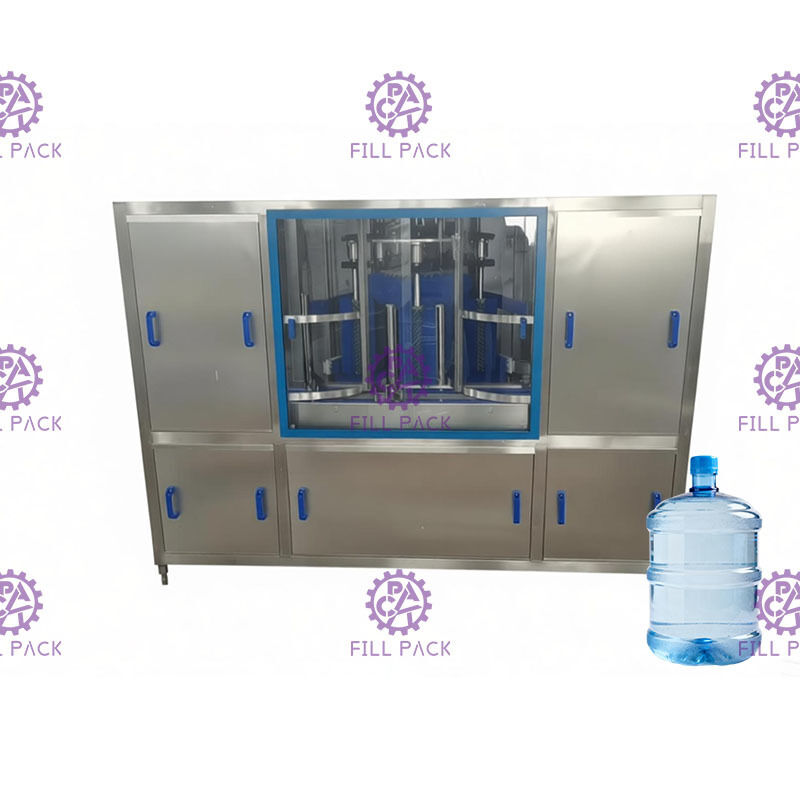

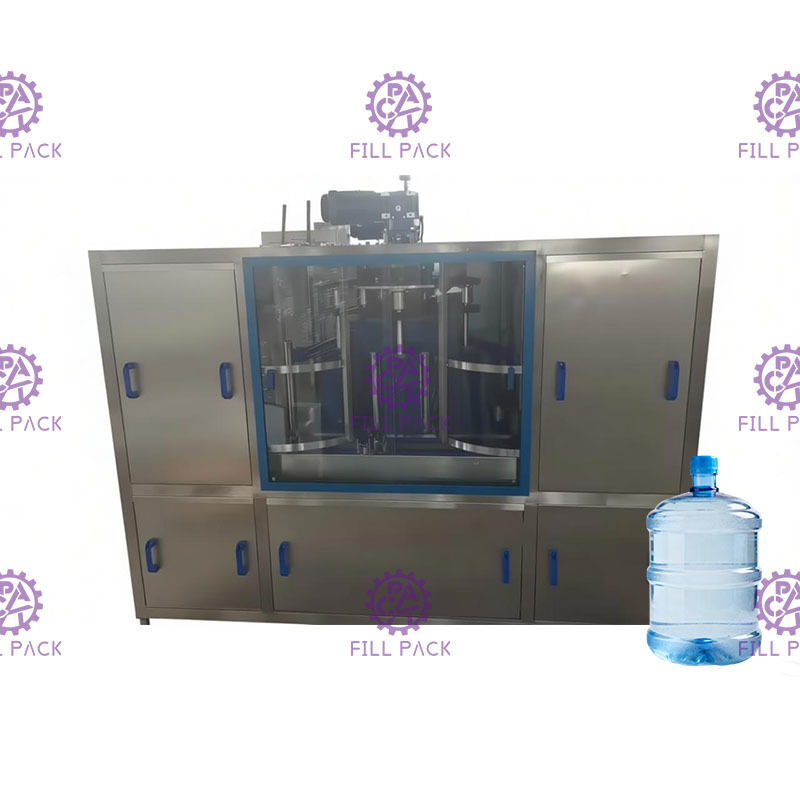

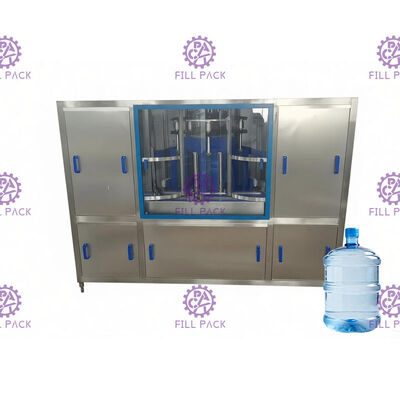

Rotary 1800*1550*1750mm 900BPH 5 Gallon Bottle Washer 0

Rotary 1800*1550*1750mm 900BPH 5 Gallon Bottle Washer 1
