Hot Alkaline Water Washing 200BPH Gallon Filling Machine

Product Description

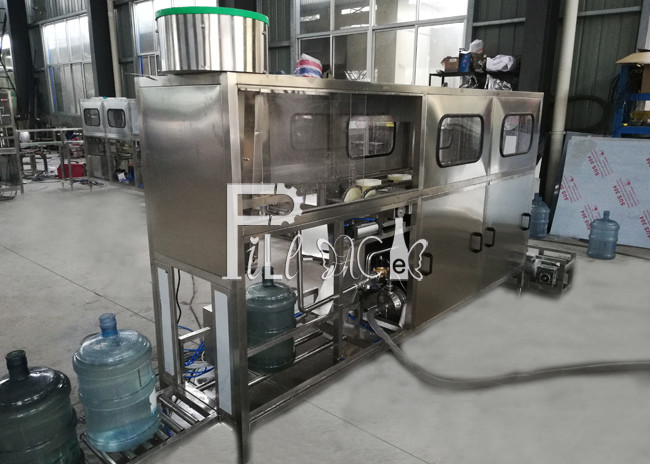

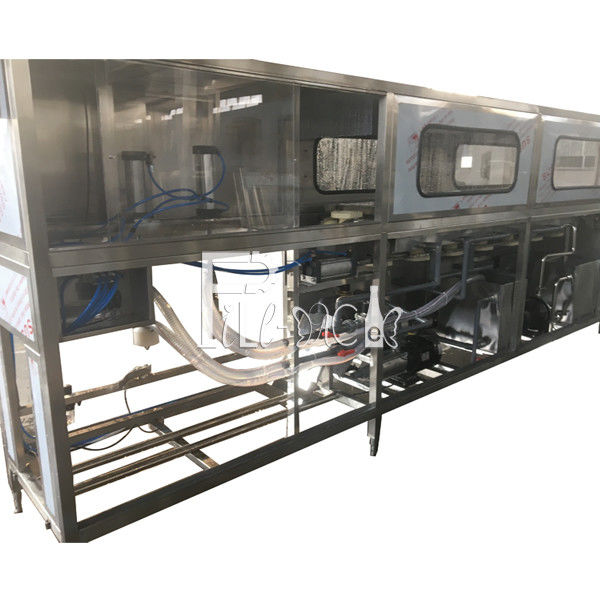

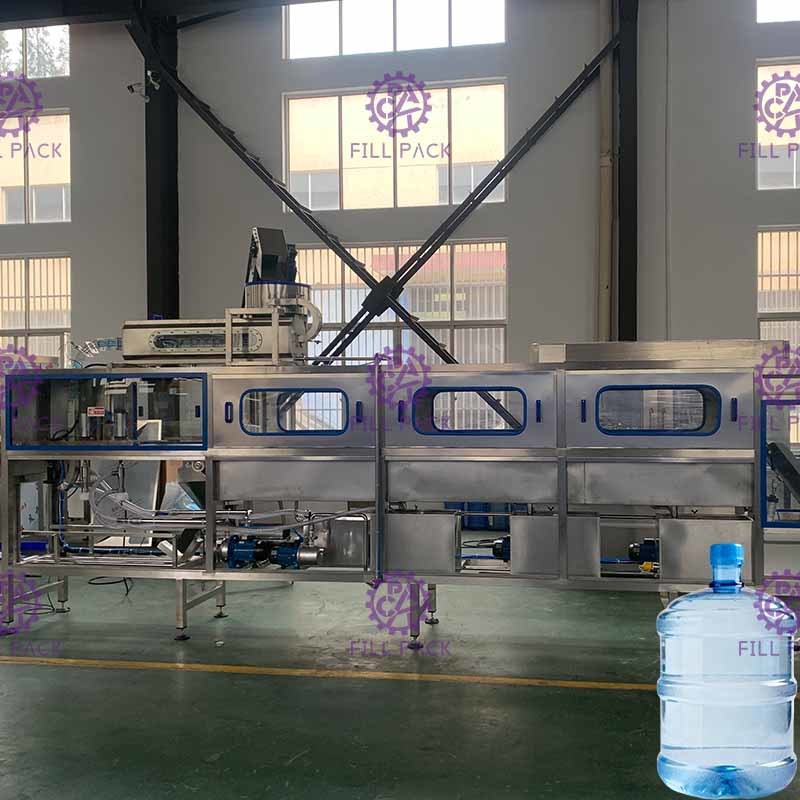

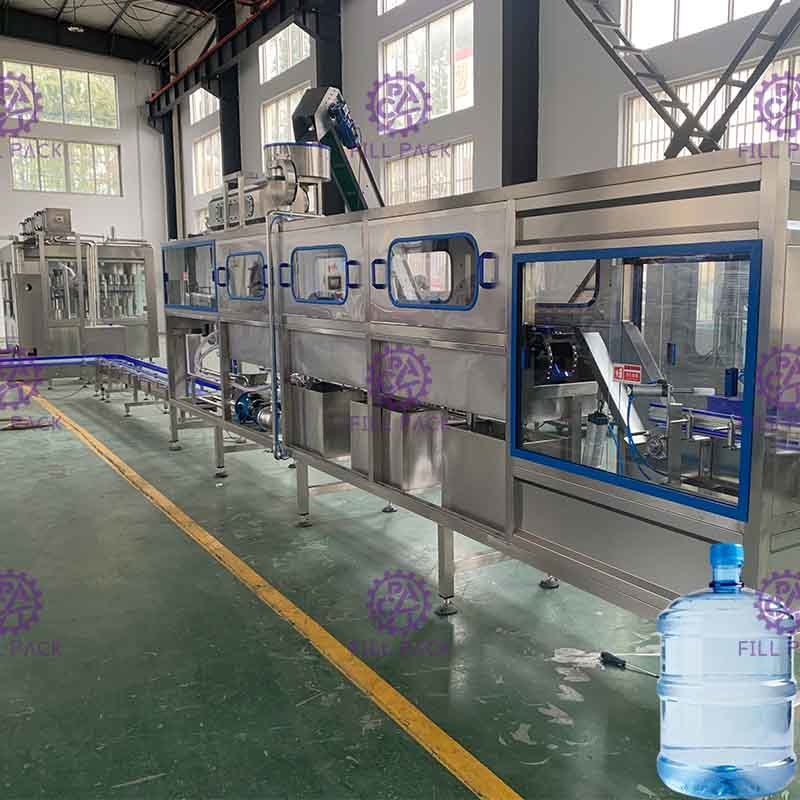

Automatic 5 Gallon Water Bottling Plant With Hot Alkaline Water Washing

Characteristics of Gallon Water Bottling Plant:

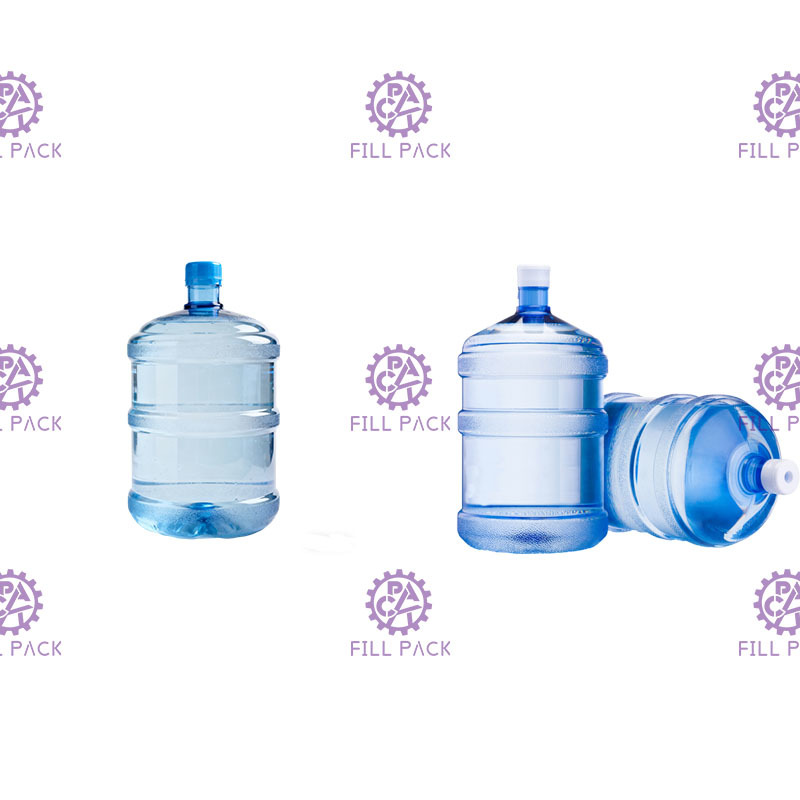

1. This filling line specially produces 3&5 gallons barreled drinking water.
2. This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
3. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
4. This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
5. This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
6. It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

Paramates of Gallon Water Bottling Plant:

Gallon Water Bottling Plant With Hot Alkaline Water Washing​:

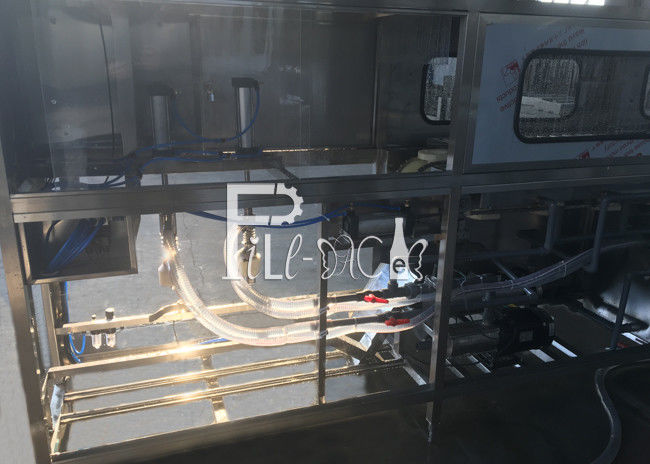

This machine is equipment with 6 high pressure water jets, the first and the last are for transport,another 4 are  Hot caustic soda-sterilized water- recycled water- pure water. All high pressure sprinklers are made of food grade stainless steel.

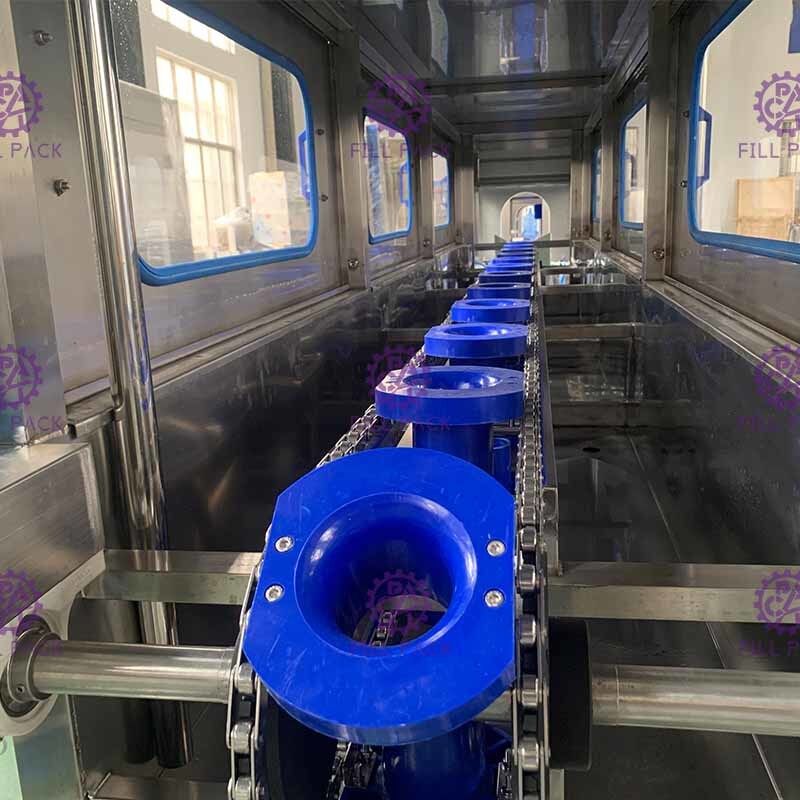

Bucket washing barrel way: the level of barrels. When out of the bucket, the level of the washed bucket falls on the bucket rack, and then turned into erected, and then pushed out of the bucket, to ensure that there is no drip dripping into the bottle in the process of pushing the bottle

Tank and the heating pipe in tank are removable which become more clean sanitation.
