5 Gallon 300 BPH Gallon Filling Line

Product Details:
Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE, ISO9001
Model Number: QGF-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD $6000/set
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month

Detail Information

Capacity: 300 Pcs /hour Material: Stainless Steel 304
Automatic Grade: Automatic Bottle Size: 3 Gallon Barrels
Dimension(L*W*H): 3400*1000*1750 Control: PLC
Power: 5.3KW Weight: 500kg
High Light:

5 Gallon 300 BPH Gallon Filling Line


300BPH 5 gallon water filling machine

Product Description

5 gallon water bottling machine with hot alkaline water rinsing heating temperature control

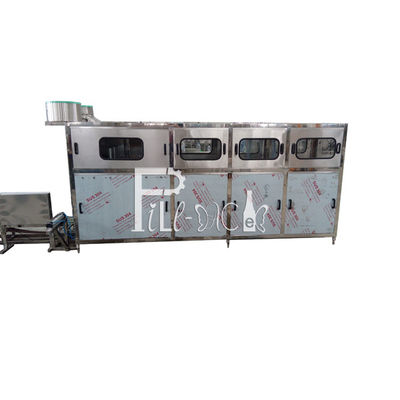

5 Gallon 300 BPH Gallon Filling Line 0

5 gallon water bottling machine is integrated washing filling and capping together.

It is ideal 5 gallon water bottling machine to produce barrel water.

The whole 5 gallon water bottling machine is using stainless steel 304 ,rot resistant,can be cleaned easily.

Main electric parts are all branded. Air channel system use Air TAC brand product.

The 5 gallon water bottling machine is with compact construction,will occupy small room,working efficiency is high.

Only need 2 operators to control, is a good choice for factory to choose.

The 5 gallon water bottling machine set up do not need plug floor screw,after case taking off,set the 5 gallon water bottling machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average.

After the machine is set up well, get in through water pipe, drain pipe and power , air power.


Working process:

gallon bottling machine can be divided into 3 steps: washing, filling and capping, total 36 working stations,working process as below:

1) Set empty barrel mouth to barrel seat, empty barrel will be washed during headstand situation,4 working station for barrel inserting.

2) Washing process will be divided into 4 steps:

1, hot alkali water washing 2,thimerosal washing; 3,clean water washing,4,pure water washing.Every washing step is set to 8S,after washing,there will be 10S for dripping.

3) The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.

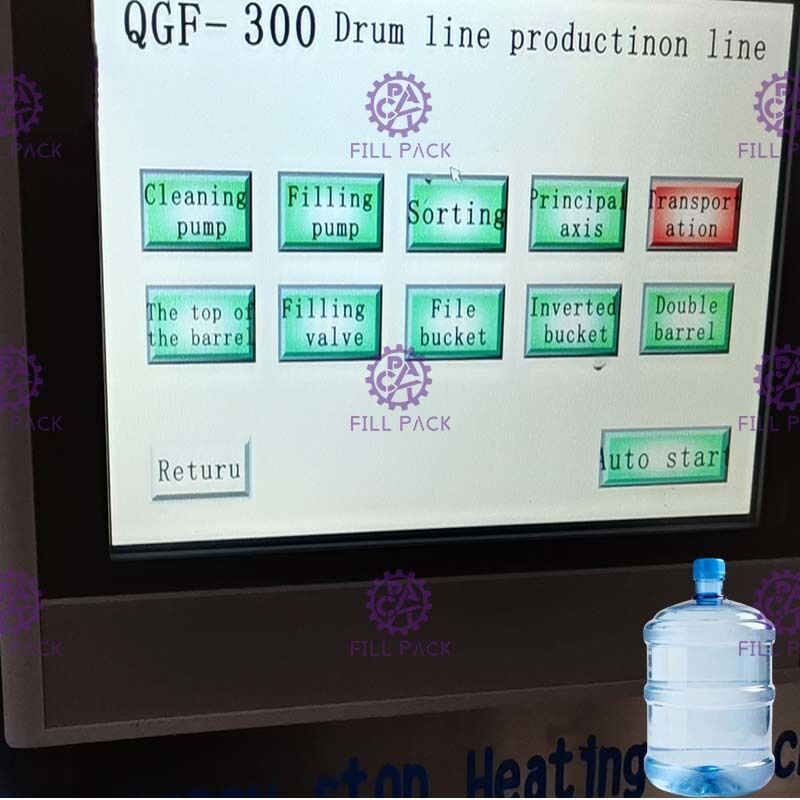

4) Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.

After filling, the extra water will back to pure water tank by automatic vent,5 gallon water bottling machine can reduce water consumption.(water tank is not included)

5) After filling process finish,the filled barrel will be pushed to capping position by barrel stop cylinder,the whole process finish till now.

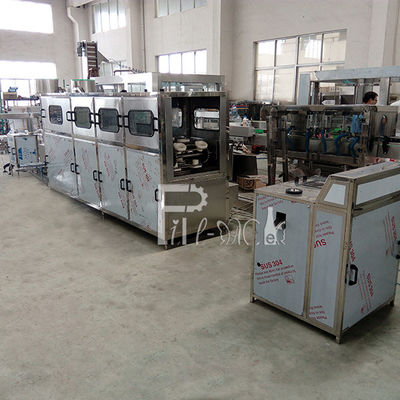

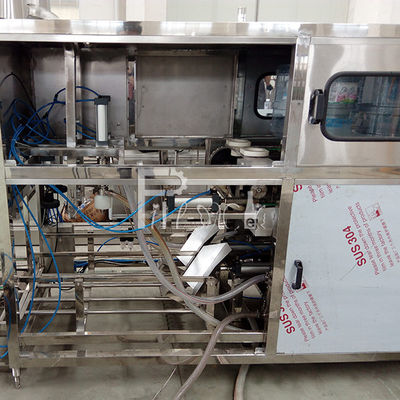

5 Gallon 300 BPH Gallon Filling Line 1


Spare parts for free:

Sealing ring for filling valves*1suit


Recommended Spare parts list:

NO. Items Qty. Price(USD)
1 Sealing ring for filling valves 1suit For free
2 Bucket holder 2pcs 6.8
3 Cap pressing mould 1pcs 5
4 Air switch 1pcs 17
5 Contactor 1pcs 14
6 Solenoid valve 1pcs 27



Cylinder Air tech-Taiwan
Magnetic valve Air tech-Taiwan

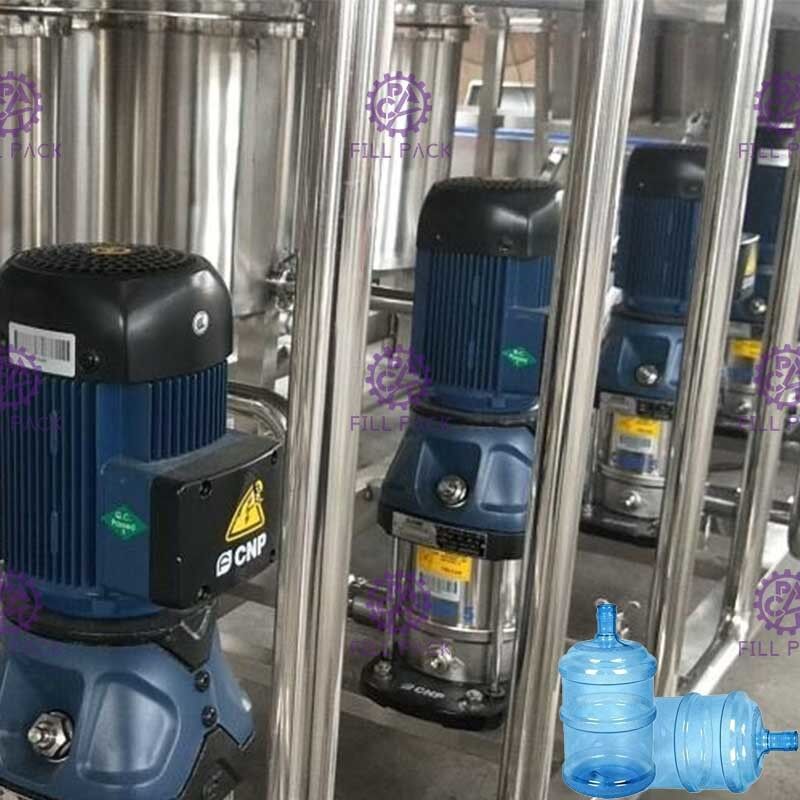

Rising pump-filling pump Nanfang
Motor TWT Taiwan
PLC Mitsubishi Japanse
Power 5.3KW
Dimension 3400*1000*1750mm
Weight 500kg



4steps rinsining process, 3 storage tank with soap water, sterilizer water and recycling water

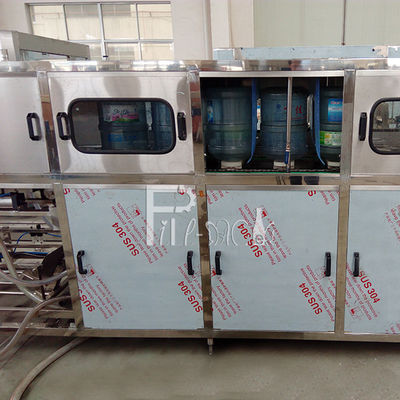

5 Gallon 300 BPH Gallon Filling Line 2
