Two Filling Heads 19 Litres 300 BPH Gallon Water Plant

Minimum Order Quantity : 1 set Price : USD $6000/set
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-300

Detail Information

Capacity: 300 Barrels Per Hour Control: PLC
Weight: 500kg Material: SUS 304
Dimension: 3400*1000*1750 Mm Bottle Size: 19Litres
Power: 5.3KW Function: Washing Filling Capping
High Light:

300 BPH Gallon Filling Equipment

,

300 BPH barrel filling machine

,

19 Litre 300 BPH Gallon Water Plant

Product Description

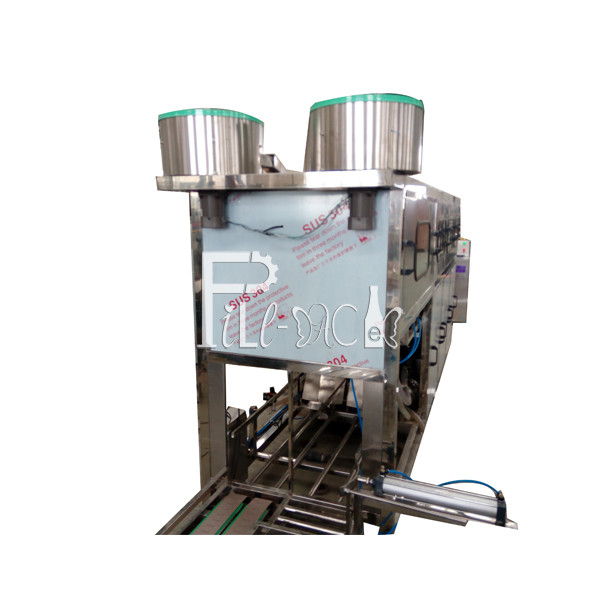

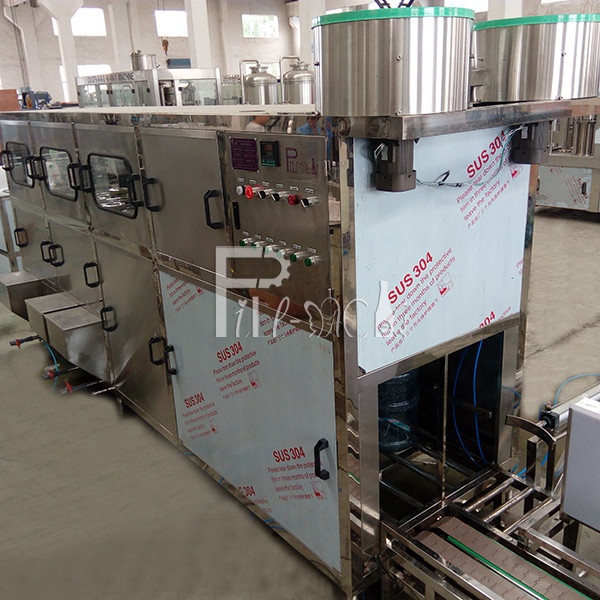

Double row barrel filling machine with two filling heads by overflow valve design



Barrel filling machineis integrated washing filling and capping together.

It is ideal Barrel filling machine to produce barrel water.

The whole Barrel filling machine is using stainless steel 304 ,rot resistant,can be cleaned easily.

Main electric parts are all branded. Air channel system use Air TAC brand product.

The Barrel filling machine is with compact construction,will occupy small room,working efficiency is high.

Only need 2 operators to control, is a good choice for factory to choose.

The Barrel filling machine set up do not need plug floor screw,after case taking off,set the Barrel filling machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average.

After the Barrel filling machine is set up well, get in through water pipe, drain pipe and power , air power.



Working process:

Barrel filling machine can be divided into 3 steps: washing, filling and capping, total 36 working stations,working process as below:

1) Set empty barrel mouth to barrel seat, empty barrel will be washed during headstand situation,4 working station for barrel inserting.

2) Washing process will be divided into 4 steps:

1, hot alkali water washing 2,thimerosal washing; 3,clean water washing,4,pure water washing.Every washing step is set to 8S,after washing,there will be 10S for dripping.

3) The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.

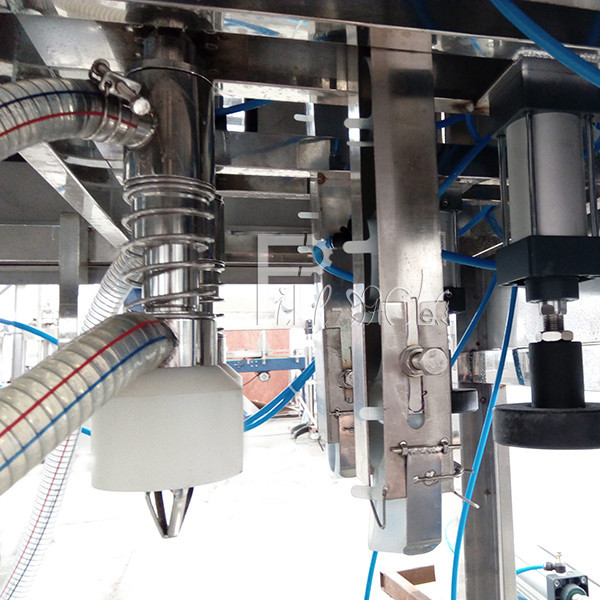

4) Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.

After filling, the extra water will back to pure water tank by automatic vent,Barrel filling machine can reduce water consumption.(water tank is not included)

5) After filling process finish,the filled barrel will be pushed to capping position by barrel stop cylinder,the whole process finish till now.



Two Filling Heads 19 Litres 300 BPH Gallon Water Plant 0



Spare parts for free:

Sealing ring for filling valves*1suit

Two Filling Heads 19 Litres 300 BPH Gallon Water Plant 1



Two Filling Heads 19 Litres 300 BPH Gallon Water Plant 2



Recommended Spare parts list:

NO. Items Qty. Price(USD)
1 Sealing ring for filling valves 1suit For free
2 Bucket holder 2pcs 6.8
3 Cap pressing mould 1pcs 5
4 Air switch 1pcs 17
5 Contactor 1pcs 14
6 Solenoid valve 1pcs 27




Parameters:

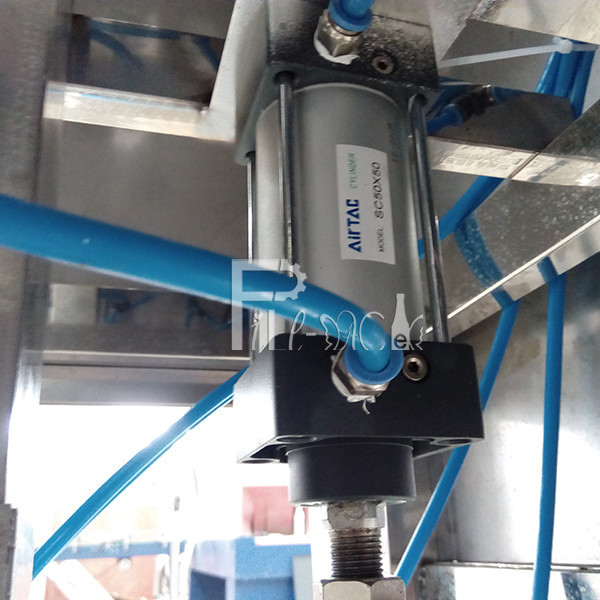

Cylinder Air tech-Taiwan
Magnetic valve Air tech-Taiwan
Rising pump-filling pump Nanfang
Motor TWT Taiwan
PLC Mitsubishi Japanse
Power 5.3KW
Dimension 3400*1000*1750mm
Weight 500kg



Packing & Delivery

1. the gallon bottle water filling machine is packed by wooden case.
2. The delivery date of gallon bottle water filling machine is within 30 days after payment.



1. installation&commissioning

After the Barrel filling machine arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed



2. Training

We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.



3. Quality assurance

The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.
