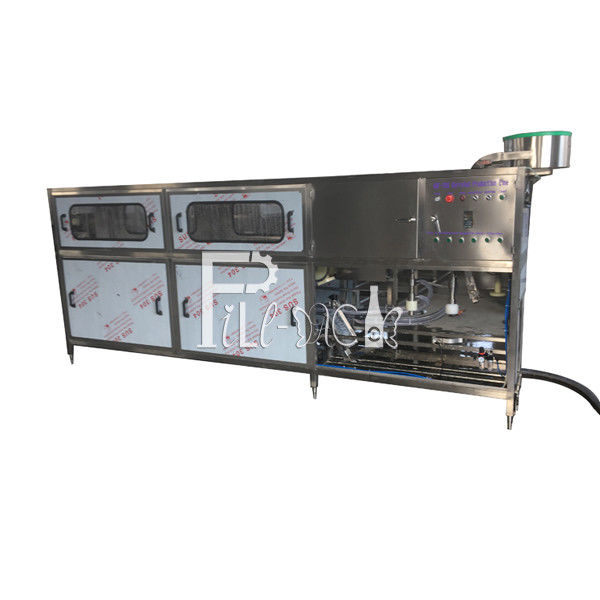

Press Cap Monoblock 5 Gallon Water Filling Machine

Minimum Order Quantity : 1 set/pcs Price : USD$4,850.00-USD$6,000.00
Packaging Details : Wooden case pacakge Delivery Time : 30-35days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 sets/month
Place of Origin: ZhangJiaGang City, JiangSu Province, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: QGF-200

Detail Information

Type: Filling Machine Packaging Material: Plastic, PET/PC
Filling Accuracy: >99.5% Cap: Screw / Press Cap
Capacity: 200 BPH Product Name: 3-5 Gallon Water Filling Machine
Rated Input Power: 4.0KW
High Light:

Monoblock Gallon Filling Machine


200BPH 5 gallon water bottling machine


200 BPH Gallon Filling Machine

Product Description

200BPH Monoblock Round Barrel Gallon Filler With Nanfang Pump


Brief of Barrel Gallon Filler:

This QGF series barreled water filling line is mainly used to produce bottled water with volume from 3 gallon to 5 gallon. It consist of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing, filling, capping through several washing, fit quantify filling and auto wear lid and capping.


Equipent list:

1.1 Semi-auto de-capper and brush washer with full SUS304 BS-1 900*900*1250 1set
1.2 Monoblock rinser-filler-capper with full SUS304 QGF-200 3400*780*1950 1set
1.3 Light checker / / 1pc
1.4 Roller conveyor / / 2m
1.5 Label shrink tunnel / 600*600*1000 1set
1.6 Solid Ink Roll Coding Machine FP-380F 440*345*300 1set
Charecters of Barrel Gallon Filler:
Items Specification
Production capacity 200Buckets/hour

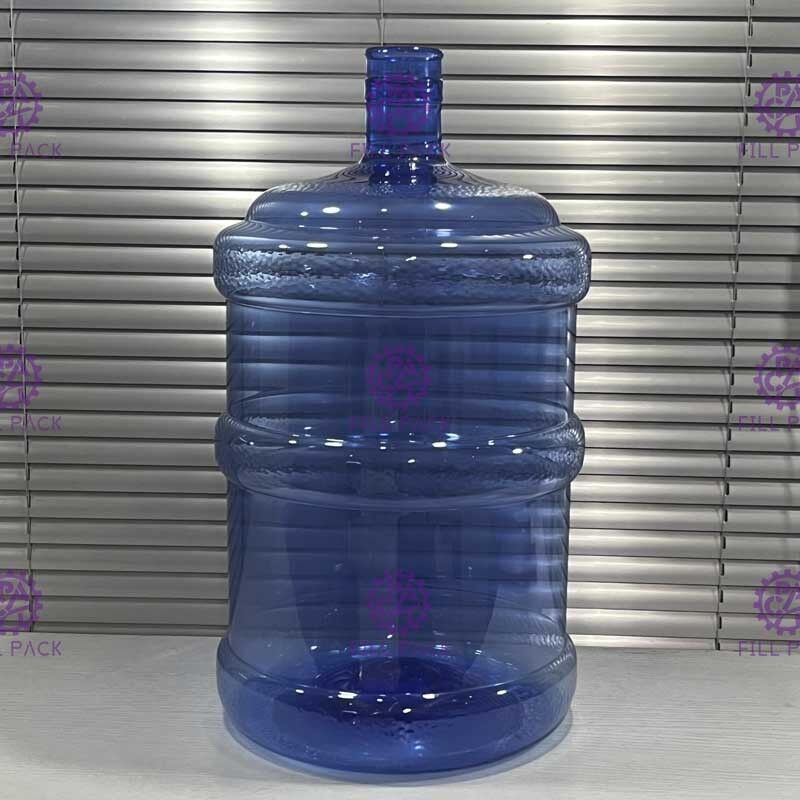

Bottle’s capacity 11. 3 Liters (equal to 3 gallons)-18. 9 Liters (equal to 5 gallons)
Bottle’s specification (mm) Φ230×420×Φ56 - Φ270×490×Φ56
Cap’s specification (mm) Φ58×40 (strip:L18mm,W:7.5mm)
Rated input power

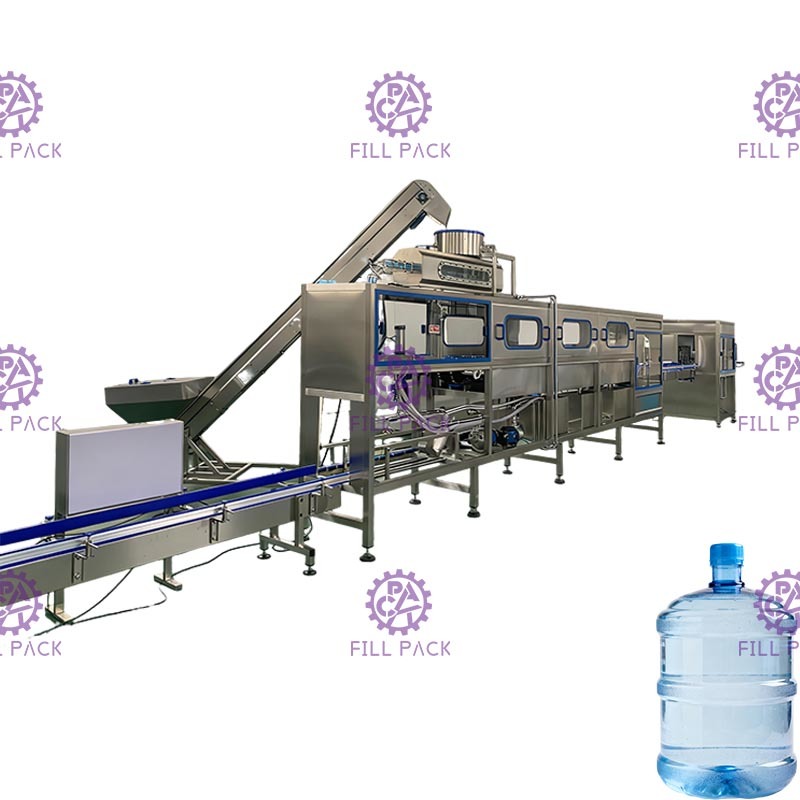

We can also provide Complete Automatic 3-5 Gallon Water Production Line:
It Includes 4 main parts:
1 . Plastic barrel blowing machine.(you can buy the barrel directly to produce)
2 . Water treatment system.(RO / UF)
3 . Washing, filling, capping 3 in 1 machine.
4 . Semi-auto de-capper and brush washer, Conveyor system, labeling machine, dating machine, Palletizer


Nanfang Pump
