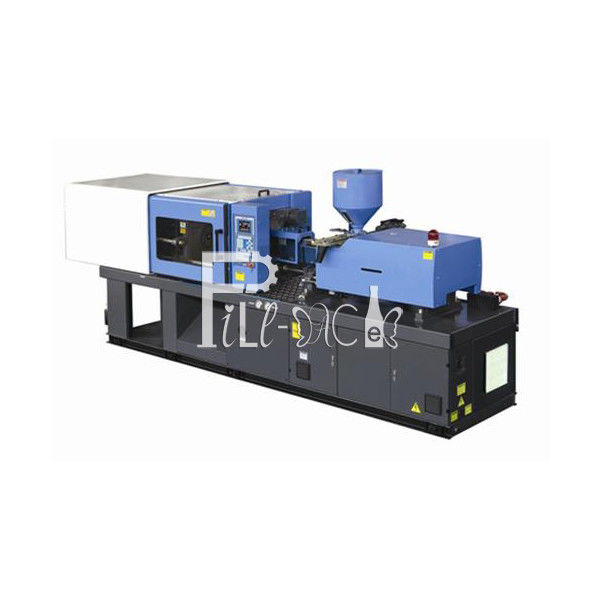

SUS316 Mould 3850KN PET Preform Manufacturing Machine

Minimum Order Quantity : 1 Price : USD $54050/set
Packaging Details : Wooden Case Package Delivery Time : 35-40 days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-3850

Detail Information

Warranty: 1 Year Clamp Tonnage: 3850KN
Mould Thickness: 280-680mm Type: Preform Injection
Weight: 11.5T Machine Type: Hydraulic
Condition: New
High Light:

SUS316 PET preform manufacturing machine

,

SUS316 PET preform injection machine

,

3850KN preform injection machine

Product Description

Barrel preform injection machine / equipment / device / system / plant with high quality SUS316 mould

Parameter:


MODEL3850A
INJECTION UNIT AB
Screw diametermm6365
Shot weightg10081072
Screw L/D ratioL/D22.722
Nozzle DiameterSrmm20
CLAMPING
Toggle strokemm660
Mould Thicknessmm280-680
Ejector tonnageKN80
Hole Diametermm160
OTHERS
Heat powerKW17.5
Machine dimensionm7.0X2.2X2.0
Oil tank capacityL400



Keyboard input control pannel, electrical components details
SUS316 Mould 3850KN PET Preform Manufacturing Machine 0

PLC control system deatils:
SUS316 Mould 3850KN PET Preform Manufacturing Machine 1

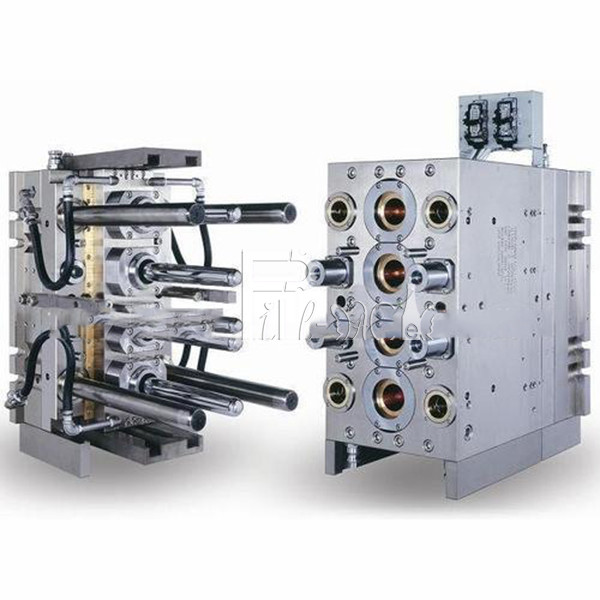

Preform inject mould details for reference:
SUS316 Mould 3850KN PET Preform Manufacturing Machine 2


Recommended different preform moulds specifications based on standard gram
Moulds manterialCavity(Pcs)Gram weight(g)Capacity(pcs/hour)





Option1:P20 outside, Main accessories S136



Option2: SUS 316



1

800



45

750
730
700
680



50

650
620
600
580



55

560
530





2

480





120

430
400
350
320



Spare parts list for host inject machine part:



Item

Free spare parts

Price for additional spare parts/USD

1, Heating band for barrel

1pcs$35
2, Heating band for nozzle1pcs$26
3, Sealing rings1sets$25
4, Solid-state relay1pcs$15
5, Proximity switch2pcs$12
6, thermocouple1pcs$12
7, socket head wrench1sets$16
8, Mold clip8pcs$180
9, Level pad1pcs$130
10, Socket & plug2pcs$17




The matching for recommended auxiliaries devices:

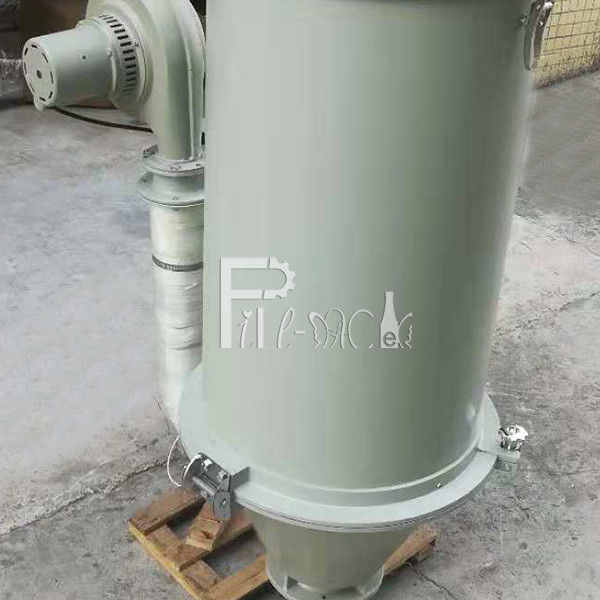

Auto loader
Capacity480KG/H
Lifting5m
Static wind pressure2400mm/H20
Materials storage tank volume7.5L
Inner diameter of feeding tube38mm
Host machine size500*400*720mm
Materials storage tank size450*320*450mm
Host machine weight66KG
Materials storage tank weight7KG



Water chiller





refrigerating output

99005BTU/H
29KW
24940kcal/h
10HP
Compressor power8.5KW
water pump power0.75KW
Standard water flow95L/MIN
Standard water tube diameterDN40



Type of condenser

High efficiency copper tube series aluminum chip + low noise axial flow fan
Restrictorcapillary
refrigerantR22
Type of evaporationWater tank type
Water tank volume215L
dimension1300*770*1331mm
Weight450KG

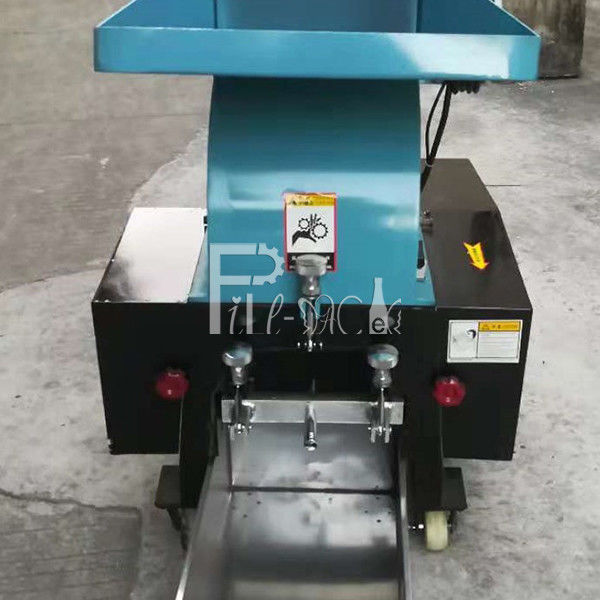

Plastic crusher
Motor power20HP(15KW)
Diameter610*320mm
Capacity600-800KG/H
fixed knife2pcs
Moving knife18pcs
dimension1200*1120*1630mm
