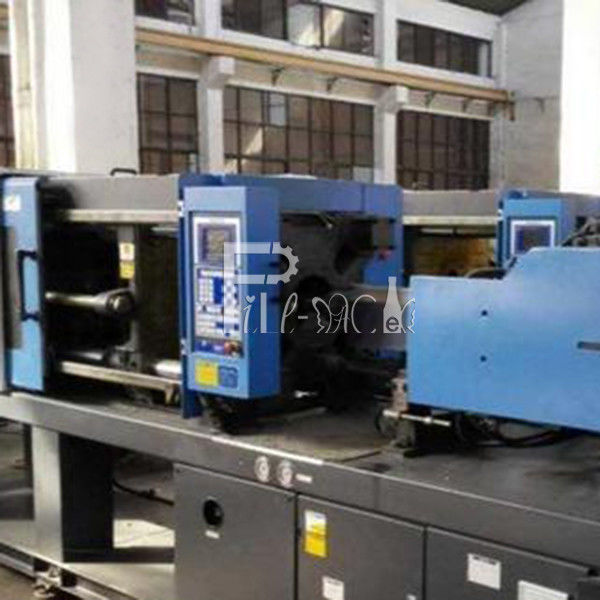

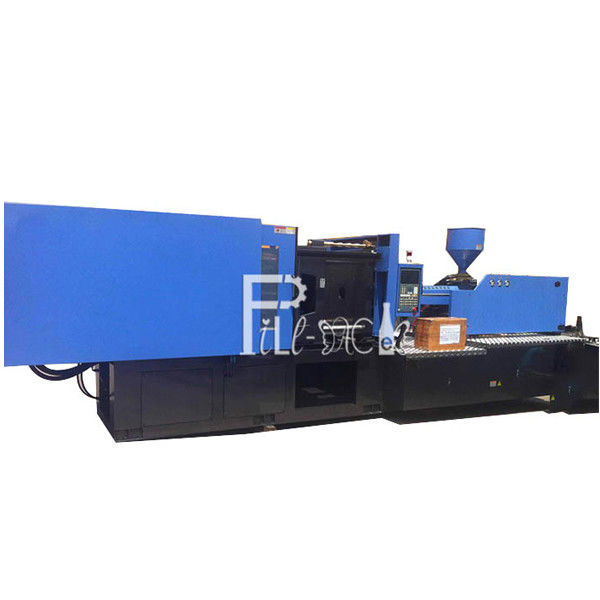

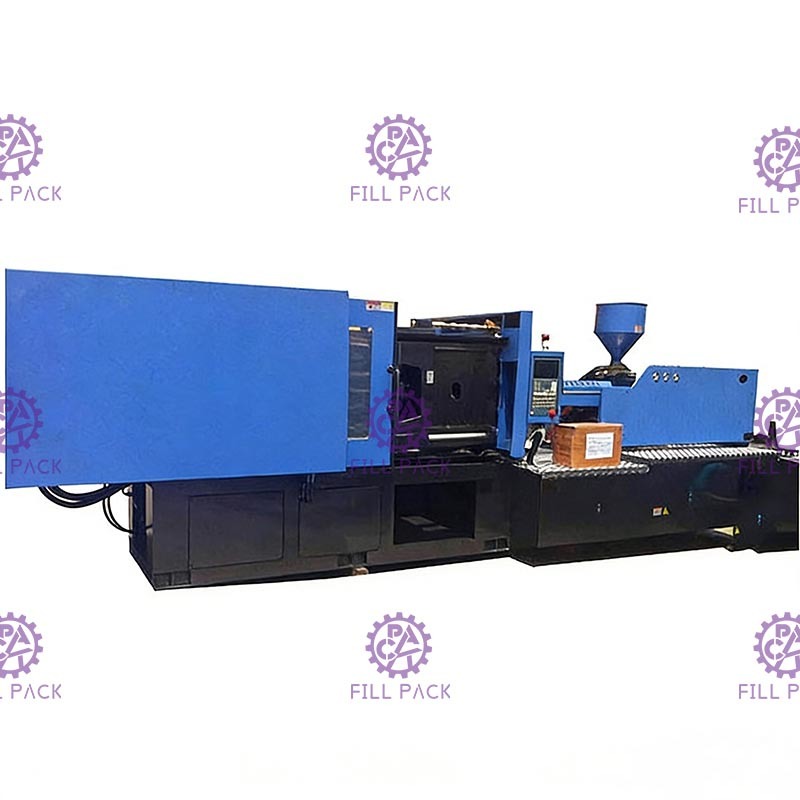

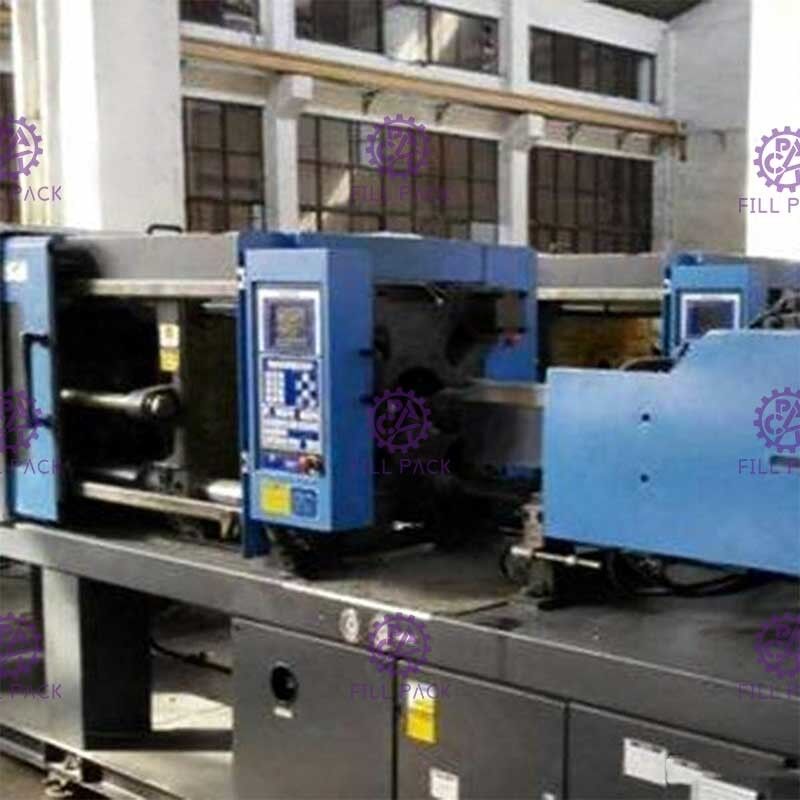

5 Gallon 800g PET Bottle Injection Moulding Machine

Minimum Order Quantity : 1 Price : USD $54050/set
Packaging Details : Wooden Case Package Delivery Time : 35-40 days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1 set / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-3850

Detail Information

Machine Type: Hydraulic Key Selling Points: High Safety Level
Oil Tank Capacity: 400L Heat Power: 17.5KW
Machine Dimension: 7.0X2.2X2.0Meter Type: Preform Injection
Condition: New
High Light:

320g PET preform manufacturing machine

,

800g bottle injection moulding machine

,

400L PET bottle injection moulding machine

Product Description

3 - 5 Gallon / bucket / barrel preform injector for 320 - 800 gram PET preforms production




Features:

HYDRAULIC UNIT

  • proportional pressure and flow control with the advantage of fine adjustment and high precision
  • know-how manifold design, compact, reasonable and fast respond
  • imported world famous hydraulic valves for barrel preform injector
  • imported world famous hydraulic sealing rings
  • import technology hydraulic hose and fittings
  • low noise hydraulic system for barrel preform injector
  • oil tank with inner stainless steel container
  • precision oil filter for barrel preform injector
  • oil cooler for barrel preform injector

Parameter:



MODEL

3850A
INJECTION UNIT   A B
Screw diameter mm 63 65
Shot size(theoretical) Cm³ 1120 1192
Shot weight g 1008 1072
CLAMPING
Ejector tonnage KN 80
Ejector number Piece 13
Hole Diameter mm 160
OTHERS
Heat power KW 17.5
Max. pump pressure MPa 16
Pump motor power KW 30



Recommended different preform moulds specifications based on standard gram
Moulds manterial Cavity(Pcs) Gram weight(g) Capacity(pcs/hour)





Option1:P20 outside, Main accessories S136



Option2: SUS 316



1

800



45

750
730
700
680



50

650
620
600
580



55

560
530





2

480





120

430
400
350
320





Spare parts list for host inject machine part:



Item

Free spare parts

Price for additional spare parts/USD

1, Heating band for barrel

1pcs $35
2, Heating band for nozzle 1pcs $26
3, Sealing rings 1sets $25
4, Solid-state relay 1pcs $15
5, Proximity switch 2pcs $12
6, thermocouple 1pcs $12
7, socket head wrench 1sets $16
8, Mold clip 8pcs $180
9, Level pad 1pcs $130
10, Socket & plug 2pcs $17





The matching for recommended auxiliaries devices:

Hopper Dryer
Capacity 100KG
Power for electrical heating 6.5KW
Fan power 215W
Fan flange 150mm
Packing size 1020*630*1080mm
Base installation size 180*180*φ80mm
weight 59KG



Hopper Dryer
Capacity 300KG
Power for electrical heating 15KW
Fan power 320W
Fan flange 190mm
Packing size 1200*880*1770mm
Base installation size 230*230*φ110mm
weight 120KG

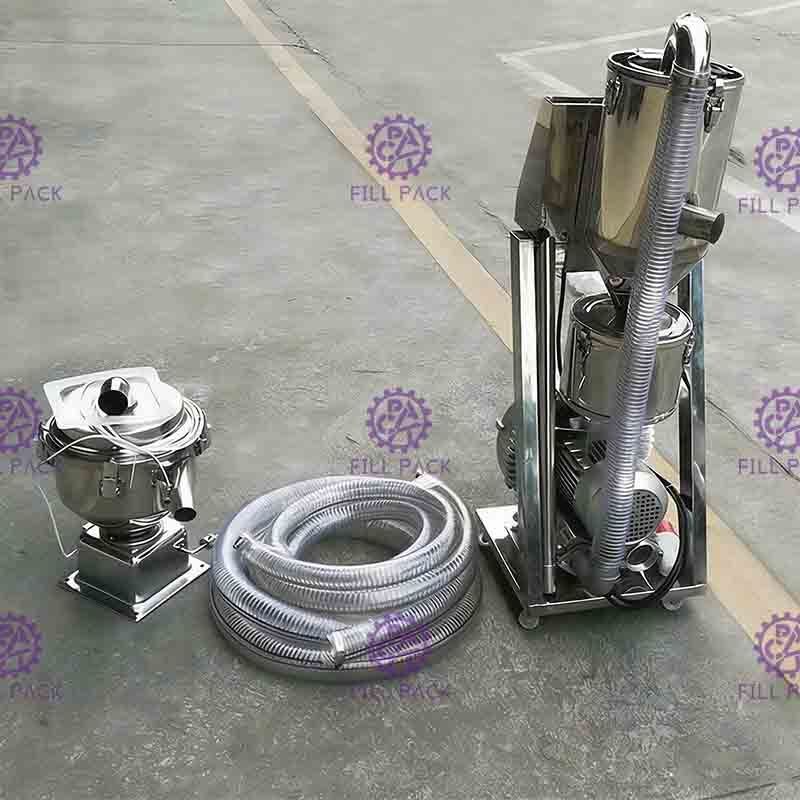

Auto loader
Capacity 480KG/H
Lifting 5m
Static wind pressure 2400mm/H20
Materials storage tank volume 7.5L
Inner diameter of feeding tube 38mm
Host machine size 500*400*720mm
Materials storage tank size 450*320*450mm
Host machine weight 66KG
Materials storage tank weight 7KG



Water chiller





refrigerating output

99005BTU/H
29KW
24940kcal/h
10HP
Compressor power 8.5KW
water pump power 0.75KW
Standard water flow 95L/MIN
Standard water tube diameter DN40



Type of condenser

High efficiency copper tube series aluminum chip + low noise axial flow fan
Restrictor capillary
refrigerant R22
Type of evaporation Water tank type
Water tank volume 215L
dimension 1300*770*1331mm
Weight 450KG



Plastic crusher
Motor power 20HP(15KW)
Diameter 610*320mm
Capacity 600-800KG/H
fixed knife 2pcs
Moving knife 18pcs
dimension 1200*1120*1630mm



Air compressor
revolutions 1030
Power 7.5KW
Capacity 0.9L/min
Air storage tank volume 180L
Pressure 1.25Mpa
dimension 1550*550*980mm
Weight 140KG



All different products type manufactured by the Gallon preform injector

3 gallon and 5 gallon preform in pressing neck Gallon preforms in different colours
5 Gallon 800g PET Bottle Injection Moulding Machine 0 5 Gallon 800g PET Bottle Injection Moulding Machine 1



Preforms in different neck type Preform design drawing for ref
5 Gallon 800g PET Bottle Injection Moulding Machine 2 5 Gallon 800g PET Bottle Injection Moulding Machine 3
