200BPH 5 Gallon Filling Machine With De-Capper Washer
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
Minimum Order Quantity : | 1 SET | Price : | USD$4400~USD$5300 |
---|---|---|---|
Packaging Details : | Wooden case | Delivery Time : | 30-35days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 15 sets/month |
Place of Origin: | ZhangJiaGang City, JiangSu Province, China | Brand Name: | FILLPACK |
---|---|---|---|
Certification: | CE,ISO | Model Number: | 3000GPD |
Detail Information |
|||
Voltage: | 220V/50HZ | Application: | Beverage |
---|---|---|---|
Automatic Grade: | Automatic | Type: | Filling Machine |
Driven Type: | Electric | Packaging Type: | Case |
Warranty: | 1 Year | Packaging Material: | Wood |
Material: | Stainless Steel SUS304 | UV Power: | 30W |
High Light: | drinkable reverse osmosis water vending machine,220V reverse osmosis water vending machine,reverse osmosis water vending machine 200lph |
Product Description

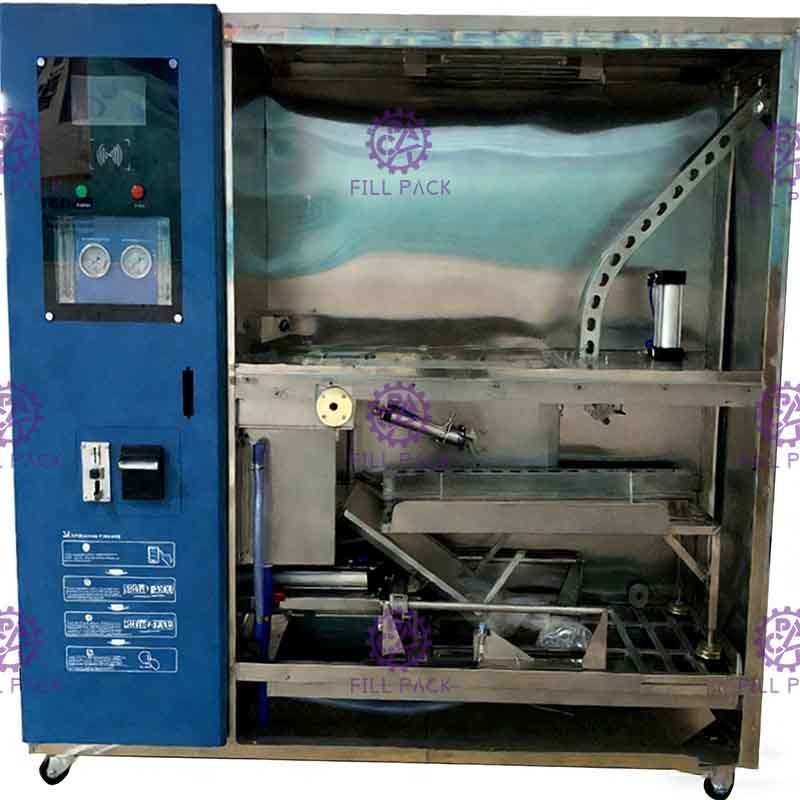

Slef-service Coin swiping payment operated gallon bottle bucket bottling machine
Steps to get gallon water:

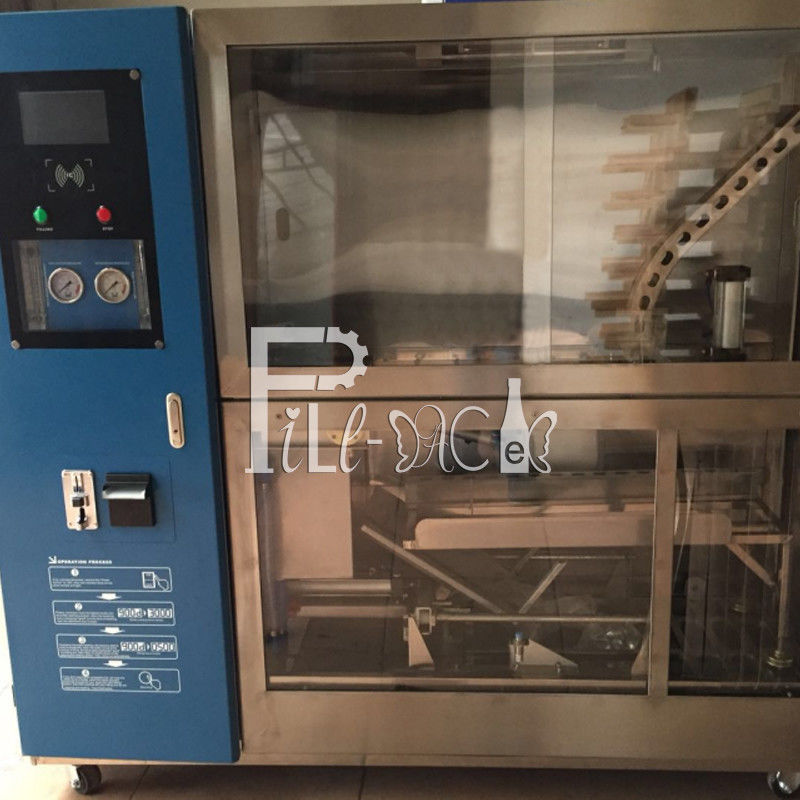

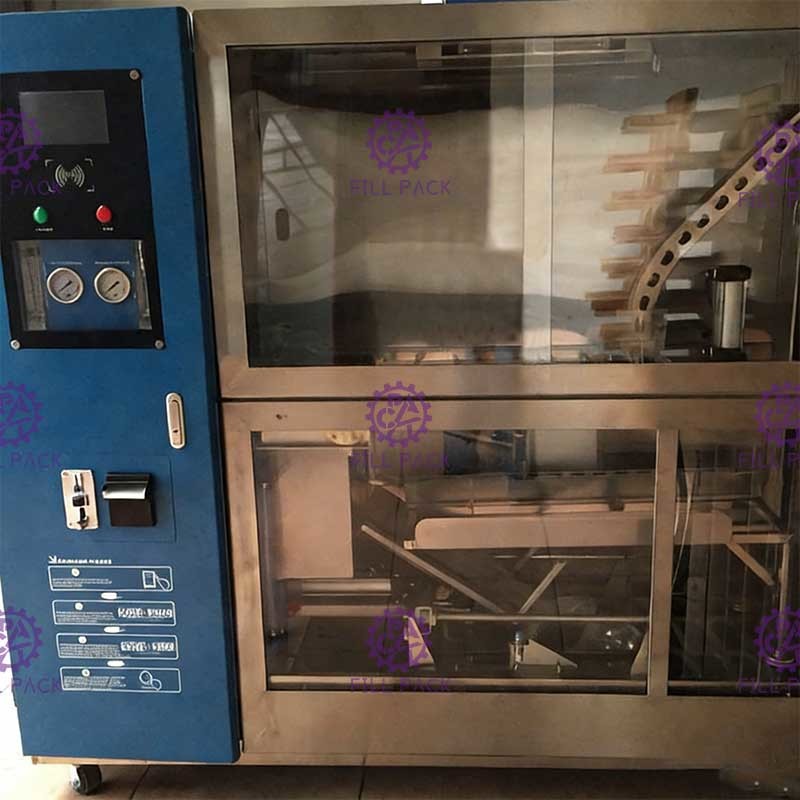

1. When guests come to fill water, first put the gallon bucket in the washing station, and then insert coins or swipe cards.
2. The machine will automatically start to work. The machine has a detection probe. After detecting the gallon barrel, it will automatically wash the bottle, then fill, cover, press and push out.
3. The customer takes away the gallon bucket filled with pure water.
Features:
1, Stainless steel waterproof cabinet, ,safety and health, easy for installation and maintenance.
2, Advanced reverse osmosis purification technology,nine effective water treatment, water meets national standards.
3, Automatic bottle washing, filling, capping, output. Intelligent control, easy to complete bottled water production.
4, 24 hours UV sterilization, to prevent secondary pollution.
5, Efficient ozone generation and mixing technology,filling water with a normal ozone levels meet the national standards.
6, Powerful pre-processing,automatic backwash features,Full automatically.
Main parameter:
Main parameter: | |||
Model | 1300GPD | 1900GPD | 3000GPD |
Total Power | 1600W | 2600W | 2800W |
Pure water capacity | 200LPH | 400LPH | 472LPH |
Production speed | 30BPH(gallon bottle per hour) | ||
Suitable bottle | 5gallon=18.9L bottle | ||
Voltage | AC 220V 50Hz | AC110V 60Hz | ||
Tank capacity | 220L | ||
UV power | 30W | ||
Air pressure | 0.6-0.7MPa | ||
Ozone | 12g/H | ||
Machine dimension | W1950 x D1020 x H1690mm | ||

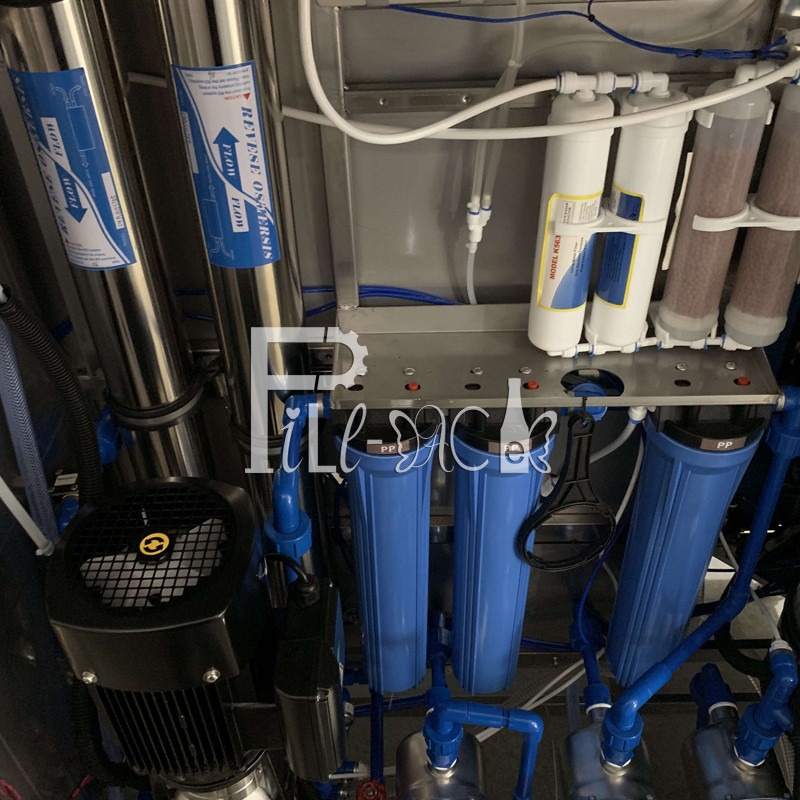

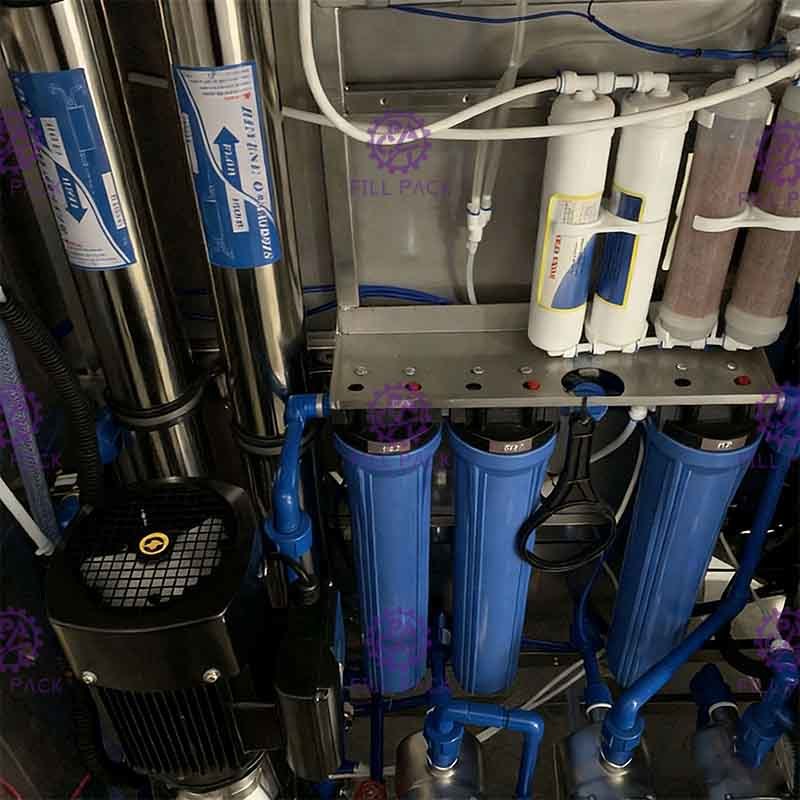

Filtration steps | Booster pump - Sand filter - Carbon filter - 10uPP - 5uPP - RO booster pump - RO membrane - Post carbon - Mineralization - UV - Ozone |
