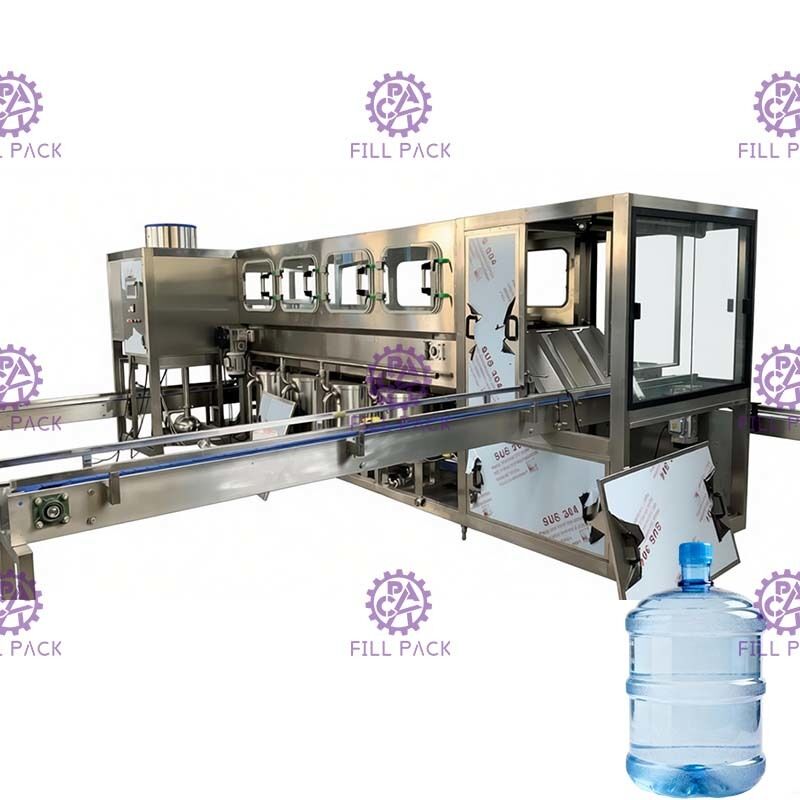

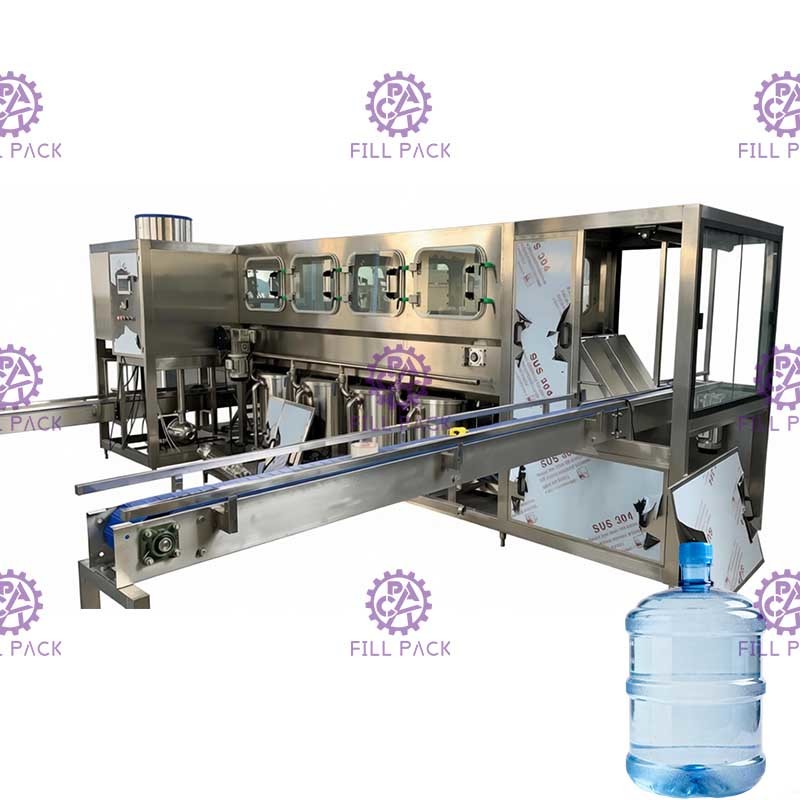

20l Sterile Water Washing 450bph Gallon Filling Machine

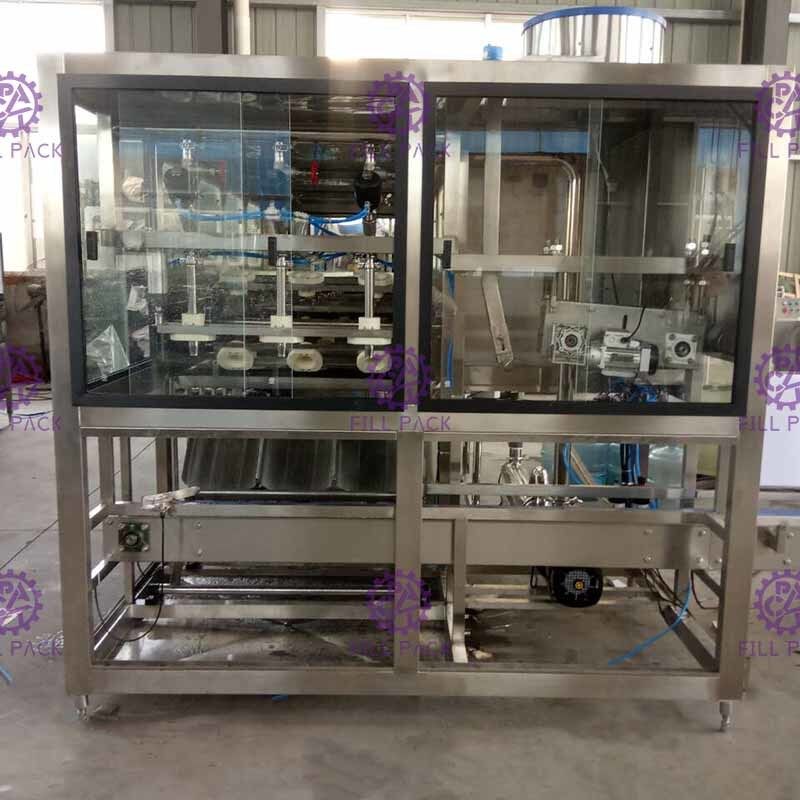

1.1, Automatic De-capper

This 20L water filling equipment is driven by cylinder, controlled by PLC; Automatic working by barrel checking;
De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.
When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;
The claw pressure is adjusted to protect caps;

Working process:

20L water filling equipment can be divided into 3 steps: washing, filling and capping, total 36 working stations,working process as below:

(1)Set empty barrel mouth to barrel seat, empty barrel will be washed during headstand situation,4 working station for barrel inserting.
(2)Washing process will be divided into 4 steps:1, hot alkali water washing 2,thimerosal washing；3,clean water washing,4,pure water washing.Every washing step is set to 8S,after washing,there will be 10S for dripping.
(3)The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.
(4)Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.After filling, the extra water will back to pure water tank by automatic vent,it can reduce water consumption.(water tank is not included)
(5)After filling process finish,the filled barrel will be pushed to capping position by barrel stop cylinder,the whole process finish till now.
