600BPH Full Automatic Four Line Monoblock Gallon Filling Machine With Overflow Valve

Minimum Order Quantity : 1 set Price : negotiable amount
Packaging Details : wooden case Delivery Time : 15-25 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-600

Detail Information

Bottle Size: 3~5 Gallon Bottle Capacity: 600BPH
Control: PLC Material: Stainless Steel 304
Dimension(L*W*H): 5000*2300*1800 Automatic Grade: Automatic
Condition: New Power: 1.38KW
High Light:

monoblock gallon filling machine


four line gallon filling machine


600BPH gallon filling machine

Product Description

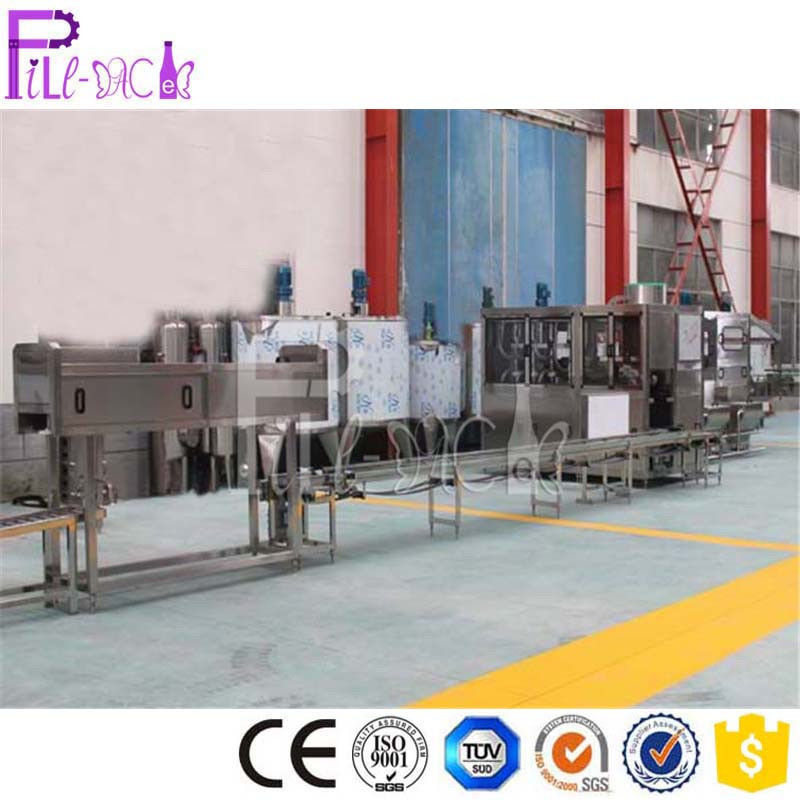

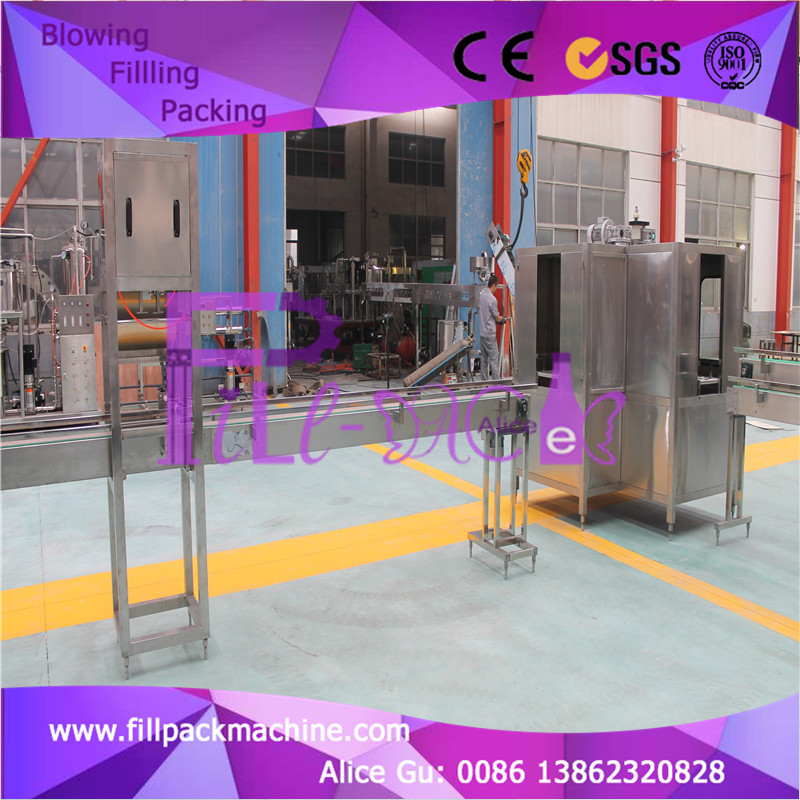

Full Automatic four line monoblock Gallon filling line/machine/system with overflow valve


Equipment list:

Items Name of machine Model Size(mm)
1.1 Automatic De-capper BG-2 900*600*2000
1.2 Linear gallon bottle washer XT-4 1500*1100*1750

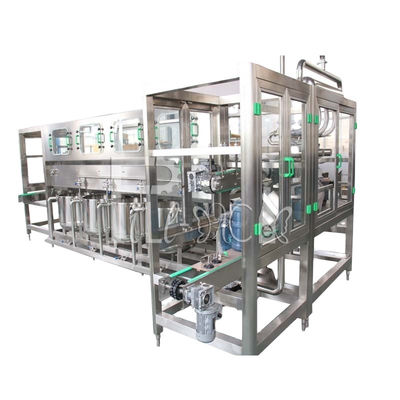

1.3 L type Washer/Filler/Capper with auto bottle loading(SS piping+Vertical pumps) WFC-600H 5000*2300*1800
1.4 Heat Shrinking Machine / 800*600*1200
1.5 Checking Light CL-1 1000*100*450
1.6 Conveyor Belt with Motor / 10m+2 motors
1.7 Ink jet code printer OH-338 347*220*100
1.8 Automatic cap lifter-washer SG-1 800*800*3000

1.1, Automatic De-capper


The Automatic de-capping machine and the 2 de-capping heads

This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking; The machine has two de-capping heads. De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.

When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;

The claw pressure is adjusted to protect caps;


De-capping head: 2 heads

Dimension: 900*600*2000mm

Weight: 130kg



1.2, Linear type gallon bottle external washer

The machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will stop 4 bottles inside and fixed them by brushes and fixing bar, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;

No air compressor needed, it is easy for production and maintenance;



Brush qty: 5pcs*2

Dimension: 1500*1100*1750mm

Weight: 350KG

Power: 0.55KW

Recycle water tank size: 600*550*550mm



PLC: Mitsubishi

Cylinder: AIRTAC

Air switch-Contactor-Relay: Schneider

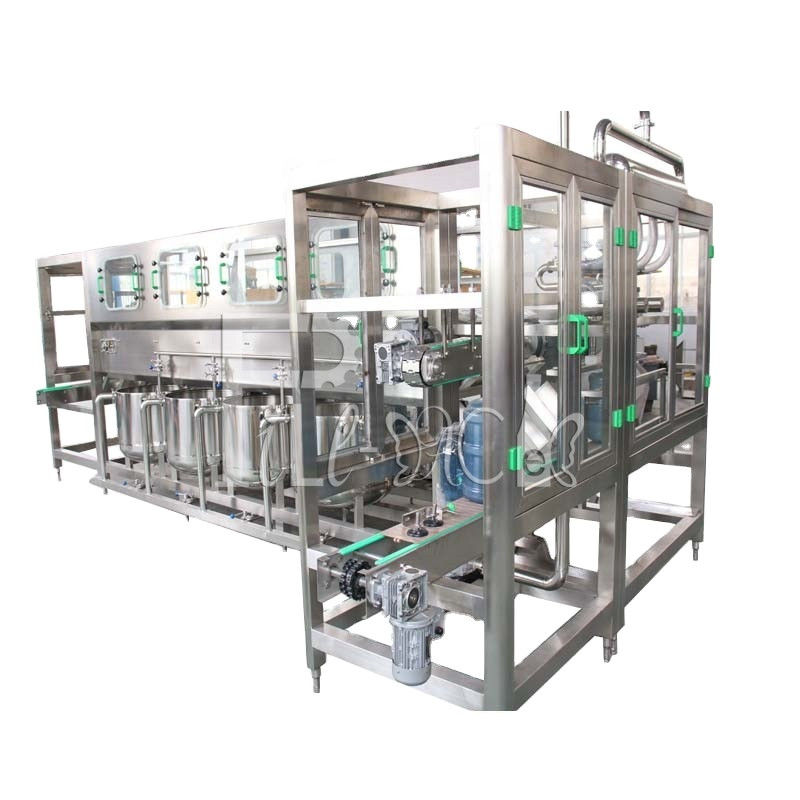

1.3, Washer/Filler/Capper with auto bottle loading


The machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 202 shell, rust resistant, can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction, just occupy small room, working efficiency is high. The machine only need 2 operators to control, is a good choice for factory.


The machine set-up do not need plug floor screw, after case taking off, set the machine on the flat floor, and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power, air power.


Working process:

Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 18 working stations

1, 1 electric heating station

2, 2 disinfectant washing stations

3, 1 dripping station

4, 2 return water stations

5, 2 pure water stations

6, 1 dripping station

One side 9 stations, Both sides 18 stations


Working process as below:

  • The empty bottles enter the washing and disinfection stations through the chain and bottle holder. (The washing bottle passes through 9 stations) Washing process will be divided into 4 steps:1, hot alkali water washing 2,thimerosal washing;3,clean water washing,4,pure water washing.Every washing step is set to 8S,after washing,there will be 10S for dripping. When the drive motor runs with an empty bottle, and enters the positioning induction zone with the sensor on the chain, the positioning sensor switch sends a signal to stop the drive motor, and at the same time, the rinse bottle water pump starts to perform The flushing and disinfection work (the flushing time is controlled by the PLC program setting);

2. After rinsing, the rinsed empty bottles are transported by the bottle washing drive mechanism, and fall on the bottle pushing rack. The bottle pushing cylinder works to push the empty bottles to the filling position, so that the filling nozzle is aligned with the water bottle mouth, etc. After the water is flushed, the filling pump starts filling. (The filling time is adjusted by the user according to needs)

3. When the filling is full, the PLC sends out a control signal, the filling solenoid valve is closed, and the filling is stopped. After the filling is completed, the filled water bottle is sent to the cover of the capping area by the next water bottle and sent to the gland Area, the capping cylinder drives the capping device to press the cap tightly. At this point, a wash irrigation cycle is completed.



Cylinder: Air tech-Taiwan

Magnetic valve: Air tech-Taiwan

Rising pump-filling pump: Nanfang

PLC: Mitsubishi Japan

Material: SUS304


Dimension: 5000*2300*1800mm

Weight: 1000kg

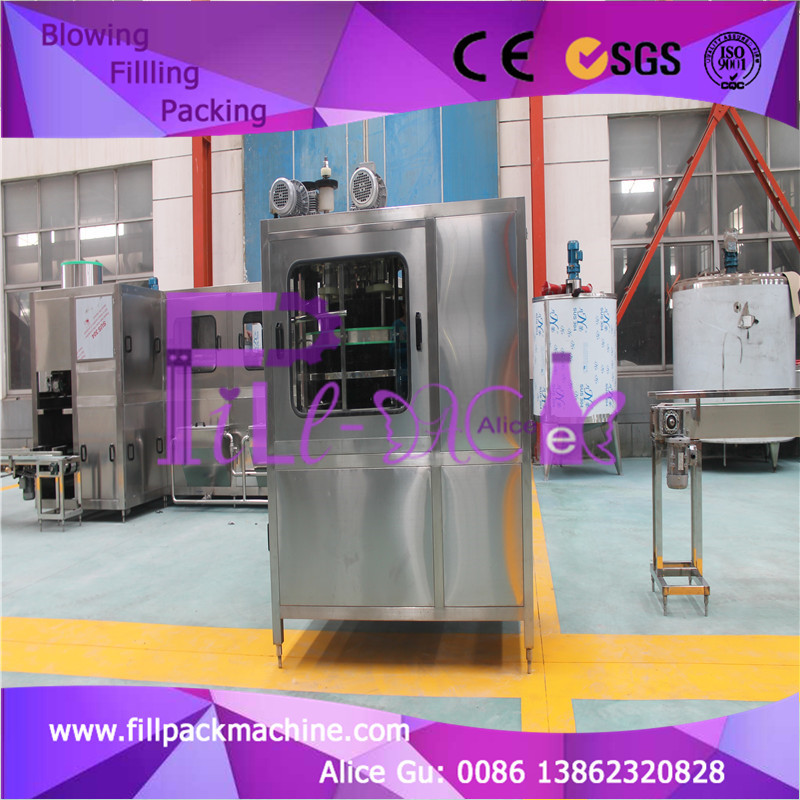

600BPH Full Automatic Four Line Monoblock Gallon Filling Machine With Overflow Valve 0

1.4, Heat Shrinking Machine

Whole SUS304 construction, including electrical boiler to generate steam and shrink tunnel especially for barrel cap film;

Power: 20KW

Dimension: 800*600*1200mm

Weight: 100kg

1.5, Checking light

Power: 0.09KW

Dimension: 1000*100*450MM

Weight: 10kg


1.7, Ink jet code printer



Outer package size of the Ink jet code printer:33*27*17cm

Net Weight of the Ink jet code printer: 0.75Kg

Gross Weight of the Ink jet code printer: 2.3Kg


Outer package size of support:38*20*20cm

Gross Weight of support: 4Kg


1.8, Automatic cap lifter-washer


The Automatic cap elevator is designed to lift bottles caps to capping machine, which there is a cap sorting machine before capping. It is not only used in beverage industry, also can be used in food, hardware, packaging, medical and chemical industry.



The machine use traditional user interface, simple, safe and reliable

The main parts of the machine are of high quality 304 stainless steel

The machine meet the GMP requirements, easy dis-assembly, cleaning & maintenance



Model: TSJ-1200

Speed: 20-50 pcs/min

Material: SUS304

Motor power: 0.37kw

Dimension: 800*800*3000

Weight: 130kg

600BPH Full Automatic Four Line Monoblock Gallon Filling Machine With Overflow Valve 1

600BPH Full Automatic Four Line Monoblock Gallon Filling Machine With Overflow Valve 2
