200BPH 3 / 5 Gallon / 20l Washing Filling And Capping Machine

Minimum Order Quantity : 1 set Price : USD $5980/set
Packaging Details : wooden case Delivery Time : 15-25 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-200

Detail Information

Bottle Size: 3~5 Gallon Bottle Capacity: 200BPH
Control: PLC Material: Stainless Steel 304
Dimension(L*W*H): 3400*780*1950 Automatic Grade: Automatic
High Light:

20l washing filling and capping machine

,

200BPH washing filling and capping machine

,

washing filling and capping machine 20l

Product Description

3 / 5 gallon / 20L bottle water bottling equipment / plant / machine / system / line



Equipment list:

Items
Name of machine
Model
1.1
Semi-auto de-capper and brush washer
BS-1
1.2
Monoblock rinser-filler-capper with full SUS304
QGF-200
1.3
Light checker
/
1.4
Roller conveyor
/
1.5
Label shrink tunnel
/
1.6
Solid Ink Roll Coding Machine
FP-380F



1.1, Semi-auto de-capper and washer

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker
foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of
the machine-washing position. After the jar putting in, the window need to be closed. Then the washer
will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the
machine will stop when time finish. Heating function could be switched on/ off as client’s needing.
Parameters:
Power: 1.12KW without heating, 2.12KW with heating
Plate thickness: 1MM
Machine cube size: 25*25MM
Cube thickness: 1.5CM



200BPH 3 / 5 Gallon / 20l Washing Filling And Capping Machine 0

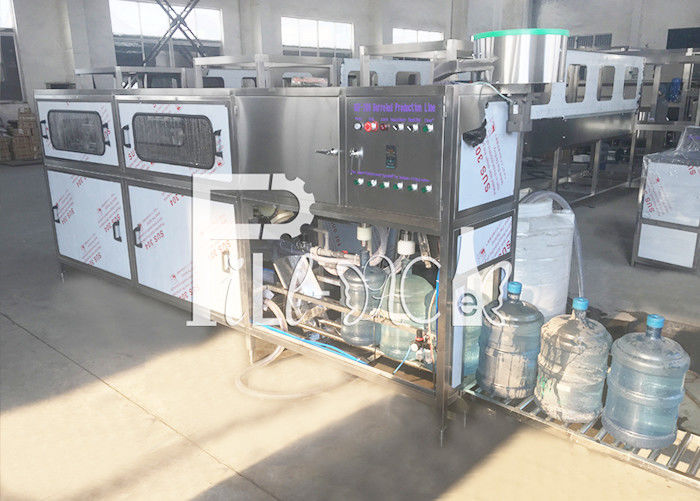

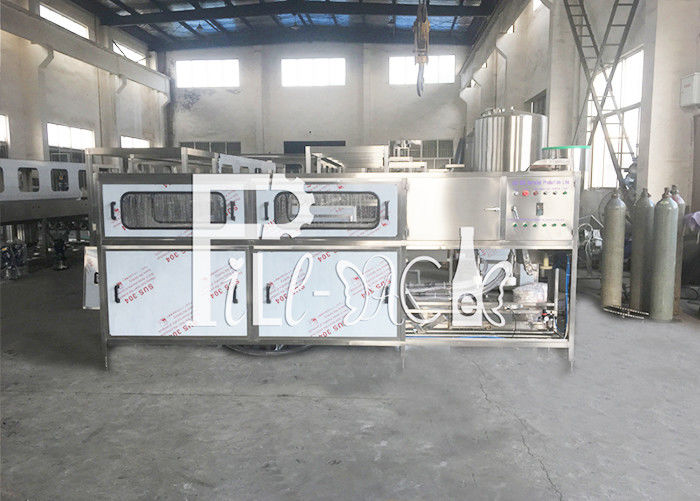

1.2, The 200BPH RINSING FILLING AND CAPPING UNIT IN PLC CONTROL FOR REF


Principle:
The machine is integrated washing filling and capping together. It is ideal machine to produce barrel
water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric
parts are all branded. Air channel system use Air TAC brand product.The machine is with compact
construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a
good choice for factory to choose.
The machine set up do not need plug floor screw,after case taking off,set the machine on the flat
floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set
up well, get in through water pipe, drain pipe and power , air power.

200BPH 3 / 5 Gallon / 20l Washing Filling And Capping Machine 1

1.3, Checking light



Power: 0.09KW Dimension: 1000*100*450MM Weight: 10kg



1.4, Roller conveyor 1.5, Heat Shrinking Machine



Application with SUS304 sheet, including electrical boiler to generate steam and shrink tunnel especially
for barrel cap film;
Power: 20KW
Dimension: 800*600*1200mm
Weight: 100kg



1.6, Solid Ink Roll Coding Machine



Description:
The use of photoelectric integration technology, advanced solid ink wheel, has the excellent
performance of instant printing and instant dry, which is not easy to erase. The machine is advanced in
design, precise in manufacturing, stable in operation, longitudinally controlled in position by electronic
control, arbitrarily adjustable, photoelectrically controlled printing actions and counts, and the number
of printable sheets can be set.
Applicable to the surface indentation or color printing production date, product batch number,
expiration date, inspection qualification, etc. of paper boxes, labels, tags, certifications, etc., with
automatic sorting, automatic counting, random positioning, preset printing times, Indentation is clear,
color is optional, printing speed is fast, instantaneous printing instant dry, loss and other advantages.
