One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon

Minimum Order Quantity : 1 set Price : USD6825 per set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: FP-120

Detail Information

Voltage:: As Per Model Key Selling Points:: Easy To Operate
Feature:: High Stability Working Pressure:: 0.8-1.0Mpa
Capacity: 120BPH Cavity: 1 Cavity
Bottle Volume: 3-5 Gallon Bottles Condition: New
High Light:

one cavity pet bottle blowing machine


semiauto gallon bottle blowing machine


gallon bottle blowing machine 120bph

Product Description

1 cavity semi-auto blow molding system for 3-5gallon



FP-120 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.

● Perfect function with economic investment.

● Small size and compact construction with no space waste.

● Easy to operate and maintain ,operation by one person .

● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.

● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.



Main parameter:
Model FP-120




Product material PET
Volume 10L-20L(3-5Gallon)
Output 150PCS/H
Max bottle length 430mm
Max bottle diameter 300mm



Stretching stroke 450mm
Clamping force 6000kg
Mould opening stroke 360mm


Machine size and weight

Main machine (L x W x H) 2350*750*1900mm
Main machine weight 1500Kg
Heater (L x W x H) 2670*680*1650mm
Heater weight 380Kg
Power 40kw



3-5 gallon bucket blowing machine  Specifications:
1. PET bottle blowing machine with 1 Cavity
2. Suitable for 15~20L bottles
3. Blow PET or PP bottles
4. Capacity: 120BPH

Product details:

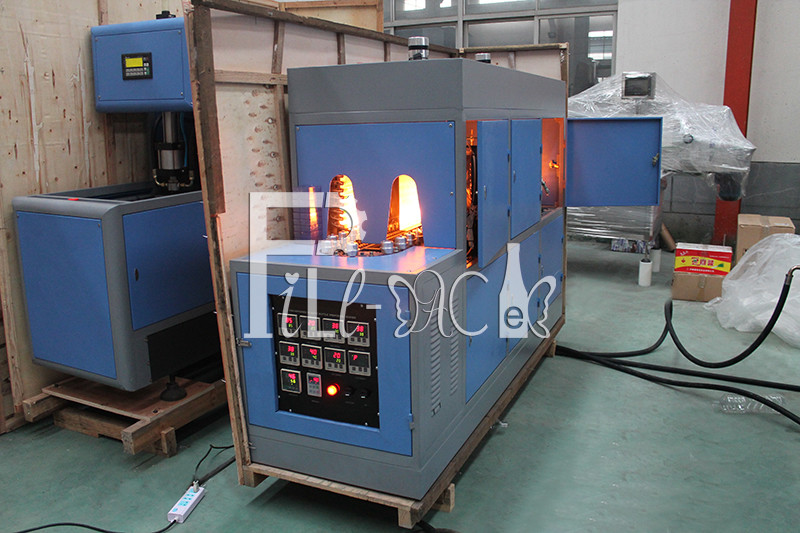

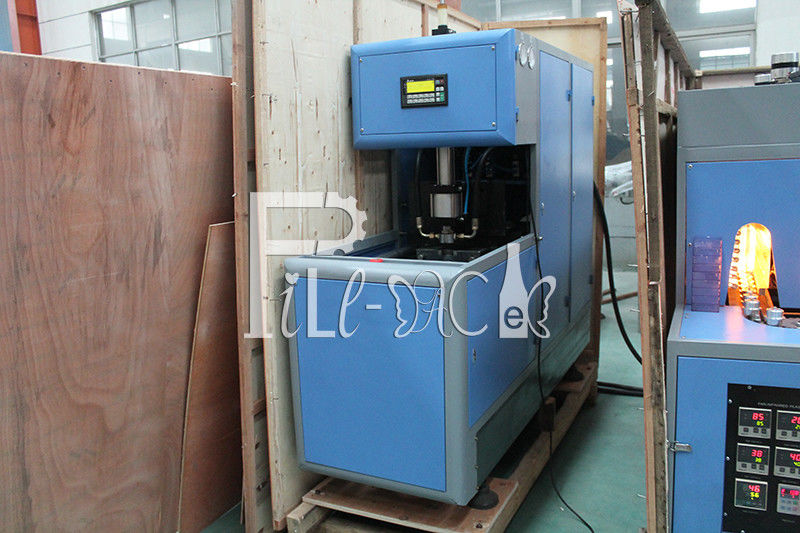

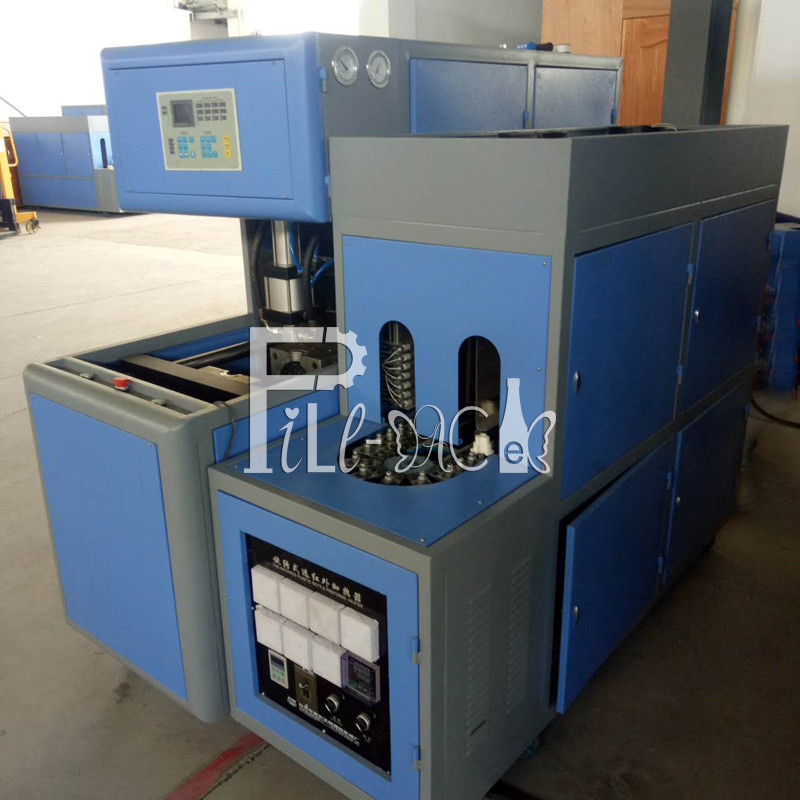

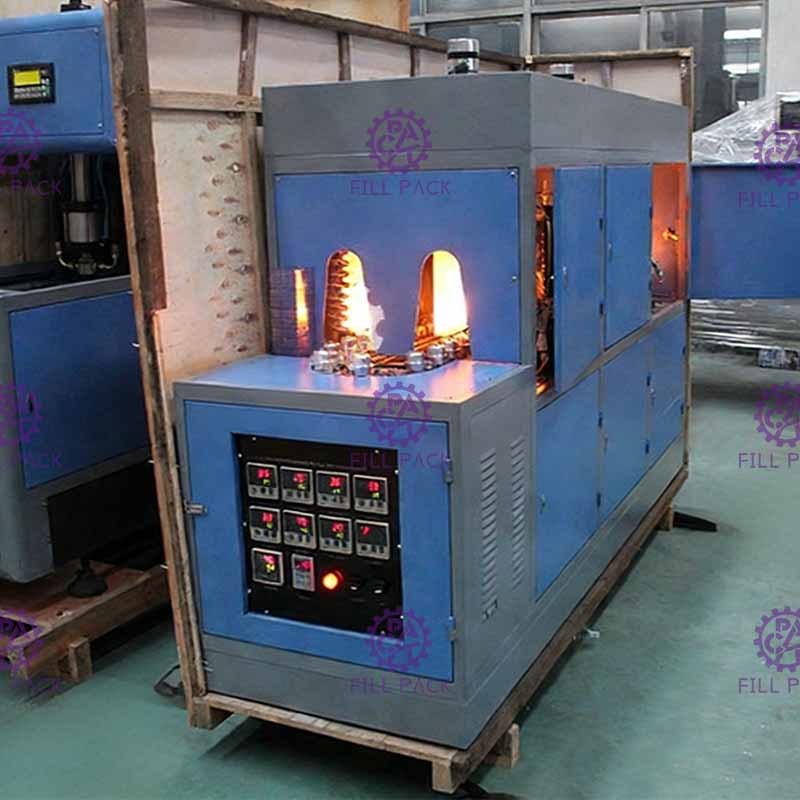

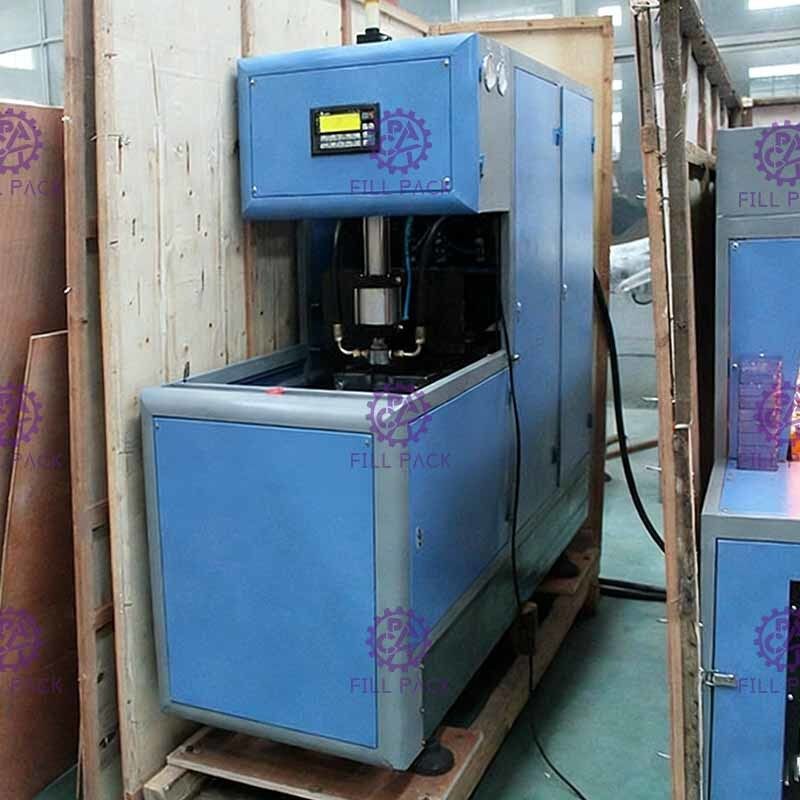

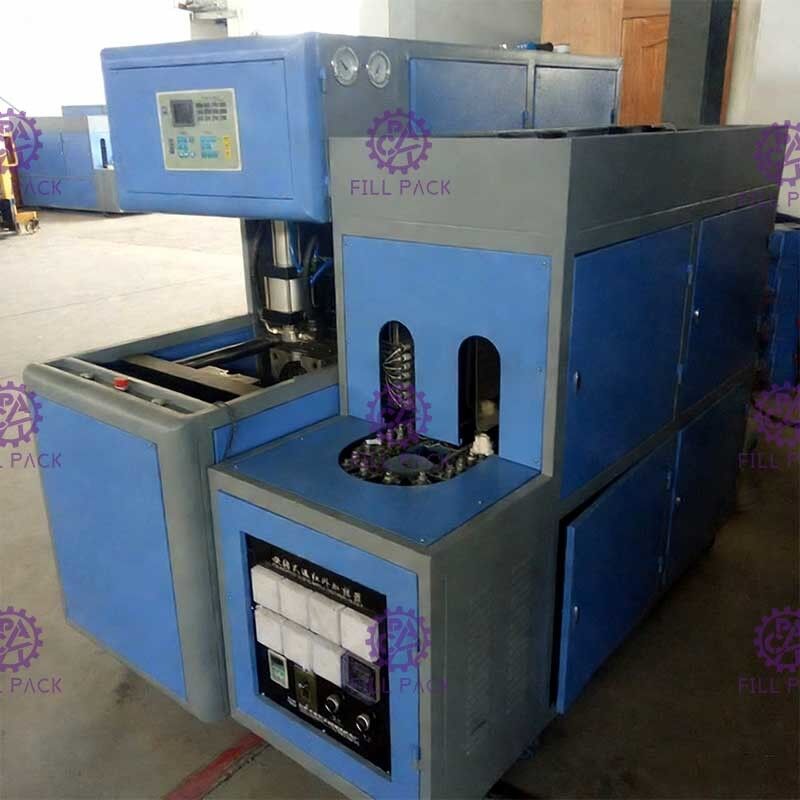

One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon 0One Cavity Semiauto Gallon Bottle Blowing Machine 120bph For 3-5 Gallon 1
heating machine
