2.5kw Automatic 5 Gallon 2200bph Water Bottle Packing Machine

Minimum Order Quantity : 1 set Price : USD $4000/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 set / month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE / ISO9001 - 2008 Model Number: FTD-2200

Detail Information

Production Capacity: 0 - 2200BPH Applicable Bottle: 3-5 Gallon Bottle
Applicable Film: L680-720mm Tk0.006-0.015mm Roll Diameter: 350mm Total Power: 2.5kw
Air Consumption: 0.6m³/Min 6kg/cm² Conveyor Dynamic Load: 20KG/0.5m/s.
High Light:

2200bph water bottle packing machine

,

2200bph automatic bottle packing machine

,

PLC water bottle packing machine

Product Description



automatic 5 gallon bottle bag packing machine / equipment / device



Usage:
It is mainly an equipment designed for the automatic bag packing of the finished water in the 5 gallon bottle production line to keep the barrel clean and reduce wear. The gallon bottle can enter and exit the machine without the need for personnel to complete the whole process, The packaging efficiency is high, mechanized operation reduces labor costs; the packaging speed can reach max 2200BPH, which can save two to four workers and greatly reduce bag costs.


Features:
The frame part of the equipment is made of stainless steel 304 square tube welded and sheets, stable and sturdy.
The film is cut and sealed with high-quality heating tube with the alloy cutter head. The temperature control panel and the thermocouple maintain a certain constant temperature, so that the bag forming once the film sticks. There are 2 groups of cutting and heating blades including for body part and shoulder part.
The operation panel adopts a touch screen for convenient setting various parameters. The sensors of this unit have proximity switches, photoelectric switches, and magnetic switches. Various sensors input the corresponding signals to the program controller (PLC), and then the PLC controls the corresponding actions according to the established program to ensure that the bagging machine performs automatic bagging in a stable and orderly manner.



Characters:

1. Heating blade driving system: servo motor.

2. Motor-assisted film feeding method.

3. Sealing and cutting method: electric heating pressing

4. Gallon bottle entrance: automatic detection and automatic delivery.



Main technology data:



Production capacity 0 - 2200 BPH
Applicable bottle 3-5 gallon
Applicable film

L680-720mm Tk0.006-0.015mm

Roll diameter: 350mm

Bottle feeding motor 0.37KW speed ratio:1:20
Film feeding motor 0.18KW speed ratio:1:30
Bottle exit motor 0.18KW speed ratio:1:15
Host cutter heating rod 1.8kw *1pcs
Auxiliary cutter heating rod 0.12kw *2pcs
Total Power 2.5kw
Air consumption 0.6m³/Min 6kg/cm²
Conveyor dynamic load 20KG/0.5m/s.
Size

2300*1400*1600MM

conveyor belt is 600mm above the ground

Weight 650kg




Main configuration:



Item Part name Brand
1 PLC control Mitsubishi
2 Touch screen Weinview
3 Proximity switch AUTONICS
4 Photoelectric switch AUTONICS
5 Contactor Schneider

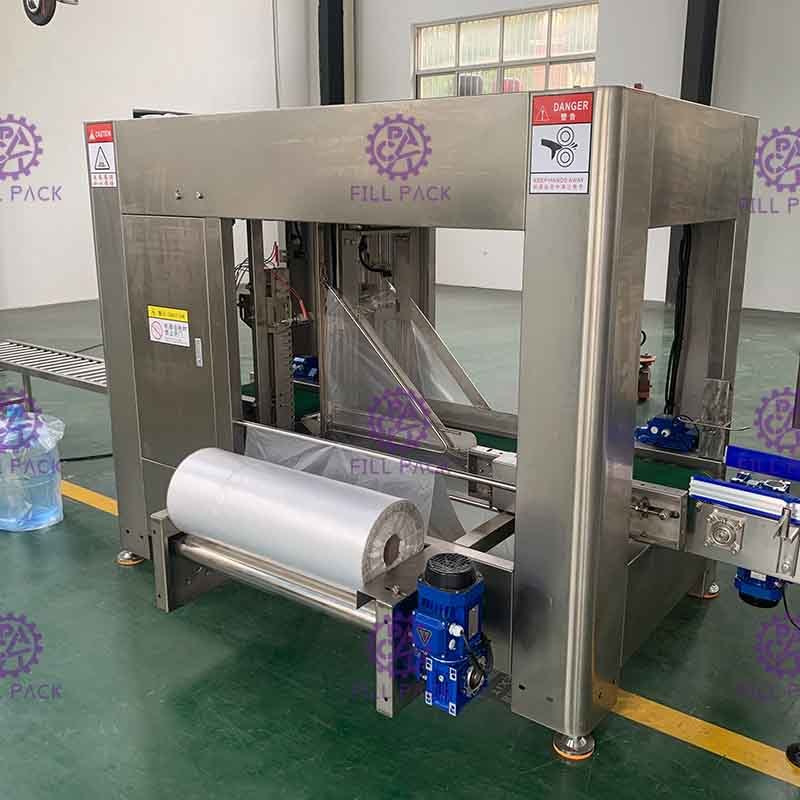

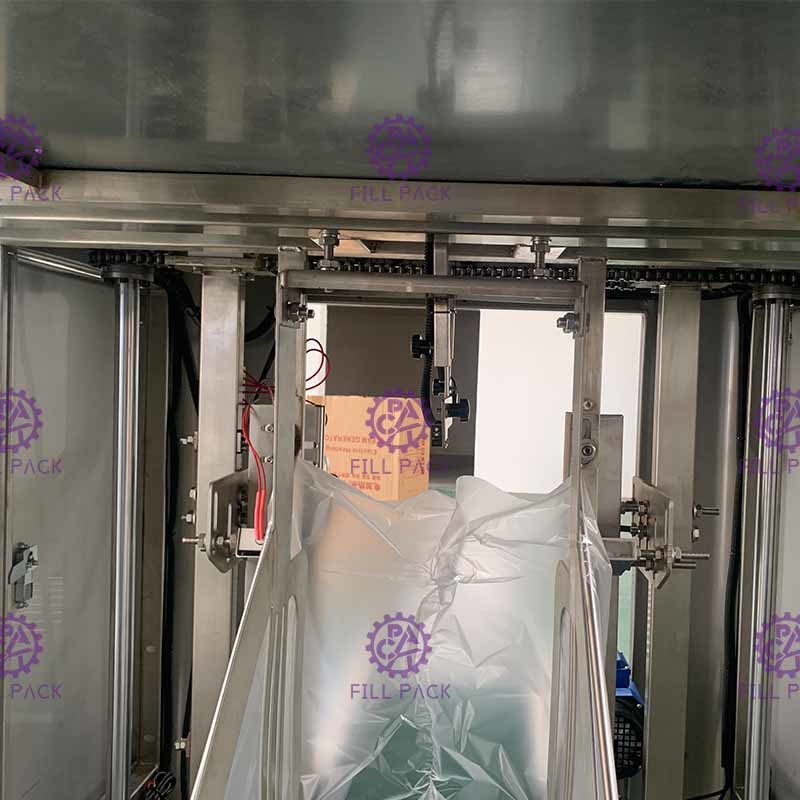

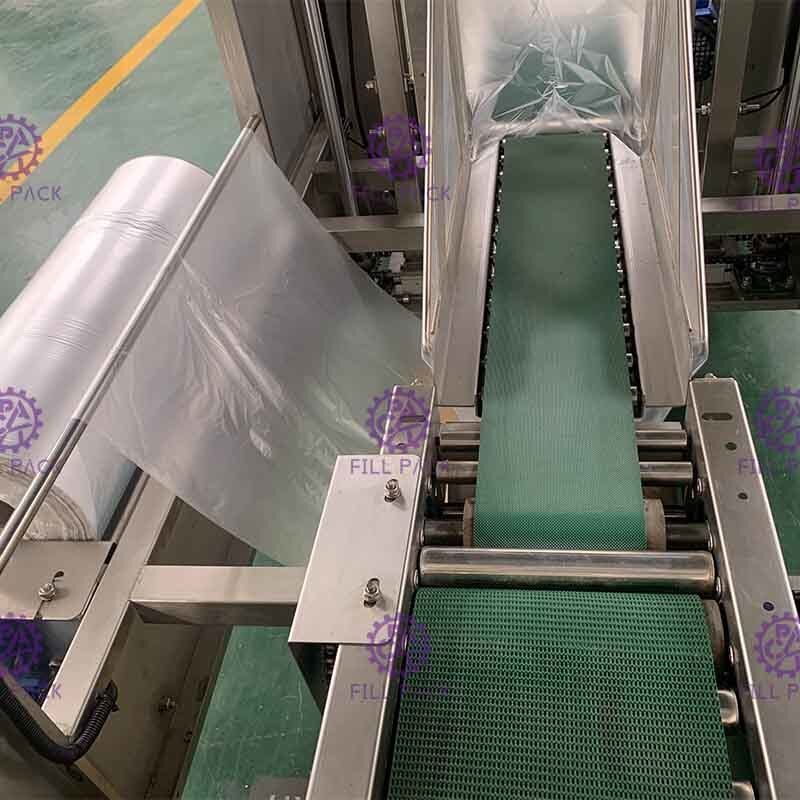

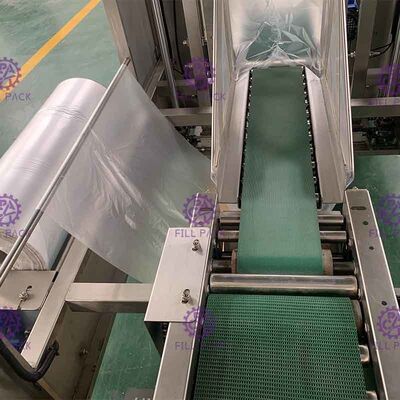

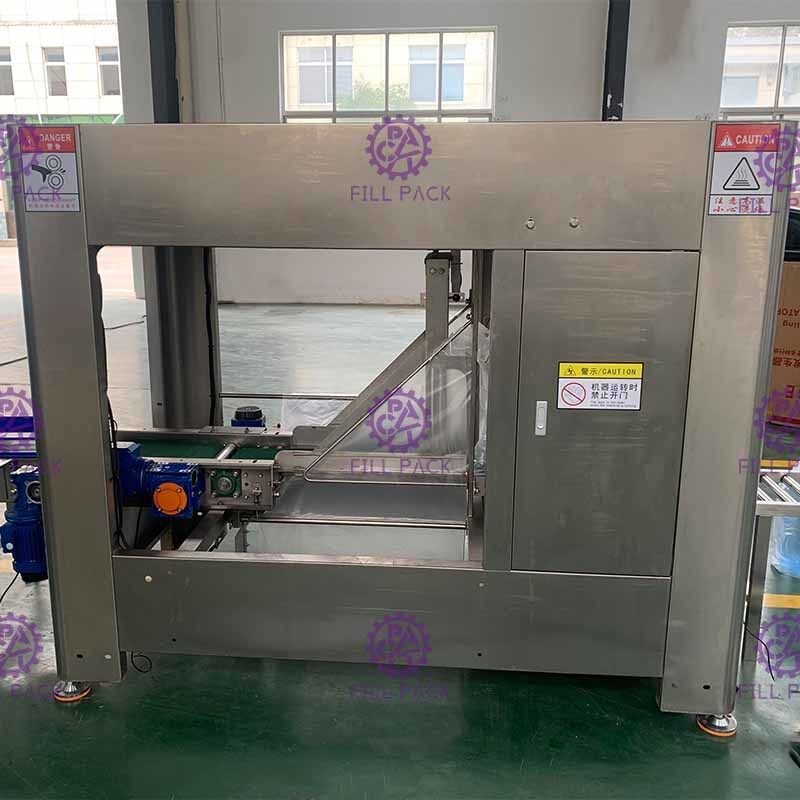

2.5kw Automatic 5 Gallon 2200bph Water Bottle Packing Machine 0

2.5kw Automatic 5 Gallon 2200bph Water Bottle Packing Machine 1

Payment:

30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70% T/T before shipment

Delivery:

20 working days after deposit receipt;
