Touch Screen 60BPH Gallon Bottle Blowing Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | USD6825-10605 per set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 15-20days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 20 sets/month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-120 |
|
Detail Information |
|||
| Voltage:: | As Per Model | Key Selling Points:: | Easy To Operate |
|---|---|---|---|
| Feature:: | High Stability | Working Pressure:: | 0.8-1.0Mpa |
| Capacity: | 120BPH | Cavity: | 1 Cavity |
| Bottle Volume: | 3-5 Gallon Bottles | Condition: | New |
| High Light: | 120bph plastic pet bottle blowing machine,pet bottle blowing machine 120bph,30mm Plastic Pet Bottle Blowing Machine |
||
Product Description

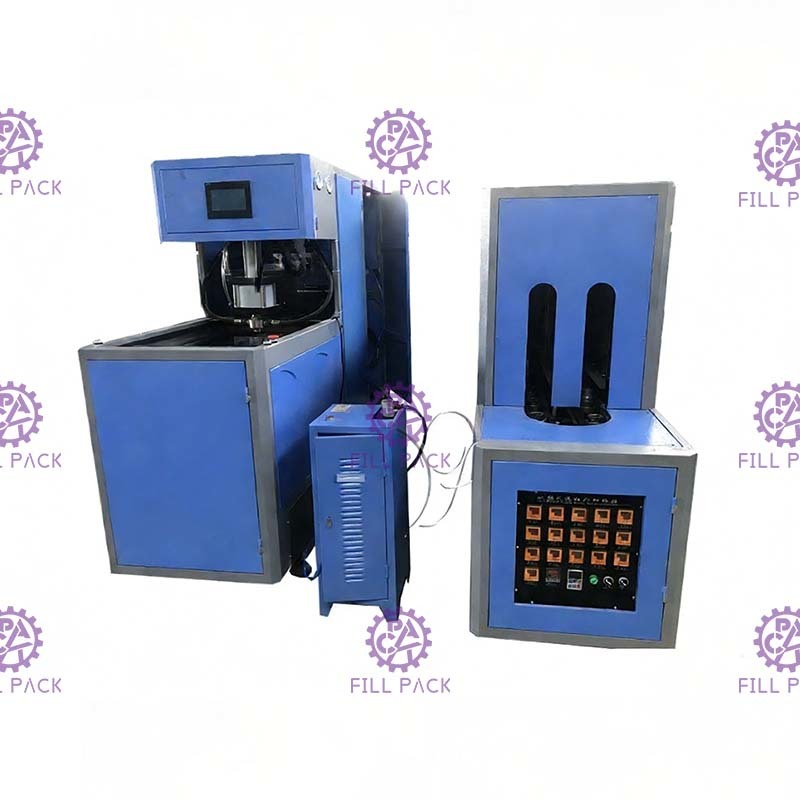

Plastic bottle 5 gallon PET bottle blow molding machine semi auto pet bottle blowing machine

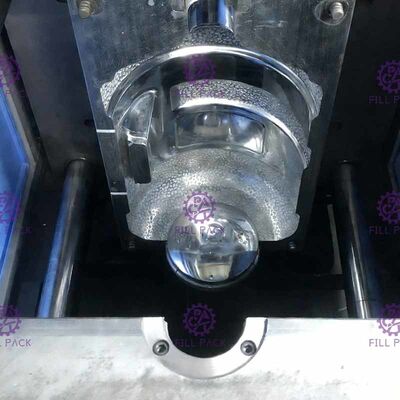

FP-120 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.
| Main parameter: | ||
| Model | FP-120 | |
|
Container |
Product material | PET |
| Volume | 10L-20L(3-5Gallon) | |
| Output | 150PCS/H | |
| Max bottle length | 430mm | |
| Max bottle diameter | 300mm | |
|
Moulding |
Stretching stroke | 450mm |
| Clamping force | 6000kg | |
| Mould opening stroke | 360mm | |
|
Machine size and weight |
Main machine (L x W x H) | 2350*750*1900mm |
| Main machine weight | 1500Kg | |

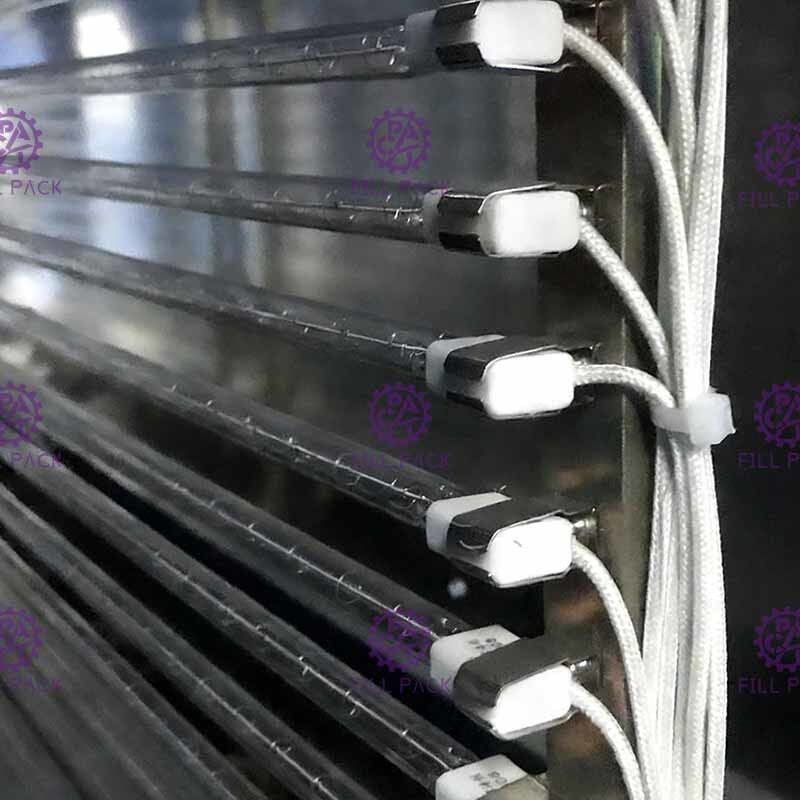

| Heater (L x W x H) | 2670*680*1650mm | |
| Heater weight | 380Kg | |
| Power | 40kw | |
