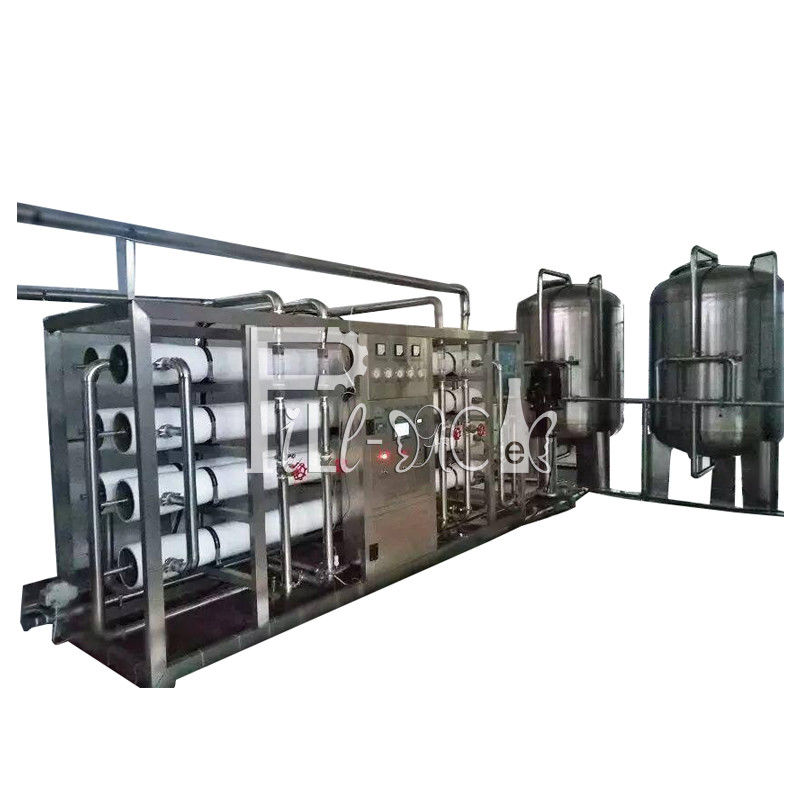

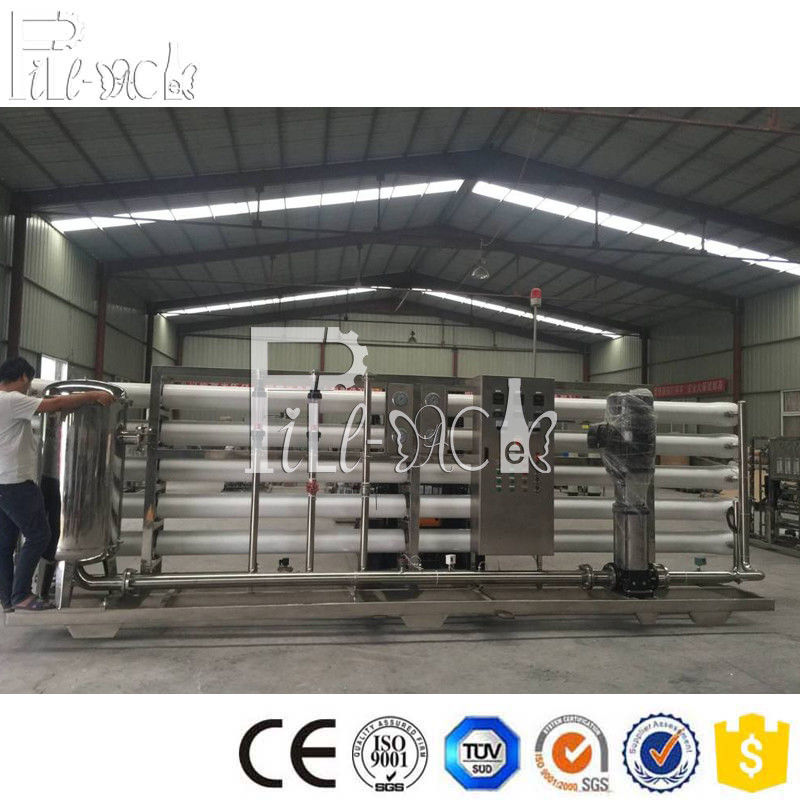

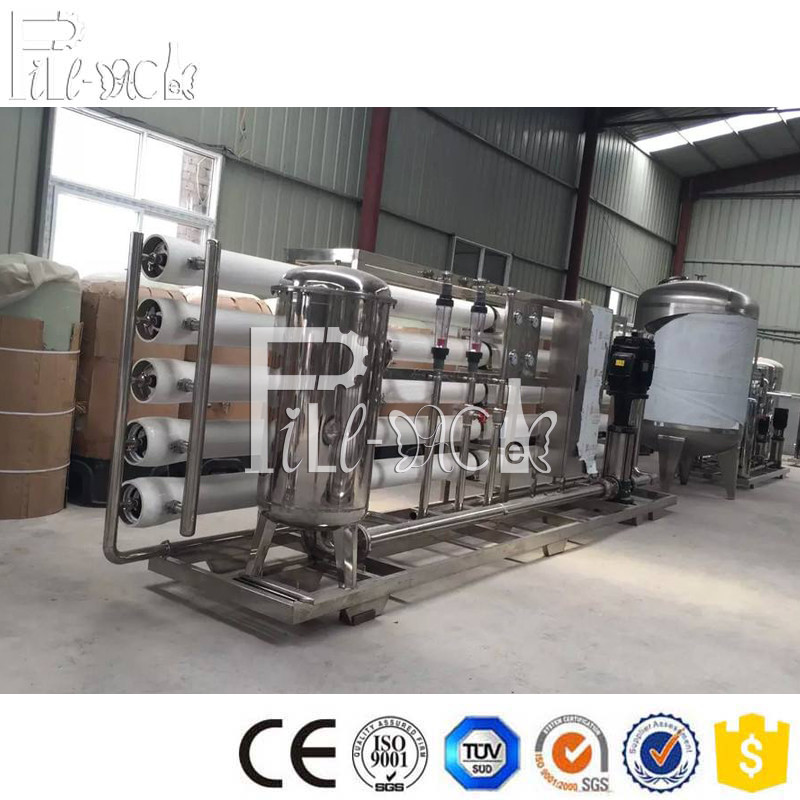

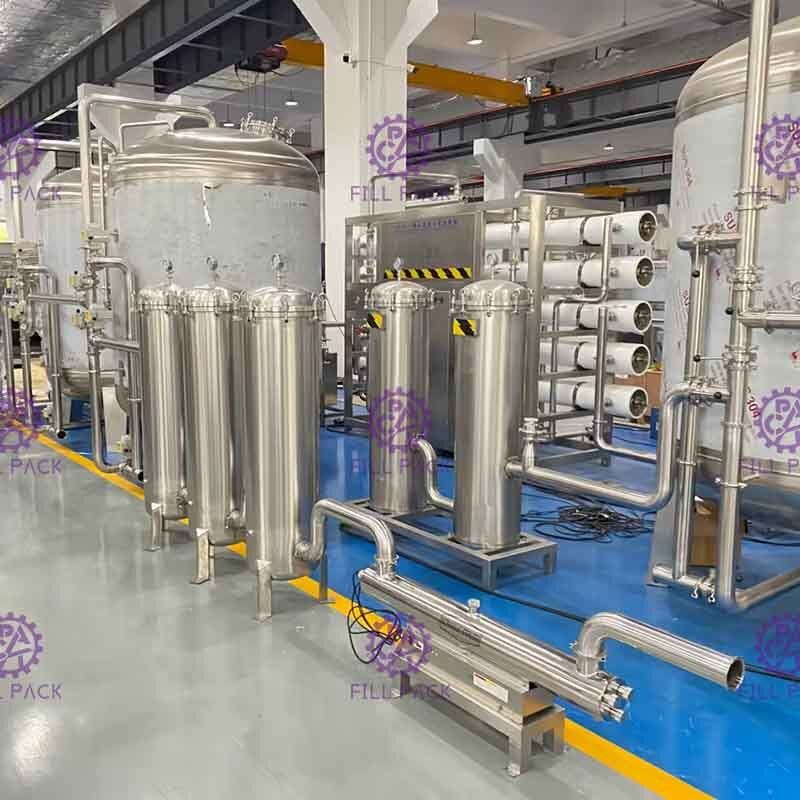

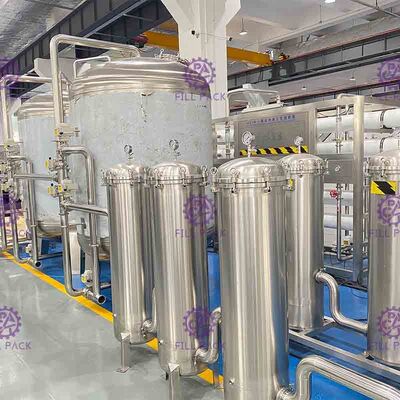

Stainless Steel 304 20tph Borehole Drinking Ro Water Filter Plant Machine

Minimum Order Quantity : 1 set/pcs Price : USD$70000 per set
Packaging Details : Wooden case Delivery Time : 20-25 days
Payment Terms : L/C, D/A, D/P, T/T, MoneyGram Supply Ability : 10 sets/month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE,ISO Model Number: RO-20000

Detail Information

Product Name: Water Treatment System Processing Reverse Osmosis Plant Material: FRP Or SUS304
Capacity: 20000LPH Warranty: 1 Year
Type: RO RO Membrane's Desalting Rate: 99%
Voltage: 380V 3PH 50HZ Condition: New
High Light:

FRP ro water filter plant machine


20tph reverse osmosis water purification machine


20tph ro water filter plant machine

Product Description

Stainless steel 304 20TPH Borehole Drinking Reverse Osmosis Water purifying line


The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate,extract, purify and condense.

More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.
Product advantage
1, Powder coating frame, PTEF inner construction part; 2, Ceramic tube ozone generating device, make sure ozone content and concentration, air cooling and water chilling for choice; 3, Ozone generation adjustment: 20%-100% 4, Stainless steel vertical shell (wall mounted for models below T24G) 5, Optional automatic heating and drying system. 6, Air based model or with external oxygen model. 7, High tech double air-cooled ceramic tube unit, high frequency power supply, stable ozone output, long service life. 8, Compact structure, less land occupation, and the equipment can be placed or moved freely according to the actual situation. 9, Single cycle or double cycle time relay

Working process of water ro system:

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.

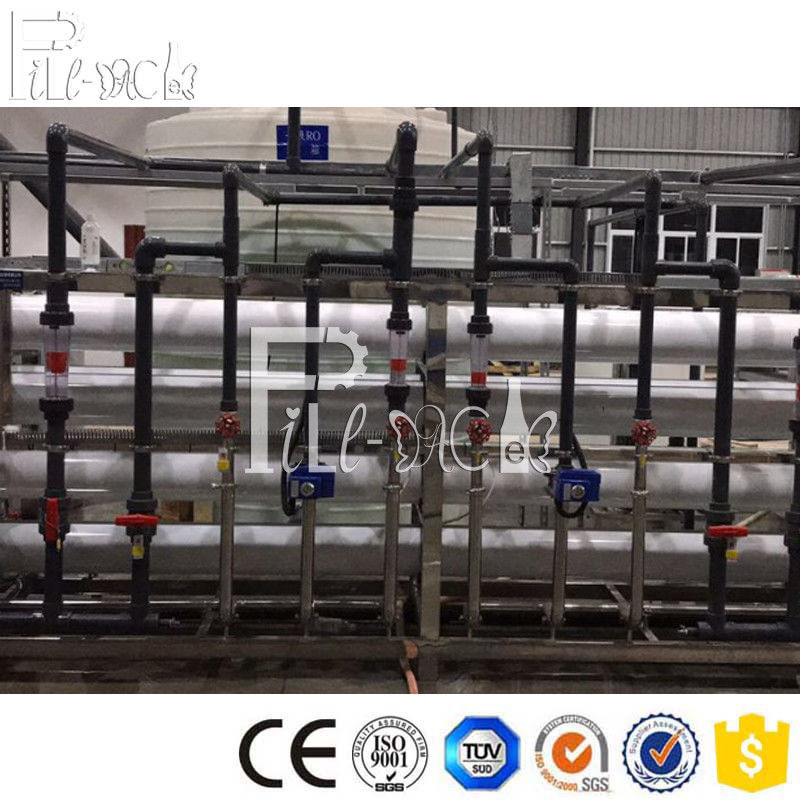

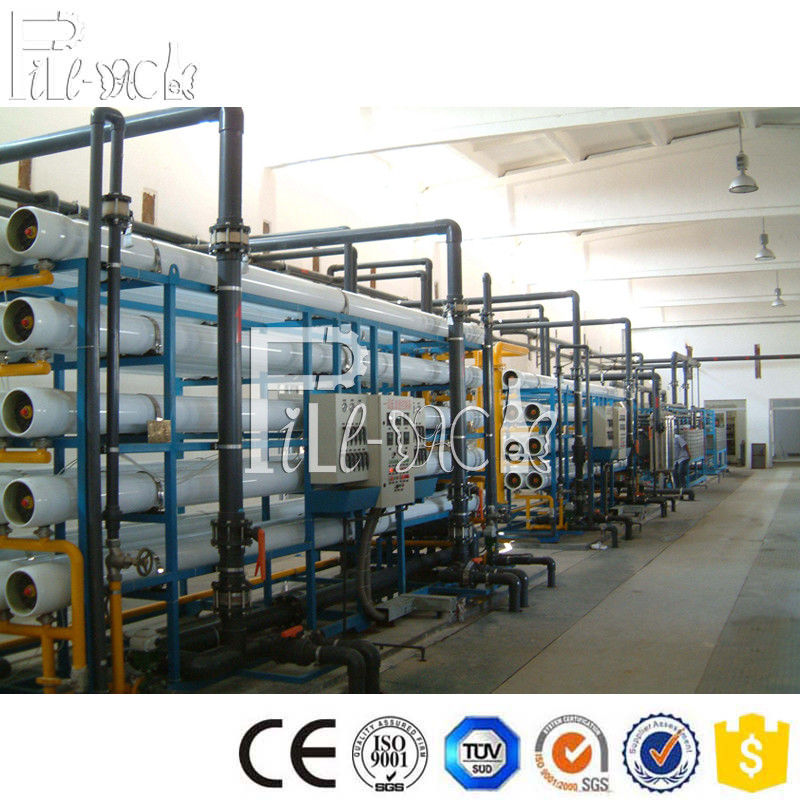

7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

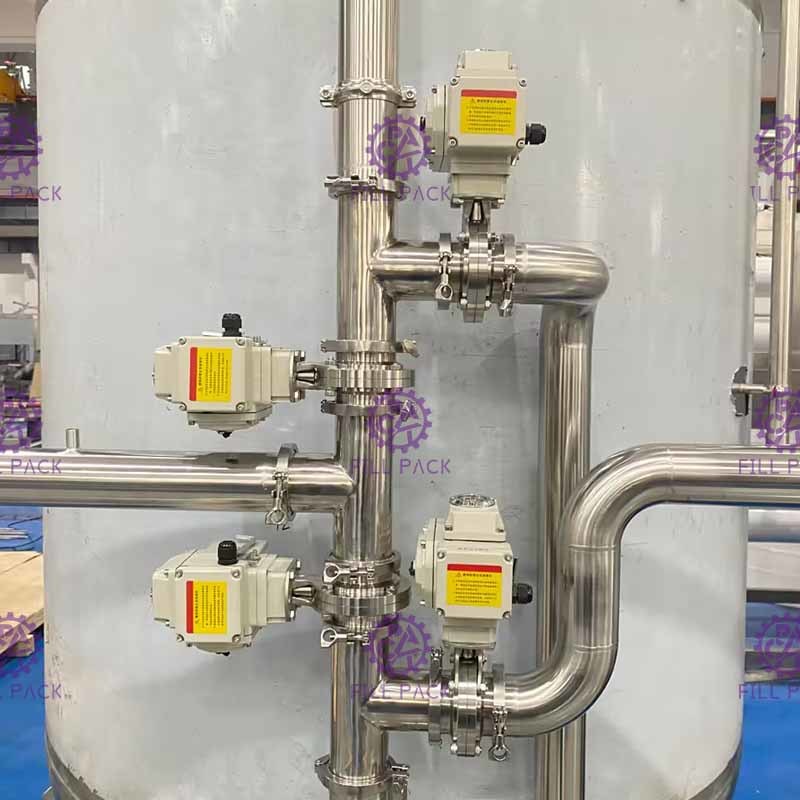

Stainless Steel 304 20tph Borehole Drinking Ro Water Filter Plant Machine 0
