Touch Screen 60BPH Gallon Bottle Blowing Machine
Contact Person : Alice Gu
Phone Number : 86-13862320828
WhatsApp : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | USD11742 per set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 15-20days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, MoneyGram | Supply Ability : | 15 sets/month |
| Place of Origin: | JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-120 |
|
Detail Information |
|||
| Machine Making Product:: | PET Material Bottle | Max Bottle Length: | 430mm |
|---|---|---|---|
| Max Bottle Diameter: | 300mm | Capacity: | 120BPH |
| Cavity: | 1 Cavity | Bottle Volume: | 3-5 Gallon Bottle |
| High Light: | 120bph semi auto blow molding machine,ce semi auto blow molding machine,gallon bottle blowing machine 1 cavity |
||
Product Description

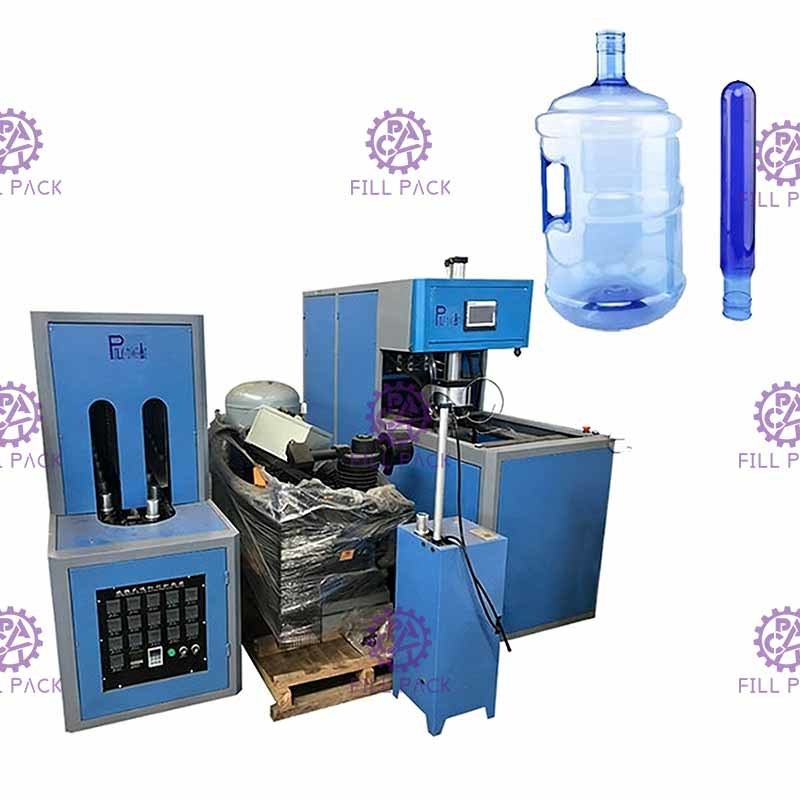

Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine with handle
Description:
FP-120 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.
●Perfect function with economic investment.
●Small size and compact construction with no space waste.
●Easy to operate and maintain ,operation by one person .
●Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
●We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.
Parameters:
|
Model
|
FP-120
|
|
|
Container
|
Product material
|
PET
|
|
Volume
|
10L-20L(3-5Gallon)
|
|
|
Output
|
150PCS/H
|
|
|
Max bottle length
|
430mm
|
|
|
Max bottle diameter
|
300mm
|
|
|
Moulding
|
Stretching stroke
|
450mm
|
|
Clamping force
|
6000kg
|
|
|
Mould opening stroke
|
360mm
|
|
|
Machine size and weight
|
Main machine (L x W x H)
|
2350*750*1900mm
|
|
Main machine weight
|
1500Kg
|
|
|
Heater (L x W x H)
|
2670*680*1650mm
|
|
|
Heater weight
|
380Kg
|
|
|
Power
|
40kw
|
|
