200BPH Automatic 5 Gallon Filling Machine Line With Cap Lifter

Minimum Order Quantity : 1 set Price : USD $6155/set
Packaging Details : wooden case Delivery Time : 15-25 working days
Payment Terms : L/C, D/A, D/P, T/T, MoneyGram Supply Ability : 15 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-200

Detail Information

Bottle Size: 3-5 Gallon Bottle Capacity: 200BPH
Control: PLC Material: SUS 304
Dimension(L*W*H): 3400*780*1950 Automatic Grade: Automatic
High Light:

SUS304 5 Gallon Filling Machine


200BPH 5 Gallon Filling line


Cap Lifter 5 Gallon Filling line

Product Description


200BPH Automatic 3-5 Gallon Filling Machine / line with Cap Lifter


Feature :

1. The 3-5 gallon pure water barrel filling machine integrates bottle washer, filler and sealer into unit,

Multiple injections of washing and sterilizing and bleaching are used in bottle.water filling machine.
2. The sealer can seal bottle caps qutomatically.


Equipment list:

Name of machine
Semi-auto de-capper and brush washer
Monoblock rinser-filler-capper with full SUS304
Light checker
Roller conveyor
Label shrink tunnel
Solid Ink Roll Coding Machine



The machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.


The machine set up do not need plug floor screw,after case taking off,set the machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power , air power.


Working process:

Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 9 working stations,working process as below:

(1) Set empty barrel mouth to barrel seat, empty barrel will be washed during headstand situation,4 working station for barrel inserting.

(2) Washing process will be divided into 4 steps:1, hot alkali water washing 2,thimerosal washing;3,clean water washing,4,pure water washing.Every washing step is set to 8S,after washing,there will be 10S for dripping.

(3) The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.

(4) Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.After filling, the extra water will back to pure water tank by automatic vent,it can reduce water consumption.(water tank is not included)

(5) After filling process finish,the filled barrel will be pushed to capping position by barrel stop cylinder,the whole process finish till now.

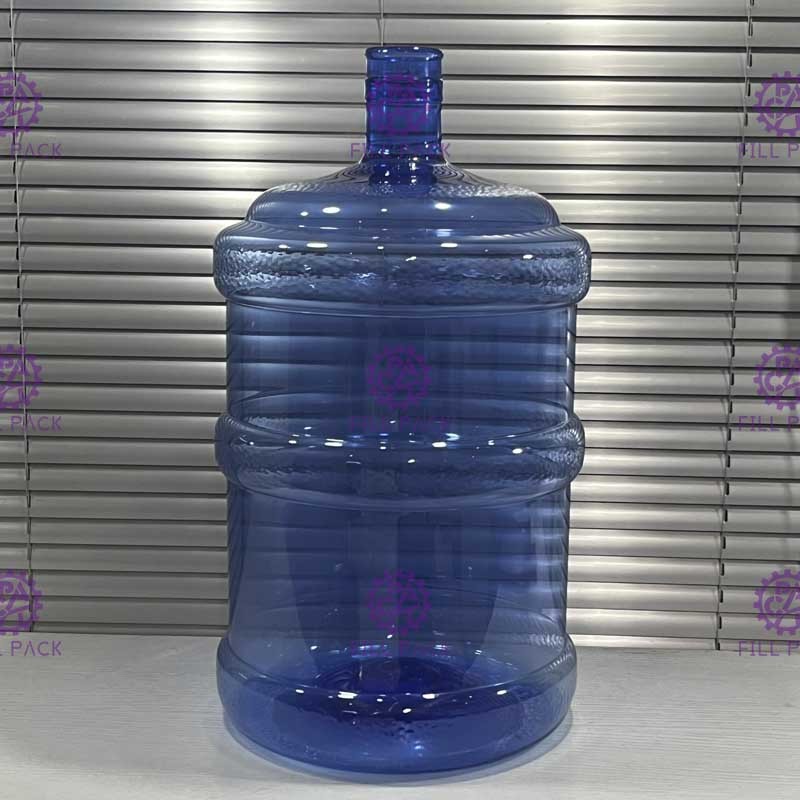

200BPH Automatic 5 Gallon Filling Machine Line With Cap Lifter 0

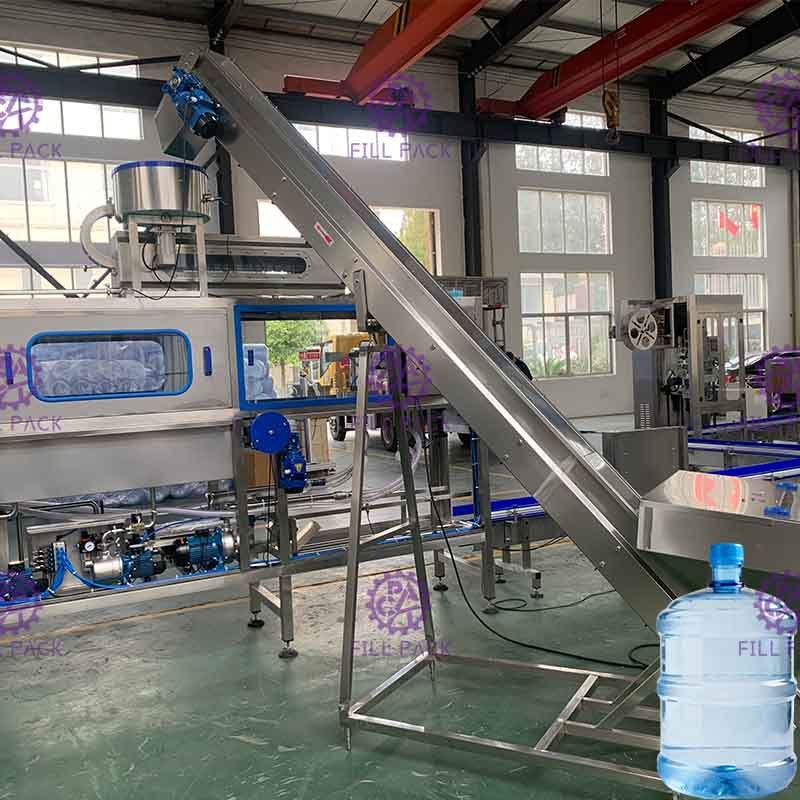

200BPH Automatic 5 Gallon Filling Machine Line With Cap Lifter 1

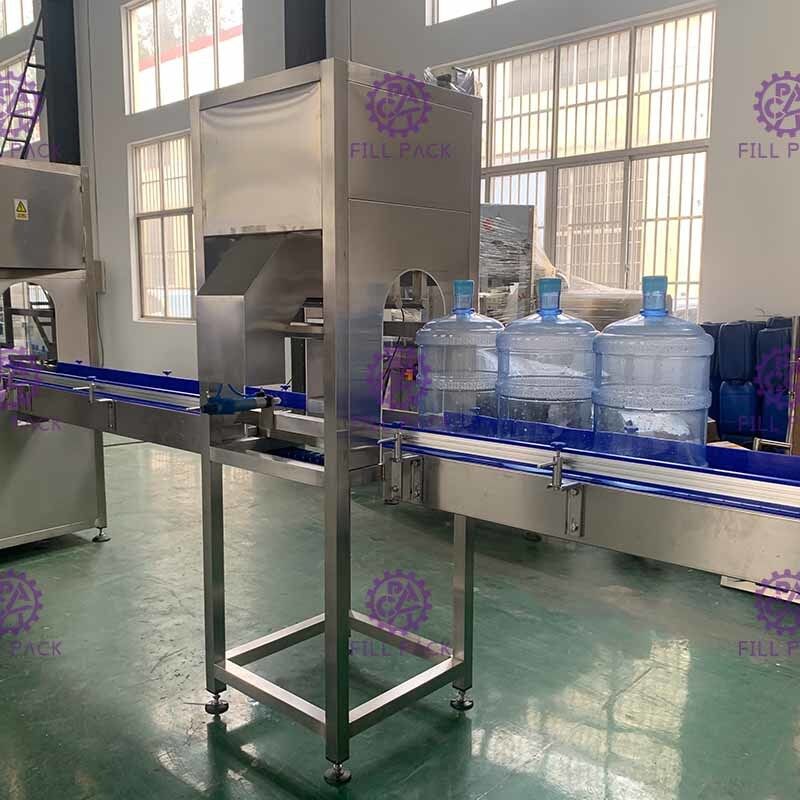

200BPH Automatic 5 Gallon Filling Machine Line With Cap Lifter 2
