Automatic Decapping 5 Gallon Bottle Washer Rinser SUS304

Minimum Order Quantity : 1 set Price : USD $1220/set
Packaging Details : wooden case Delivery Time : 15-25 working days
Payment Terms : L/C, D/A, D/P, T/T, MoneyGram Supply Ability : 15 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: BG-1

Detail Information

Bottle Size: 3-5 Gallon Bottle Capacity: 200BPH
Control: PLC Material: SUS 304
Dimension(L*W*H): 600*600*2000 Automatic Grade: Automatic
Weight: 80kgs Operate Head Qty: 1
High Light:

decapping 5 Gallon Bottle Washer

,

SUS304 5 Gallon Bottle Washer

,

Automatic decapping bottle rinser washer

Product Description

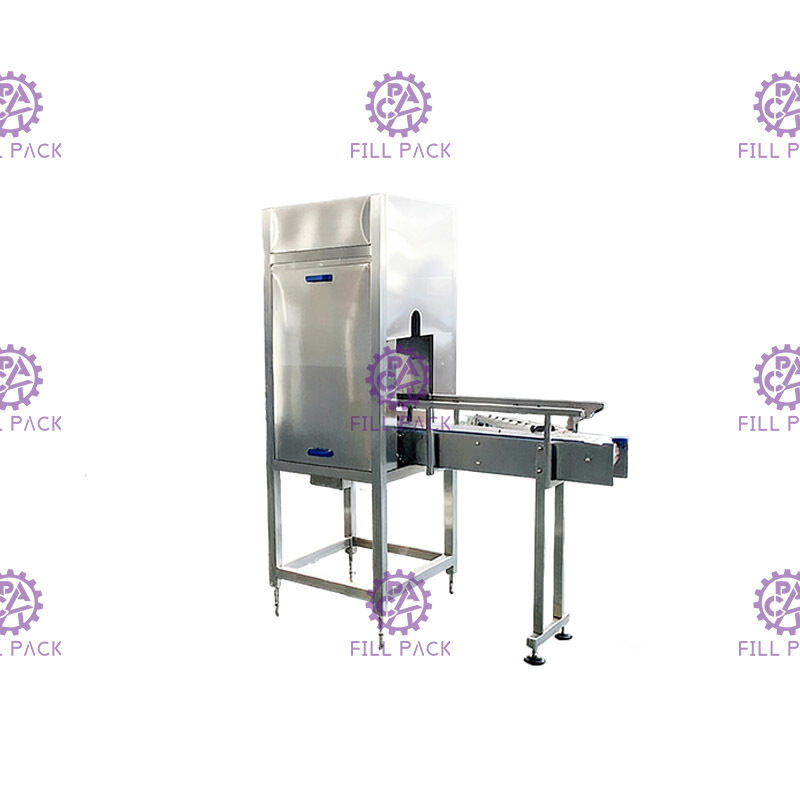

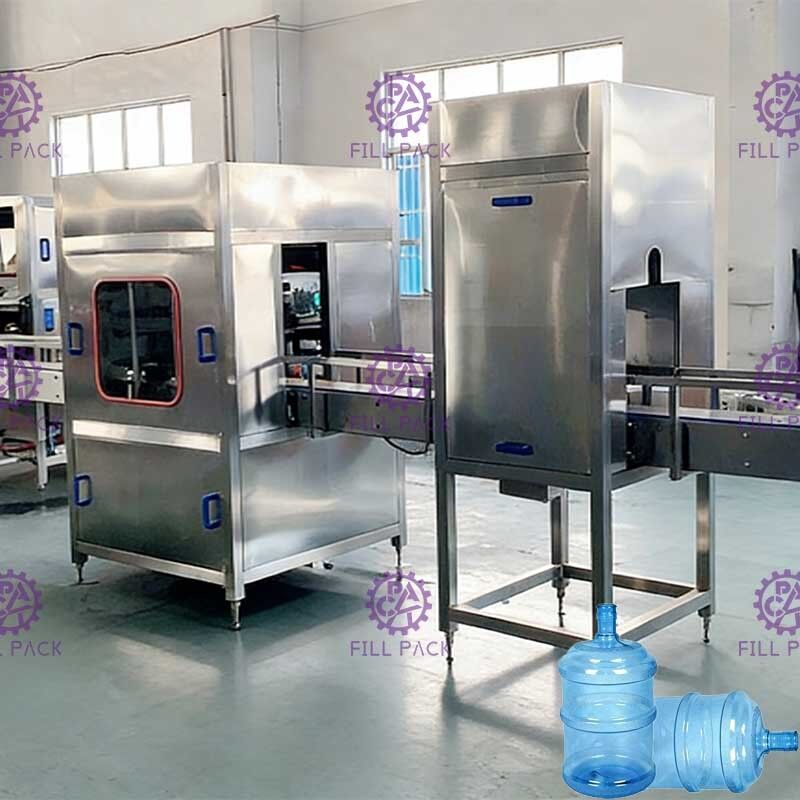

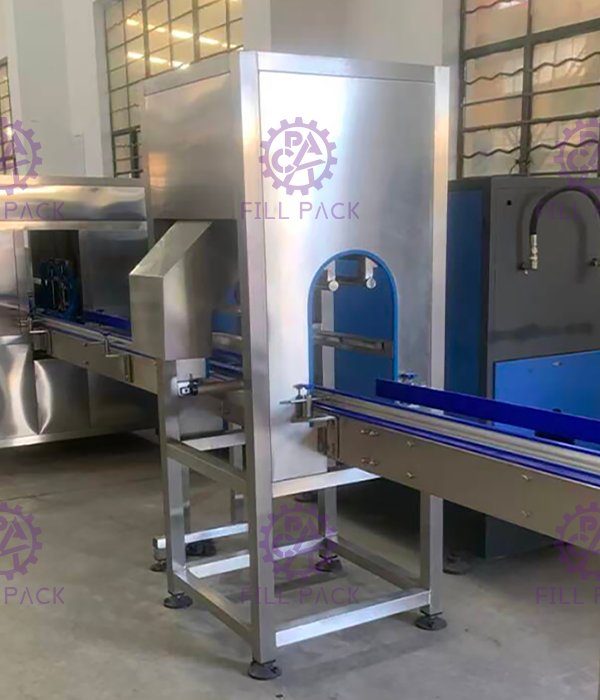

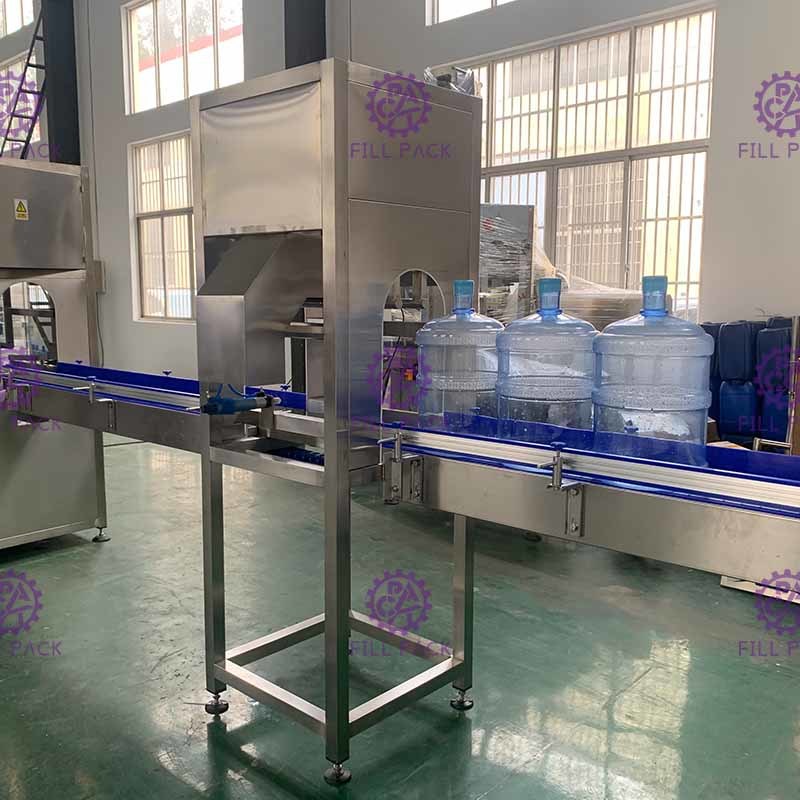

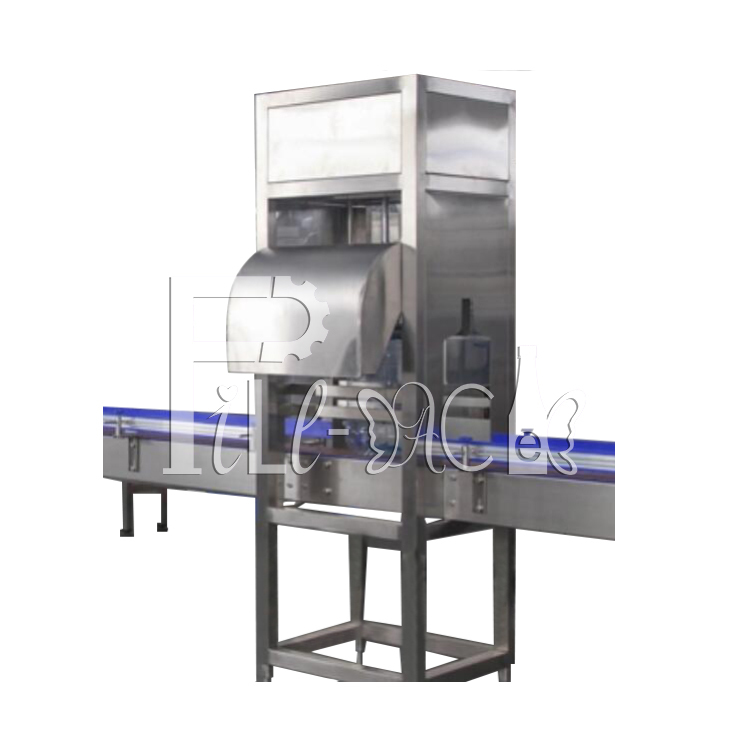

The Automatic de-capping machine for gallon bottle filling line

This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;

De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.

When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;

The claw pressure is adjusted to protect caps;



Parameters:

Dimension: 600*600*2000mm

Weight: 80kg



Equipment list:

Items
Name of machine
Model
1.1
Controlled
PLC
1.2
driven cylinder
1.3
De-capping head  1
1.4
conveyor
 customized



Automatic Decapping 5 Gallon Bottle Washer Rinser  SUS304 0 Automatic Decapping 5 Gallon Bottle Washer Rinser  SUS304 1
Automatic Decapping 5 Gallon Bottle Washer Rinser  SUS304 2 Automatic Decapping 5 Gallon Bottle Washer Rinser  SUS304 3
