2000BPH Sleeve Labeling Machine Photoelectricity For Gallon Bottle Mouth

Minimum Order Quantity : 1 set/pcs Price : USD$5,300.00
Packaging Details : Wooden case Delivery Time : 20-25 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5-10 sets / month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: TB-50

Detail Information

Bottle Size: 3/5 Gallon Bottle Capacity: 900-2000BPH
Packaging: Wooden Case Host Power: AC220V, 50/60HZ, 1.5-2KW
Machine Size: 1000*800*2000mm Machine Weight: 250KG
Diameter Of Label :: ∮28mm-∮125mm Material Of Label:: PVC, PET, OPS
High Light:

2000BPH Sleeve labeling machine

,

2000BPH photoelectricity bottle labeller

,

photoelectricity automation gallon labeler

Product Description

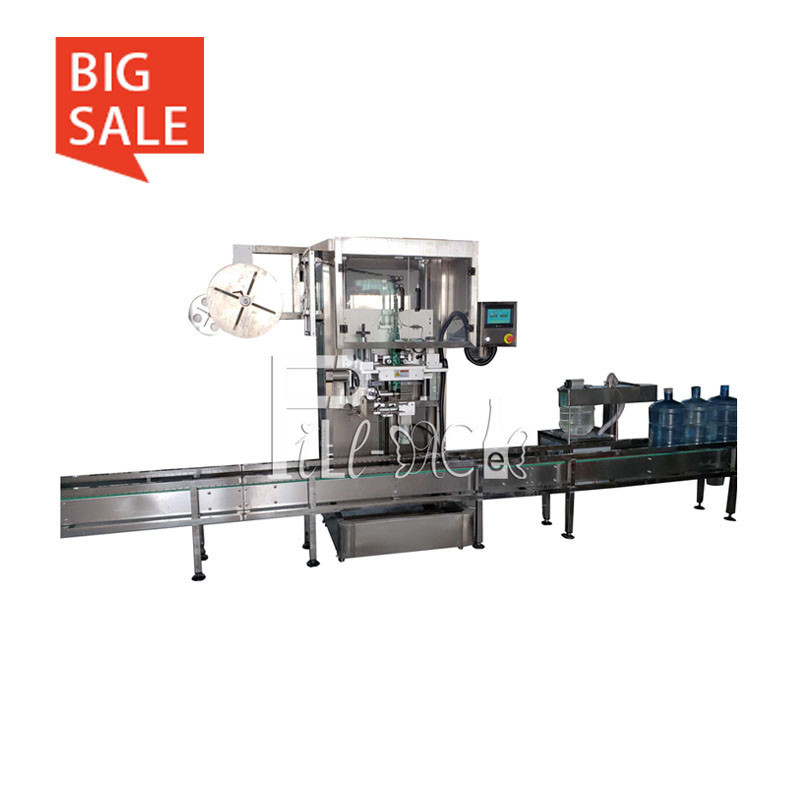

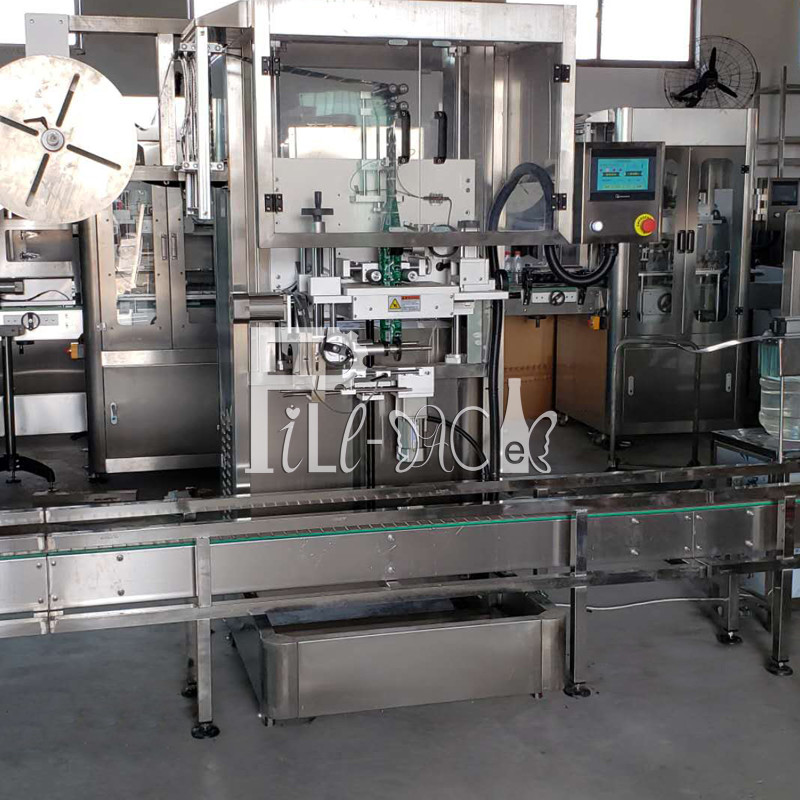

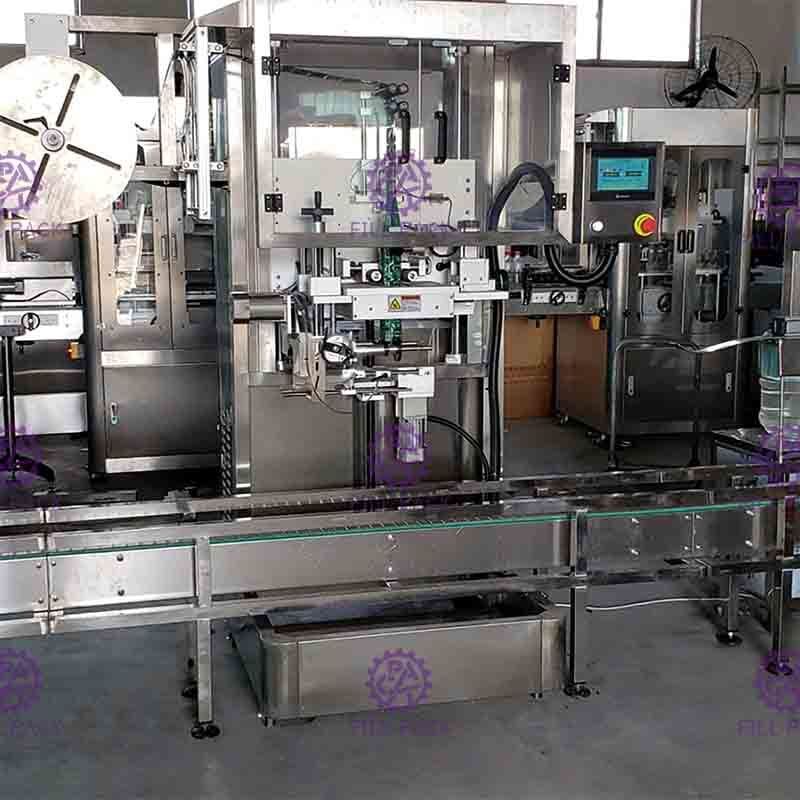

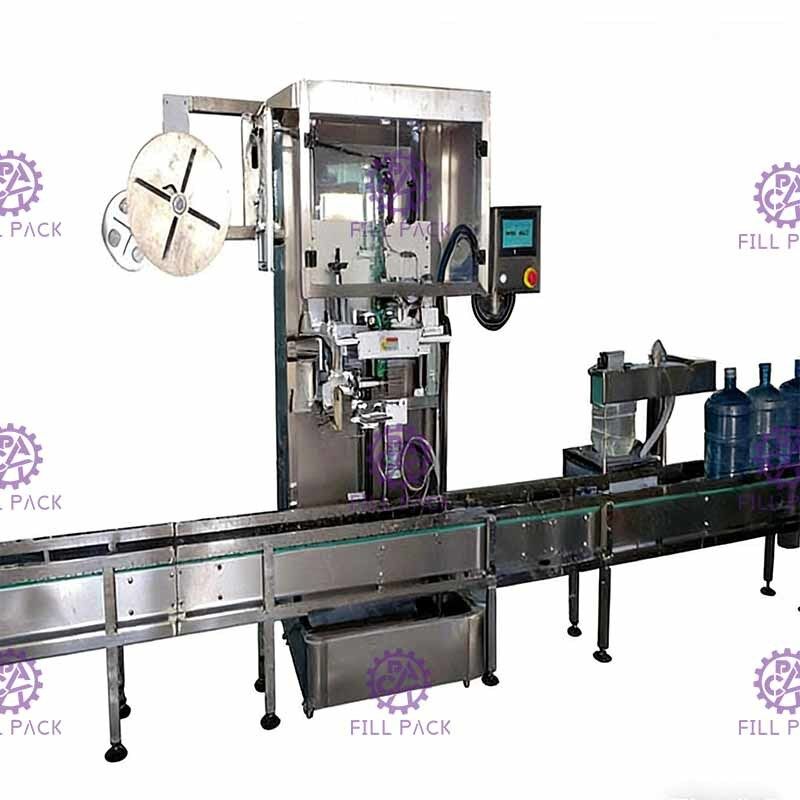

Gallon bottle Sleeve labeling machine

General:
The Gallon bottle Sleeve labeling machine frame is applied for the sleeving the label on the gallon bottle mouth, it is made of stainless steel SUS304. The frame is simple, beautiful, waterproof and not rust. It is easy for cleaning.
The special cutting system: adopting the whist and con-volute technology. The label cutting is flat, no burr.
The label location set assures the sleeving veracity.
Adopting model group design, module controlled; Achieve veracity and fast sleeving.
With the good quality touching operation screen, achieving operation by finger, easy and shortcut.
It is a high automatic packing machine. Just one person handles, easy operation.
Higher safely and stability for operation and saving time of manpower.

Working process:

2000BPH Sleeve Labeling Machine Photoelectricity For Gallon Bottle Mouth 0


Specifications:

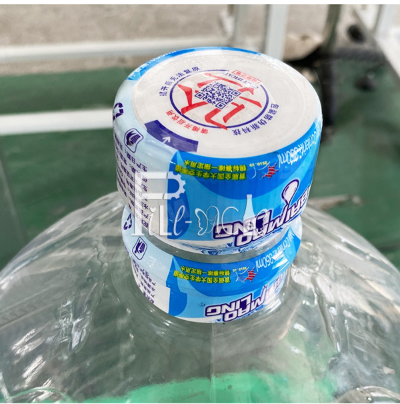

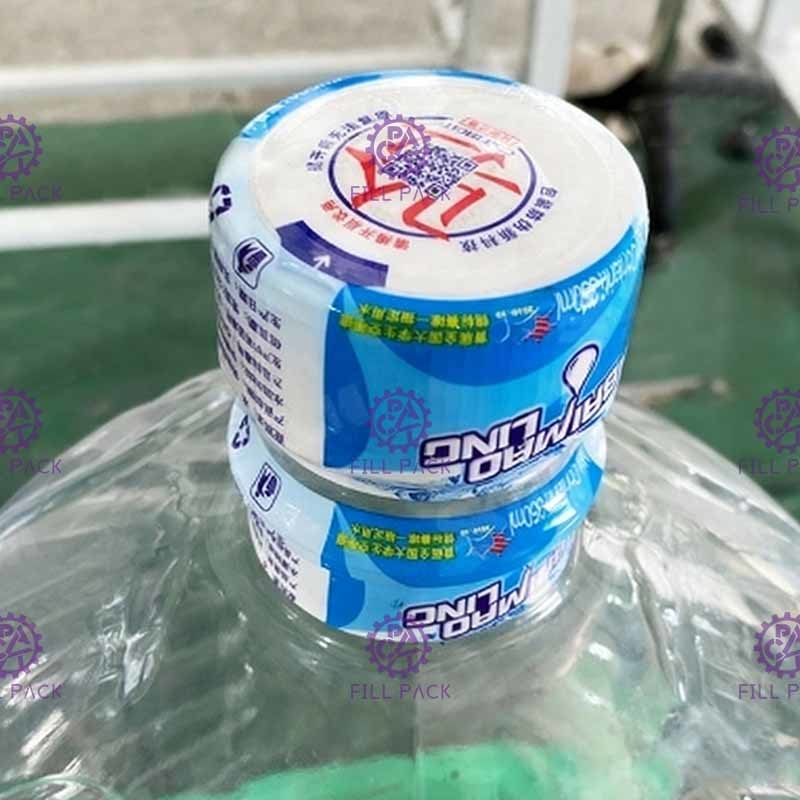

1,This machine has the function of barrel photoelectric detection, label sleeving and label shrinking and it is perusing high speed, exact location, fewer worker and perfect packaging. It can apply to food and beverage industry and has the function of beauty and easily maintain.
2, Accurate sleeve labeling is achieved by setting the photoelectric system of the bottle feeding and the delay time of the label feeding system.
3, Unit cutter head plane designed in China which apply to ∮50mm—∮64mm mouth of 3-5 gallon bottle. You never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and continence which is ahead of other congener products.
4, Single shrinking label feed plane, tension height which is continent to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly, the label will detect and locate automatically. The change of label is quick and convenient, besides the cut place is absolutely exact.
5, Label feeding equipment: driving synchronized tensity control the supply of label, the supply ability is 1.5meters per minute, volume label supply plane is ∮500mm, the internal diameter of paper tube will be 4’ ,8’,10’. the configuration of label feeding is stable tensity which enable the exact length of label and the stable, quick supply of label.
6, The center pillar applies step by step shoot label structure and the speed is 100-150B per minute.
7, The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.
8, Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

Voltage :1, Host machine: AC220V, 50/60HZ, 1.5-2KW
2, Shrinking machine: AC380V, 6KW(electrical heat) 3 phase
Production speed :900-2000BPH
Diameter of label :∮28mm-∮125mm
Length of label : 30mm-250mm
Thickness of label: 0.035mm-0.13mm
Material of label: PVC, PET, OPS
Size: 1000*800*2000mm

Configuration table of machine parts:

1. Bottle positioning mechanism1set5. Label carrier drive mechanism1set
2. Single material putting place1set6. Cutter mechanism1set
3. Fiber-optical electric eye controlling1set7. Automatic platform elevating mechanism1set
4. Center guide pin1set8. Man-machine interface of operation control panel1set



The main configuration table and function of automatic sleeve labeling machine:

NameFunction
Material offering groupOffer motor for label carrier
Shelf groupInstall volume label device
Platform elevating groupAdjust the height of host automatically according to the bottle shapes
Brush-off groupBrushing the cut-ted label on the bottle
Cutter groupCutting off the labels which are sent to Center guide pin
Cutter controlling groupControl the cutter operational site
The back drive groupOffer motor for label of center guide pin
The front drive adjusting groupGrasping the center guide pin
Frame of Electric eye groupAdjust the best cutting position of the label
Electric eye of bottle lighting detecting groupAdjust the sleeve labeling position of bottle body
Hairbrush groupBrush the label which cannot sleeve properly to the right place
Bottle positioning groupMake bottle stable, control sleeve labeling position
Center guide pin groupMake volume label distracted for transfer and cut easily



Set up:

Electrical apparatusNameBrandModelQty
PLCMitsubishi JapanFX3SA-30MT1
Touch screenWEINVIEW-TaiwanTK6071IQ1
Photo-electricity SensorAutonics -KoreaPR12-4DN1
High-speed Optical Fiber SensorPanasonicFX-5011
Photo-electricity SensorAUTONICSPR12-4DN1
Photo-electricity SensorPanasonicCX-4421
Photo-electricity SensorPanasonicPM-L441
Label In-feeding Servo MotorPanasonicMHMJ042P1S1
Label In-feeding Servo DrivePanasonicMCDHT2521E1
Cutting Head Servo MotorPanasonicMHMJ04P1S1
Cutting Head Servo DrivePanasonicMBDHT2510E1
Material rack inverterSHILIN-TaiwanSS2-021-0.75K1
Intermediate relaySchneider FrenchHH52P DC24V7
AC contactorSchneider FrenchLC1-D0610M5C4
Circuit-breakerSchneider FrenchD20 3P1
