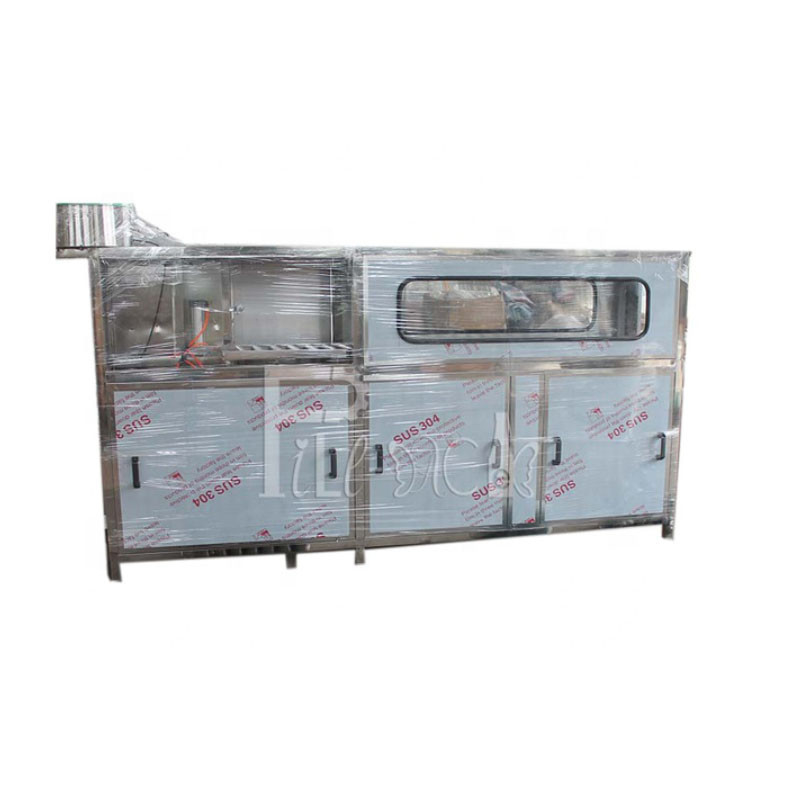

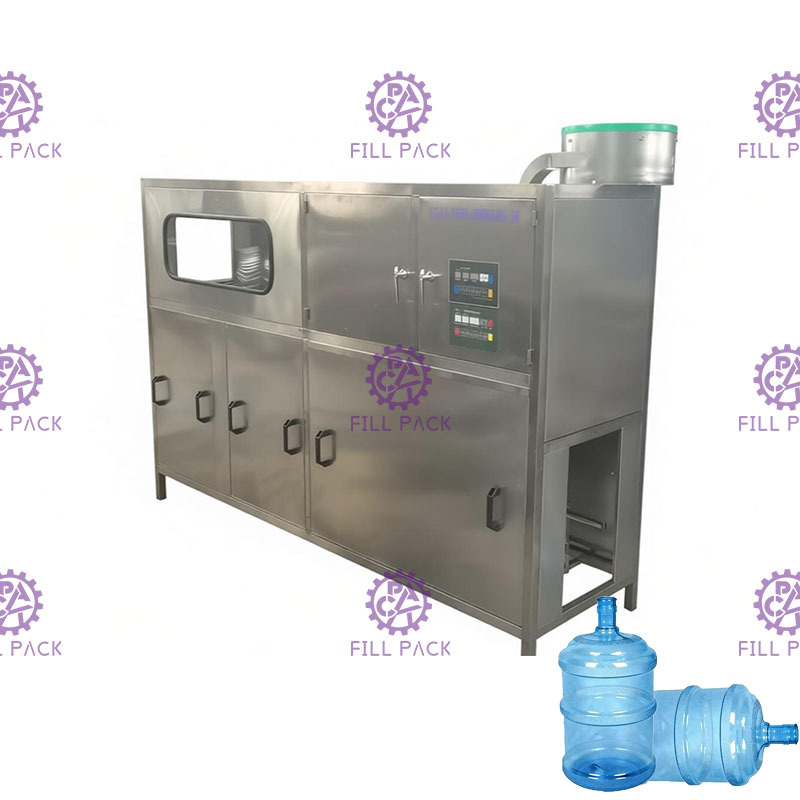

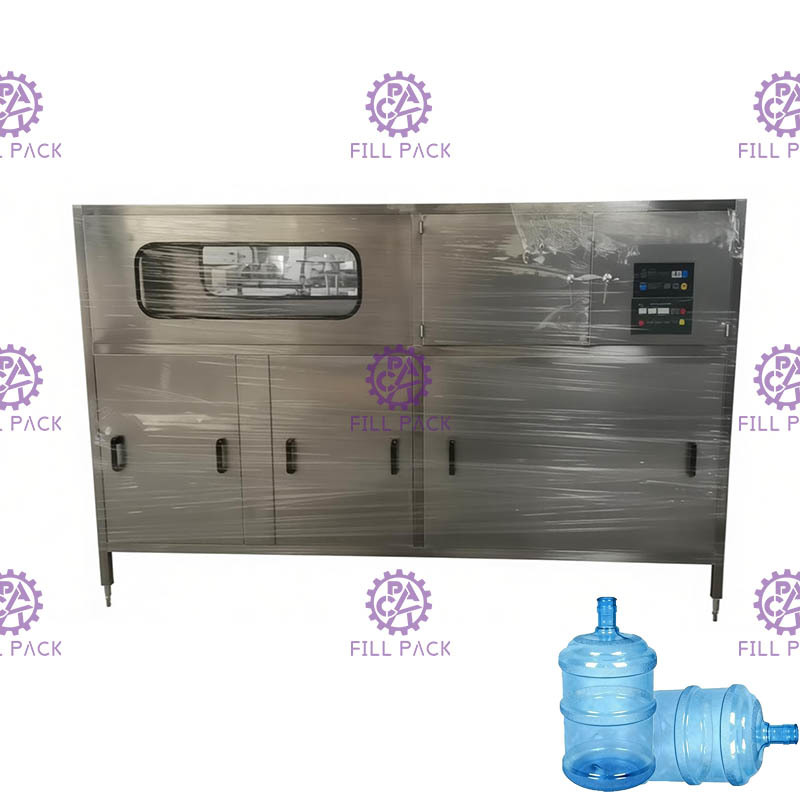

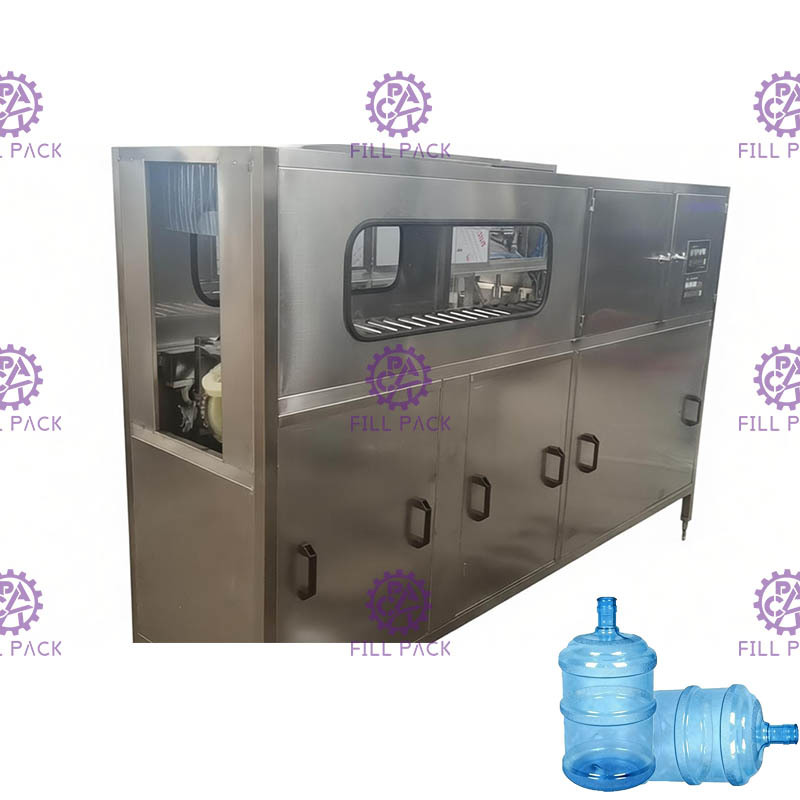

UPVC Pipes Monobloc 5 Gallon Filling Machine For Mineral Water

Minimum Order Quantity : 1 SET Price : 2700 USD
Packaging Details : WOODEN CASE PACKING Delivery Time : 20 DAYS
Payment Terms : L/C, D/A, D/P, D/P, Western Union, MoneyGram Supply Ability : 1 SET PER WEEK
Place of Origin: CHINA Brand Name: FILLPACK
Certification: CE Model Number: QGF-120

Detail Information

Control:: PLC Gas Pressure:: 0.4-0.6Mpa
Function:: Barrel Filling Gas Consumption:: 0.37 M3/min
Barrel Size:: 270*490mm Certification:: CE ISO
Weight:: 680kg After-sales Service Provided:: Online Support,
Dimension(L*W*H):: 4500*1600*2400mm
High Light:

UPVC Pipes 5 gallon filling machine


Monobloc 5 gallon filling machine


UPVC Pipes 5 gallon bottling machine

Product Description

monobloc 5 Gallon filling equipment/line/unit For mineral water with UPVC pipes

This 5 Gallon filling equipment is integrated with jar washing-filling-capping functions together;
Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;
Washing will be devided into 2 parts, 1st process is by disinfectant fluid, 2nd process is by pure water;After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force; Then the jars will be pushed by pushing cylinder to under filling head, then filling start; Filling volume can be controlled by filling time set up. The filled jars will be pushed to under capping head by empty jars afterwards. Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.


1, The whole 3 gallon bottle water filling machine is controlled by PLC system, all cylinder travel is calculated in advance for driven distance;

2, The 3 gallon bottle water filling machine can work under automatic model, manual model is for machine checking;

Rinsing pump 1
Rinsing pump 2
Filling pump
Cap sorting motor
3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)
+ 2000mm conveyor
