Automatic 5mm Level 120BPH Gallon Filling Line PLC Control

Minimum Order Quantity : 1 Price : USD $2800/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 15sets / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: QCF-120

Detail Information

Material: SUS304 Processing Types: Rinsing Filling Capping
Automatic: Automatic Capacity: 120B/H
Volume: 5gallon Voltage: 220V 1PHASE 50HZ
Dimension: 3100*570*1450mm Weight: 400kg
High Light:

Automatic 120BPH Gallon Filling Line

,

PLC control 120BPH Gallon Filling Line

,

PLC drinking water production line

Product Description

plus-minus 5mm level 5 gallon bottle water filling line/plant/device gallon bucket



This 5 gallon bottle water filling line is integrated with jar washing-filling-capping functions together;
Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;
Washing will be devided into 2 parts, 1st process is by disinfectant fluid, 2nd process is by pure water;After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force; Then the jars will be pushed by pushing cylinder to under filling head, then filling start; Filling volume can be controlled by filling time set up. The filled jars will be pushed to under capping head by empty jars afterwards. Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.



Characters:

1, The whole Gallon bottle filling machine is controlled by the Mitsubishi PLC system, all cylinder travel is calculated in advance for driven distance;

2, The Gallon bottle filling machine can work under automatic model, manual model is for machine checking;



Parameters:

Rinsing pump 1: 0.37KW

Rinsing pump 2: 0.37KW

Filling pump: 0.55KW

Cap sorting motor: 0.09KW

Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)+ 2000mm conveyor

Weight: 400kg

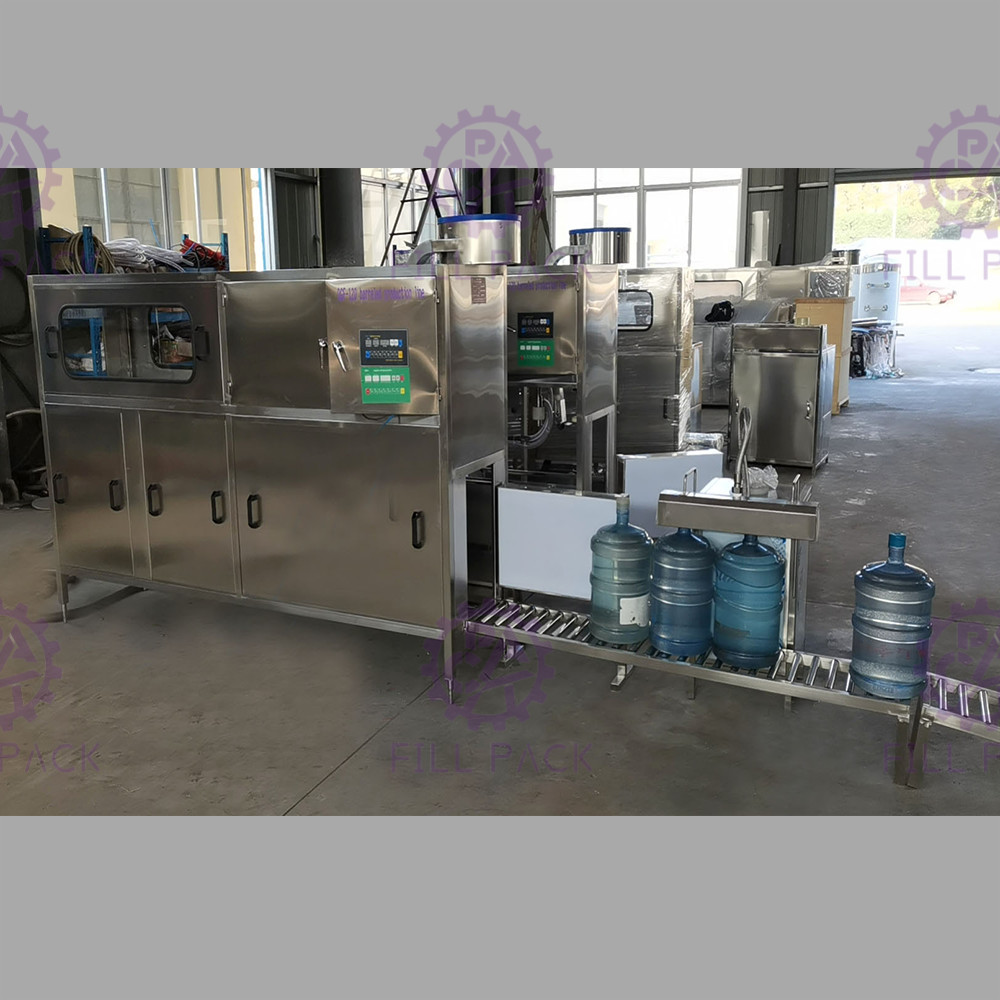

Automatic 5mm Level 120BPH Gallon Filling Line PLC Control 0



Lelel filling valve with high precision deatils for ref:

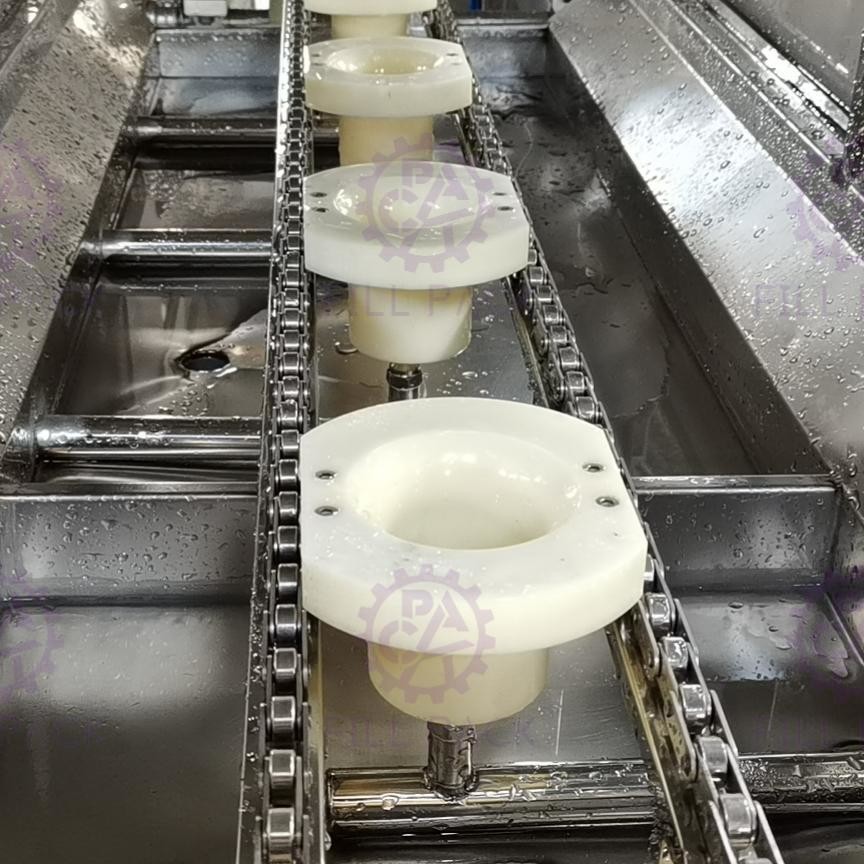

Automatic 5mm Level 120BPH Gallon Filling Line PLC Control 1



Recommended Spare parts list:

NO. Items Qty. Price(USD)
1 Sealing ring for filling valves 1suit For free
2 Bucket holder 2pcs 6.8
3 Cap pressing mould 1pcs 5
4 Air switch 1pcs 17
5 Contactor 1pcs 14
6 Solenoid valve 1pcs 27



Packing photo for ref:

Automatic 5mm Level 120BPH Gallon Filling Line PLC Control 2
