Concave Convex Shape 3 In 1 20 Liter Jar Filling Machine
Contact Person : Alice Gu
Phone Number : 86-15862615333
WhatsAPP : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | USD $18,000-$20,000/set |
|---|---|---|---|
| Packaging Details : | wooden case | Delivery Time : | 15-20 working days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5 sets/month |
| Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
|---|---|---|---|
| Certification: | CE, ISO9001 | Model Number: | QGF600 |
|
Detail Information |
|||
| Bottle Size: | 3~5 Gallon PET Bottle | Capacity: | 600BPH |
|---|---|---|---|
| Voltage: | 380V 50Hz, 220V/380V/415V Customized | Key Selling Points: | Energy Saving |
| Dimension(L*W*H): | 5000*2300*1800mm | Model: | Washer Filler Capper |
| Conveyor Mode: | Conveyor Belt | Size Of Barrel: | ф276×490mm |
| Highlight: | 600BPH Barrel bottling equipment,Conveyor belt Barrel bottling equipment,600BPH water filling machine |
||
Product Description

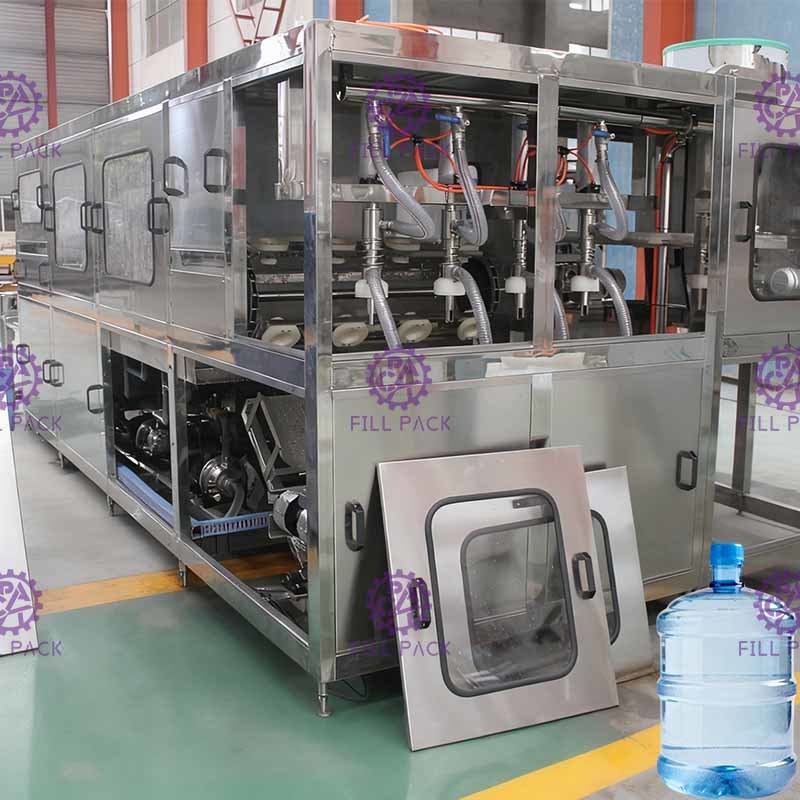

600BPH Barrel bottling equipment/line/device gallon bucket with touch screen

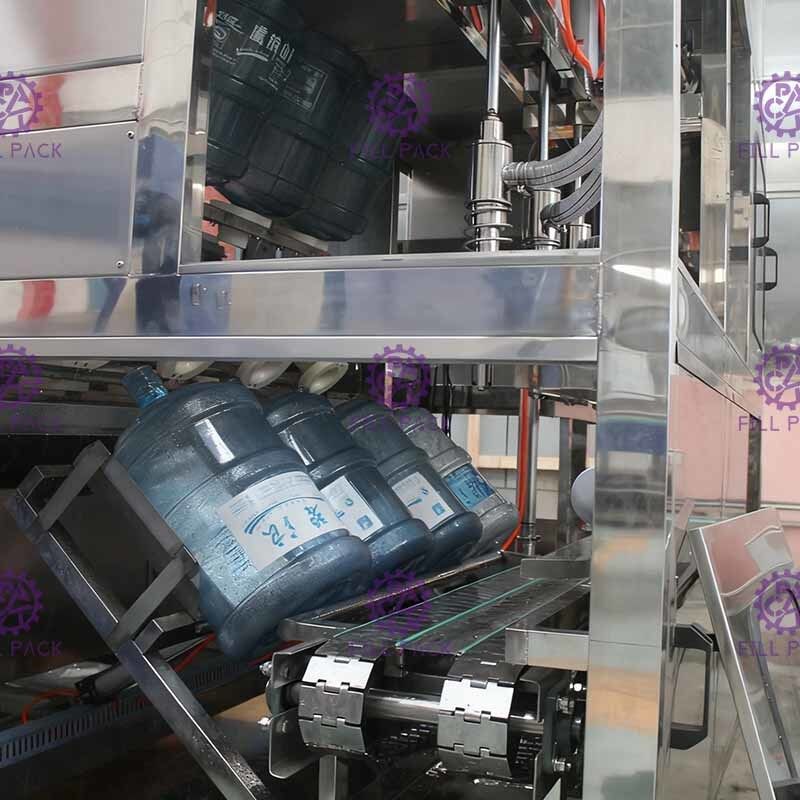

Washing-filling-capping 3-in-1 Monoblock
1. 4-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Function of Water Gallon Filling equipment: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate
The parameters and specifications of Water Gallon Filling equipment:
|

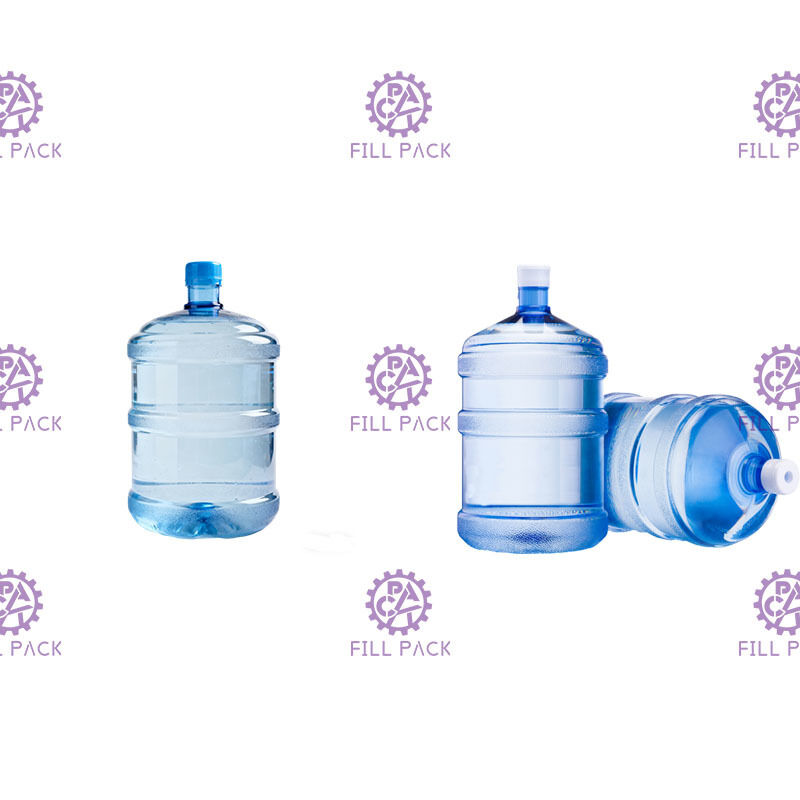

Containers and Specifications
|
||||
|
Project Name:
Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line |
Mineral Water /
Pure Water |
|||
|
Material
|
Shape
|
Filling volume
|
Filling Type
|
Conveyor Mode
|
|
PC / PET
|
Round or Square
|
3 - 5 Gallon
|
Gravity filling
Normal temperature |
Conveyor belt
|
|
Adjustable Specifications
of Bottle Type |
Size of Barrel : ф276×490mm
|
|||
|
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added. |
||||
|
Container Label
|
Sticker Label / Shrink Wrap Label / Prinetr Label
|
|||
|
User Ambient Conditions
|
Temperature:10～40℃；Humidity:No dew
|
|||
|
User Electrical Supply Specification
|
Voltage:380V±5%, 3phase； Frequency:50HZ±1%
|
|||
Except the model 600BPH Water Gallon Filling equipment, we aslo have other capacities.
| Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 |
| Volume | 3&5 Gallon | ||||||
| Barrel size | Φ270*490mm | ||||||
| Capacity(b/h) | 60-100 | 100-240 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
| Air pressure(MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Air consumption(m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
4 filling heads:
FAQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
