100BPH 3 Gallon Water Filling Production Line With Overflow Valve

Minimum Order Quantity : 1 Price : USD $2800/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 15sets / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: QCF-120

Detail Information

Capacity: 100-120 Bph Power: 2KW
Volume: 3-5gallon Processing Types: Auto
Control: PID Control Material: SUS304
Name: 5 Gallon Filling Machine
High Light:

100BPH water filling production line

,

SUS304 water filling production line

,

100BPH mineral water filling line

Product Description

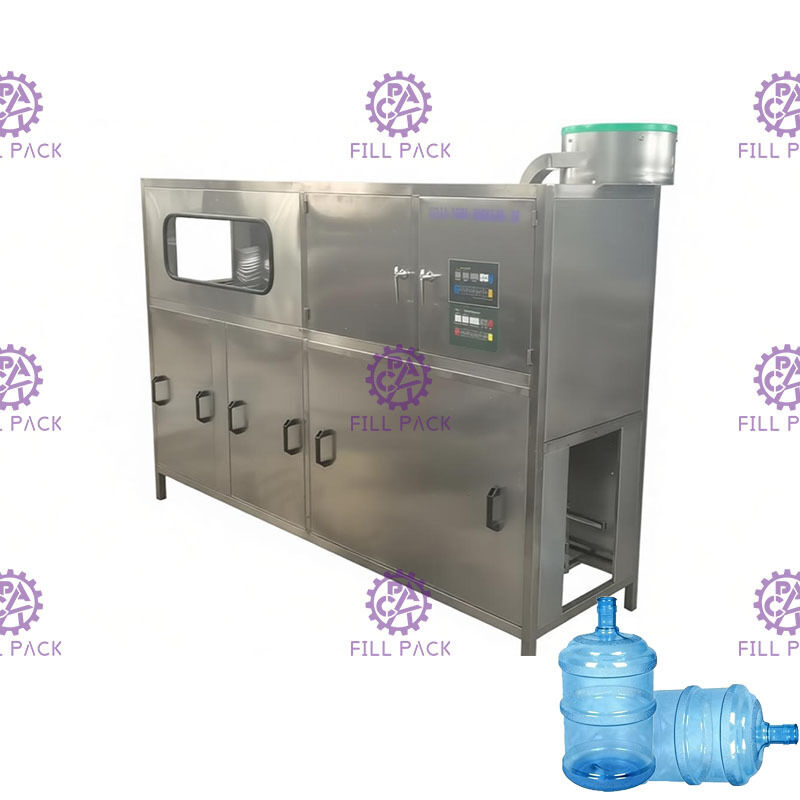

100BPH 3 Gallon water production line/equipment/plant gallon bucket with overflow valve



Principle:

This 5 Gallon filling machine is integrated with jar washing-filling-capping functions together;

Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;

Washing will be devided into 4 parts, 1st process is by hot soap solution washing, 2nd step disinfectant fluid rinsing, 3rd process is by recycling water cleaning, the last stage is pure drinking water rinsing;

After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force;

Then the jars will be pushed by pushing cylinder to under filling head, then filling start;

Filling volume can be controlled by filling time set up.

The filled jars will be pushed to under capping head by empty jars afterwards.

Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail.

When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.

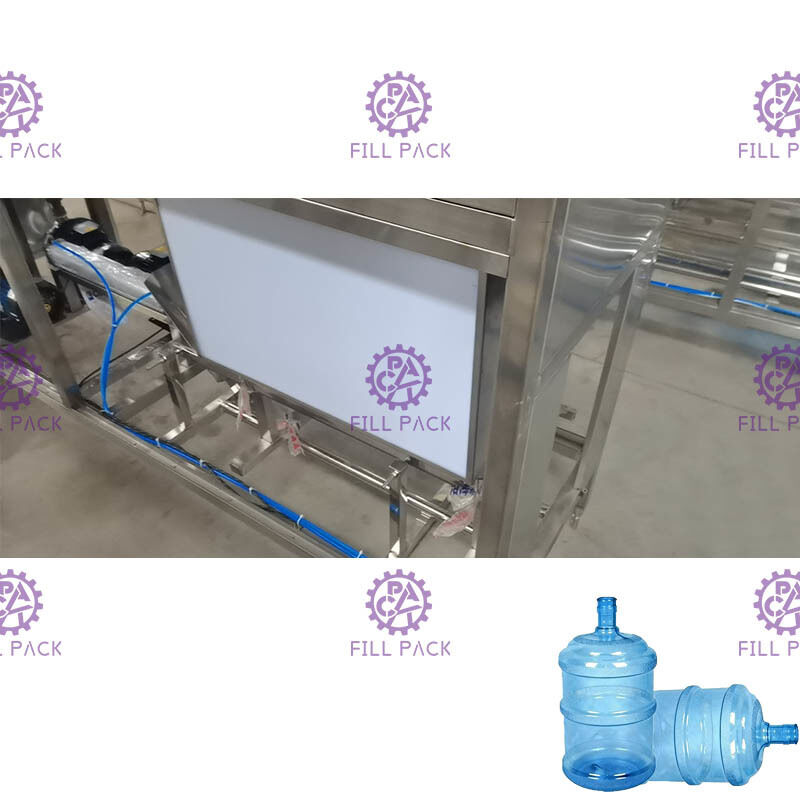

Rinsing details:

100BPH 3 Gallon Water Filling Production Line With Overflow Valve 0

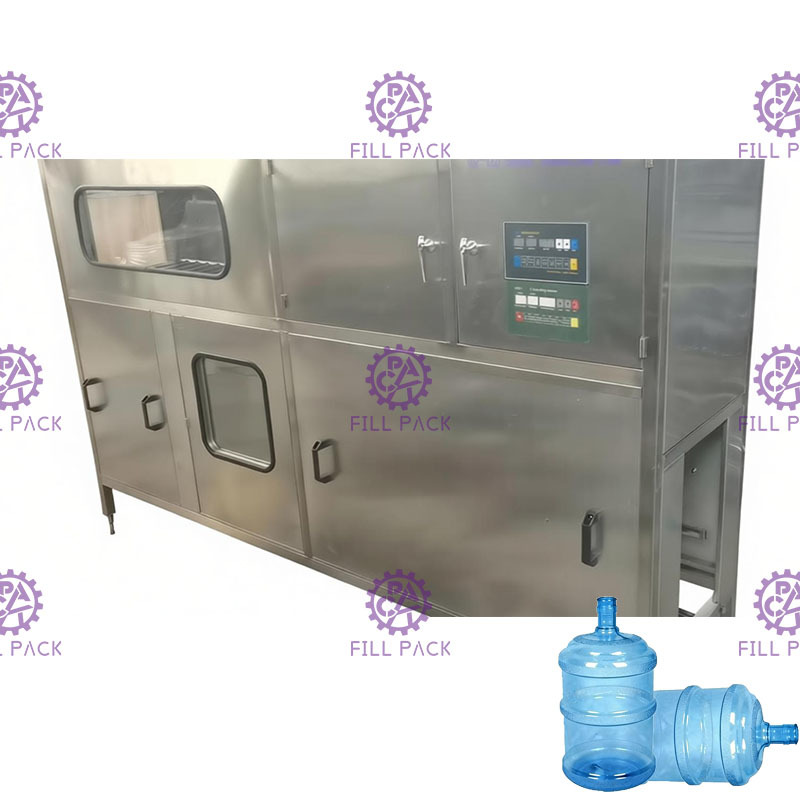

Capping pressing part:

100BPH 3 Gallon Water Filling Production Line With Overflow Valve 1



Tube deatils:

100BPH 3 Gallon Water Filling Production Line With Overflow Valve 2



Characters:

1, The whole 5 Gallon filling machine is controlled by Mitsubishi PLC system, all cylinder travel is calculated in advance for driven distance;

2, The 5 Gallon filling machine can work under automatic model, manual model is for machine checking;



Parameters:

Rinsing pump 1: 0.37KW

Rinsing pump 2: 0.37KW

Filling pump: 0.55KW

Cap sorting motor: 0.09KW

Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)+ 2000mm conveyor

Weight: 400kg



Recommended Spare parts list:

NO. Items Qty. Price(USD)
1 Sealing ring for filling valves 1suit For free
2 Bucket holder 2pcs 6.8
3 Cap pressing mould 1pcs 5
4 Air switch 1pcs 17
5 Contactor 1pcs 14
6 Solenoid valve 1pcs 27



Packing & Delivery

1. the 5 Gallon filling machine is packed by wooden case.
2. The delivery date of gallon bottle water filling machine is within 30 days after payment.



1. installation&commissioning

After the equipment arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed



2. Training

We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.



3. Quality assurance

The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.
