200BPH 5 Gallon Bottling Machine With Overflow Valve

Minimum Order Quantity : 1 Price : USD $6155/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 15sets / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: QGF-200

Detail Information

Capacity: 200 Bph Power: 5.5KW
Volume: 3-5gallon Processing Types: Auto
Control: PID Control Material: SUS304
Name: 3-5 Gallon Filling Machine Filling Head: One
High Light:

200BPH 5 gallon bottling machine

,

200BPH 5 gallon bottling machine

,

PID gallon jug filling machine

Product Description

200BPH 5 Gallon water production line/equipment/plant gallon bucket with overflow valve



1.1,Semi-auto de-capper and washer



200BPH 5 Gallon Bottling Machine With Overflow Valve 0

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as client’s needing.

Parameters:

Power: 1.12KW without heating, 2.12KW with heating

Plate thickness: 1MM

Machine cube size: 25*25MM

Cube thickness: 1.5CM

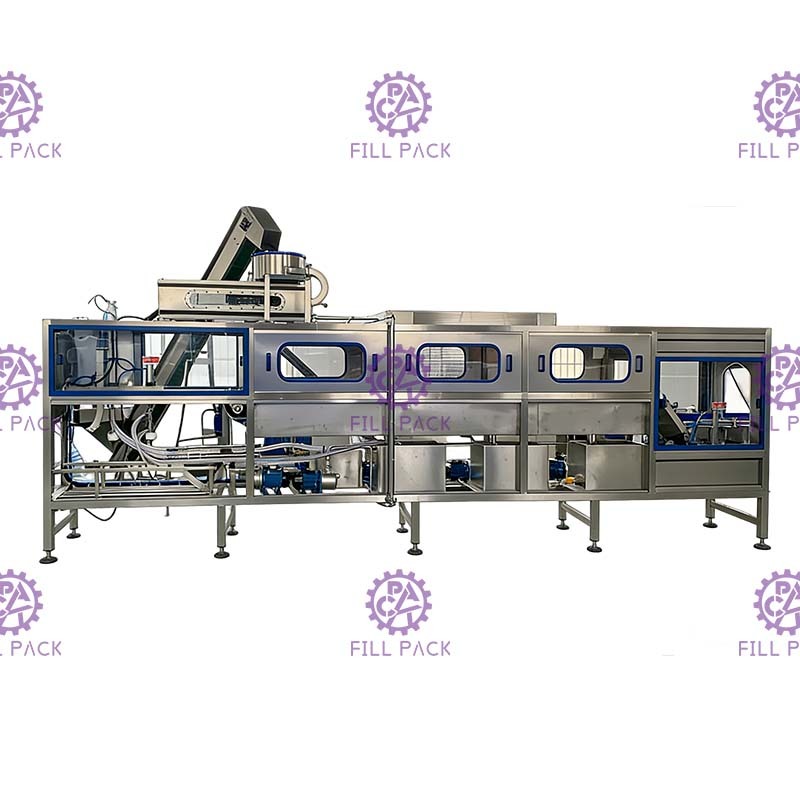

1.2 Monoblock rinser-filler-capper

200BPH 5 Gallon Bottling Machine With Overflow Valve 1



The 200BPH RINSING FILLING AND CAPPING UNIT IN PLC CONTROL FOR REF

Principle:

The machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.



The machine set up do not need plug floor screw,after case taking off,set the machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power , air power.



Working process:

Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 9 working stations,working process as below:

(1) Set empty barrel mouth to barrel seat, empty barrel will be washed during headstand situation,4 working station for barrel inserting.

(2) Washing process will be divided into 4 steps:1, hot alkali water washing 2,thimerosal washing;3,clean water washing,4,pure water washing.Every washing step is set to 8S,after washing,there will be 10S for dripping.

(3) The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.

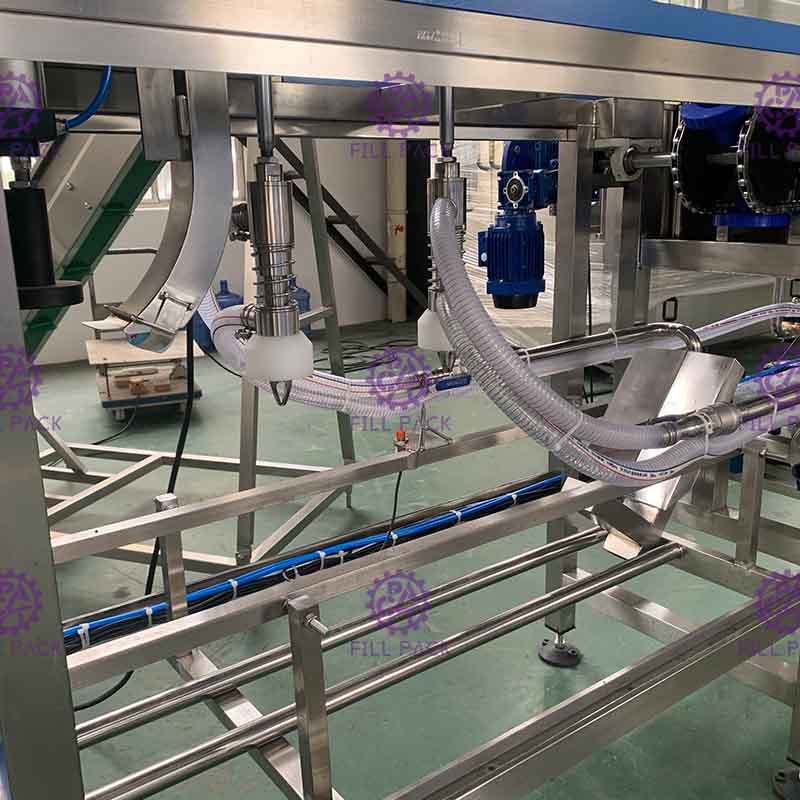

(4) Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.After filling, the extra water will back to pure water tank by automatic vent,it can reduce water consumption.(water tank is not included)

(5) After filling process finish,the filled barrel will be pushed to capping position by barrel stop cylinder,the whole process finish till now.



Characters:

1, The whole machine is controlled by PID microcomputer system, all cylinder travel is calculated in advance for driven distance;

2, The machine can work under automatic model, manual model is for machine checking;



Parameters:

Cylinder: Air tech-Taiwan

Magnetic valve: Air tech-Taiwan

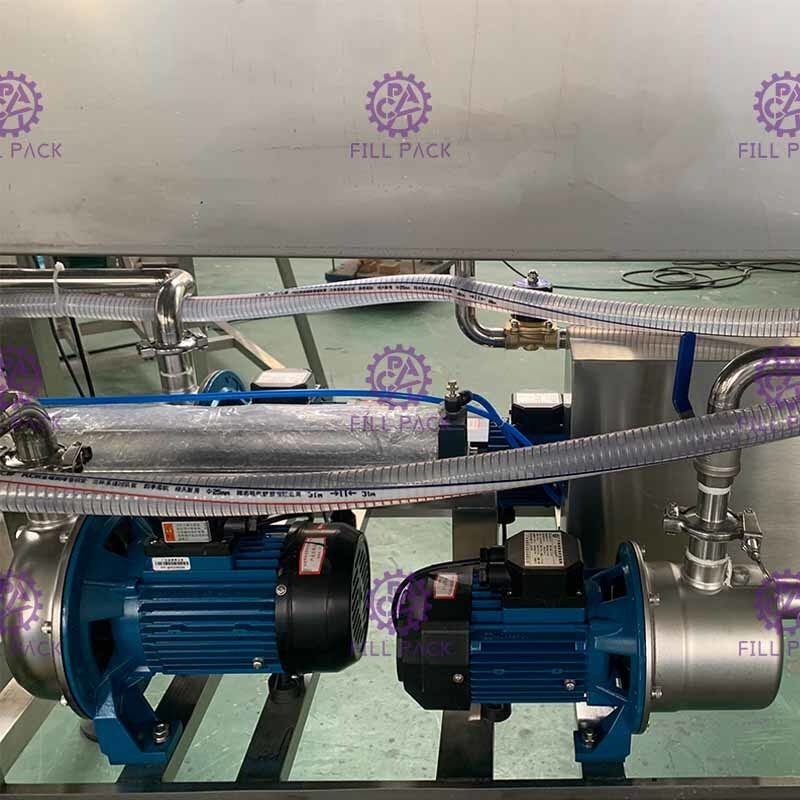

Rising pump-filling pump: Nanfang

Motor: TWT Taiwan

Power: 5.3KW

Dimension: 3300*780*1740mm

Weight: 320kg





1.3, Checking light

Power: 0.09KW Dimension: 1000*100*450MM Weight: 10kg



1.5, Heat Shrinking Machine

200BPH 5 Gallon Bottling Machine With Overflow Valve 2

Application with SUS304 sheet, including electrical boiler to generate steam and shrink tunnel especially for barrel cap film;

Power: 20KW

Dimension: 800*600*1200mm

Weight: 100kg





1.6, Solid Ink Roll Coding Machine





200BPH 5 Gallon Bottling Machine With Overflow Valve 3

Description:

The use of photoelectric integration technology, advanced solid ink wheel, has the excellent performance of instant printing and instant dry, which is not easy to erase. The machine is advanced in design, precise in manufacturing, stable in operation, longitudinally controlled in position by electronic control, arbitrarily adjustable, photoelectrically controlled printing actions and counts, and the number of printable sheets can be set.

Applicable to the surface indentation or color printing production date, product batch number, expiration date, inspection qualification, etc. of paper boxes, labels, tags, certifications, etc., with automatic sorting, automatic counting, random positioning, preset printing times, Indentation is clear, color is optional, printing speed is fast, instantaneous printing instant dry, loss and other advantages.





Performance and Features:

Feature applies to the T-type or T-type arrangement of dualmarking round, T-1-11 rows 1-10 lines / characters : R-type 1-8 OK , 1-8 word / line . Word grain specifications are 2mm , 2.5mm , 3mm available.

Tags can be printed on paper , cardboard and plastic film , aluminum foil.

The machine automatic , high speed , high efficiency , maximum printed 300 per minute.



Technical parameters:

Model FP-380F
Voltage AC 220/50V 110/60HZ
Power 180W
Solid Ink Roller 35*32MM
Printing Speed ≤300Pcs/min
Object Size L: 50-500mm W: 30-190mm
Max Printing Line

T type(10.5PT):11Lines(Max.10 Types/Line)

R Type(10.5PT):8 Lines(Max.8Types/Line)

Printing Size Within 60 - 250mm
Type Size

2*1.5mm(8PT) 2.5*2mm(9PT)

3*3mm(10.5PT) 4*2.5mm(18PT)

Net Weight 23kg
Dimension 440*345*300mm



Packing information for the whole line:

NO. Description Packing Qty. Dimensions(mm) Weight
1 de-capper and brush washer Wooden case 1Package 900*900*1250 250KG
2 Filler, light checker, roller conveyor, shrink tunnel, coding machine Wooden case 1Package 4030*760*1770 700KG




200BPH 5 Gallon Bottling Machine With Overflow Valve 4

The plant layout drawing(mm):



200BPH 5 Gallon Bottling Machine With Overflow Valve 5

200BPH 5 Gallon Bottling Machine With Overflow Valve 6

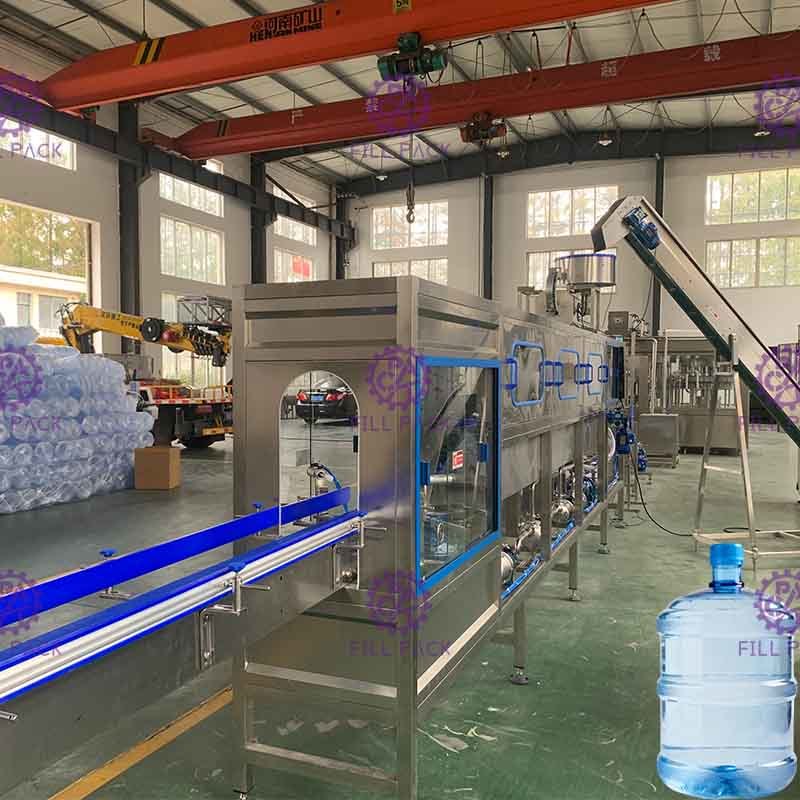

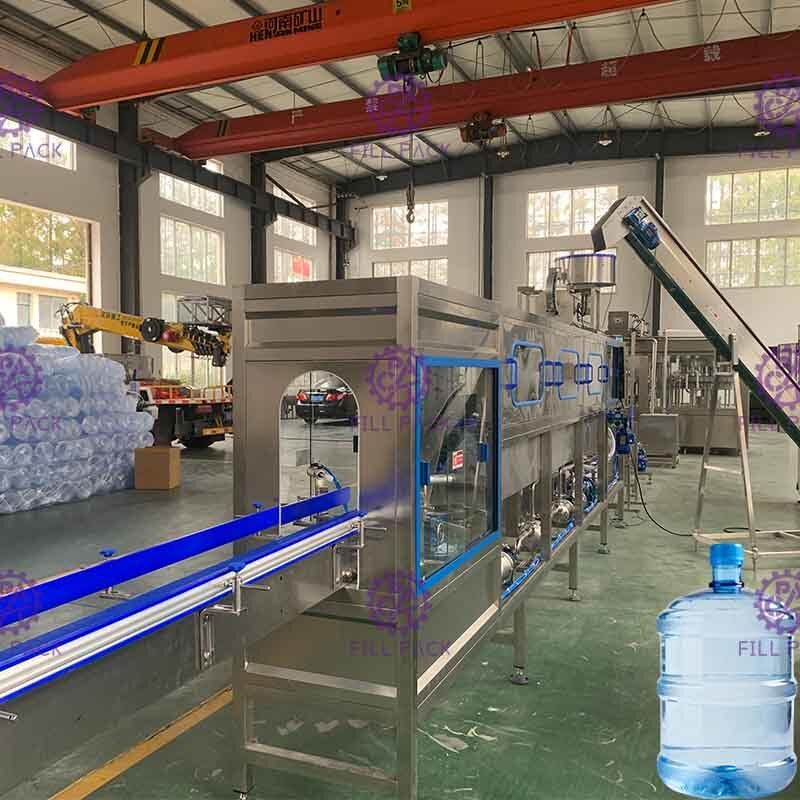

The complete production line for ref.
