PET Bottle Air Leak Testing Machine , Barrel Vacuum Leak Detector

Minimum Order Quantity : 1 Price : USD $4000/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 15sets / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: LTM-1, LTM-2 ,LTM-3

Detail Information

Capacity: 400-1000BPH Power: 0.4KW
Volume: 3-5gallon Processing Types: Auto
Control: PLC Material: SUS304
Name: Automatic Air Leakage Detector Filling Head: 1-3
High Light:

Barrel vacuum leak detector


PET vacuum leak detector


PET Air Leak Testing Machine

Product Description

Automatic Pet / PE / PP Bottle Air Leak Testing Machine Barrel Vacuum Leak Detector


1.1, Automatic air leakage detector

PET Bottle Air Leak Testing Machine , Barrel Vacuum Leak Detector 0



Regardless of you are measuring in a big way slightly to 1ml to 300 liter each kind of mid heaven plastic container.No matter that is the soft bag,the grotesque hetero amorphous bottle or the tube,we can provide the ideal leak testing equipment for you.

The machine is designed for leak detection in plastic bottles or containers. Special for use in plastic bottle manufacturers,alcohol-free beverage bottles, machine oil bottles, lubricating oil bottles, cleaning bottles, chemical industrial products bottles, but must be empty detection.


Main Features:


1.High performance,high stability,It uses famous brand PLC and high-precision pressure sensors,can detect extremely small leaks;

2.easy operation:one-button automatic leak testing,human-machine interface display leak detection information,use PLC to set different detection parameters according to different products,unqualified products are automatically eliminated

3. Constructs firmly: The steel plate works fuselage, the fluctuation place unifies the guide pillar and the lead screw.

4. The leak testing precision is high, the speed is quick: using the high accuracy digital pressure sensing index error is to press the leak testing, the laser probe head.

5. The price advantage: our leak testing machine is considered today on the field of plastic container for leak testing machine most to have the performance-to-price ratio, obtained the test and confirmation from the global customers in the past several years.


Main parameter:

Description Automatic air leakage detector
Station NO. 1 head 2 heads 3 heads
Speed of Transportation (m /sec) 0~15

Work rate (bottles / hour)

(5 gallon bottle for ref.)



700 800-1000
Maximum outer diameter of the bottle mouth(mm) It can be changed 65
Air pressure(kg/cm2) 6
Packing Size(mm) 1600×700×1650 1640×700×1650 1680×700×1650
Weight(kg) 185 205 225

220V/1PH/50HZ 0.4KW

Special voltage can be customized, no extra fee

Packing Wooden case


Configuration list of main components:

Description Origin or brand
PLC Mitsubishi-Japan
monitor True color touch screen
High precision digital pressure sensor SMC-Japan
Photoelectric sensor Otonix - Korea
Frequency converter Schneider
Frequency converter Schneider
Pneumatic parts AIRTAC-Taiwan


Detai pictures:

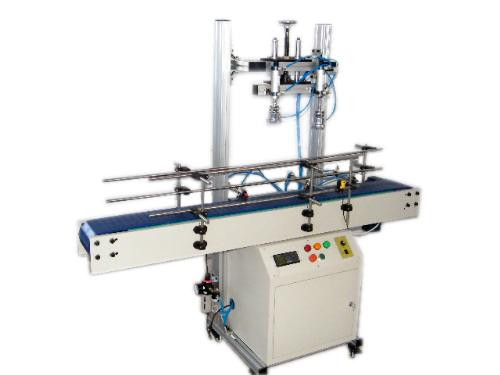

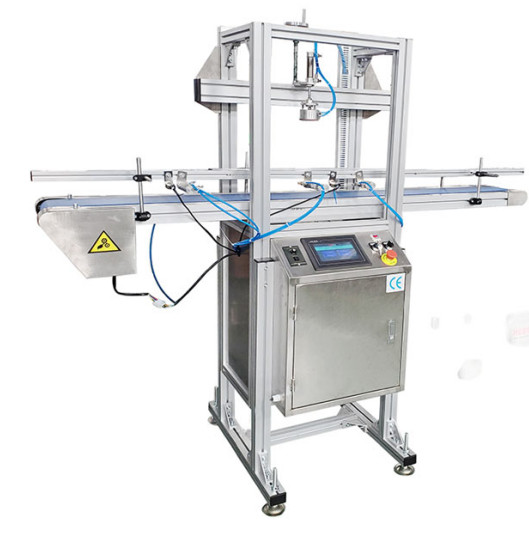

PET Bottle Air Leak Testing Machine , Barrel Vacuum Leak Detector 1

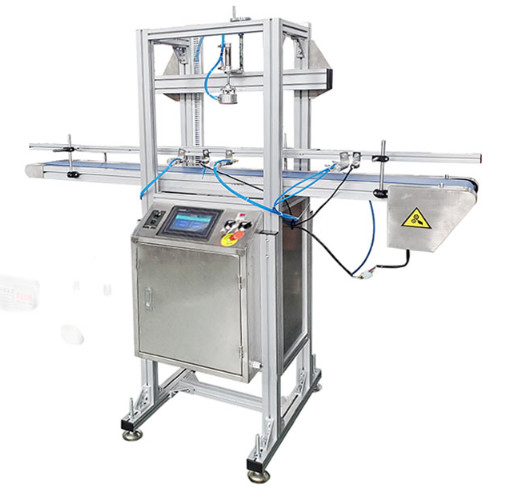

PET Bottle Air Leak Testing Machine , Barrel Vacuum Leak Detector 2
