5 Gallon Automatic Decapping Cap Remover Machine Bottle Decapper

Product Description

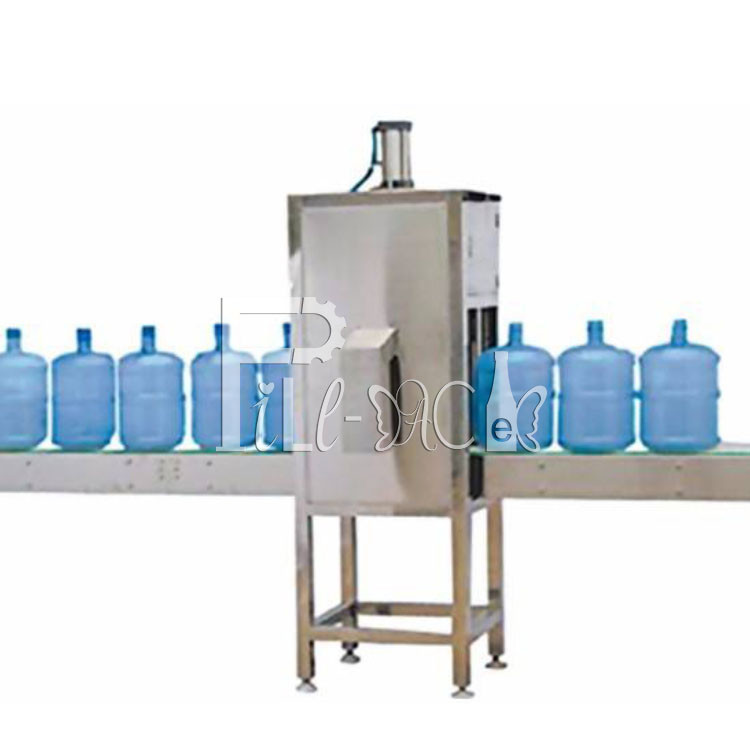

Automatic Decapping Cap Remover machine / bottle decapper for 5 gallon bottle

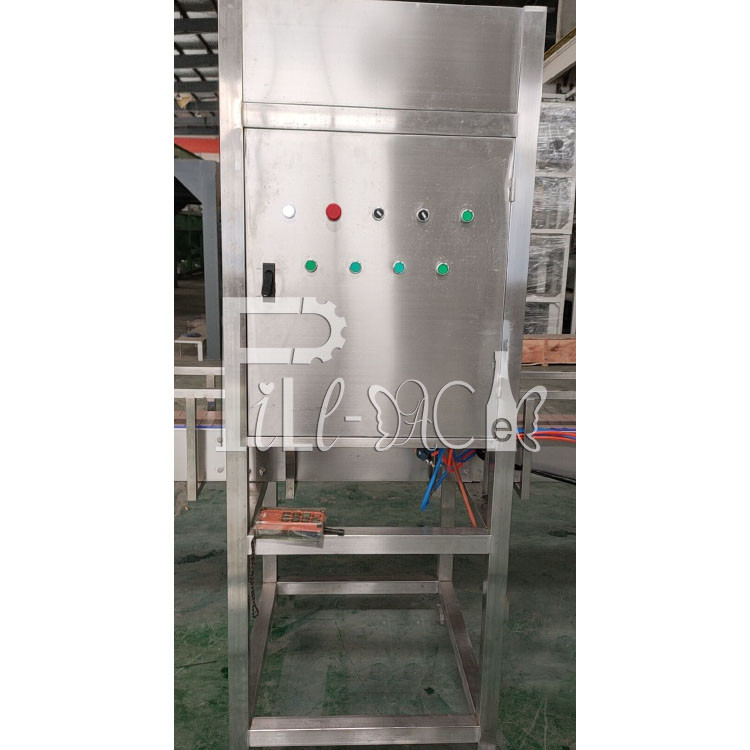

This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;

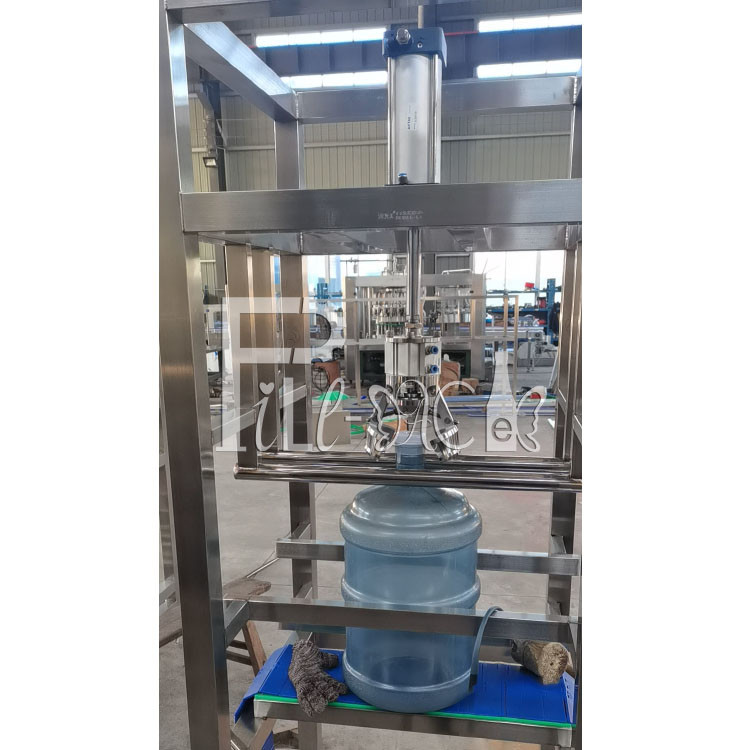

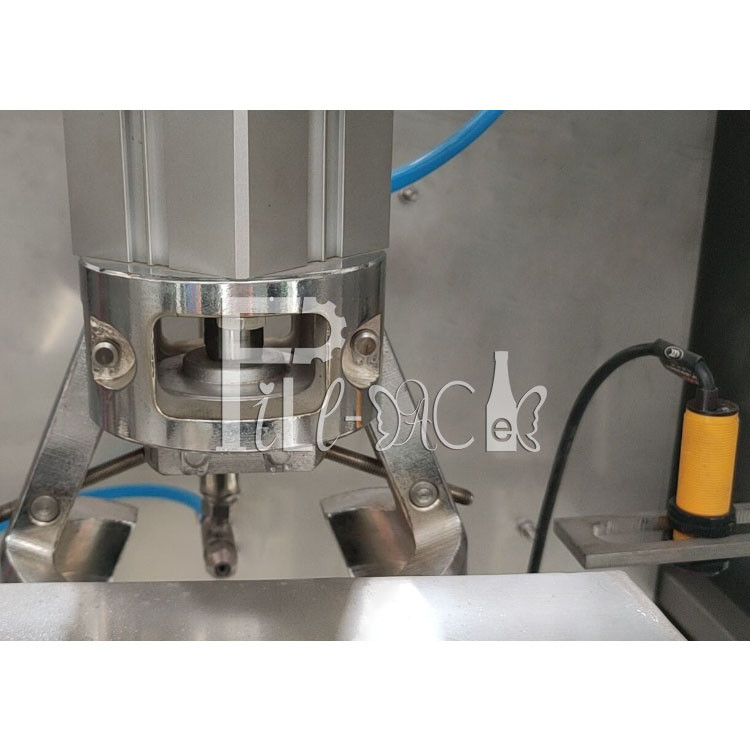

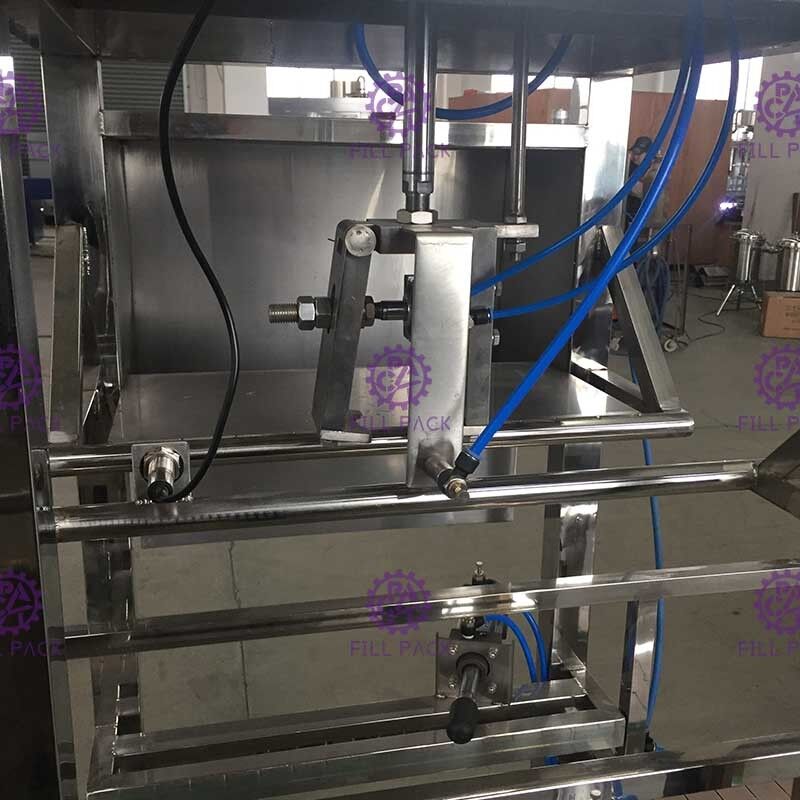

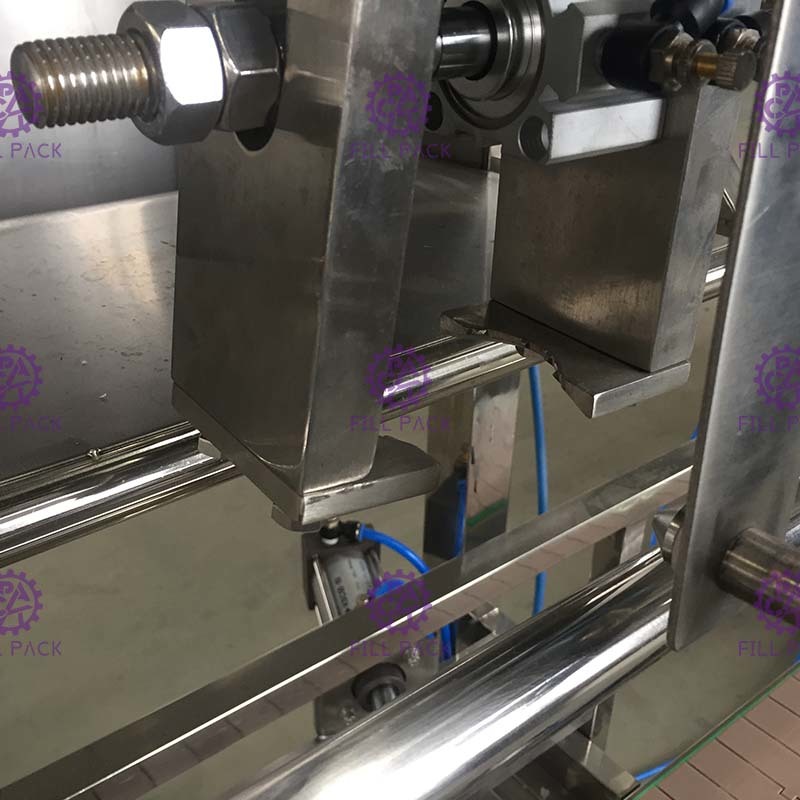

De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.

When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;

The claw pressure is adjusted to protect caps;

Parameters:

Dimension: 600*600*2000mm

Weight: 80kg
