2000BPH Automatic Sleeve Labeling Machine PLC Control

Minimum Order Quantity : 1 Price : USD $6670/set
Packaging Details : Wooden Case Package Delivery Time : 15-20days after deposit receipt
Payment Terms : L/C, D/A, D/P, T/T, MoneyGram Supply Ability : 15sets / month
Place of Origin: China,JiangSu,Zhangjiagang Brand Name: FillPack
Certification: CE. ISO9001 Model Number: TB-50

Detail Information

Capacity: 900-2000BPH Power: 1.5-2KW
Volume: 3-5gallon Processing Types: Auto
Control: PLC Material: SUS304
Name: Sleeve Labeling Machine Filling Head: 1
High Light:

2000BPH sleeve labeling machine

,

PLC control sleeve labeling machine

,

2000BPH shrink sleeve applicator

Product Description

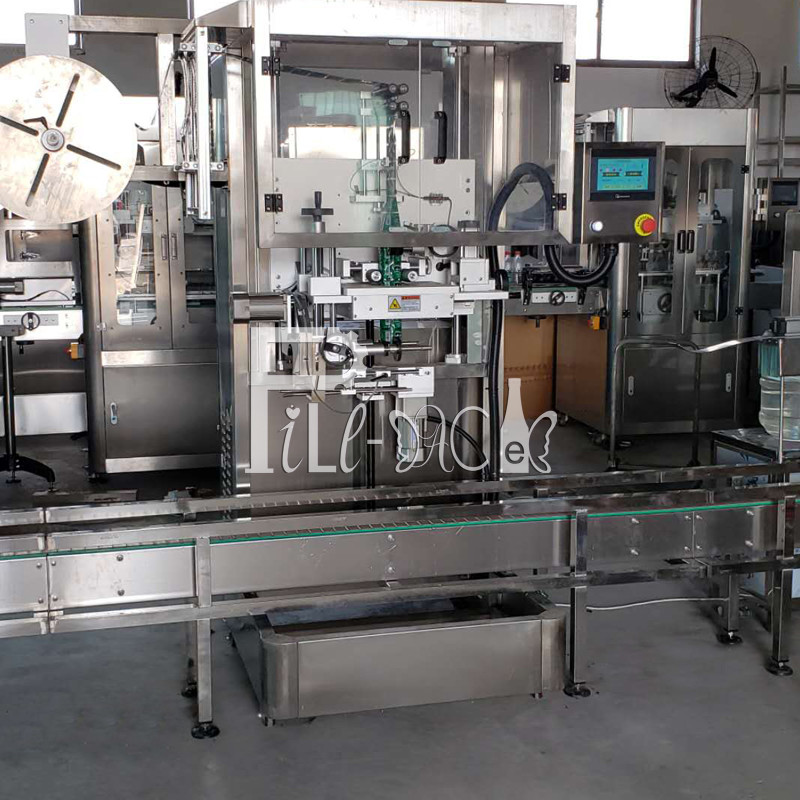

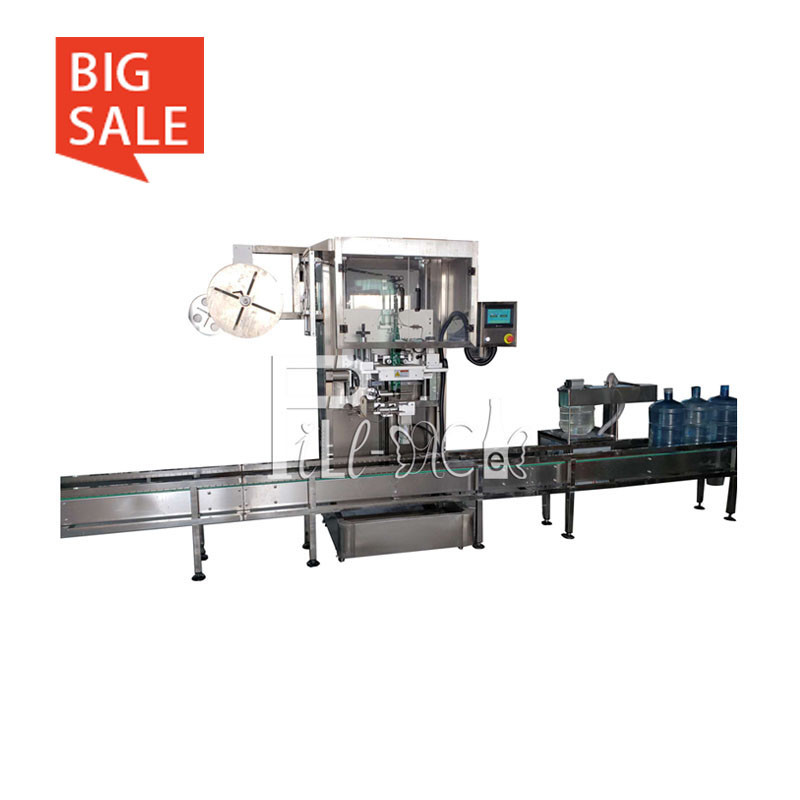

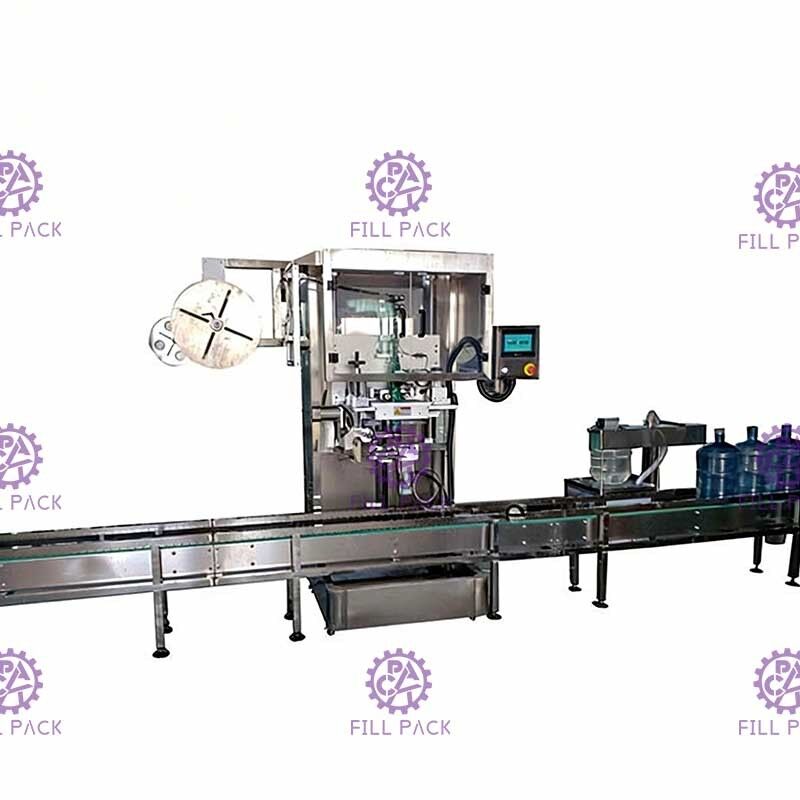

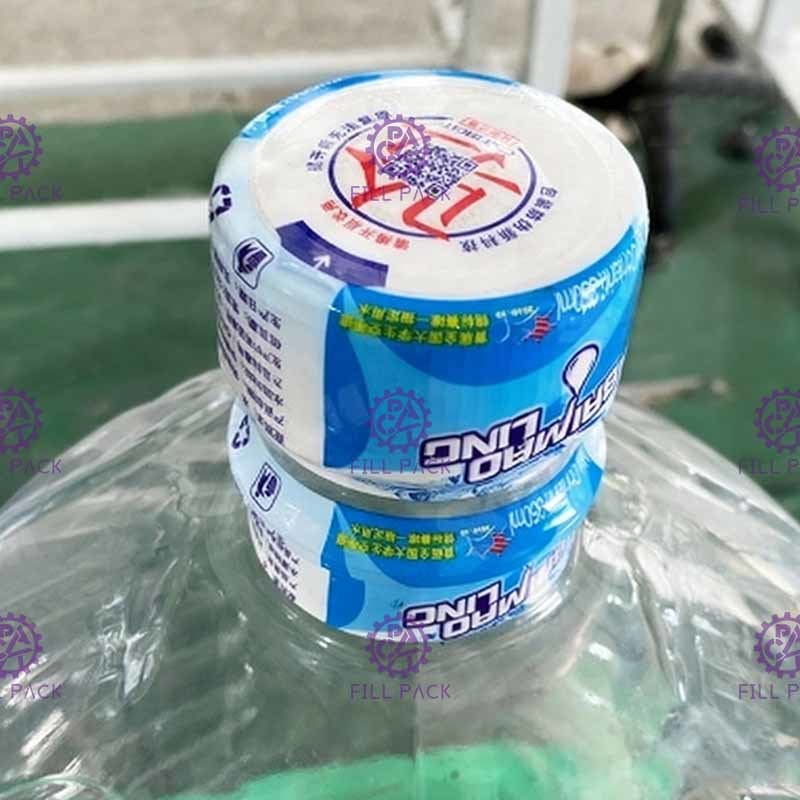

Automatic sleeve labeling machine for gallon bottle mouth label 900-2000BPH



2000BPH Automatic Sleeve Labeling Machine PLC Control 0

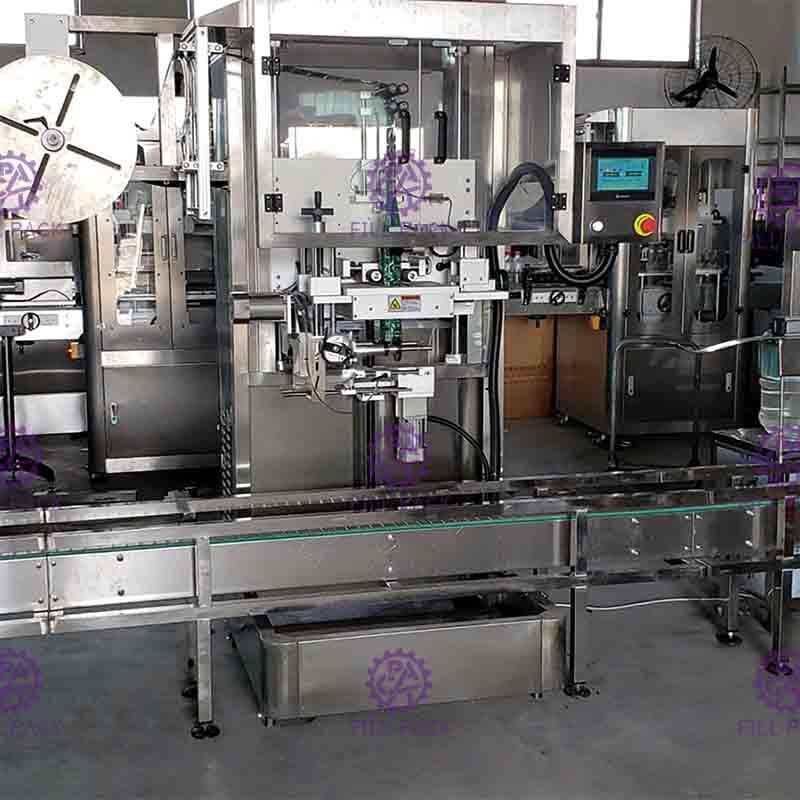

The Gallon bottle Sleeve labeling machine frame is applied for the sleeving the label on the gallon bottle mouth, it is made of stainless steel SUS304. The frame is simple, beautiful, waterproof and not rust. It is easy for cleaning.

The special cutting system: adopting the whist and con-volute technology. The label cutting is flat, no burr.

The label location set assures the sleeving veracity.

Adopting model group design, module controlled; Achieve veracity and fast sleeving.

With the good quality touching operation screen, achieving operation by finger, easy and shortcut.

It is a high automatic packing machine. Just one person handles, easy operation.

Higher safely and stability for operation and saving time of manpower.



Working process:

2000BPH Automatic Sleeve Labeling Machine PLC Control 1

Specifications:

1,This machine has the function of barrel photoelectric detection, label sleeving and label shrinking and it is perusing high speed, exact location, fewer worker and perfect packaging. It can apply to food and beverage industry and has the function of beauty and easily maintain.

2, Accurate sleeve labeling is achieved by setting the photoelectric system of the bottle feeding and the delay time of the label feeding system.

3, Unit cutter head plane designed in China which apply to ∮50mm—∮64mm mouth of 3-5 gallon bottle. You never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and continence which is ahead of other congener products.

4, Single shrinking label feed plane, tension height which is continent to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly, the label will detect and locate automatically. The change of label is quick and convenient, besides the cut place is absolutely exact.

5, Label feeding equipment: driving synchronized tensity control the supply of label, the supply ability is 1.5meters per minute, volume label supply plane is ∮500mm, the internal diameter of paper tube will be 4’ ,8’,10’. the configuration of label feeding is stable tensity which enable the exact length of label and the stable, quick supply of label.

6, The center pillar applies step by step shoot label structure and the speed is 100-150B per minute.

7, The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.

8, Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.



Voltage :1, Host machine: AC220V, 50/60HZ, 1.5-2KW

2, Shrinking machine: AC380V, 6KW(electrical heat) 3 phase

Production speed :900-2000BPH

Diameter of label :∮28mm-∮125mm

Length of label : 30mm-250mm

Thickness of label: 0.035mm-0.13mm

Material of label: PVC, PET, OPS

Size: 1000*800*2000mm



Configuration table of machine parts:

1. Bottle positioning mechanism 1set 5. Label carrier drive mechanism 1set
2. Single material putting place 1set 6. Cutter mechanism 1set
3. Fiber-optical electric eye controlling 1set 7. Automatic platform elevating mechanism 1set
4. Center guide pin 1set 8. Man-machine interface of operation control panel 1set




The main configuration table and function of automatic sleeve labeling machine:

Name Function
Material offering group Offer motor for label carrier
Shelf group Install volume label device
Platform elevating group Adjust the height of host automatically according to the bottle shapes
Brush-off group Brushing the cut-ted label on the bottle
Cutter group Cutting off the labels which are sent to Center guide pin
Cutter controlling group Control the cutter operational site
The back drive group Offer motor for label of center guide pin
The front drive adjusting group Grasping the center guide pin
Frame of Electric eye group Adjust the best cutting position of the label
Electric eye of bottle lighting detecting group Adjust the sleeve labeling position of bottle body
Hairbrush group Brush the label which cannot sleeve properly to the right place
Bottle positioning group Make bottle stable, control sleeve labeling position
Center guide pin group Make volume label distracted for transfer and cut easily




Set up:

Electrical apparatus Name Brand Model Qty
PLC Mitsubishi Japan FX3SA-30MT 1
Touch screen WEINVIEW-Taiwan TK6071IQ 1
Photo-electricity Sensor Autonics -Korea PR12-4DN 1
High-speed Optical Fiber Sensor Panasonic FX-501 1
Photo-electricity Sensor AUTONICS PR12-4DN 1
Photo-electricity Sensor Panasonic CX-442 1
Photo-electricity Sensor Panasonic PM-L44 1
Label In-feeding Servo Motor Panasonic MHMJ042P1S 1
Label In-feeding Servo Drive Panasonic MCDHT2521E 1
Cutting Head Servo Motor Panasonic MHMJ04P1S 1
Cutting Head Servo Drive Panasonic MBDHT2510E 1
Material rack inverter SHILIN-Taiwan SS2-021-0.75K 1
Intermediate relay Schneider French HH52P DC24V 7
AC contactor Schneider French LC1-D0610M5C 4
Circuit-breaker Schneider French D20 3P 1
