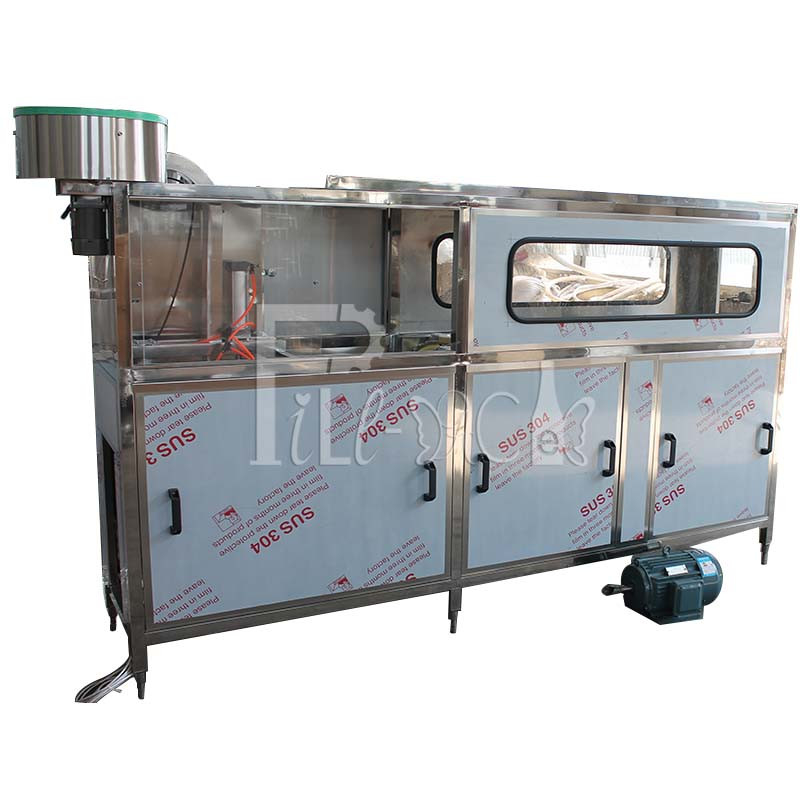

SUS304 100BPH 5 Gallon Water Filling Machine With One Decapping Head

Minimum Order Quantity : 1 set Price : USD $4300/set
Packaging Details : wooden case packing Delivery Time : 15-25 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-120

Detail Information

Bottle Size: 3~5 Gallon Bottle Capacity: 120 BPH
Control: PID Material: Stainless Steel 304
Packing Size: 6.2CBM Automatic Grade: Semi Automatic
Voltage: 380V 3PH 50HZ Or Customized Power: 2.68 KW
Weight: 950kgs Packing: Wooden Case
High Light:

100BPH 5 gallon water filling machine

,

SUS304 5 gallon water filling machine

,

100BPH 5 gallon water bottling machine

Product Description

100 BPH capacity 5 Gallon water production line/machine/system with one decapping head

This 5 Gallon water production line is integrated with jar washing-filling-capping functions together;
Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;

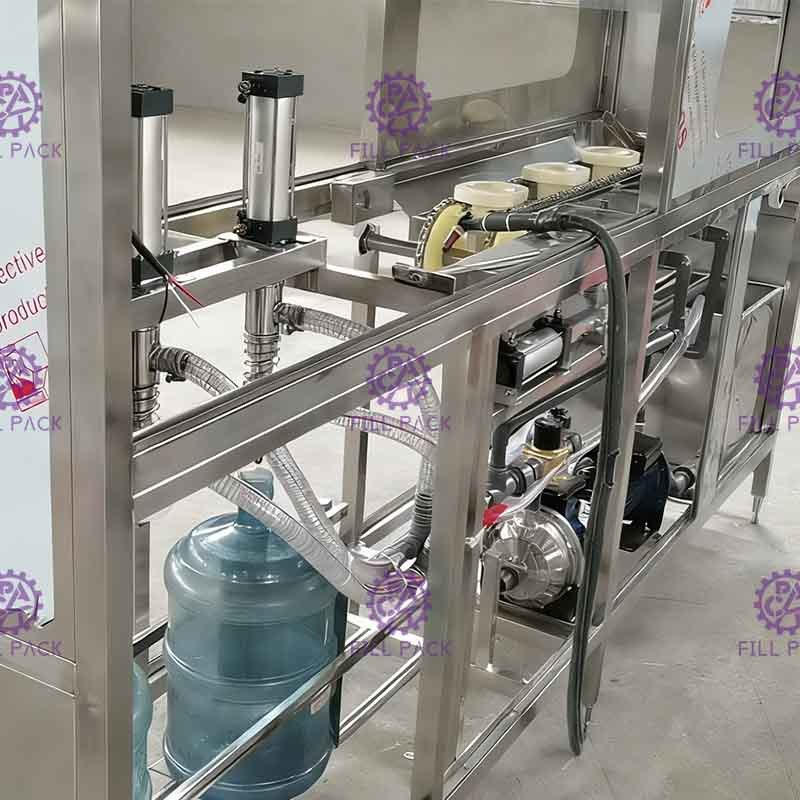

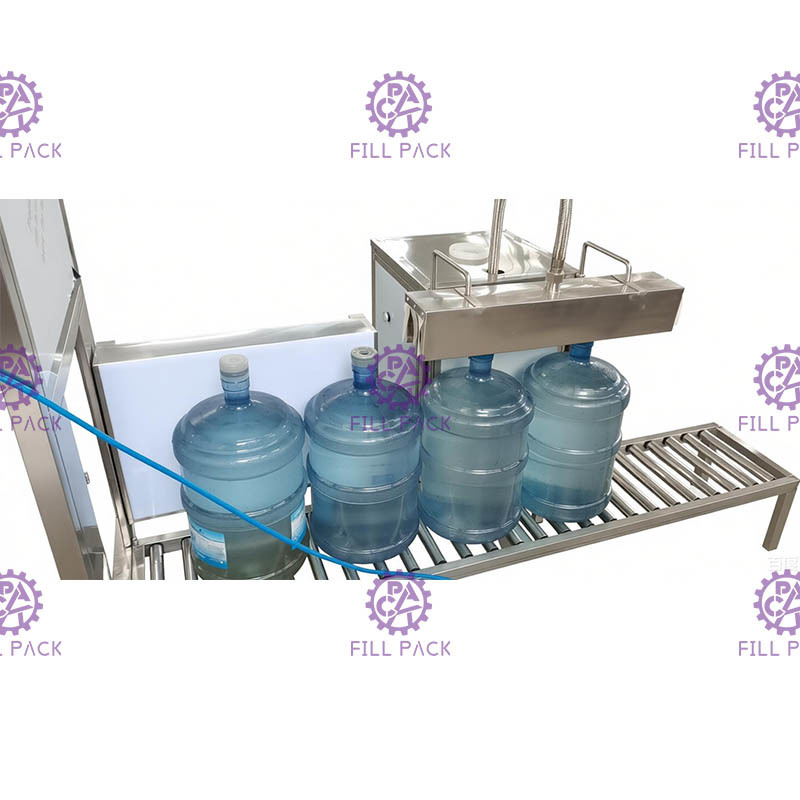

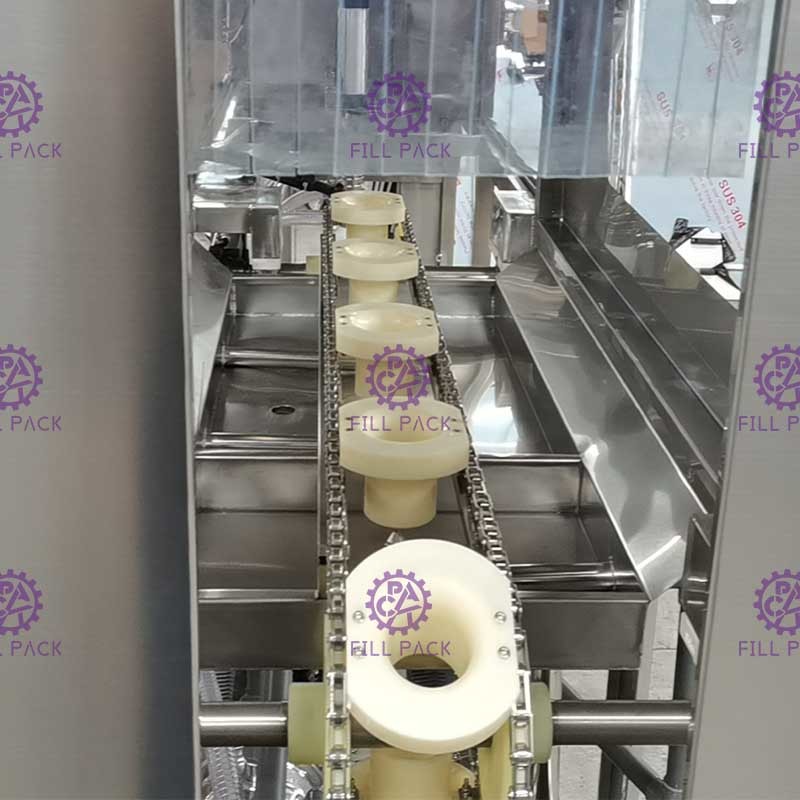

Washing will be devided into 2 parts, 1st process is by disinfectant fluid, 2nd process is by pure water;After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force; Then the jars will be pushed by pushing cylinder to under filling head, then filling start; Filling volume can be controlled by filling time set up. The filled jars will be pushed to under capping head by empty jars afterwards. Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.

Characters

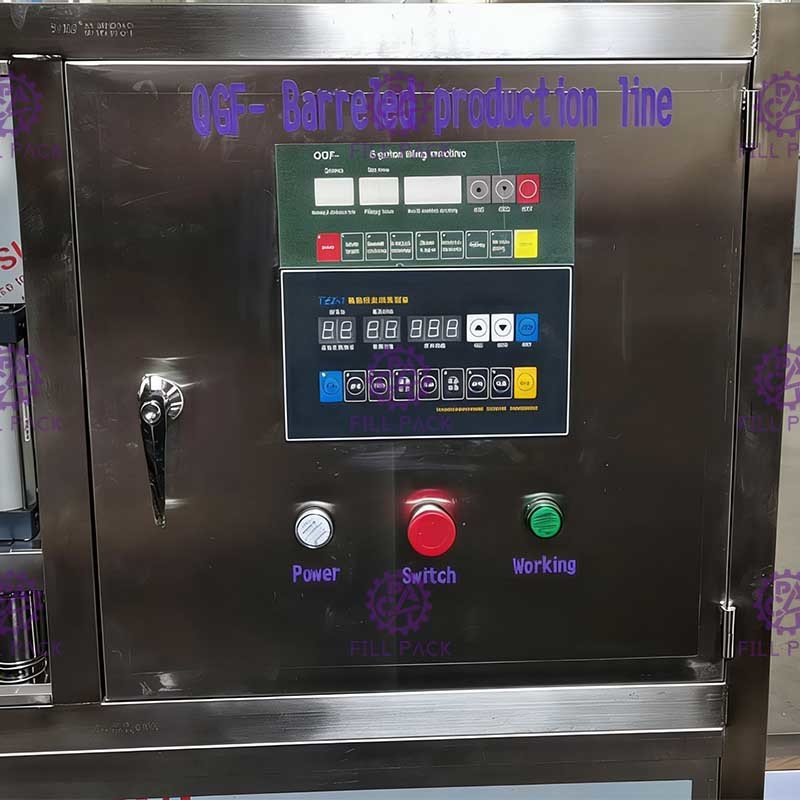

1, The whole 5 Gallon water production line is controlled by PLC system, all cylinder travel is calculated in advance for driven distance;

2, The 5 Gallon water production line can work under automatic model, manual model is for machine checking;

Parameters
Rinsing pump 1
0.37KW
Rinsing pump 2
0.37KW
Filling pump
0.55KW
Cap sorting motor
0.09KW
Dimension
3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)
+ 2000mm conveyor
Weight
400kg
SUS304 100BPH 5 Gallon Water Filling Machine With One Decapping Head 0
