300BPH Automatic Plastic Bottle 3 Gallon 18.9L Bottled Water Filling Capping Machine

Product Description

300BPH Automatic Plastic Bottle 3 Gallon 5 Gallon 18.9L Bottled Water Filling And Capping Machine

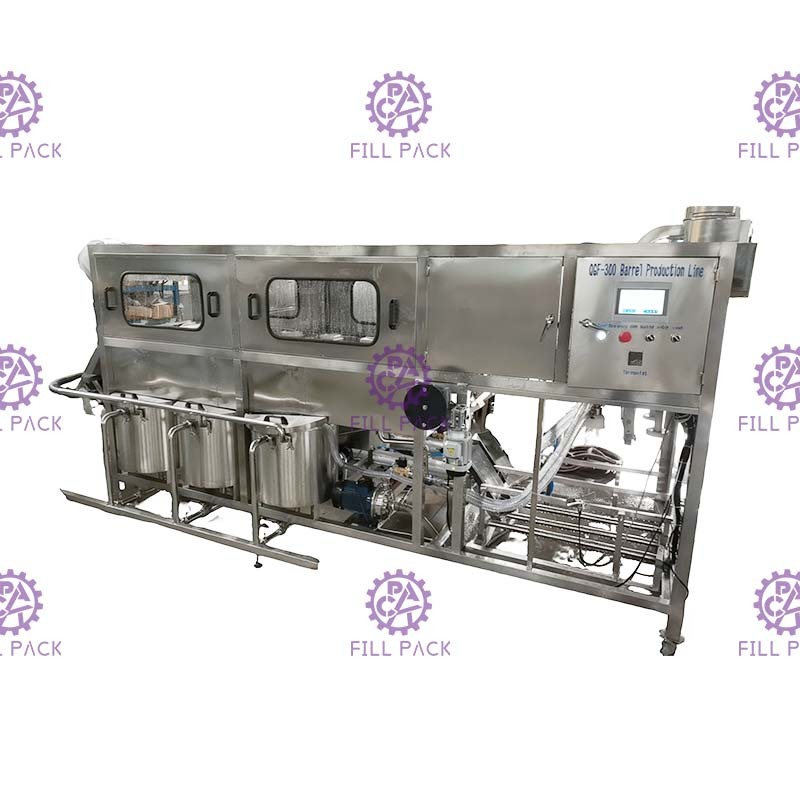

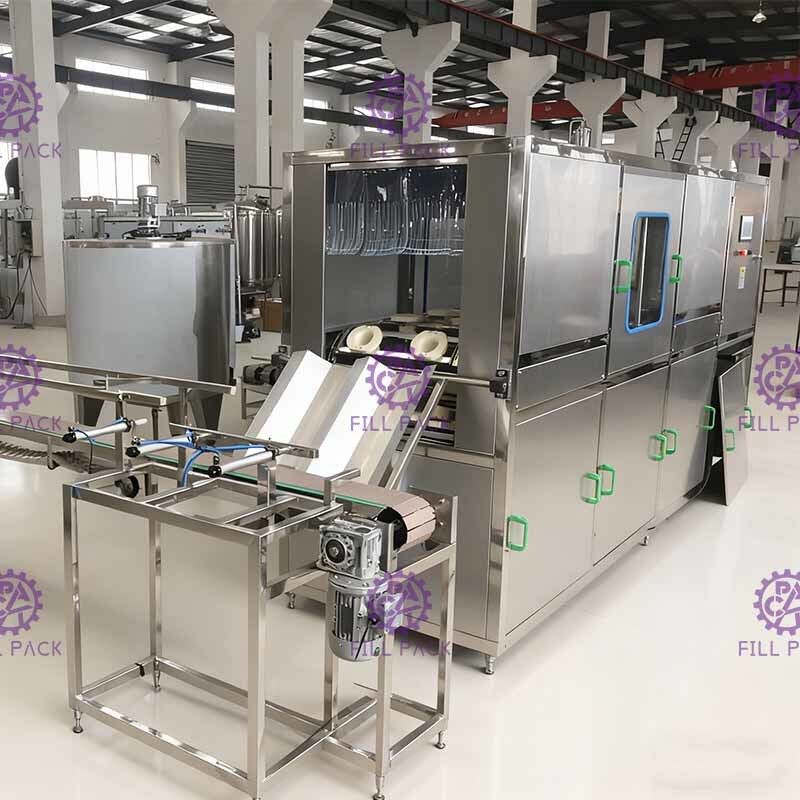

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Parameters:

Model	QGF-120	QGF-200	QGF-300	QGF-450
Filling heads	1	2	2	3

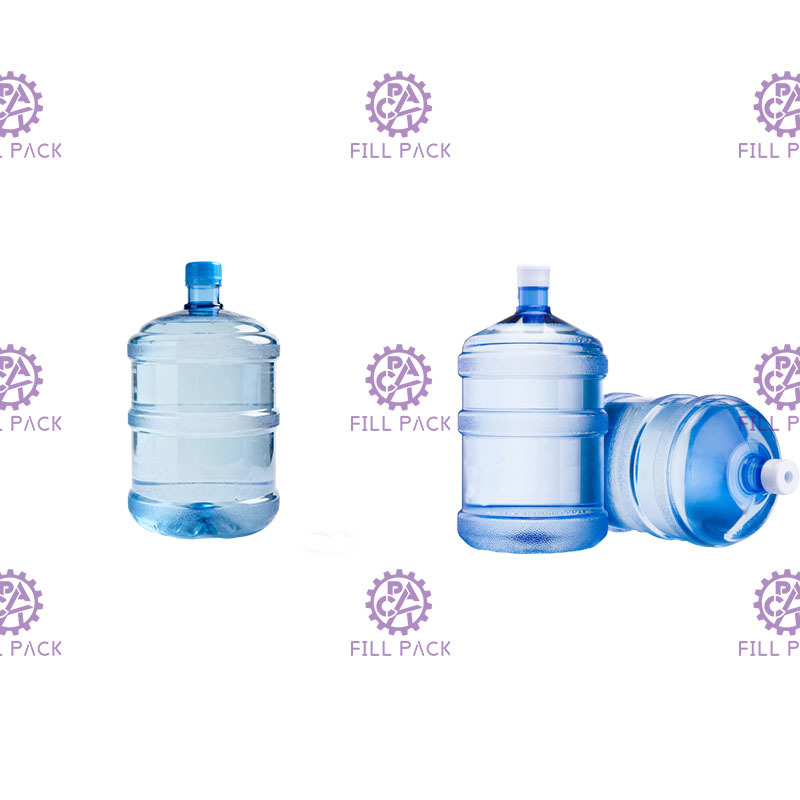

Volume	3-5 gallon
Barrel size	Φ270*490mm
Capacity	120BPH	200BPH	300BPH	400BPH
Air press(Mpa)	0.37	0.37	0.6	0.8
Power supply	1.38KW	2.5KW	5.3KW	5.6KW
Dimension	3400*780*1950mm	3400*780*1950mm	3400*1000*1750mm	5000*2000*1800mm
Weight	400KG	500KG	700KG	1000K



Details

Washing part

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .

<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

<3> 304/316 stainless steel washing pump

Filling and capping

Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.

After filling process finish, the filled barrel will be pushed to capping position by barrel stop cylinder, the whole process finish till now.

Drop bottle

The barrel after washing will move down 45 degree through the passing chain and will passing out chain and turn over 45 degree by barrel lift cylinder to filling position for filling.
