600BPH Automatic Gallon Mineral Water Barrel Bottling Filling Line

Minimum Order Quantity : 1 set Price : 22547USD
Delivery Time : 15 Working Days After Deposit Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 20 Sets Per Months
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE/ISO9001 Model Number: QGF-600

Detail Information

Capacity: 600 BPH Material: SUS304
Filling Material: Water Bottle Type: PET Plastic Bottle
Barrel Size: 270*490 Mm Filling Accuracy: ±1mm
Application: Beverage Voltage: 380V
Core Components: Motor, Pump, PLC Warranty Of Core Components: 1 Year
High Light:

Water Barrel Bottling Filling Line

,

600BPH Bottling Filling Line

,

600BPH water bottling machine

Product Description

600BPH Automatic 5 Gallon Mineral Water Barrel Bottling Filling Line Machine Equipment

600BPH Automatic Gallon Mineral Water Barrel Bottling Filling Line 0

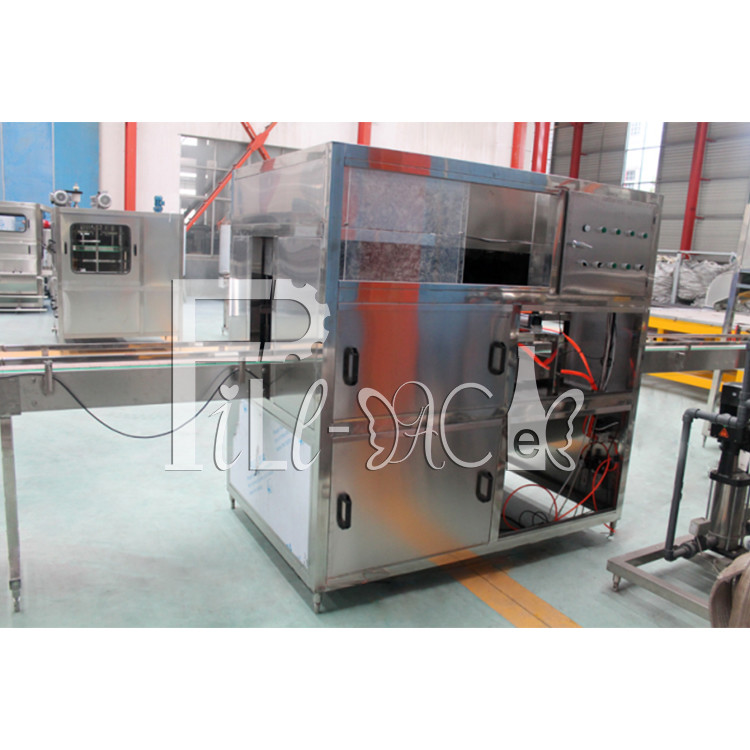

1.1, Automatic De-capper

600BPH Automatic Gallon Mineral Water Barrel Bottling Filling Line 1



This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking; The machine has two de-capping heads. De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;The claw pressure is adjusted to protect caps;



De-capping head: 2 heads

Dimension: 900*600*2000mm

Weight: 130kg

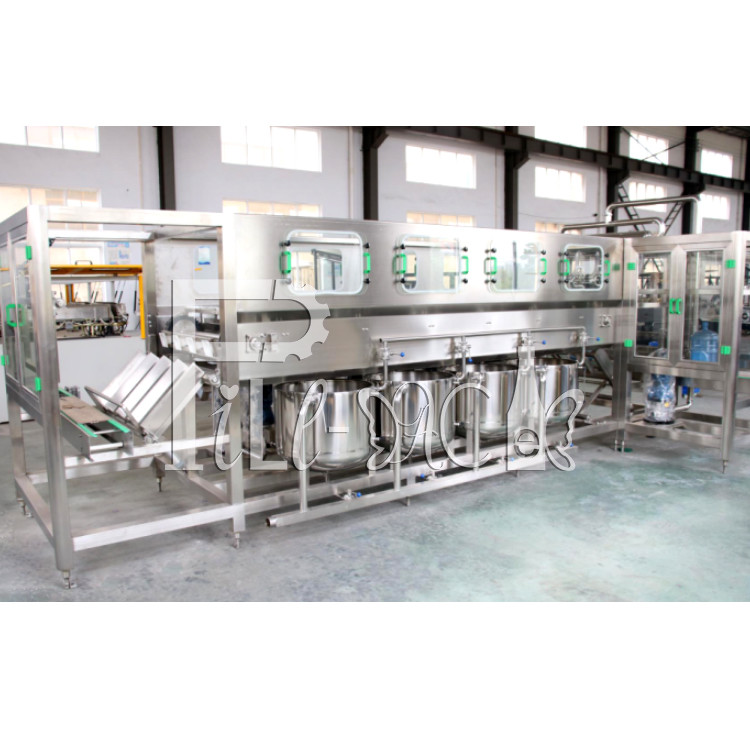

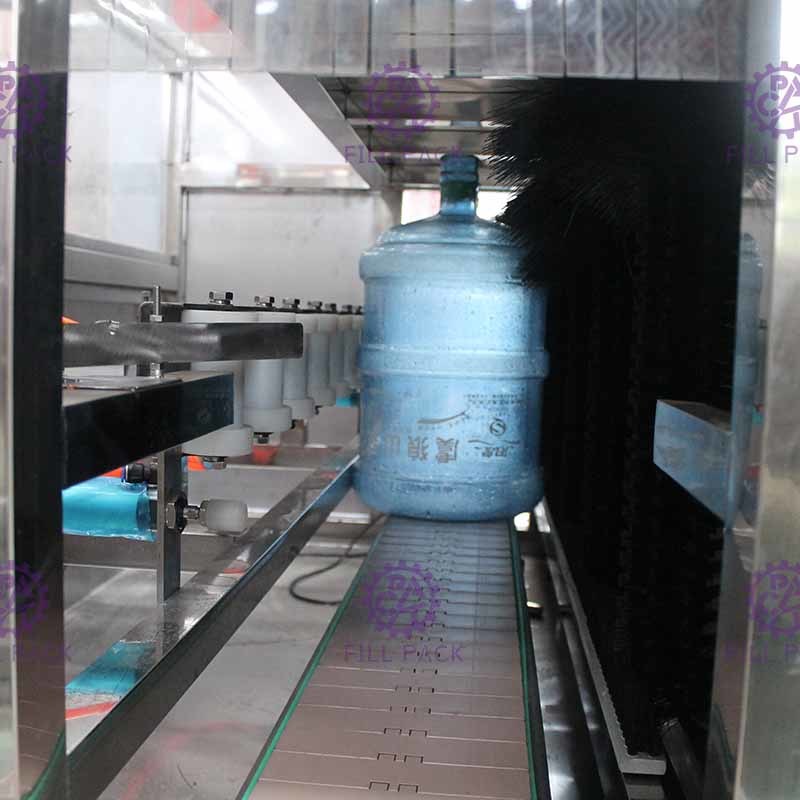

1.2, Linear type gallon bottle external washer

600BPH Automatic Gallon Mineral Water Barrel Bottling Filling Line 2

The machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will stop 4 bottles inside and fixed them by brushes and fixing bar, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;No air compressor needed, it is easy for production and maintenance;



Parameters:

Brush qty: 5pcs*2

Dimension: 1500*1100*1750mm

Weight: 350KG

Power: 0.55KW

Recycle water tank size: 600*550*550mm

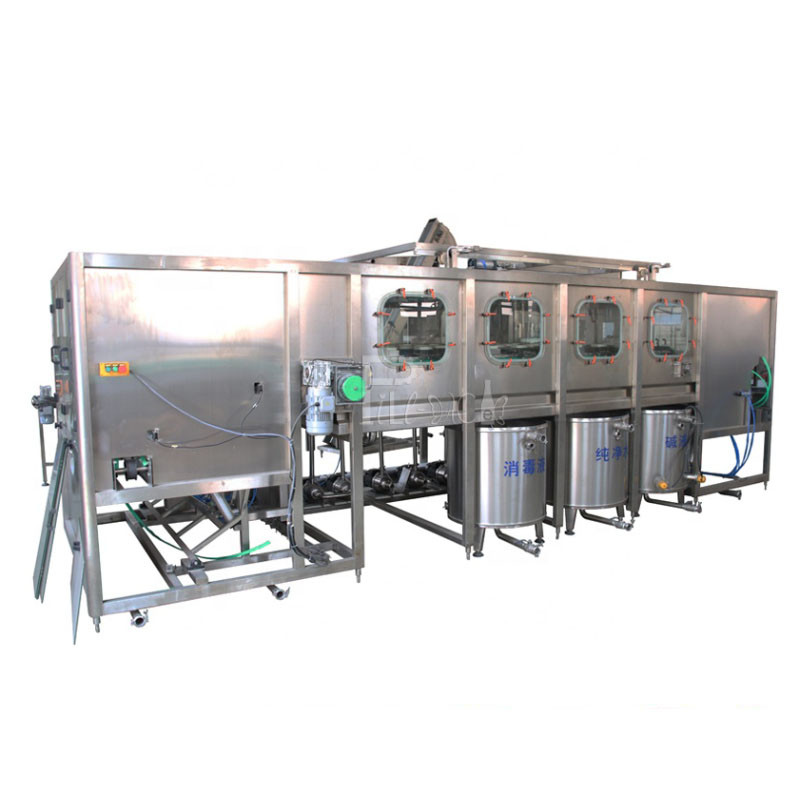

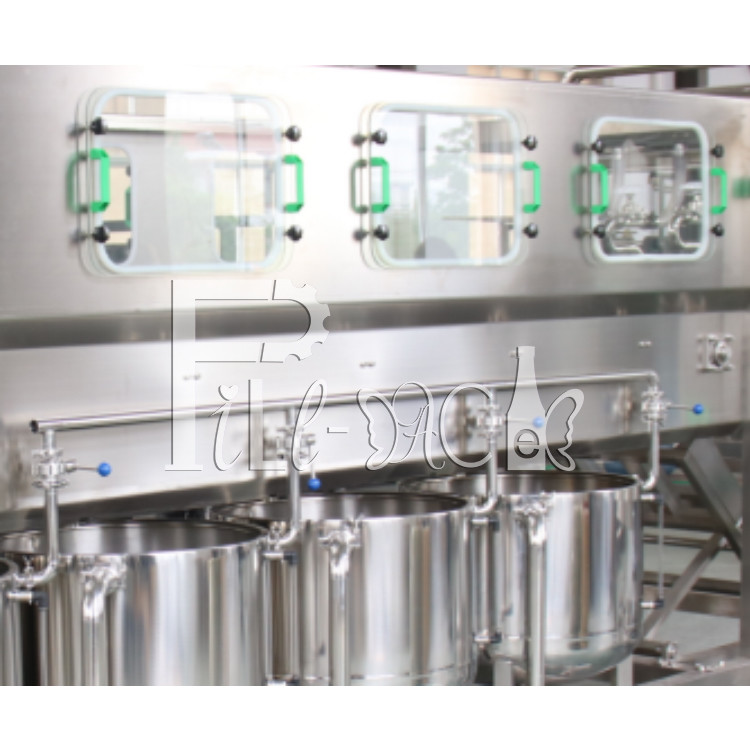

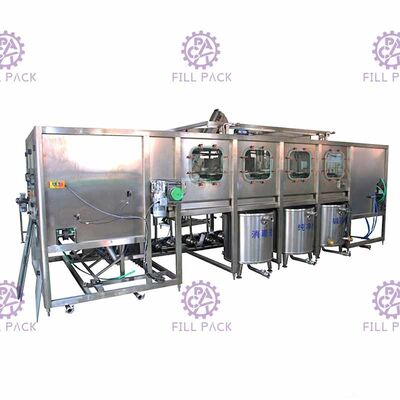

1.3, Washer/Filler/Capper with auto bottle loading

600BPH Automatic Gallon Mineral Water Barrel Bottling Filling Line 3

Parameters
Cylinder
Air tech-Taiwan
Magnetic valve
Air tech-Taiwan
Rising pump-filling pump
Nanfang
PLC
Mitsubishi Japanse
Power
22KW
Dimension
5000*2300*1800mm
Weight
1000kg



Barrel filling unit can be divided into 3 steps: washing, filling and capping, total 18 working stations

1, 1 electric heating station

2, 2 disinfectant washing stations

3, 1 dripping station

4, 2 return water stations

5, 2 pure water stations

6, 1 dripping station

One side 9 stations, Both sides 18 stations
