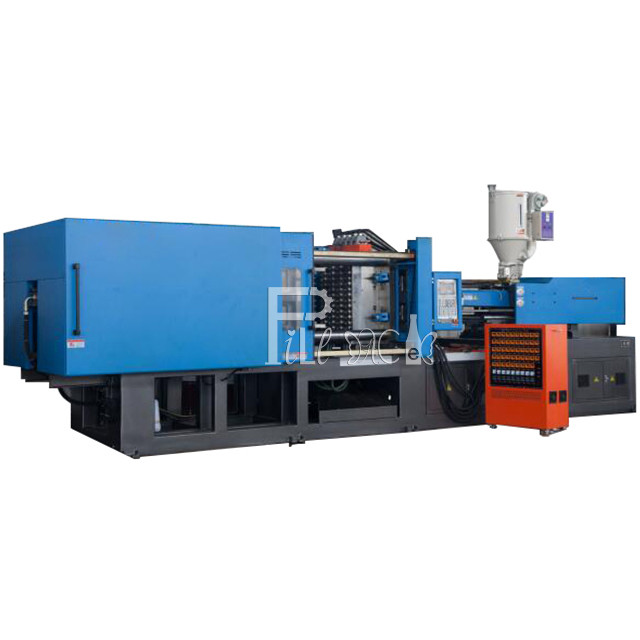

Home ProductsPreform Injection Molding Machine2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven
2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven supplier
2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven 2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven supplier 2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven supplier 2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven supplier 2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven supplier 2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven supplier
Contact Now

2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven

Minimum Order Quantity : 1 set Price : 45000USD
Packaging Details : Wooden case Delivery Time : 15 Work Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE/ISO9001 Model Number: ZSJ

Detail Information
Style: Horizontal Ejector Number: 9
Ejector Force: 70KN Injection Rate (g/s): 215 G/s
Injection Weight (g): 690g Screw Diameter: 56 Mm
Mold Height: 200 - 580 Mm Ejector Stroke: 160 Mm
Screw Speed: 0 - 180 Rpm Power: 18.5KW
High Light:

Plastic Preform Injection Molding Machine

,

2600KN Horizontal Preform Injection Molding Machine

,

180 rpm Preform Injection Molding Machine

Product Description

D2600KN Horizontal Plastic Injection Molding Machine For PET Preform Plastic Bucket With Servo Driven System



FEATURES

- There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics. and the choice of product.

- Two-guided guided bar supports, double-balanced rapid injection.
- The high-torque hydraulic motors offer a stable plasticizing capacity, highprecision electronic device position detection enable accurate measurement.
- Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.
- Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti- drooling and automated auto purge.
- Expected to prevent cold-start function to ensure that the screw, Liao Tong will not be harmed. Stability of the injection unit.
- Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp.
- Low pressure mold protection device to prevent damage to platen.
- Plywood, frame, the bridge, and the template attached structure, the finite element analysis.
- Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions.
- Flexible tie bars nut eliminates fatigue fracture; assure the working life of tie bars - Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment.
- High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy.

2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven 0

Parameters
Screw diameter(mm)
56
Theoretical Shot size(cm³)
700
Shot weight (g)
690
Injection pressure(Mpa)
178
Injection rate(g/s)
215
Screw L/D ratio(L/D)
21.6
Screw speed(r.p.m)
0-180
Nozzle Diameter(Srmm)
20
Clamp tonnage (KN)
2600
Toggle stroke(mm)
570
Mould Thickness(mm)
200-580
Space between tie-bars(mm)
580X580
Ejector stroke(mm)
160
Ejector tonnage(KN)
70
Ejector number(pcs)
9
Heat power(KW)
18.5
Max. pump pressure(Mpa)
16
Valve Size(mm)
16
Machine dimension(mm)
6300*1700*1800
Machine weight(kg)
8000
Oil tank capacity(L)
350



Number of mold cavities within 20g: 24Cav, output 8600pcs; Number of mold cavities within 20-30g: 16cav, output 5600pcs. The weight of the large bottle preform should not exceed 110g, the output of 110g is 1200pcs, and the number of cavities can only be 4 cavities.




Details:

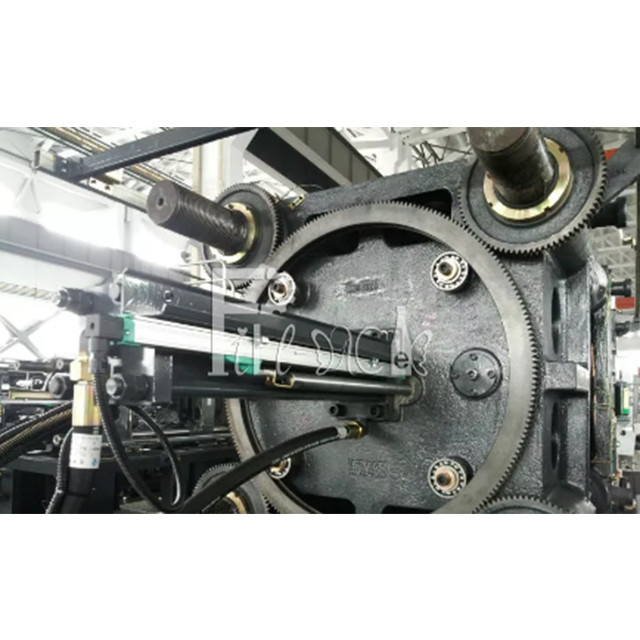

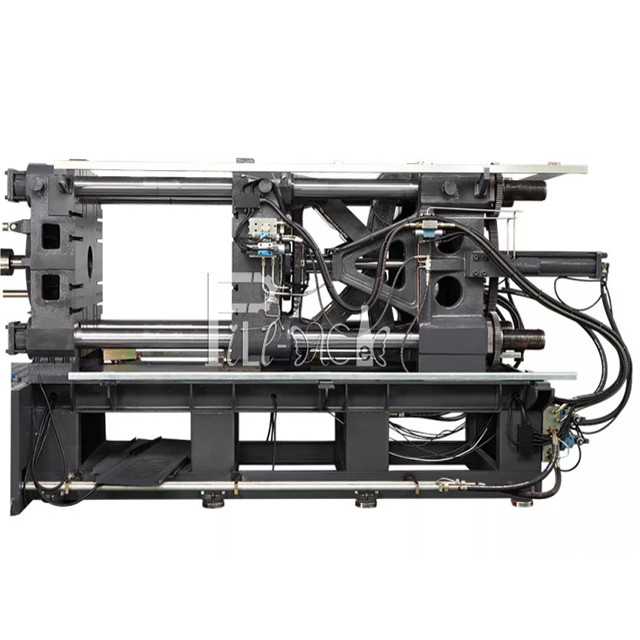

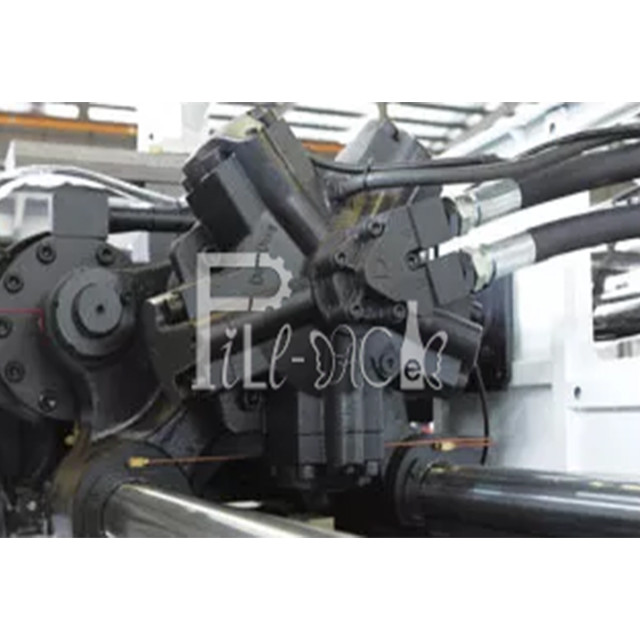

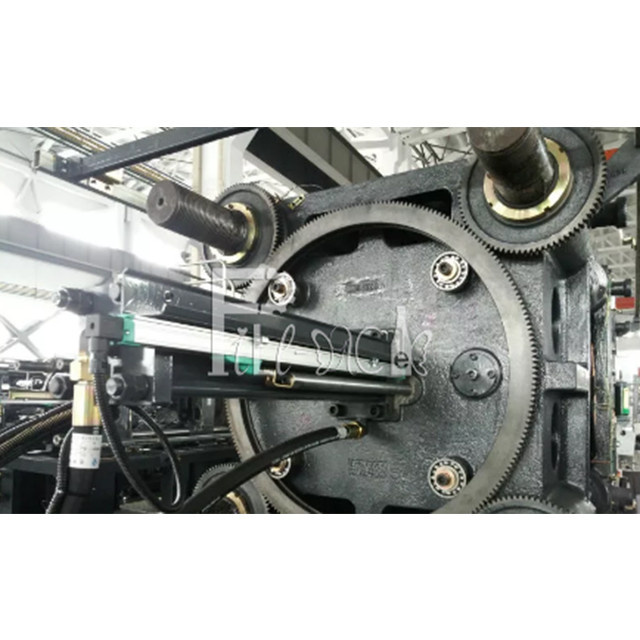

2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven 1

2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven 2

2600KN Horizontal Plastic Preform Injection Molding Machine For PET Bucket Servo Driven 3
