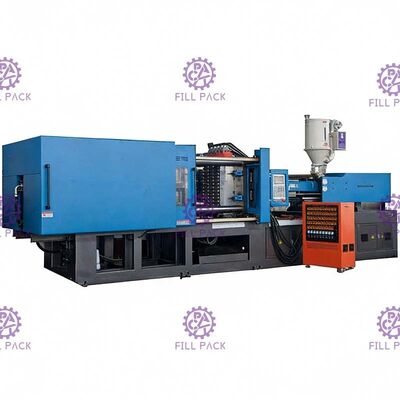

Automatic 5 Gallon Water Bottle Preform For PET Bucket Servo Driven

Minimum Order Quantity :	1 set	Price :	45000USD
Packaging Details :	Wooden case	Delivery Time :	15 Work Days
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram	Supply Ability :	20 sets per month

Place of Origin:	Zhangjiagang, China	Brand Name:	FILLPACK
Certification:	CE/ISO9001	Model Number:	ZSJ

Detail Information
Injection Rate (g/s):	215 G/s	Injection Weight (g):	690g
Screw Diameter:	56 Mm	Mold Height:	200 - 580 Mm
Ejector Stroke:	160 Mm	Screw Speed:	0 - 180 Rpm
Power:	18.5KW
Highlight:	Plastic Preform Injection Molding Machine , 2600KN Horizontal Preform Injection Molding Machine , 180 rpm Preform Injection Molding Machine

Product Description

Automatic 5 Gallon Water Bottle Preform For PET Bucket Servo Driven

FEATURES

- There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics. and the choice of product.

- Two-guided guided bar supports, double-balanced rapid injection.

- The high-torque hydraulic motors offer a stable plasticizing capacity, highprecision electronic device position detection enable accurate measurement.

- Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.

- Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti- drooling and automated auto purge.

- Expected to prevent cold-start function to ensure that the screw, Liao Tong will not be harmed. Stability of the injection unit.

- Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp.

- Low pressure mold protection device to prevent damage to platen.

- Plywood, frame, the bridge, and the template attached structure, the finite element analysis.

- Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions.

- Flexible tie bars nut eliminates fatigue fracture; assure the working life of tie bars - Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment.

- High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy.

Parameters

Screw diameter(mm)	56
Theoretical Shot size(cm³)	700
Shot weight (g)	690
Injection pressure(Mpa)	178
Injection rate(g/s)	215
Screw L/D ratio(L/D)	21.6
Screw speed(r.p.m)	0-180
Nozzle Diameter(Srmm)	20
Clamp tonnage (KN)	2600
Toggle stroke(mm)	570
Mould Thickness(mm)	200-580
Space between tie-bars(mm)	580X580
Ejector stroke(mm)	160
Ejector tonnage(KN)	70
Ejector number(pcs)	9
Heat power(KW)	18.5
Max. pump pressure(Mpa)	16
Valve Size(mm)	16
Machine dimension(mm)	630017001800
Machine weight(kg)	8000
Oil tank capacity(L)	350

Number of mold cavities within 20g: 24Cav, output 8600pcs; Number of mold cavities within 20-30g: 16cav, output 5600pcs. The weight of the large bottle preform should not exceed 110g, the output of 110g is 1200pcs, and the number of cavities can only be 4 cavities.
