Paste Sachet Pouch Filling Sealing Packing Machine Automatic 1 Line 3 Sides

Minimum Order Quantity : 1 set Price : 3500USD
Packaging Details : Wooden case Delivery Time : 15 Work Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE/ISO9001 Model Number: GTDZ-60

Detail Information

Capacity: 40-80bags/min Film Width: 280mm
Filling Material: Paste Bag Size: 140MM(W)*130MM(L)
Sealing Type: 3 Side Sealing Power: 1.5KW
Voltage: 220V Net Weight: 300KG
High Light:

80bags/min Sachet Water Filling Machine


Paste Sachet Pouch Filling Machine


1.5KW Sachet Water Filling Machine

Product Description

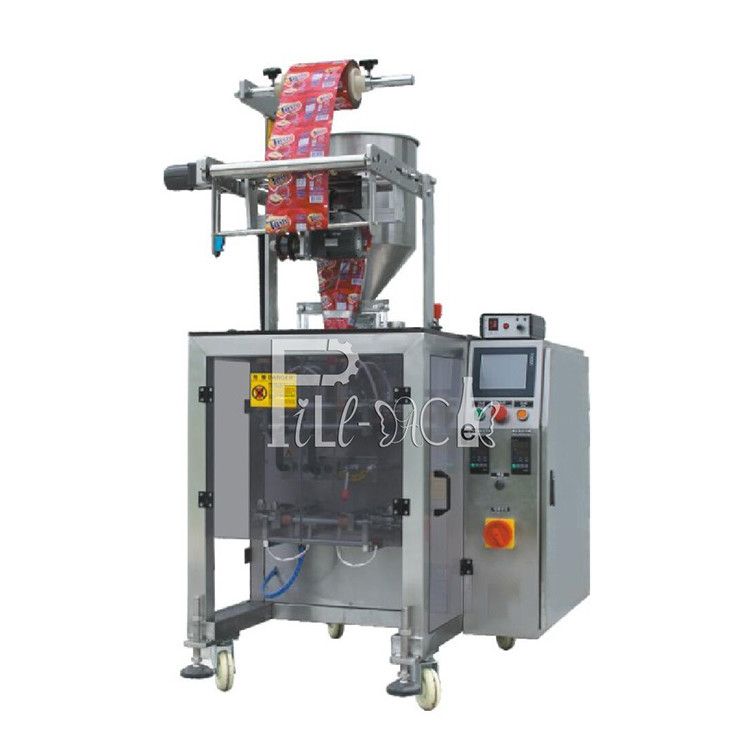

Automatic 1 Line 3 Sides Paste Sachet Pouch Filling And Sealing Packing Machine



This machine adopts frequency conversion speed regulation and pump pressure feeding system with strong adjustable energy and high precision. It can automatically complete the functions of bag making, measuring, filling, sealing, slitting, easy tearing, hot pressing batch number, and can be divided and connected.It is suitable for the packaging of liquid materials such as food, medicine, daily necessities, and chemicals. (eg: packaging of shampoo, honey, ketchup, edible oil, chili sauce, etc.)


Main performance and structure features:

  • Automatic packaging machines can complete the work of measuring, bag making, filling, sealing, cutting, counting, batch number automatically during the packaging process.
  • Control system can match action combined with each other automatically. System has a fine high accuracy. It is easy and accurate to adjust the bag-making length. It has Stepless adjustment about speed and bag length, packaging speed and length of bag can be adjusted continuously within the specified limits, do not need to replace parts;
  • The design adopts a unique embedded sealing, enhanced heat sealing institutions, PID intelligent temperature controller for temperature control, have good thermal equilibrium for various packaging materials, good performance, low noise and sealing lines clear, strong sealing.
  • Liquid measurement methods: measurement of liquid pump, precision 1-3%
  • Contact part of equipment and the material is stainless steel 304.

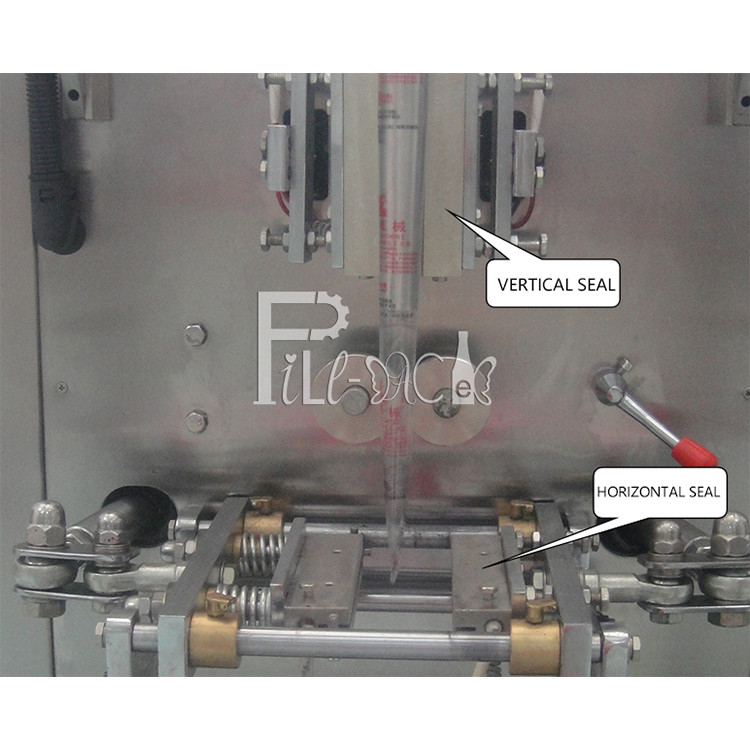

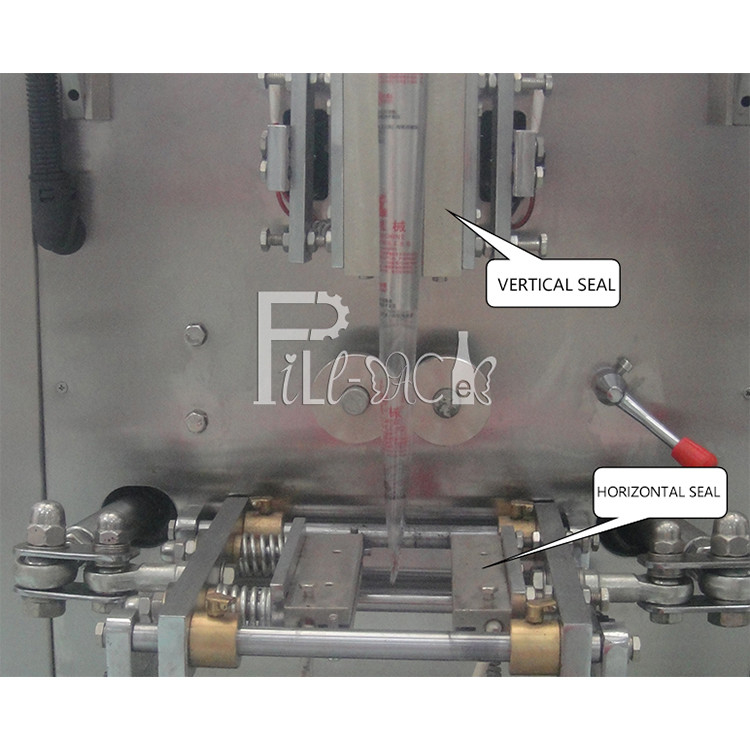

  • The device is three-side sealing, and the sealing model is horizontal cutting.
  • This device contains ribbons code machine for option.

Automatic features:

◆Stepless speed: packaging speed has stepless adjustment within a certain range, can reach best match for bag-making , filling, sealing, cutting links , makes the packaging process is stable and reliable

◆Bag length can be set within specified limits,Motor driven cam, stable and reliable, the speed can be selected

◆Using motor to pull film,when packaging films have colored logo location signs, bag-making process allows for photoelectric detection, localization, sealing, cutting, ensure the bag pattern integrity.

◆With self-diagnostics, fault tips feature.

◆PID of high precision control for temperature control, has excellent thermal stability, ensure the quality of the sealing of different materials

◆Easy operation and maintenance: intermittent simple structure, easy operation and maintenance

◆Versatile: by replacing the different filling heads could achieved a multi-purpose machine

◆Automatically print product lot number, can be added easily torn, easy to use

◆Full set adopts high quality device with stable quality, low noise, low failure rate, long service life

◆This machine is compact and unique, stylish, all devices of contact with materials are made from stainless steel and non-toxic corrosion-resistant plastics, comply with the requirements of the food and pharmaceutical packaging (GMP). Particularly suitable for the food, pharmaceutical and chemical industries.


Technology Specification:

Capacity 40-80bags/min
Film width 280mm
Filling material Paste
Bag Size 140MM(W)*130MM(L)
Sealing type 3 side sealing
Power 1.51KW
Voltage 220V
Packing material Paper/the polyethylene,polyester/aluminum ofil/polyethylene,nylon/polyethylene,tea filter paper,etc
Net weight 300KG
Overall Dimension L1260*W960*H1700MM
Material 304 stainless steel


Paste Sachet Pouch Filling Sealing Packing Machine Automatic 1 Line 3 Sides 0


Paste Sachet Pouch Filling Sealing Packing Machine Automatic 1 Line 3 Sides 1

Paste Sachet Pouch Filling Sealing Packing Machine Automatic 1 Line 3 Sides 2
