Full Set Complete Mineral Water Bottling Filling Line Automatic PET Plastic

Minimum Order Quantity : 1 set Price : 13125USD
Packaging Details : Wooden case Delivery Time : 15 Work Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE/ISO9001 Model Number: CGF12-12-4

Detail Information

Machinery Capacity: 4000BPH Packaging Material: Plastic
Bottle Size: Neck:φ20-50mm;Height:150-320mm Water Pressure: 0.18-0.25Mpa
Water Consumption(kg/h): 1000 Filling Precision: <+1MM
Air Pressure: 0.4Mpa Air Consumption (m³/min): 0.3
High Light:

0.25Mpa Mineral Water Bottling Machine


4000BPH Mineral Water Bottling Machine


Automatic Plastic PET Water Bottling Machine

Product Description

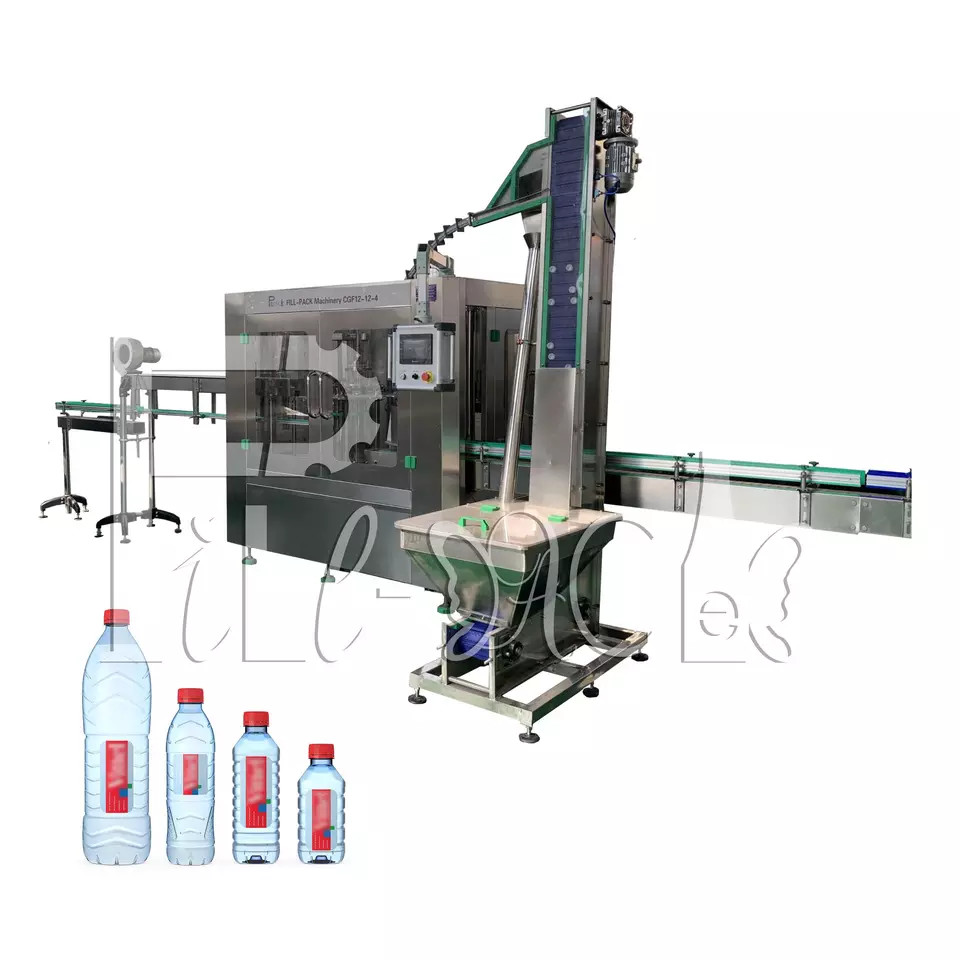

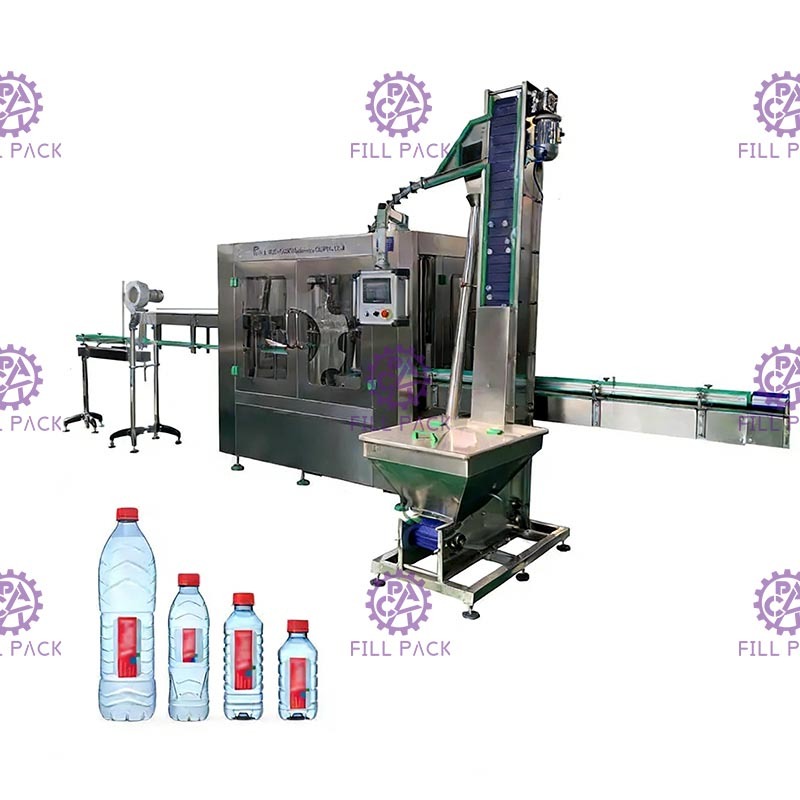

Full Set Complete Automatic PET Plastic Small Bottle Drinking Mineral Water Bottling Machine

Bottle Water Filling Line


The equipment is used to produce granular juice beverages. Cleaning, granule filling, juice filling and capping are integrated in one machine.The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.The filling by spring type liquid lever controlling filling valve, no dripping. The liquid lever is easy to control. All construction made of SUS304, There is no dead corner inside filling valve.The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

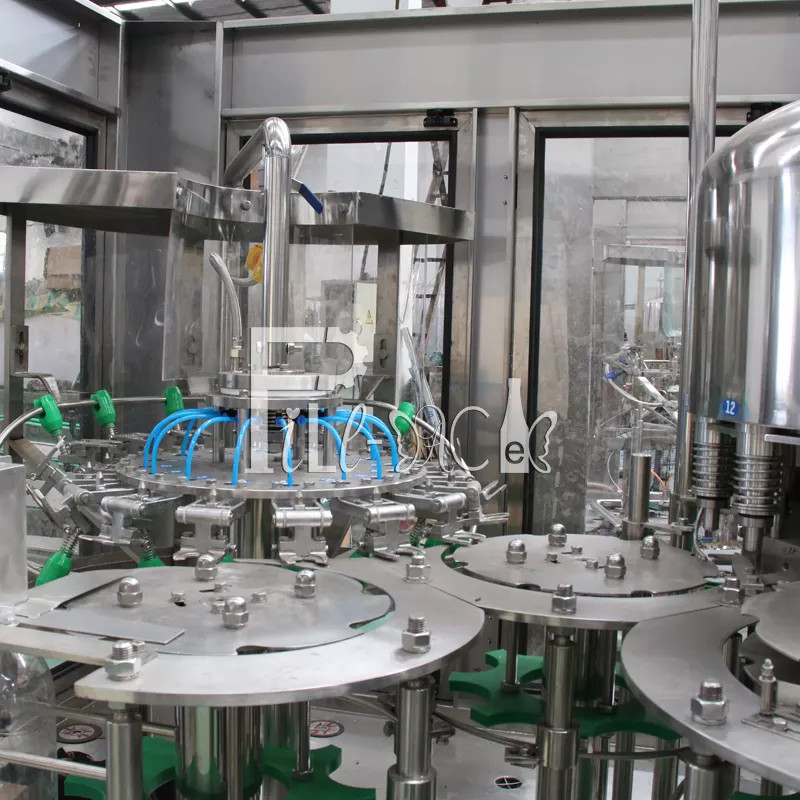

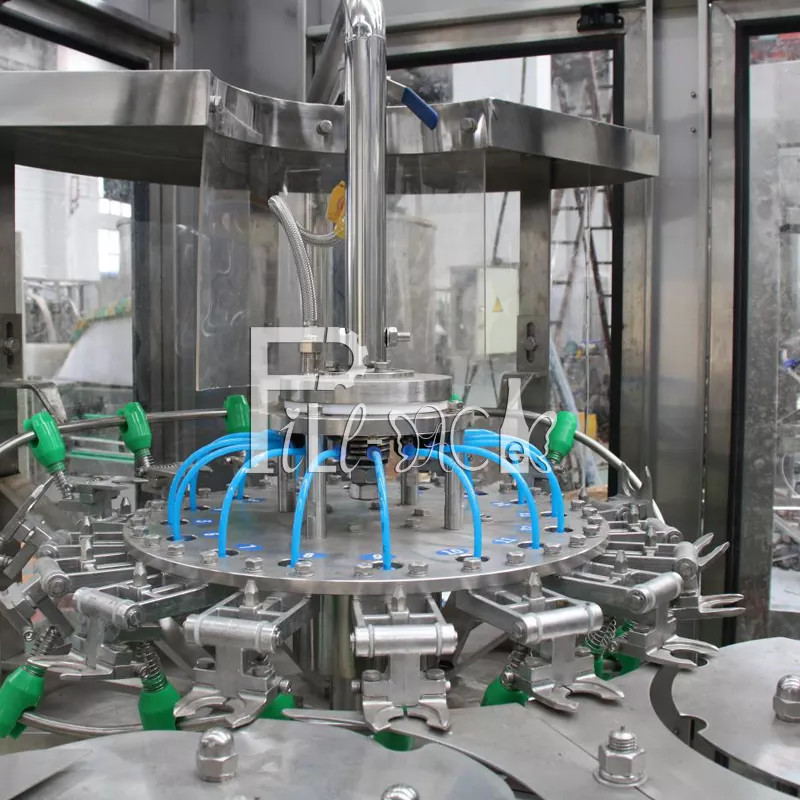

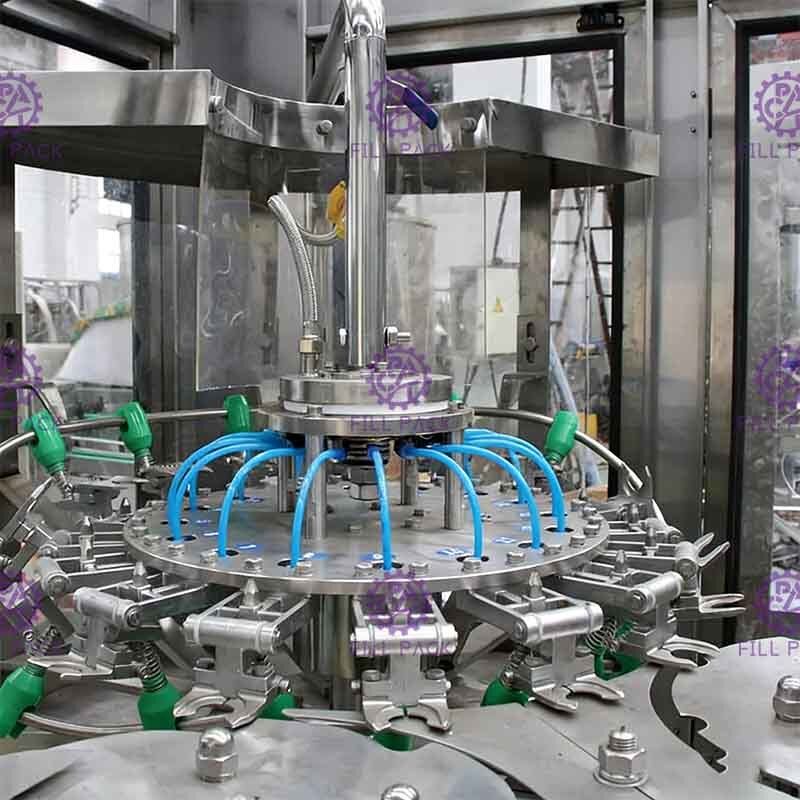

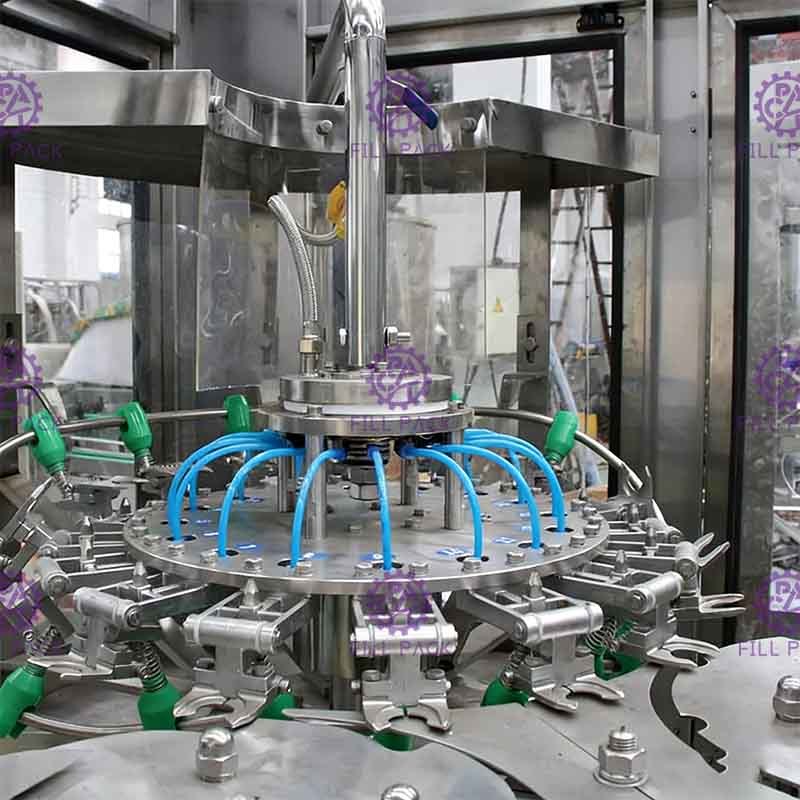

Rinsing part:

1) Except the down framework, the transmission parts and some parts that must be made of

special materials. Other spare parts are made of stainless steel 304.

2) The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and

plastic is made of UMPE.

3) The gripper is made of stainless steel, the position where hold the bottleneck is also made of

stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.

4) The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of

the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.

5)Rinsing time can be guaranteed for 4 seconds.

6)By adjusting the height of the rotary parts to adapt for different bottle height.

7)The motivation is derived from the driven system in the framework passed by gear.

8)The supplying of rinsing water is controlled by solenoid valve.

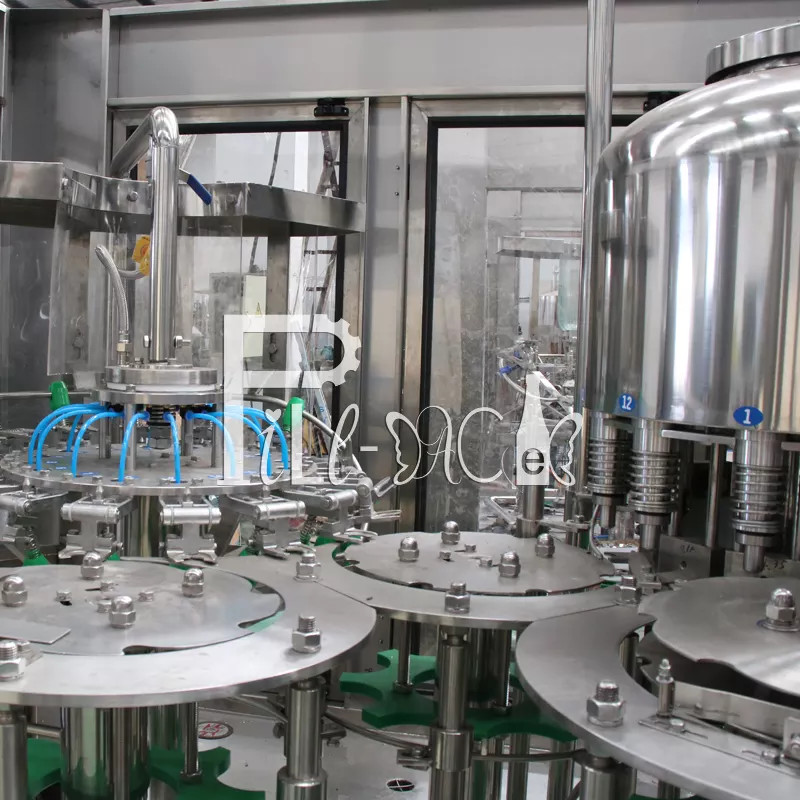

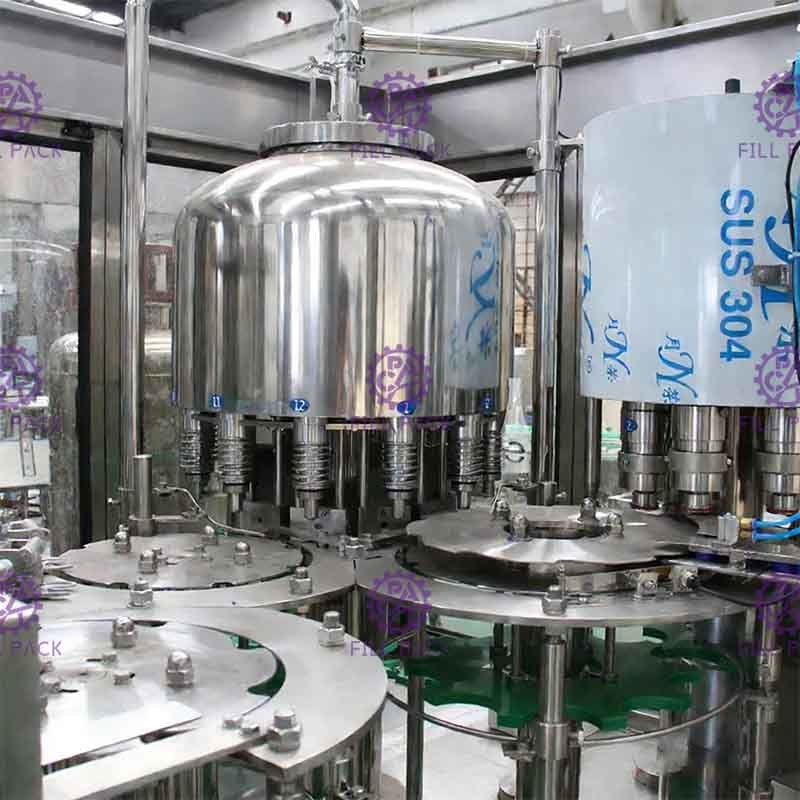

Filling part:

1) Adopted Germany anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.

2) The rotate plate is made of SUS AISI304, large flat toothed bearing.

3) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.

4) The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.

5) This filling system has an automatic temperature control system.

6) The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.

7) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.

8) The motivation of the filler is derived from the driven system in the framework and passed by gear.


Capping part:

1) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.

2) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.

3) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide. Passing by cap loading system.

4) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.

5) A bottle inlet detect switch is settled on the screwing capper.

6) There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.

7) By adjusting the height of the rotary parts to adapt for different bottle height.

8) The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.

9) The main parts of the screwing capper are processed by the digital-control processing center.

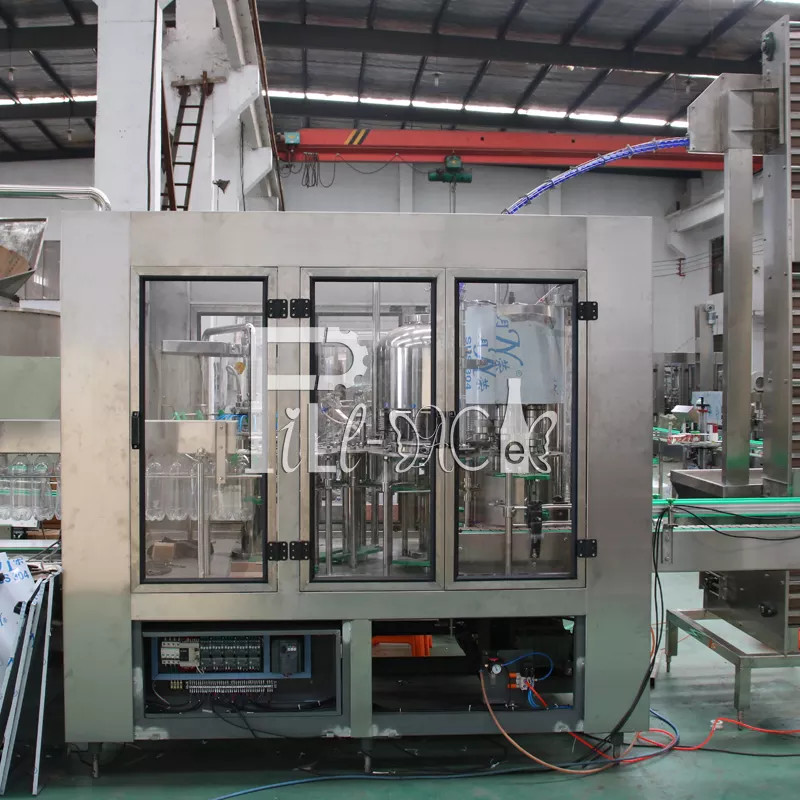

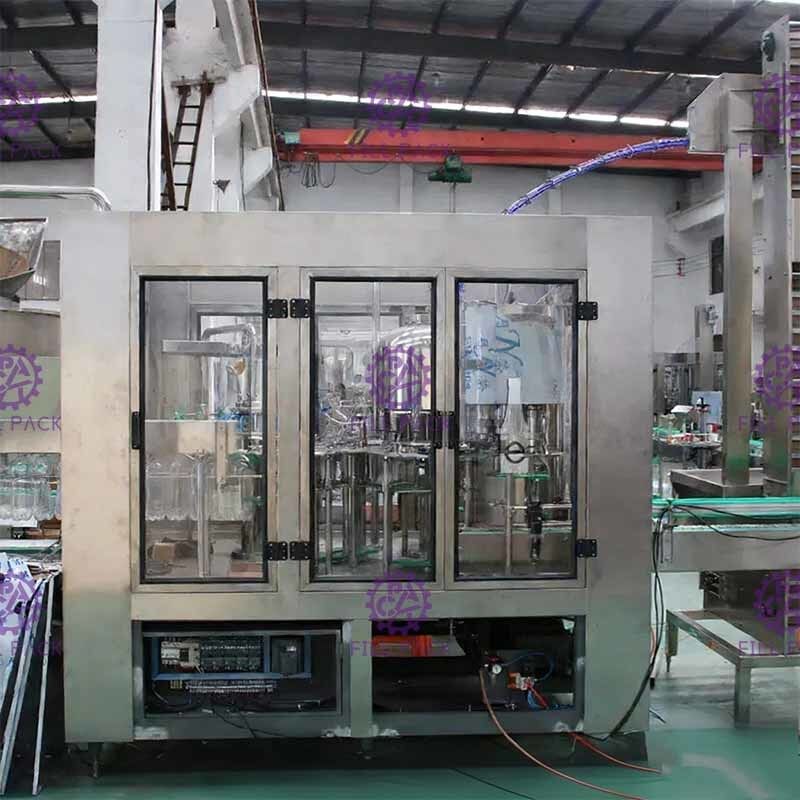

Electrical apparatus:

Transducer Mitsubishi 2.2K
Touch screen Easyview-TaiWan MT6070
PLC Mitsubishi FXIS-20MR
Stabilized voltage supply MingWei-TaiWan S-35-24
Contactor Schinder CJX2-0910
Approach switch Autonics PR18-8DN
Air switch Schinder 3P-D20




Model CGF12-12-4
Capacity(B/H)(330ml) 3000-4000
Bottle size Neck:φ20-50mm;Height:150-320mm
Water pressure 0.18-0.25Mpa
Water consumption(kg/h) 1000
Washing station 2
Dripping station 2
Filling precision <+1MM
Air pressure 0.4Mpa
Air consumption (m³/min) 0.3
