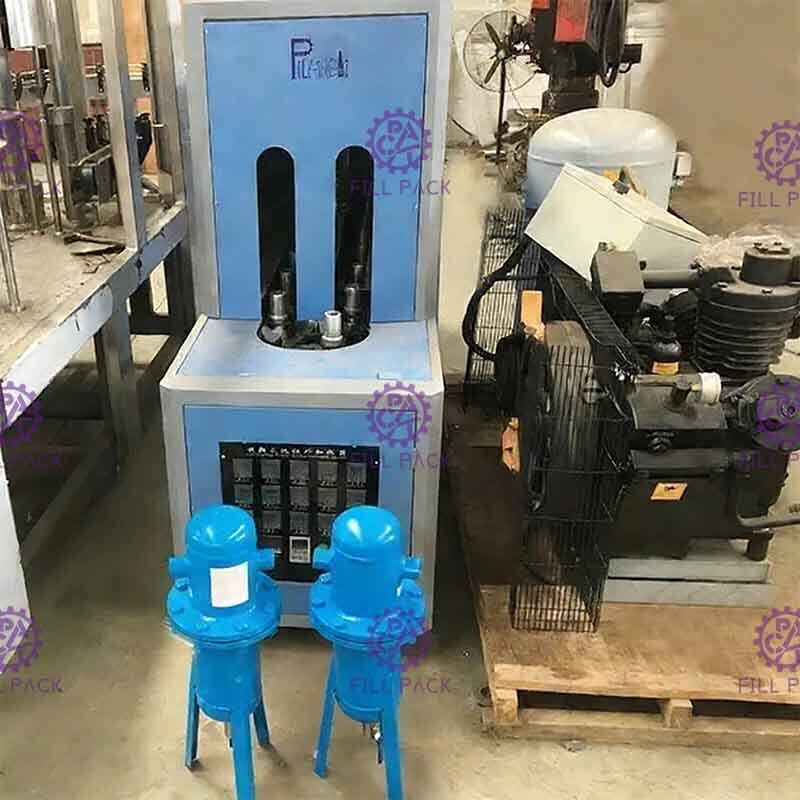

PET Plastic 3 Gallon Bottle Blow Molding Machine 20 Liter Semi Automatic

Product Description

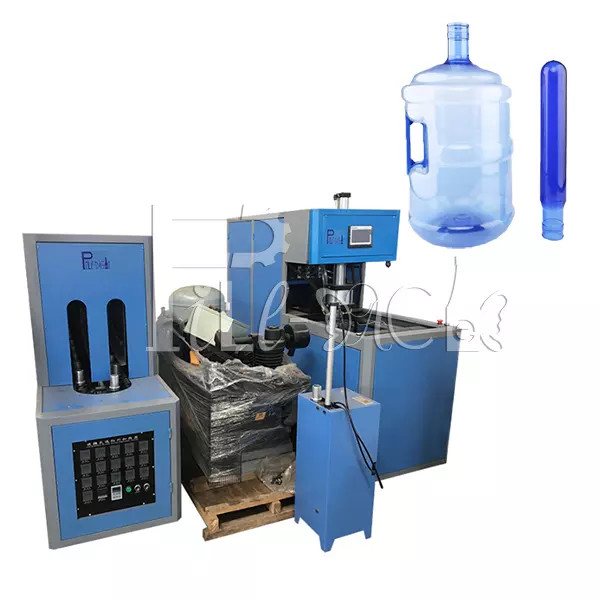

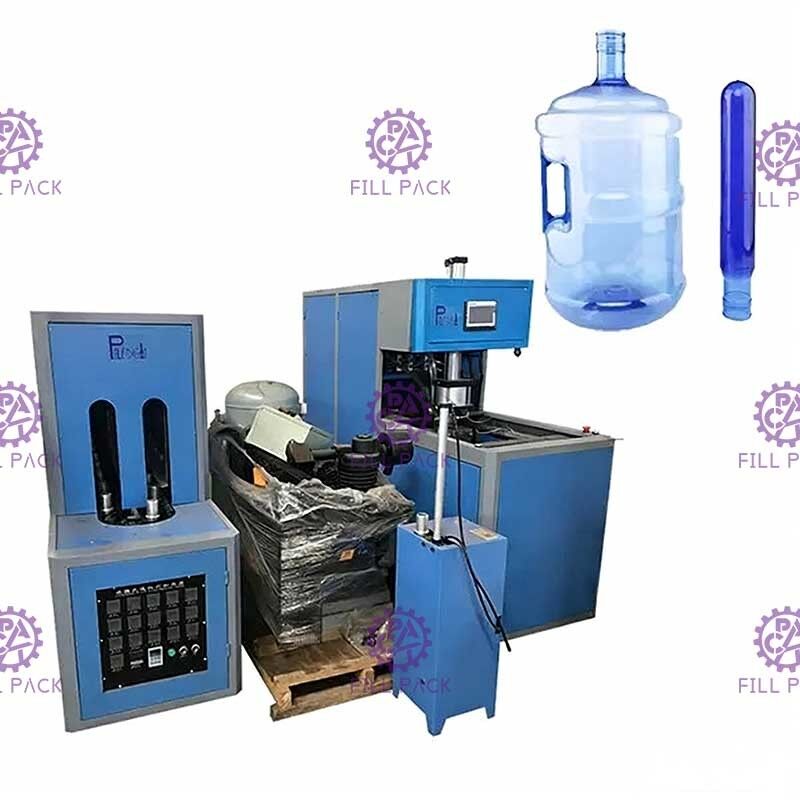

Semi Automatic PET Plastic 3-5 Gallon bottle 20 Liter Water Bottle Making Blow Molding Machine

Trait:

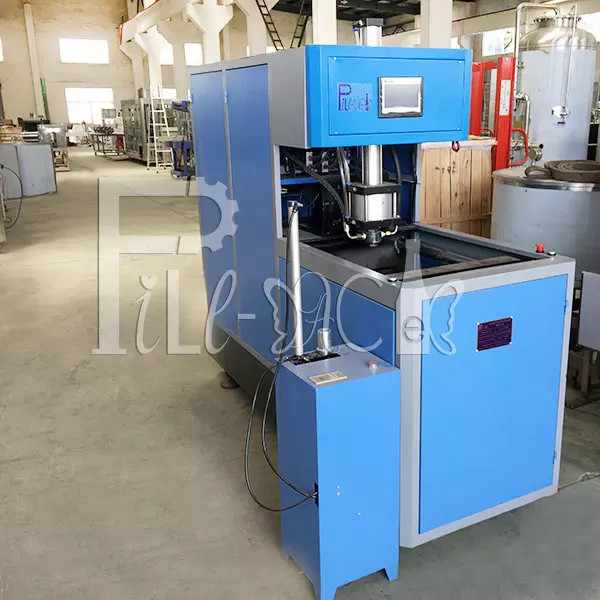

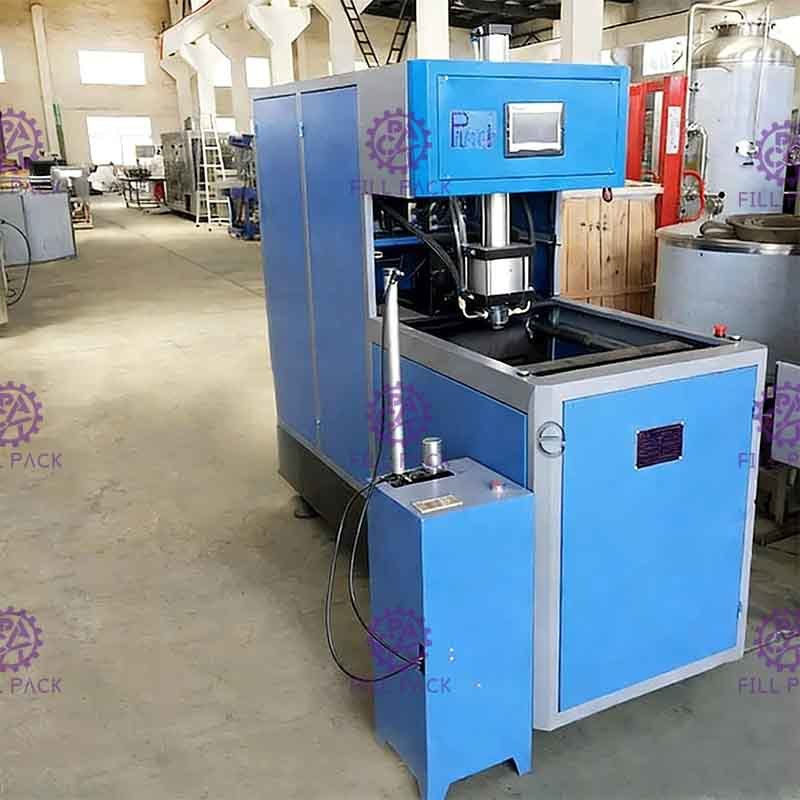

FP-120 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is
widely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.
* Perfect function with economic investment.
* Small size and compact construction with no space waste.
* Easy to operate and maintain ,operation by one person .
* Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing     system.

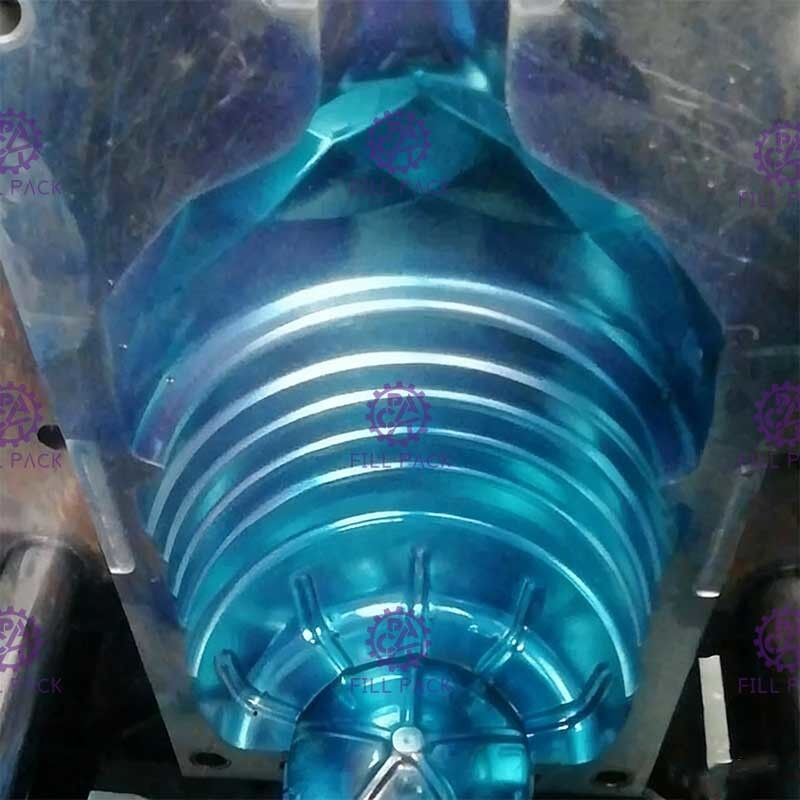

* We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements

Features:
1. Perfect function with economic investment.
2. Saving power and uneasy to worn out, Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
3. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
4. Satisfaction with different Max bottle lengthpressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
5. Strong clamping force with high pressure and double crank links to lock the mold.
6. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to
understand.
7. Ideal effect of the chilling with the chilling system.
8. Easy to operate and maitain, operation by one person.

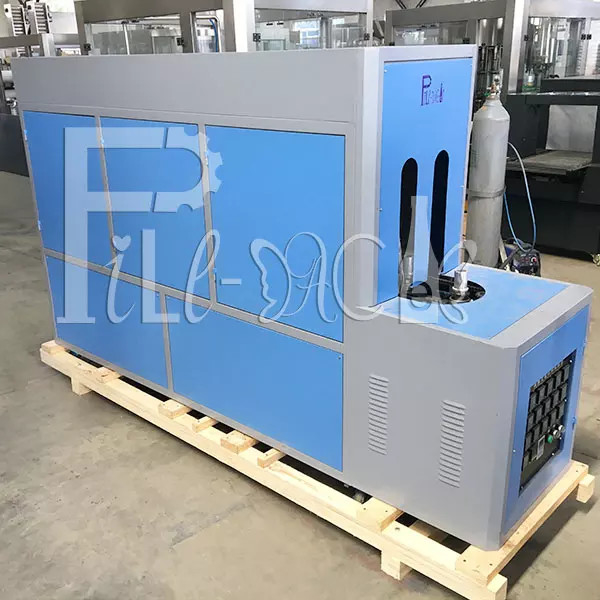

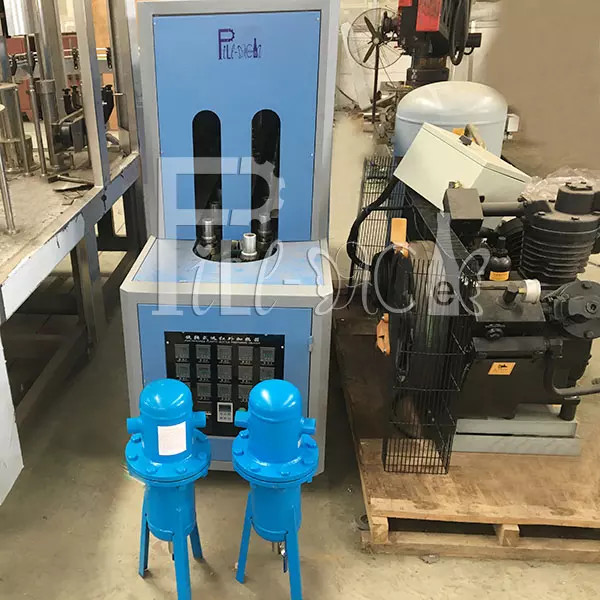

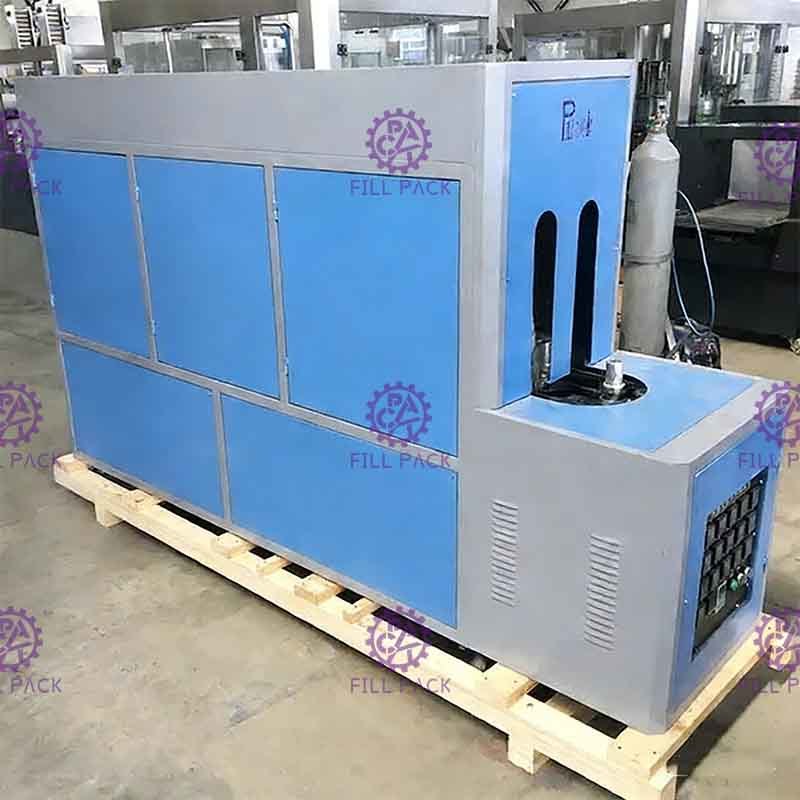

9. Adopting double crank to adjust mould, heavy locking mould, stable and fast, adopting infrared oven to heat the perform, the perform rotated and heated equally.
10. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements
for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
11. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
12. The machine can be operated in the step-by-step mode and the semi-auto mode.

Parameters:
