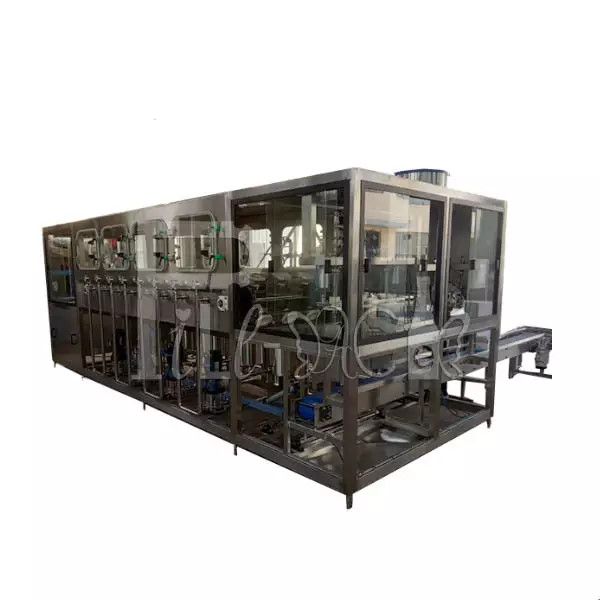

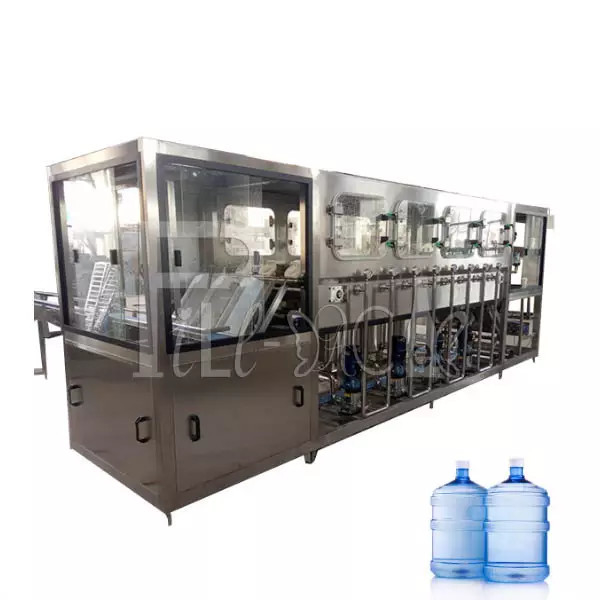

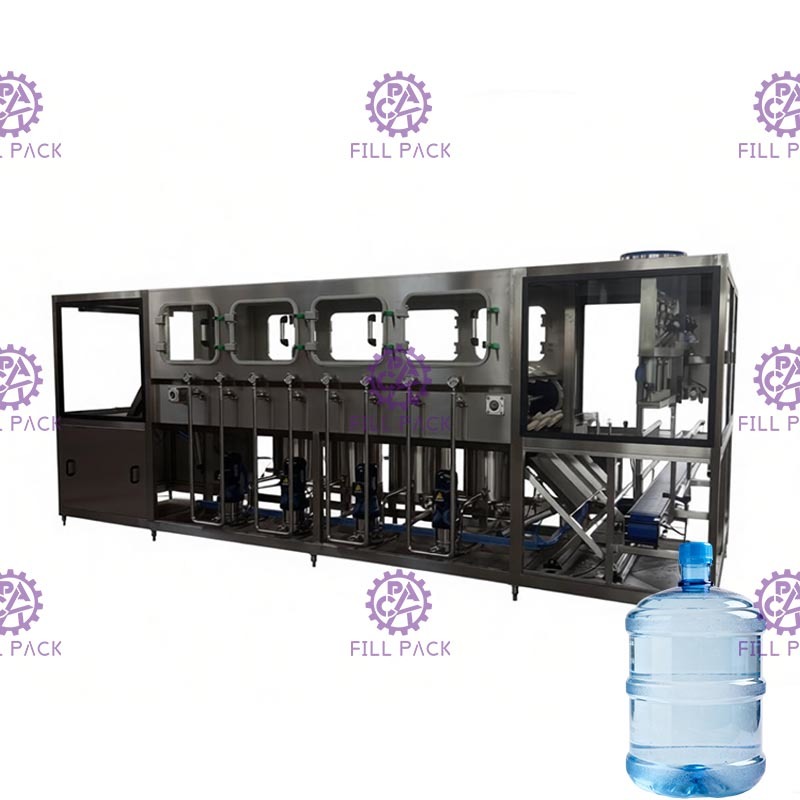

450BPH Automatic 5 Gallon Filling Machine 18.9L Water Bottling Equipment

Minimum Order Quantity : 1 set Price : 16494USD
Packaging Details : Wooden case Delivery Time : 15 Work Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE/ISO9001 Model Number: BG-1/XT-3/WFC-450H

Detail Information

Machinery Capacity: 450BPH Bottle Type: PET Plastic Bottle
Barrel Size: 270*490 Mm Filling Heads: 3
Volume: 18.9L Gas Pressure: 0.4-0.6Mpa
Power: 5.6KW Rated Voltage: 380V/50Hz
High Light:

PET Plastic Bottle Gallon Filling Machine

,

Gallon Filling Machine 18.9L

,

450BPH Automatic Gallon Filling Machine

Product Description

450BPH Automatic 18.9L 5 Gallon Filling Machine Water Bottling Equipment Bottling Water Production Line

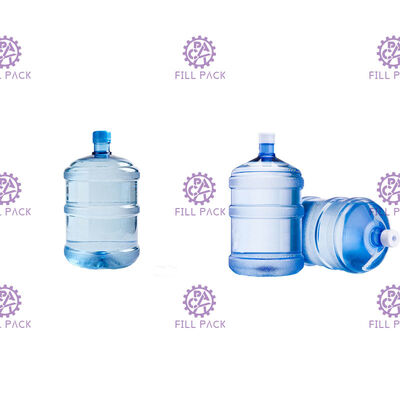

1. This barrel water bottling machine specially produces 3&5 gallons barreled drinking water.
2. This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
3. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
4. This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
5. It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto- producing line, which integrates mechanism, electricity and pneumatics technologies together.

Automatic De-capper

1, This barrel water bottling machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;
2, De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.
3, When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client's own holder;
The claw pressure is adjusted to protect caps.



Brush Internal-External Bottle Washer

1, The barrel water bottling machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will increase the inner washers and insert into bottles, when the bottles are fixed by all brushes, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;
2, No air compressor needed, it is easy for production and maintenance.

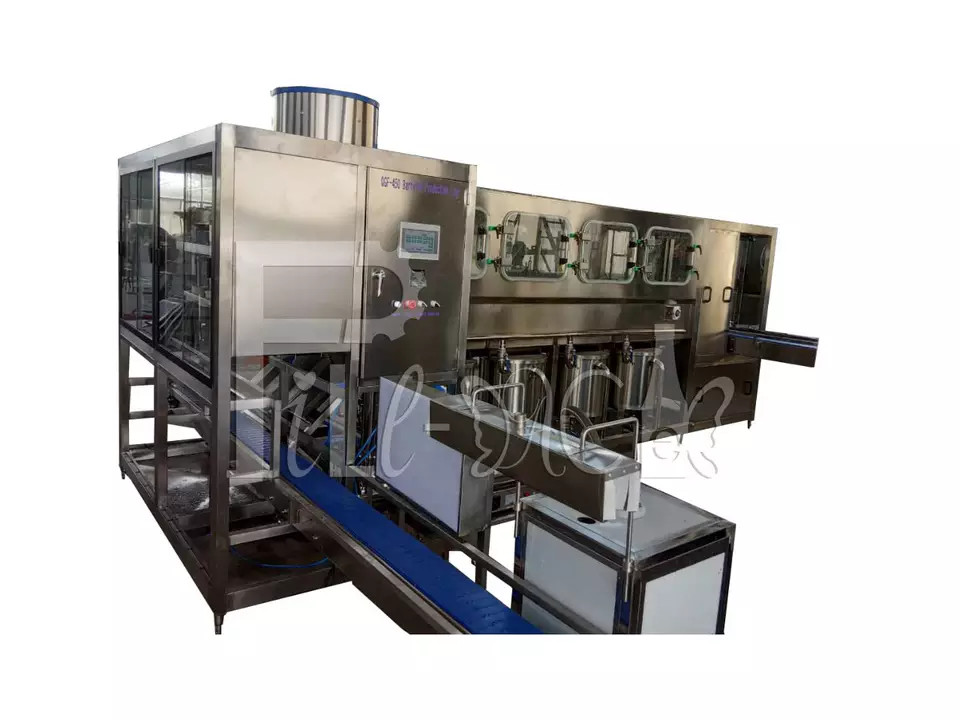

Washer/Filler/Capper with auto bottle loading
The barrel water bottling machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.



Parameters:



Model
QGF-120
QGF-200
QGF-300
QGF-450
Filling heads
1
2
2
3
Volume
3-5 gallon
Barrel size
Φ270*490mm
Capacity
120BPH
200BPH
300BPH
450BPH
Air press(Mpa)
0.37
0.37
0.6
0.8
Power supply
1.38KW
2.5KW
5.3KW
5.6KW
Dimension
3400*780*1950mm
3400*780*1950mm
3400*1000*1750mm
5000*2000*1800mm
Weight
400KG
500KG
700KG
1000KG
