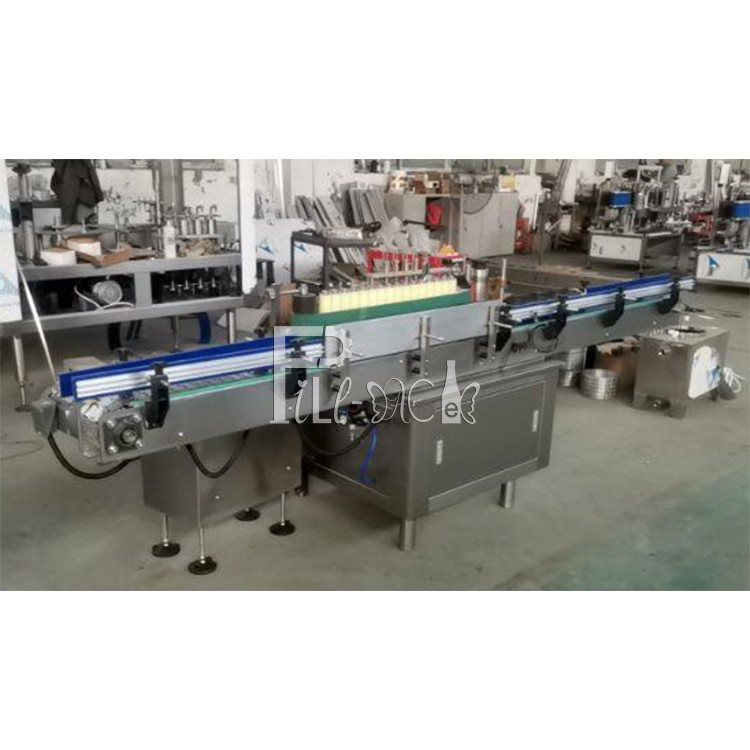

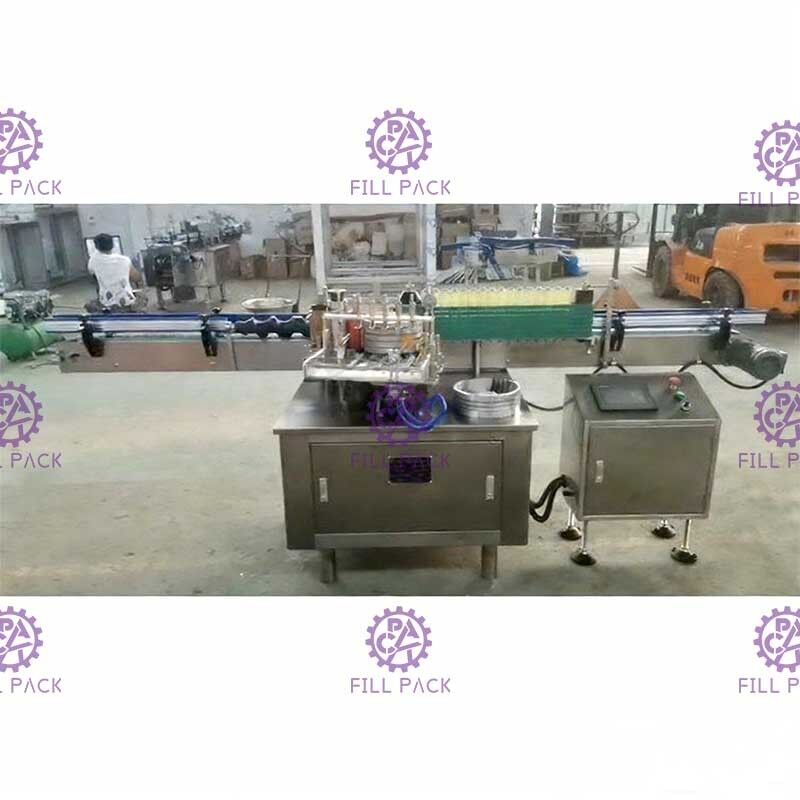

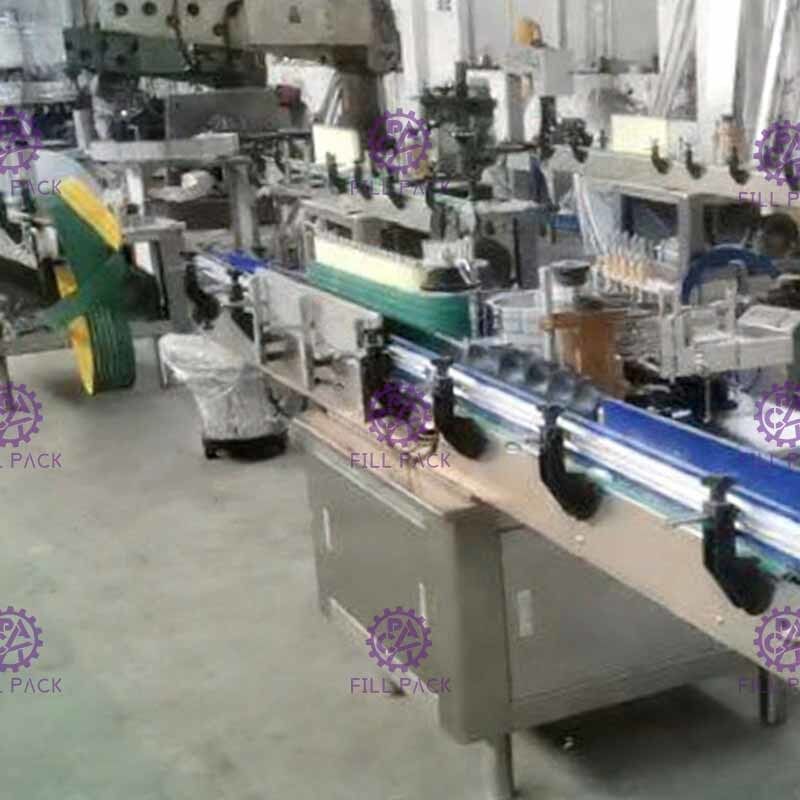

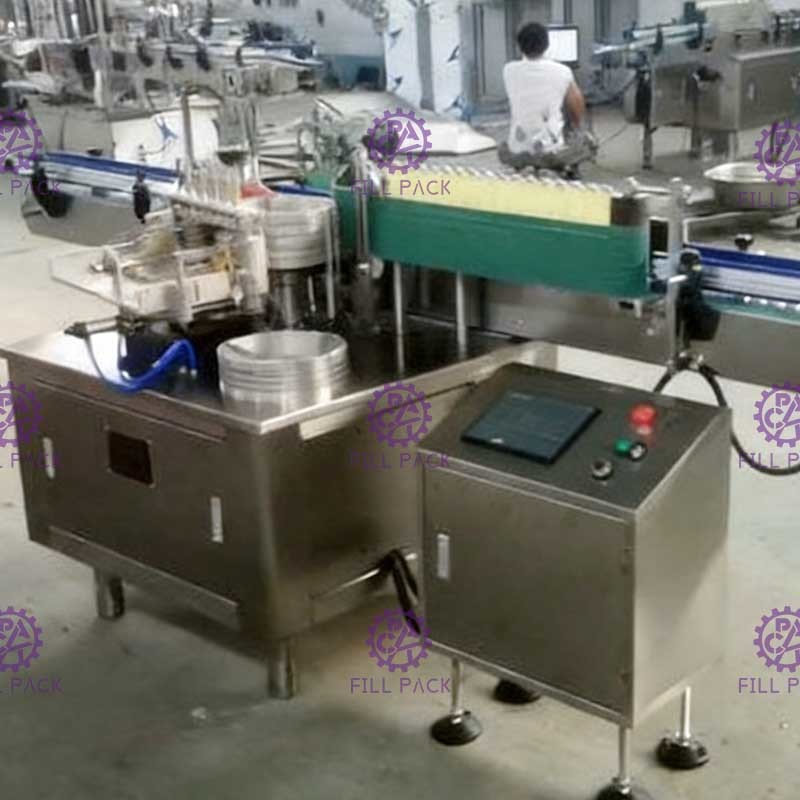

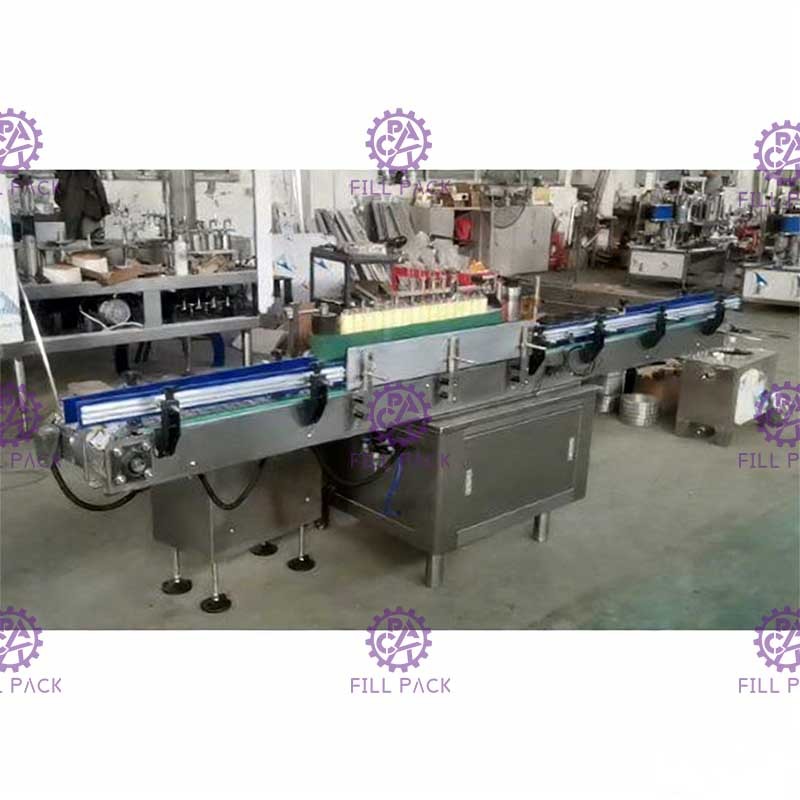

3000BPH Cold Glue Bottle Labeller Machine Fully Automatic Round Straight Horizontal

Minimum Order Quantity : 1 set Price : 6500USD
Packaging Details : Wooden case Delivery Time : 15-20Work Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE/ISO9001 Model Number: TB-60

Detail Information

Bottle Type: Round Bottle Label Length: Depending On Customer's Label Size.
Capacity: 60-80 Bottles/min Label Width: 30-80mm
Power Source: 1 PH, 220V, 50HZ~60HZ Label Position: Front And Back/front Back Neck/single Label
Dimension: 2100*1100*820mm Weight: 550KG
High Light:

3000BPH Bottle Labeller Machine


Cold Glue Bottle Labeller Machine


Horizontal Bottle Labeller Machine

Product Description

3000BPH Fully Automatic Round Bottle Straight Horizontal Cold Glue Labeling Machine Bottle Labeller


Working Principle

The working principle of the design of Glue labeling equipment is as the following: The fan shape rotating bar which sticks the label gets a little glue from the rubble wheel and rotates to the label transmission to get a piece of label adhered. And it continually rotates to the place of the sucking paper wheel with the vacuum, and the label is taken off by the doffing label claw. At the same time the label is transferred to the conveying paper belt with the vacuum. The label is conveyed into the sticking label area on the conveying paper belt with the sucking capability of the vacuum and is adhered on the bottle which is conveyed by the chains. It accomplishes the producing process by the circled actions.


60-80 bottles/min
Label length
Depending on customer’s label size
Label width
Inver control Including turn-plate
Power source
1 PH, 220V, 50HZ~60HZ
Air consumption


1. This is Glue labeling equipment which can label body, head and back. It has the characteristics, like reasonable structure, small area, the steel less and non-metallic surface. The whole machine adopts PLC control system, so that the whole stable, high-speed.
2. The Glue labeling equipment adopts sensor detection, with accurate labeling and high accuracy. It also has no bottles no labeling, no labels automatic correction and detection, and any other functions.
3. This Glue labeling equipment adopts electromagnetic adjustable asynchronous motor and worm gear box as main drive, and equipped with pneumatic and electric control system. So that the machine can be used for continuously variable transmit. It can adjust the speed according to the entering bottles’ quantity, so that to suit the change of production, and ensure the safe running of machine.
4. It is easy to change the parts of the machine to suit different kinds of bottles and labels.
5. The body and parts are mainly using the anti-corrosion materials, like stainless steel, anti-corrosion alloy, plastic and other high corrosion resistance, casting, carbon steel, aluminum which have multi-layer anti-rust treatment.


Components for Glue labeling equipment

Main motor
Trun-plate motor and vacuum motor
solenoid valve and cylinder



The scope of application
This Glue labeling equipment is used in a cylindrical container continuous label paper paste,such as circular glass bottle,plastic bottle,polyester bottles,can automatically Supply label,supply glue,and paste label on bottle.Under the automatic detection ,no bottle,no labeling.It can do high-speed automatic round labeling for round bottles in wine, drink, medical, cosmetics and other light industry.


Operational precautions

1. The choice of glue - usually use panda brand white glue (polyvinyl acetate emulsion) when adding glue must pay attention to not too much, as long as the rubber layer to keep the rubber layer can be. Because the glue is too much, but the label is attached, due to the squeeze of the bottle and the sponge will be too much glue left in the transmission belt and sponge pad, and prevent future label affixed.
2.The label processing - in order to make the label fully attached to the bottle, and increase the beauty of the product, the label should be kept flat, in order to fully plastic. Because at room temperature, the label easily damp in the air curling phenomenon. Therefore, the label in the preservation, it must be fixed before and after the hard board, and then rubber band clamp.
3. The bottle handling - bottle affixed to the label, the outer surface shall not leave grease or dust

Common problem for Glue labeling equipment


Feed is not smooth

1. paper limit adjustment too tight, readrjust the limit block.
2. starting from the claw adhesion, cleaning paper claws.
3. too many pieces of paper, adjust the separation wheel and paper separation platform gap.

No response equipment
1. confirm the power cord no problem.
2. confirm the safety socket next to the fuse is intact, if it has been burned, please replace.
3. the internal wiring may be loose box, please repair professionals.
4. the relay is damaged, replace the 24V relay.


Sticky stickers affixed
1. limited paper is not adjusted, readjustment, to ensure the accuracy of the paper.
2.the product did not put positive, replay the product.
3. the support rod and the bottle axis is not parallel, turn the bottle in the process of deviation. Adjust the degree of parallelism, to ensure that the bottle rotation does not offset.

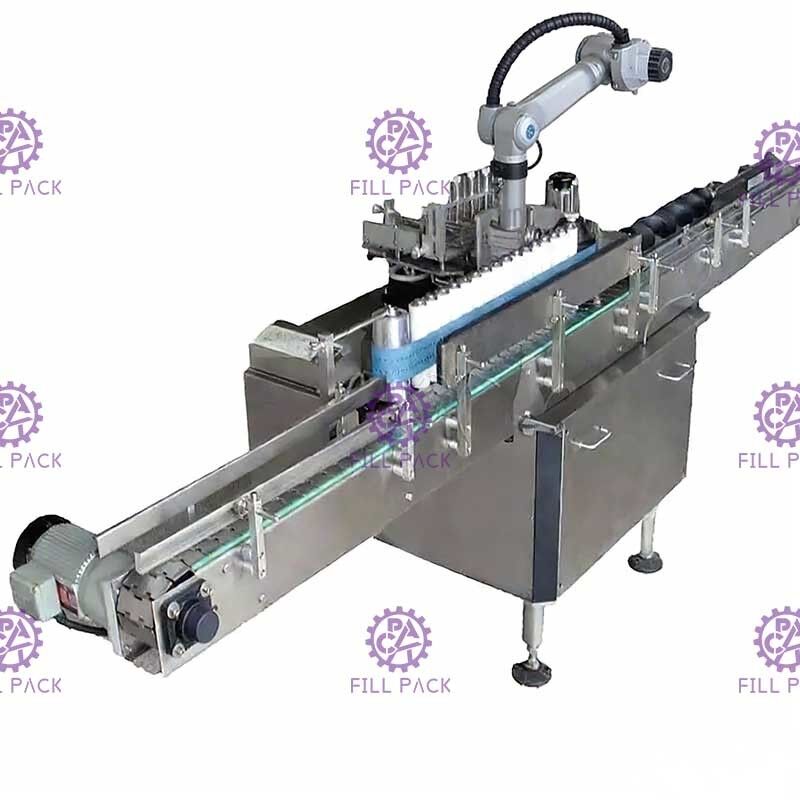

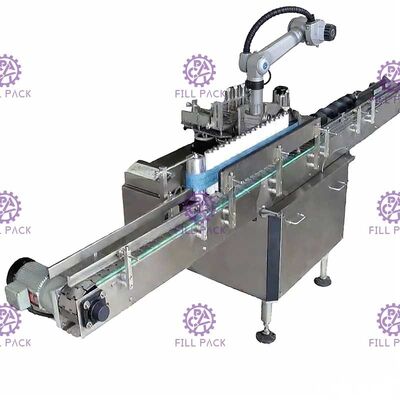

3000BPH Cold Glue Bottle Labeller Machine Fully Automatic Round Straight Horizontal 03000BPH Cold Glue Bottle Labeller Machine Fully Automatic Round Straight Horizontal 1
