Automatic Liquid Water Juice Filling Machine Plastic Jar Bottle Multi Head

Minimum Order Quantity : 1 set Price : 3000-5150USD
Packaging Details : Wooden case Delivery Time : 15 Work Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE/ISO9001 Model Number: 4 heads/6 heads/8 heads/10 heads/12 heads/14 heads/16 heads

Detail Information

Machinery Capacity: 3000-6000BPH Filling Head: 4/6/8/10/12/14/16
Filling Range: 100ML-1L/1-5L/5-20L Voltage: 220V/50Hz, 3N-380V
Air Pressure: 0.5-0.8Mpa Work Pressure: 0.6-0.7Mpa
Filling Accuracy: ±0.3% Dimension(L*W*H): 1500*800*2000MM
Weight: 320 KG
High Light:

Automatic Liquid Water Juice Filling Machine

,

6000BPH Mineral Water Bottling Machine

,

50Hz Mineral Water Bottling Machine

Product Description

Automatic Plastic Bottle Jar Bottle High Efficiency Multi-Head Linear Non-Corrossion Liquid Water Juice Filling Machine

General:

This machine is a fully automatic intelligent linear filling machine, which adopts the principle of gravity filling to prevent liquid overflow. The anti-drip filling head ensures the cleanliness of the filling process. Adopt photoelectric sensor, electric pneumatic control. Full-color touch screen man-machine interface, the whole filling process can complete the setting of the filling volume and the number of filling heads through the touch screen on the equipment and automatically fill, and the process basically realizes one-button operation. This machine is used in plastic bottle, glass bottle and some geometric shape bottles, quantitative filling include all Kinds Of Non-Viscous Liquid Filling, such as wine, drink , alcohol, water, antifreeze, urea and other liquids. Made of high-grade stainless steel, meeting food hygiene standards.



Main Features:

1. Advanced intelligent operating system: Supported by PLC software, you only need to set the target filling amount on the touch screen to adjust the amount, and the equipment can automatically increase or decrease to reach the target amount. Color touch display, all operations, monitoring, operation instructions and other functions are completed in the touch screen.

2. Stable filling and storage liquid tank replenish liquid function: Adopting the principle of function separation, no replenish liquid is performed during the filling process, and no filling is performed during the replenish liquid process, thus overcoming the instability of simultaneous replenish liquid in floating filling.

3. The function of automatic bottle mouth clamping for small bottles: the machine is equipped with a bottle neck holding device to ensure the synchronization of the bottle mouth and the filling nozzle when filling small volumes (glass bottles, etc.).

4. Wide range of application and convenient adjustment: suitable for filling of most bottle types (especially special-shaped bottles), overcoming the trouble of changing the dial when changing the bottle type of the rotary filling machine, which cannot be filled by the rotary filling machine The irregular bottle shape, the machine has greater advantages.

5. The filling process is closed and pollution-free. The whole machine is fully enclosed filling, which meets the national sanitation requirements and is hygienic and pollution-free.



Parameters
Filling head
4 heads
6 heads
8 heads
Filling range
100ML-1L
1-5L
5-20L
100ML-1L
1-5L
5-20L
100ML-1L
1-5L
5-20L
Flow rate
Filling pipe diameter 8 mm:1L/10 seconds
Filling pipe diameter 18mm:1L/3 seconds
Filling pipe diameter 20mm:1L/2 seconds
*Customers can choose the caliber according to their own bottle mouth size
Power
0.75KW
Voltage
3N-380V 土 10%
work pressure
0.6-0.7Mpa
Air pressure
0.5-0.8Mpa
Filling accuracy
≤0.2%
Weight
300KG
300KG
300KG
Size
1500*800*2000MM
1500*800*2000MM
1500*800*2000MM
Body
SUS304
Filling head
10 heads
12 heads
14 heads
16heads
Filling range
100ML-1L
1-5L
100ML-1L
1-5L
100ML-1L
1-5L
100ML-1L
1-5L
Flow rate
Filling pipe diameter 8 mm:1L/10 seconds
Filling pipe diameter 18mm:1L/3 seconds
Filling pipe diameter 20mm:1L/2 seconds
*Customers can choose the caliber according to their own bottle mouth size
Power
0.75KW
Voltage
3N-380V 土 10%
work pressure
0.6-0.7Mpa
Air pressure
0.5-0.8Mpa
Filling accuracy
≤0.2%
Weight
320KG
320KG
350KG
350KG
Size
2000*800*2200MM
2000*800*2200MM
2400*800*2200MM
2400*800*2200MM
Body
SUS304



Details:

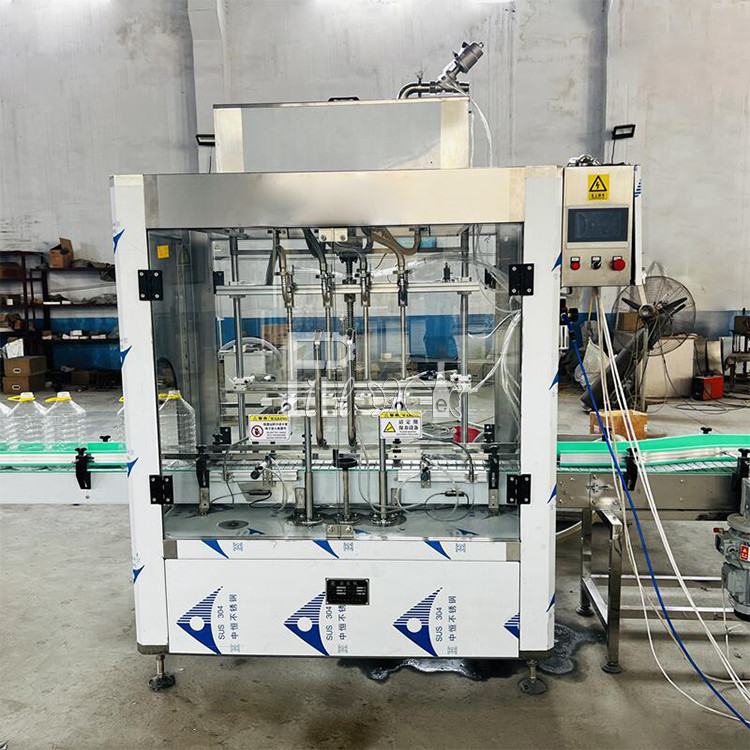

Automatic Liquid Water Juice Filling Machine Plastic Jar Bottle Multi Head 0

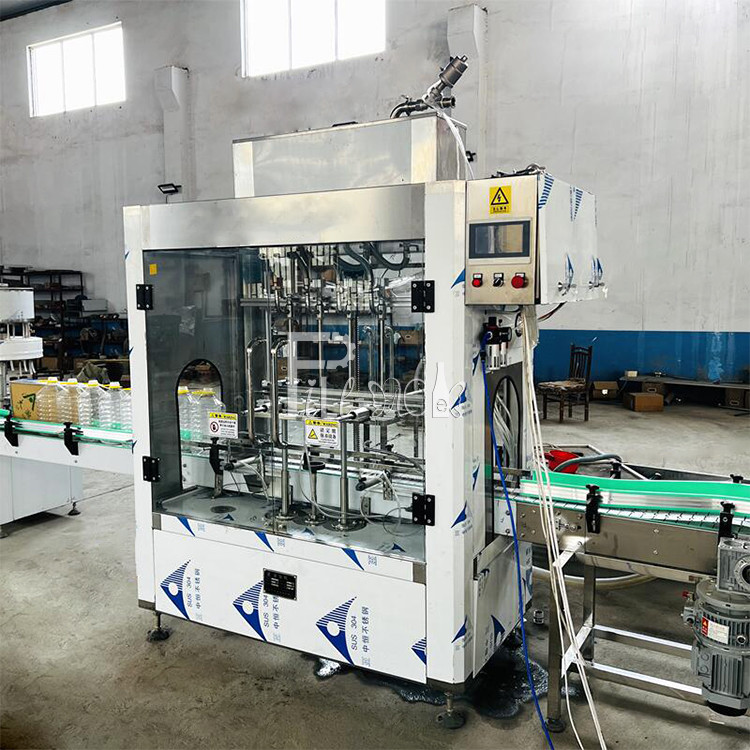

Automatic Liquid Water Juice Filling Machine Plastic Jar Bottle Multi Head 1

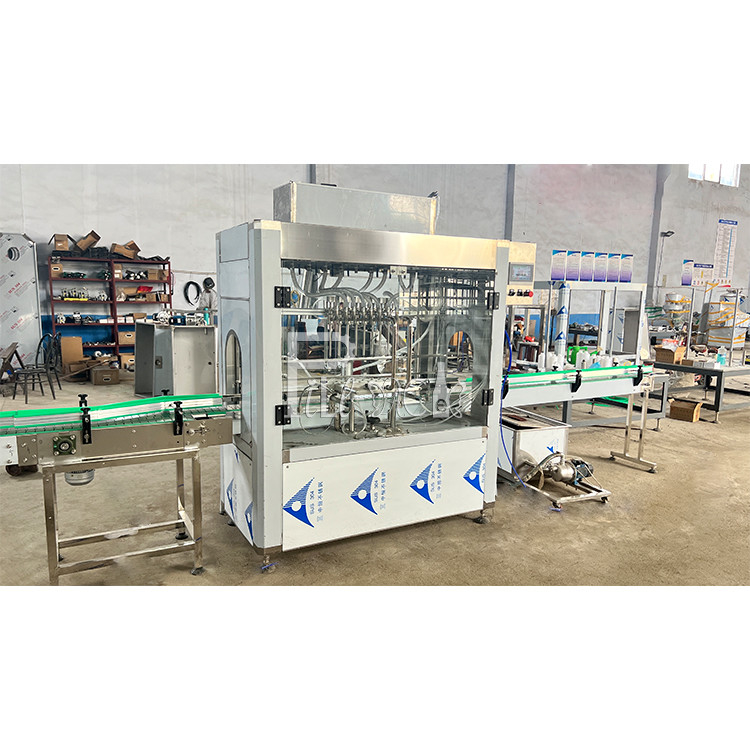

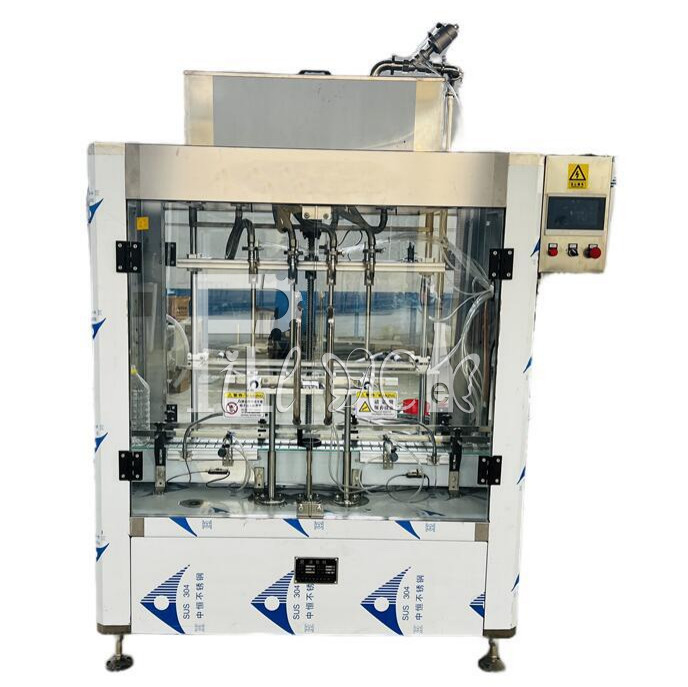

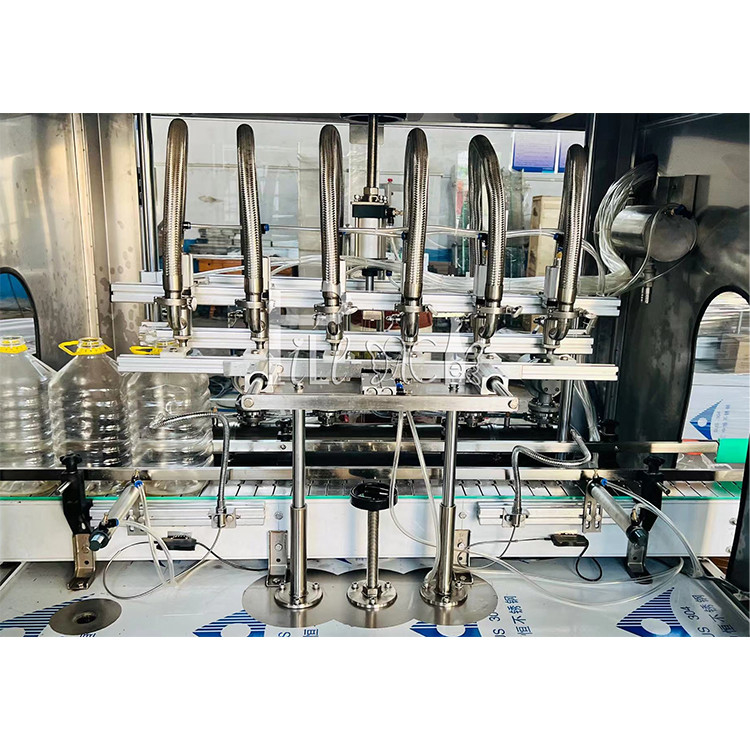

Automatic Liquid Water Juice Filling Machine Plastic Jar Bottle Multi Head 2Automatic Liquid Water Juice Filling Machine Plastic Jar Bottle Multi Head 3
