Semi Automatic Linear Liquid Bottles Filling Machine Mineral Water Essential Oil

Minimum Order Quantity : 1 set Price : 1100-1350USD
Packaging Details : Wooden case Delivery Time : 15 Work Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: Zhangjiagang, China Brand Name: FILLPACK
Certification: CE/ISO9001 Model Number: 2 heads/4 heads

Detail Information

Filling Range: 30ML-500ML/500ML-3L/0-5L/5-20L Filling Head: 2/4
Flow Rate: Filling Pipe(ID 20mm/OD 21mm):1L/2 Seconds Power: 350W-1100W
Work Pressure: 0.4 MPa Weight: 50-75KG
Size: 700*6500*1650MM
High Light:

Linear Liquid Bottles Filling Machine


0.4 MPa Mineral Water Bottling Machine


Mineral Water Bottling Machine 1100W

Product Description

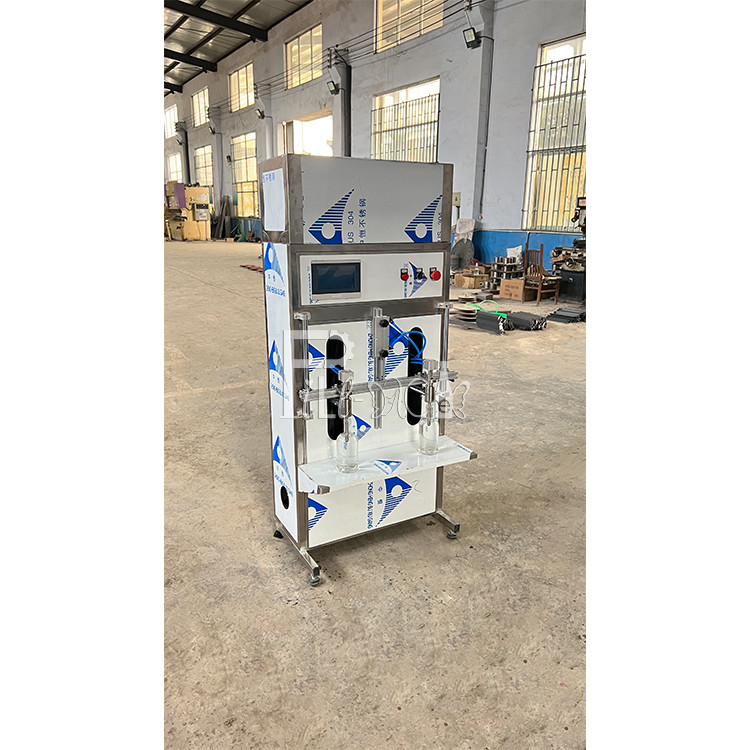

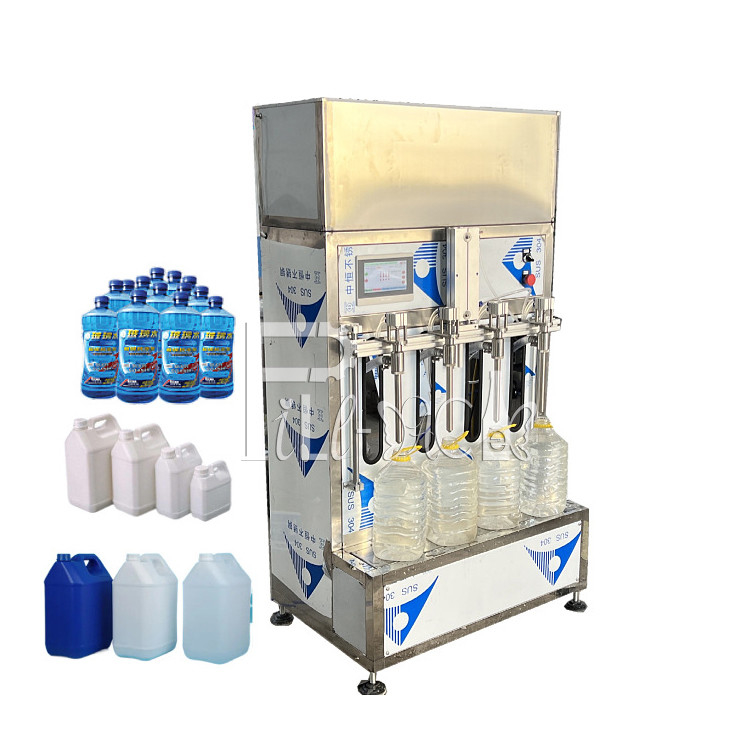

Semi-Automatic Linear Liquid Bottles Mineral Water Essential Oil Perfume Juice Filling Machine Equipment



This machine is a semi-automatic intelligent linear filling machine, which adopts the principle of gravity filling to prevent liquid overflow. The anti-drip filling head ensures the cleanliness of the filling process. Adopt time relay control. Optional configuration microcomputer control model:Full-color touch screen man-machine interface, the whole filling process can complete the setting of the filling volume and the number of filling heads through the touch screen on the equipment and automatically fill, and the process basically realizes one-button operation. This machine is used in plastic bottle, glass bottle as well all kinds of geometric shape bottles, It is widely used in all kinds of easy flow liquids such as water, beverages, wine, milk ,daily chemicals, food, medicine and other industries. Made of high-grade stainless steel, meeting food hygiene standards.


Main Features:

1. High accuracy: This model has its own built-in liquid storage tank, and has a sensitive liquid level sensing control system to ensure stable pressure in the liquid storage tank and uniform flow rate, so as to facilitate the control of the accuracy of filling volume and filling volume. The error is not more than 0.3%;

2. Applicable to a wide range of bottle types: workers only need to adjust the spacing of the filling valve and the spacing of the guardrail when operating and changing the bottle type, without any tools, very convenient and fast:

3. Optional microcomputer touch screen model, high degree of automation: PLC electronic control system, computer touch screen control panel, to achieve one-button operation.

4. The whole machine is made of stainless steel, which is beautiful and elegant, with reasonable structure and durability.

5.It is simple and convenient to replace containers of different shapes and adjust different filling volumes without replacing parts.


Technical specifications:

Filling head 2 heads 4 heads
Filling range 30ML-500ML 500ML-3L 0-5L 5-20L
Flow rate Filling pipe(ID 8mm/OD 9mm):1L/10 seconds
Filling pipe(ID 18mm/OD 19mm):1L/3 seconds
Filling pipe(ID 20mm/OD 21mm):1L/2 seconds
*Customers can choose the caliber according to their own bottle mouth size
Power 350W 550W 750W 1100W
work pressure 0.4 MPa
Filling accuracy ≤±0.2%
Weight 50KG 75KG
Size 700*6500*1650MM 1000*650*1650MM


Semi Automatic Linear Liquid Bottles Filling Machine Mineral Water Essential Oil 0

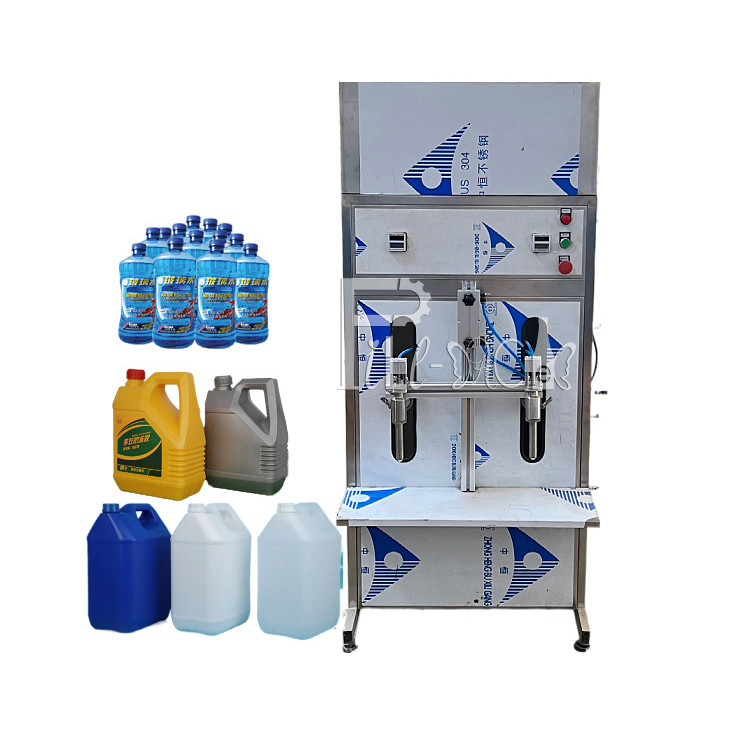

Relay adjustment

The operation is simple, and it is recommended to use a single filling amount.

Semi Automatic Linear Liquid Bottles Filling Machine Mineral Water Essential Oil 1

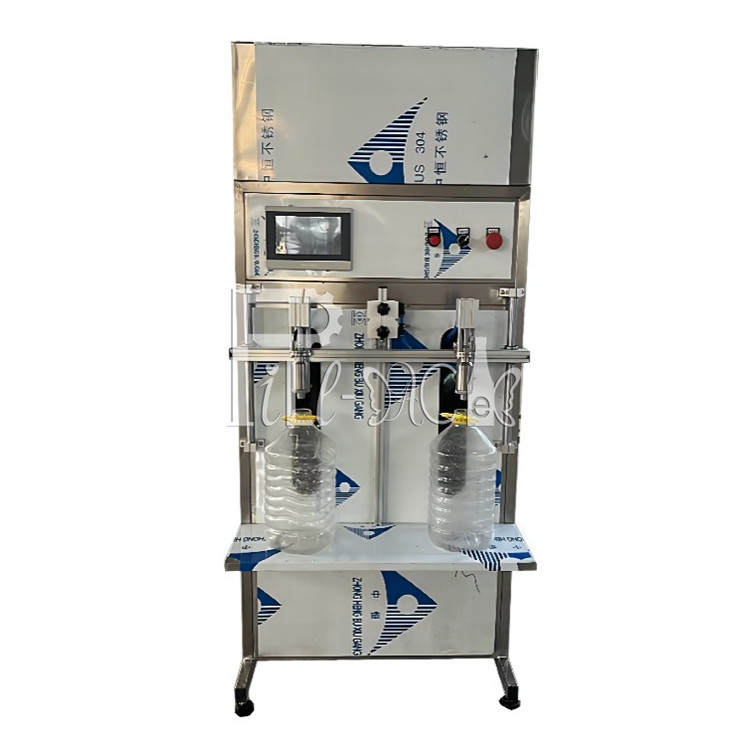

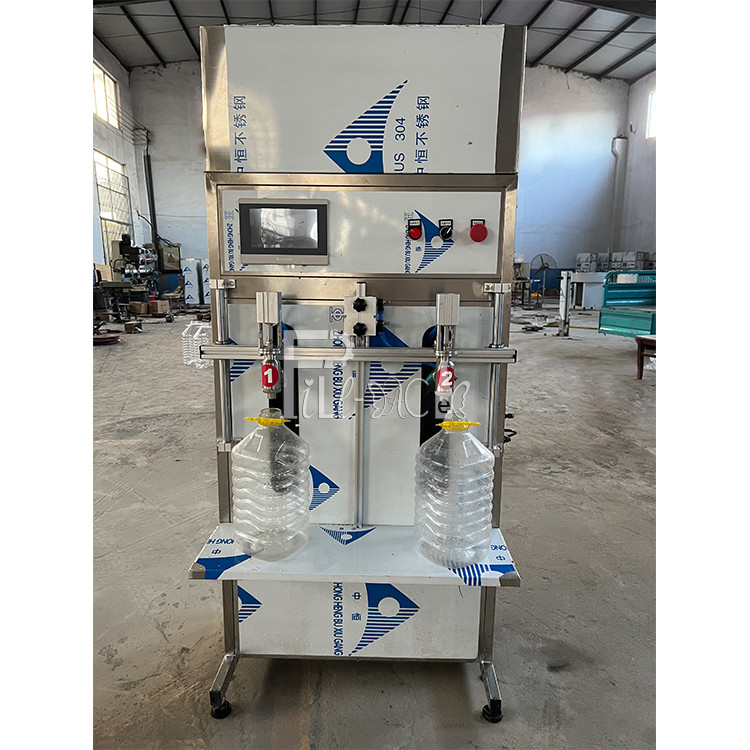

Microcomputer touch screen adjustment

The touch screen is easy to adjust, and can store multiple groups of commonly used filling volumes. One-key proofreading has high stability and is suitable for various filling volumes.


Set up:

NO. Name Brand
1 Touch screen FLEXEM
3 Electrical configuration Tracy
4 Pneumatic parts LAIZE
