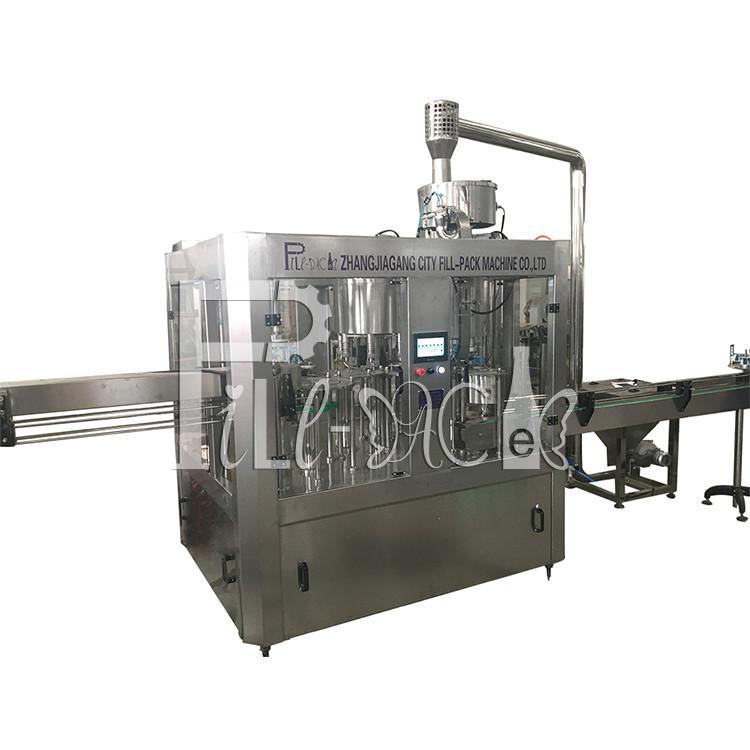

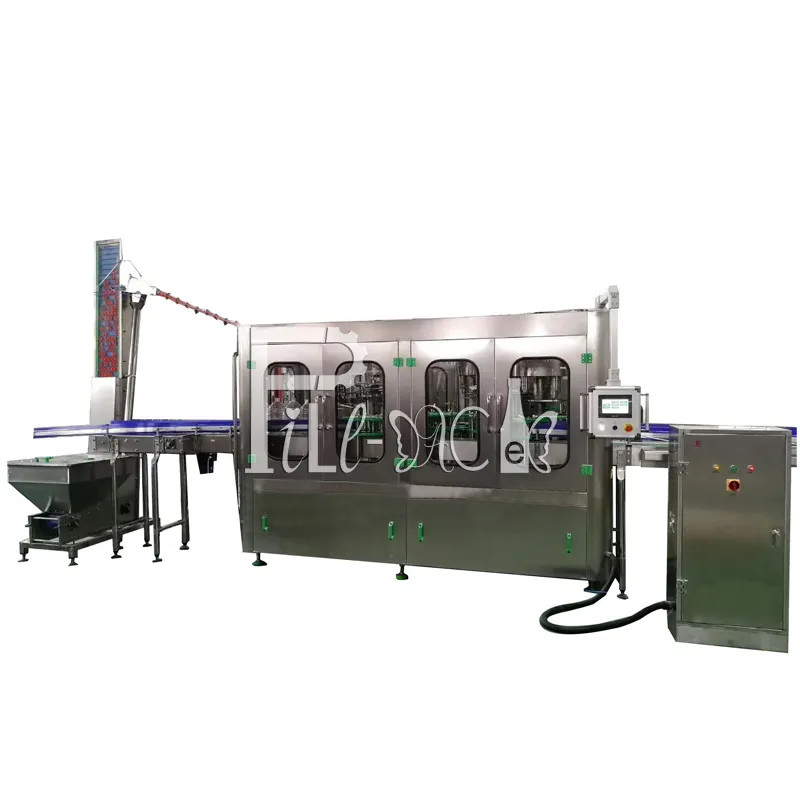

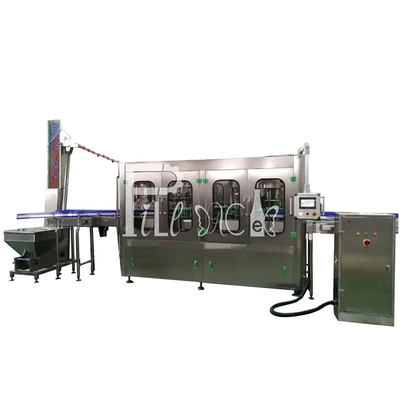

2L Mineral Water Bottling Machine 3 In 1 Monoblock PET Drinking Filling Line 4000BPH

Minimum Order Quantity : 1 set Price : 9975-19950USD
Packaging Details : Wooden case Delivery Time : 25-30 Working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1 Sets
Place of Origin: Zhangjiagang, China Brand Name: Fillpack
Certification: CE/ISO9001 Model Number: CGF8-8-3,CGF32-32-10,CGF18-18-6,CGF12-12-4,CGF24-24-8

Detail Information

Machinery Capacity: 4000BPH, 8000BPH, 12000BPH, 3000BPH, 5000BPH Bottle Volum: 200ml-2L
Function: Full-automatic Rinsing-filling-capping Suitable Bottle: PET Round Or Square Bottle
Material: SUS304 Control: PLC
Water Pressure: 0.18-0.25Mpa Power: 5KW
High Light:

PET Bottling rinsing filling capping Line


3In1 Monoblock PET Drinking filling Line


PET Bottling filling Line 4000BPH

Product Description

500ML-2L 3 In 1 Monoblock PET Bottle Pure Drinking Mineral Water Bottling Machine Filling Equipment Bottling Line


- Product Features -

1. The PET 3 in 1 rinsing filling capping machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
2. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used.The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
3. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
5. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
6. The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
Our Advantages
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.With over 10 years of experience in designing and implementing customised complete PET line solutions for water, we can help you reach your production targets. Over the years, we have been committed to improve the structure of equipment, optimize the performance of equipment to achieve high capacity and low energy consumption.

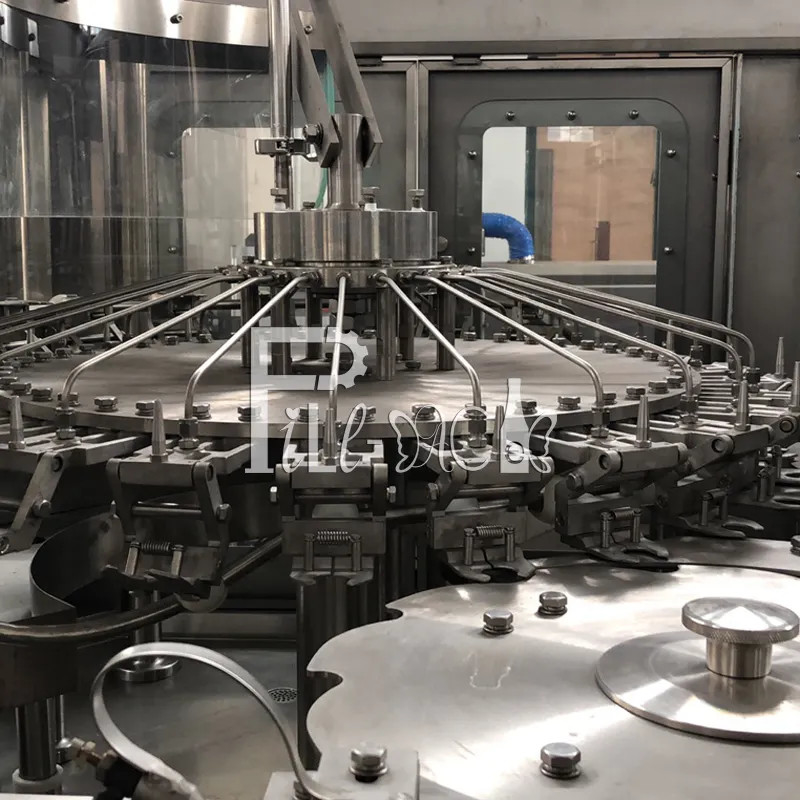

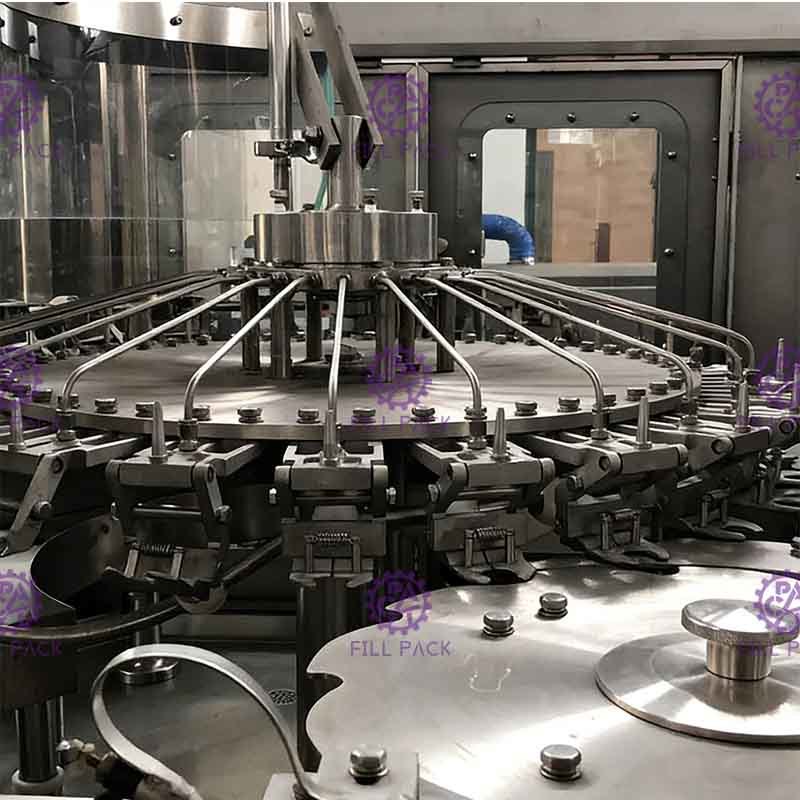

Washing part
1. Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
2. The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
3. The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.
4.The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.
5. Rinsing time can be guaranteed for 4 seconds.
6.By adjusting the height of the rotary parts to adapt for different bottle height
7. The motivation is derived from the driven system in the framework passed by gear. The supplying of rinsing water is controlled by solenoid valve

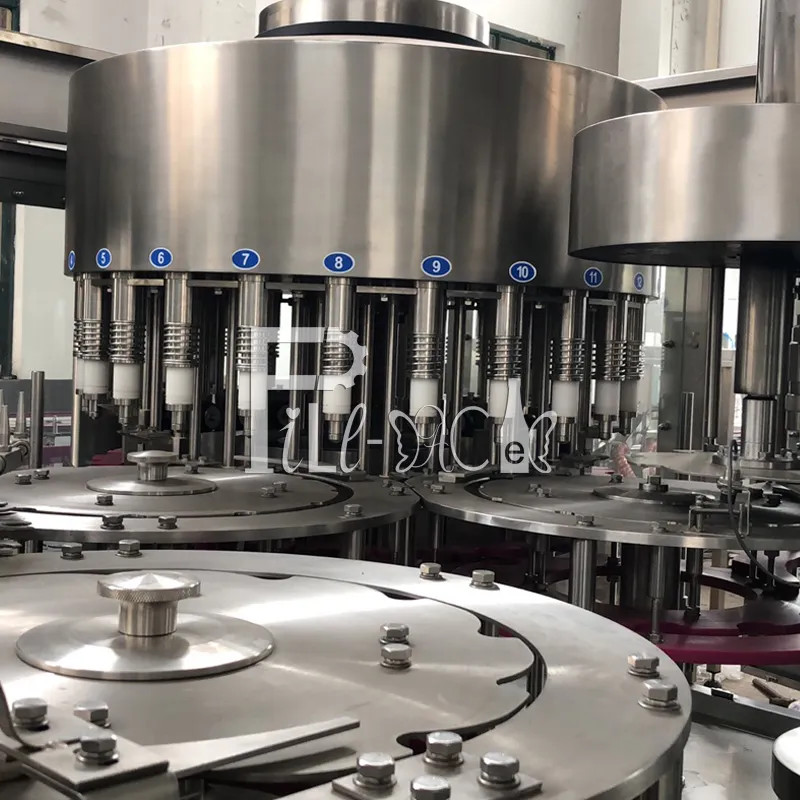

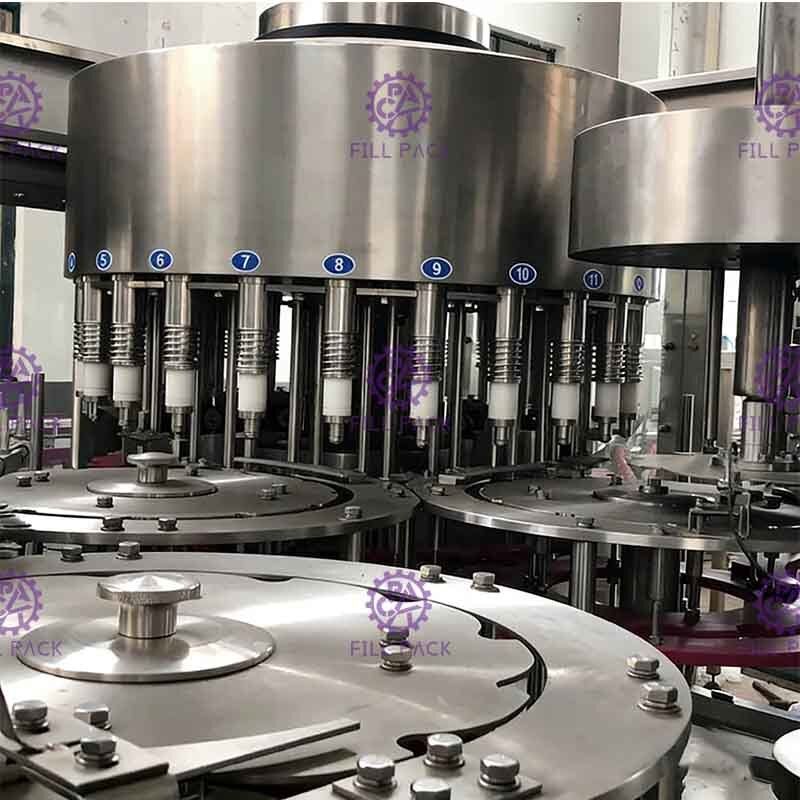

Filling part
1) Adopted Germanyanti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The rotate plate is made of SUS AISI304, large flat toothed bearing.
3) The whole valve is made of 304 stainless steel.
4) The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve.
5) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
6).High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

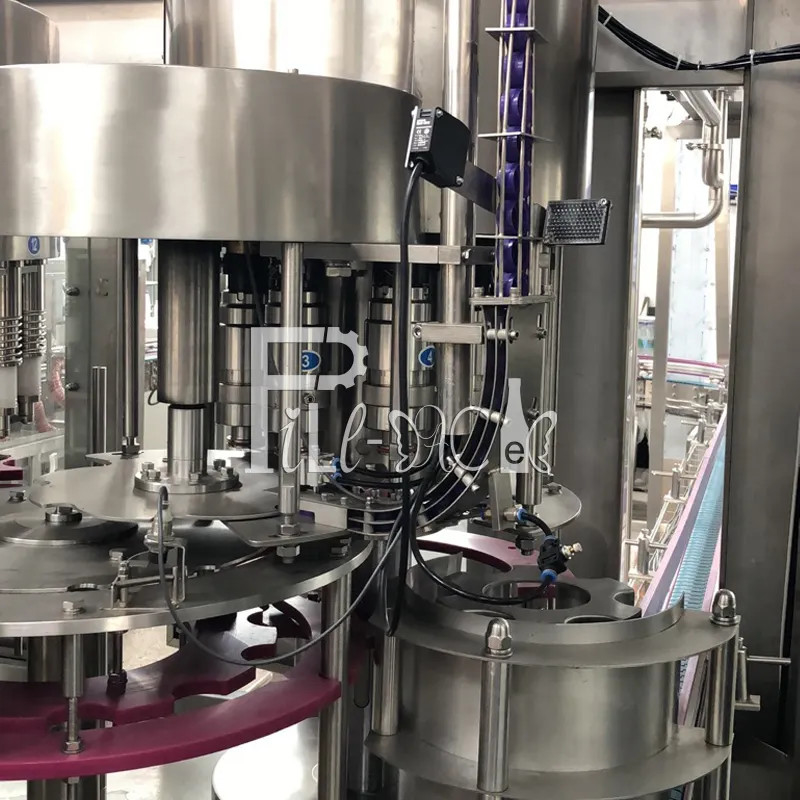

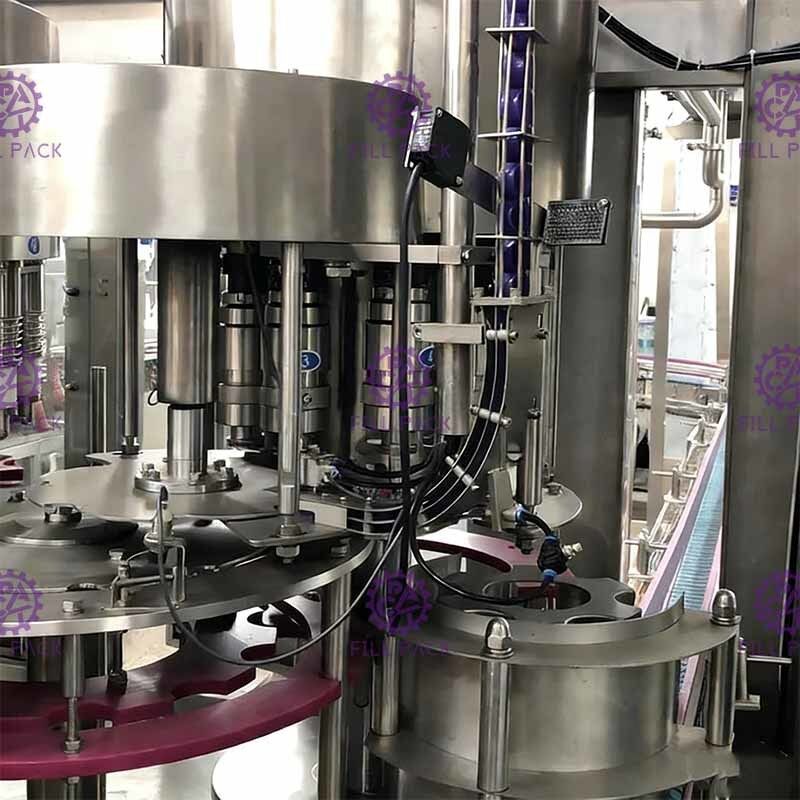

Capping part

This unit is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.

1)Introduce most advanced cap sealing technology called France “ZALKIN ". With the help of expert from institute of electro mechanics and mechanical engineering of Shanghai Communications University, we successfully designed. For example: I) the screwing capping head cam (the main parts which can assure the machine run stationary), while adopting “ZALKIN” technology, the expert improve the authenticity and stability of the machine focused on dynamics and kinematics. II) Screwing capping head (the main parts which can assure the capping quality).

2)The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.

3)The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.

4)A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.

5)A bottle inlet detect switch is settled on the screwing capper.

6)There are aseptic nozzles between the transition poking wheel and filling parts to rinse the product rested in the bottleneck screw parts.

7)There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.

8)By adjusting the height of the rotary parts to adapt for different bottle height.

9)The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.

10)The main parts of the screwing capper are processed by the digital-control processing center.


CGF 8-8-3
Bottle size
Water pressure
Water consumption
Washing station
Dripping station
Filling precision
Air pressure
Air consumption (m³/min)
1800*1500* 2300
2100*1700* 2400
