Plastic Bottle Mineral Water Production Line 6000BPH 18-18-6 Rinsing Filling Capping

Minimum Order Quantity : 1 set Price : 30723USD
Packaging Details : Wooden case Delivery Time : 25-30 Working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20Sets per month
Place of Origin: Zhangjiagang, China Brand Name: Fillpack
Certification: CE/ISO9001 Model Number: CGF18-18-6

Detail Information
Bottle Volume: 200ml-2000ml Voltage: 220V/380V
Machinery Capacity: 6000BPH Suitable Bottle Type: PET Round Or Square Bottle
Function: Full-automatic Rinsing-filling-capping Material: SUS304
Cap Type: Plastic Screw Cap Suitable For: Non-carbonated Water
Highlight:

PET Rinsing Filling Capping Production Line

,

6000BPH Mineral Water Filling PET Rinsing Filling Capping Production Line

,

18-18-6 Mineral Filling Capping Machine

Product Description

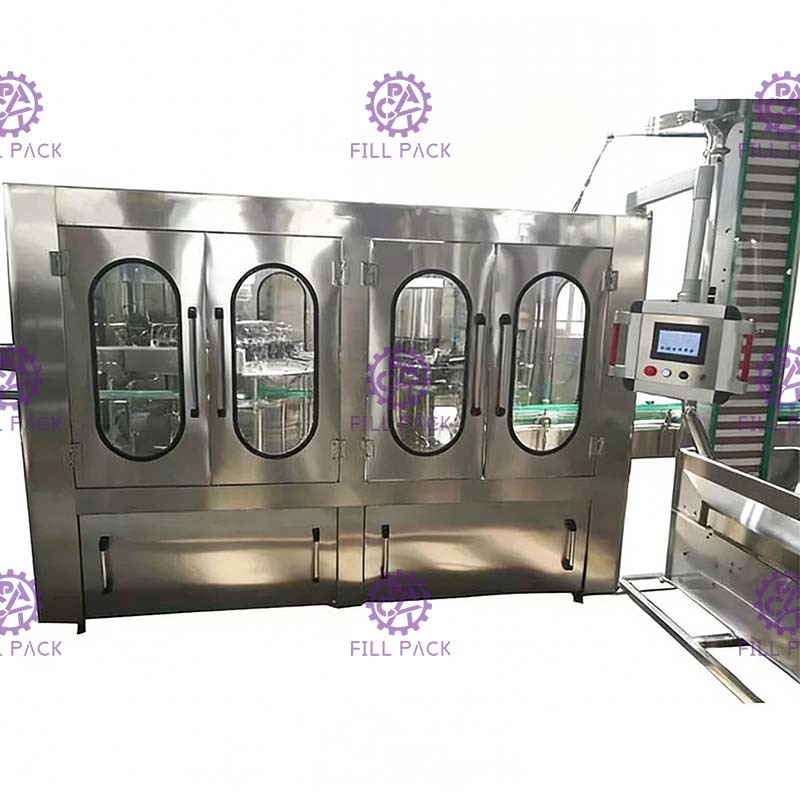

3 in 1 Monoblock 6000BPH 18-18-6 Plastic Bottle Mineral Water Production Line Rinsing Filling Capping Machine Equipment

General:

The water filling machine produced by Fillpack Machinery has good stability, easy operation and supports customization. It is Suitable for 200-2500ml PET bottles mineral water, drinking water, pure water etc. Different models water filler can satisfy various requirement of output from 1000BPH to 15000BPH.


CGF18-18-6
Product Capacity:6000BPH@500ml

The water filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine tofill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.


Washing Part
1.Stainless steel 304/316L washing heads.
2.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution.
3.Washing pump is made of stainless steel.
4. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
5. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.

Filling Part
1) Adopted Germany anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The rotate plate is made of SUS AISI304, large flat toothed bearing.
3) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
4) The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.
5) This filling system has an automatic temperature control system.
6) The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve moves up and leaves the bottleneck when it finishes filling.
7) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
8) The motivation of the filler is derived from the driven system in the framework and passed by gear.



Capping Part
This unit is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality. Characteristic of the screwing capper as follows:
1) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.
3) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide. Passing by cap loading system.
4) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.
5) A bottle inlet detect switch is settled on the screw capper.
6) There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
7) By adjusting the height of the rotary parts to adapt for different bottle height.
8) The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.
9) The main parts of the screwing capper are processed by the digital-control processing center.

-Technical Parameters-
Model
CGF18-18-6
Capacity (B/H)
5000-7000(500ml)
Bottle size
Neck :φ50-100mm:Height:150-320mm
Water Pressure
0.18-0.25Mpa
Water consumption(kg/h)
1000
Washing station
18
Loading-Dripping-discharge station
2-2-2
Filling precision
＜+1MM
Air pressure
0.5Mpa
Air consumption
0.3m3/min
Power(kw)
4
Weight(kg)
4000
Dimension(L*W*H)
2150*1750*2400 mm

Auxiliary:
Plastic Bottle Mineral Water Production Line 6000BPH 18-18-6 Rinsing Filling Capping 0

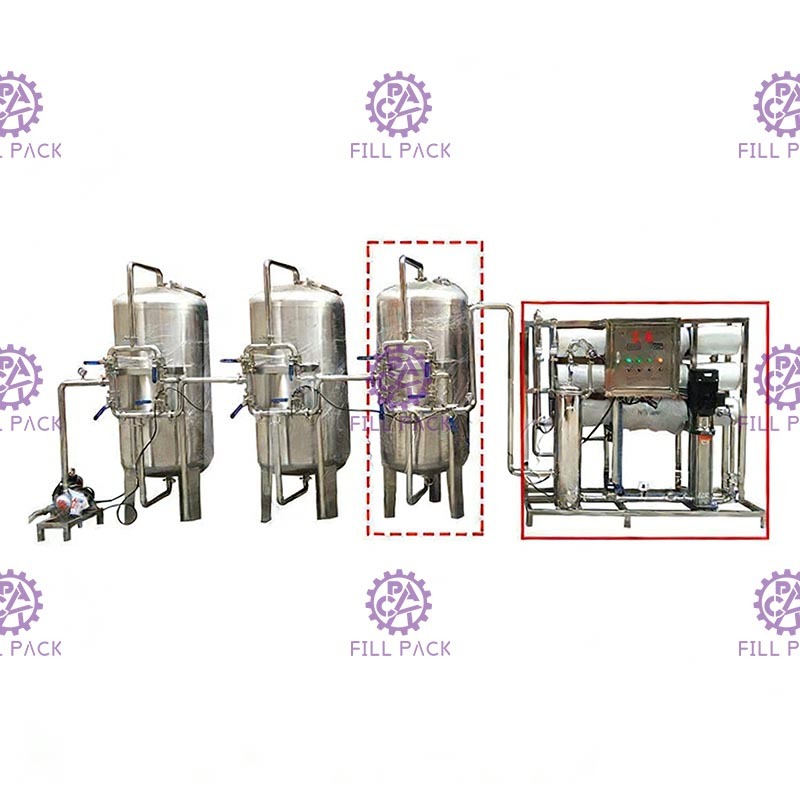

1.Water treatment system
1. Automation grade: Automatic / Semi-automatic
2. Capacity: 3000L per hour.
3. Material of three pre-filters:SUS304
4.Membrane brand: HYDECANME
5. Optional device: water tank, sodium ion exchanger,UV sterilizer,water storage tank
6. Water pump:NangFang pump

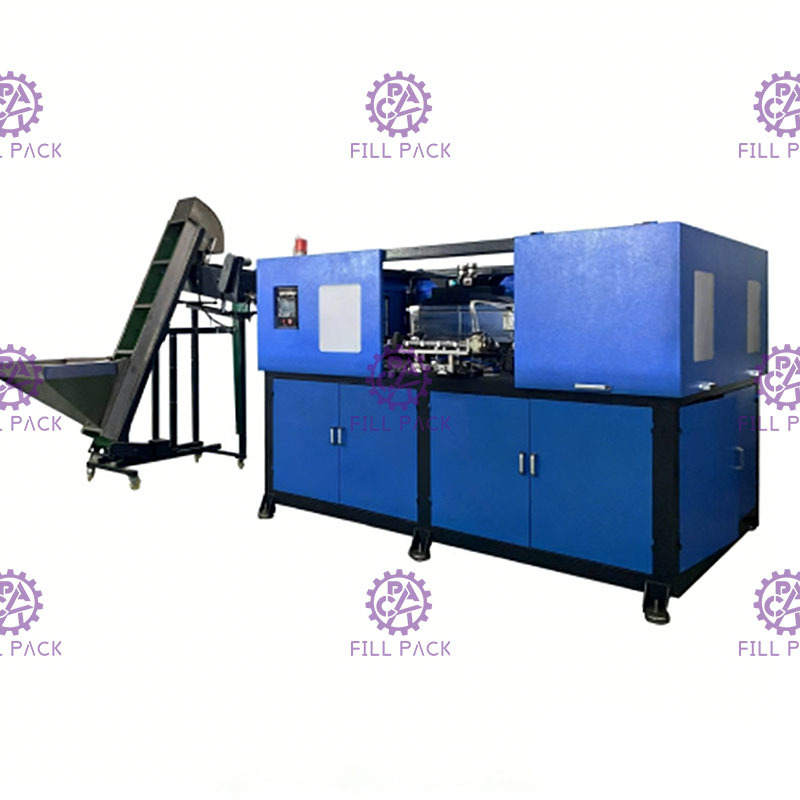

2.Bottle blow molding machine
Plastic Bottle Mineral Water Production Line 6000BPH 18-18-6 Rinsing Filling Capping 1
1). Stable performance with advanced PLC.
2). Automatic preform conveyor to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4) High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

TB150 Labeling machine, shrink tunnel

Plastic Bottle Mineral Water Production Line 6000BPH 18-18-6 Rinsing Filling Capping 2

The special cutting system: adopting the whist and con-volute technology. The label cutting is flat, no burr.The label location set assures the sleeving veracity. Adopting model group design, module controlled; Achieve veracity and fast sleeving. With the good quality touching operation screen, achieving operation by finger, easy and shortcut. Within the flat width limitation, can be used to package objects in different shape, no matter round or square, can be applied on glass or plastic bottles.


Bottle Blow Dryer
Plastic Bottle Mineral Water Production Line 6000BPH 18-18-6 Rinsing Filling Capping 3
This machine is mainly an automatic drying device for drying the moisture on the outer wall of the bottle after filling, and then pasting the self-adhesive trademark. It uses a custom-made universal joint nozzle to adjust the angle according to the shape of the bottle, and blow dry several times from top to bottom to ensure that the entire bottle is dried 360 degrees without dead corners and no moisture residue, so as to achieve the maximum drying effect and power saving effect.

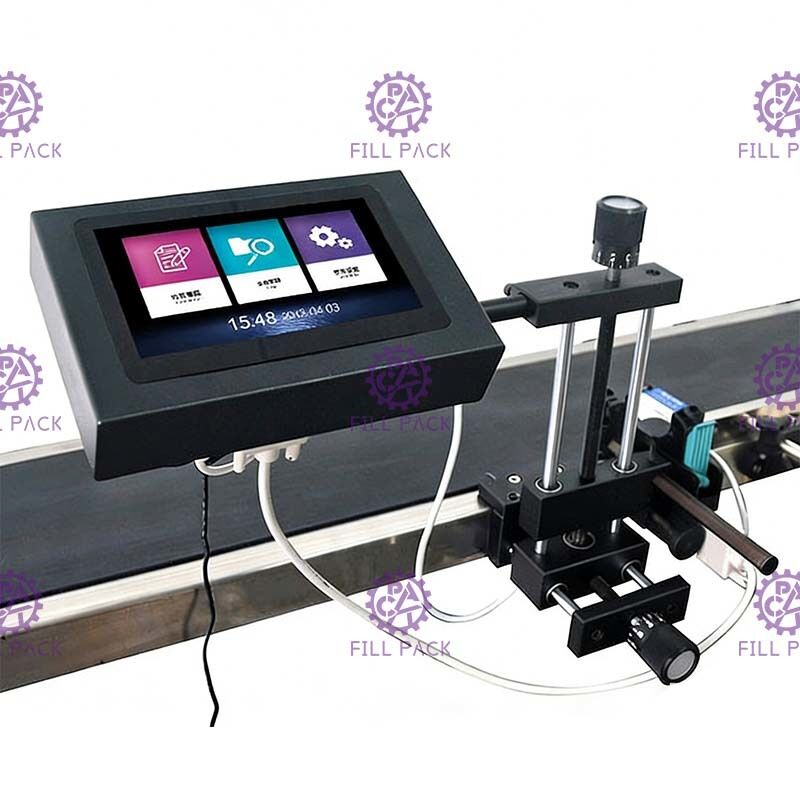

Code printer
Plastic Bottle Mineral Water Production Line 6000BPH 18-18-6 Rinsing Filling Capping 4
The code printer mainly codes the date.We have all kinds of code printing machine, like Hand-held ink jet printers,High resolution ink jet printers and laser code printers etc.
★How to choose the code printer? You need to tell us what kind of bottle you need to code on and how fast the printer you need, the speed is how many meters per minute.

Film shrinking packing machine
Plastic Bottle Mineral Water Production Line 6000BPH 18-18-6 Rinsing Filling Capping 5
★The film shrink packing is used to pack scattered bottles into a whole group.We have Manual wrapping Shrink Packing Machine, Semi-Automatic PE Film Heat Shrink Packing Machine, L Type Automatic PE Film Heat Shrink Wrapping Machine,Linear type High Speed Automatic Shrink Packing and Color film orientation shrink packing machine.
